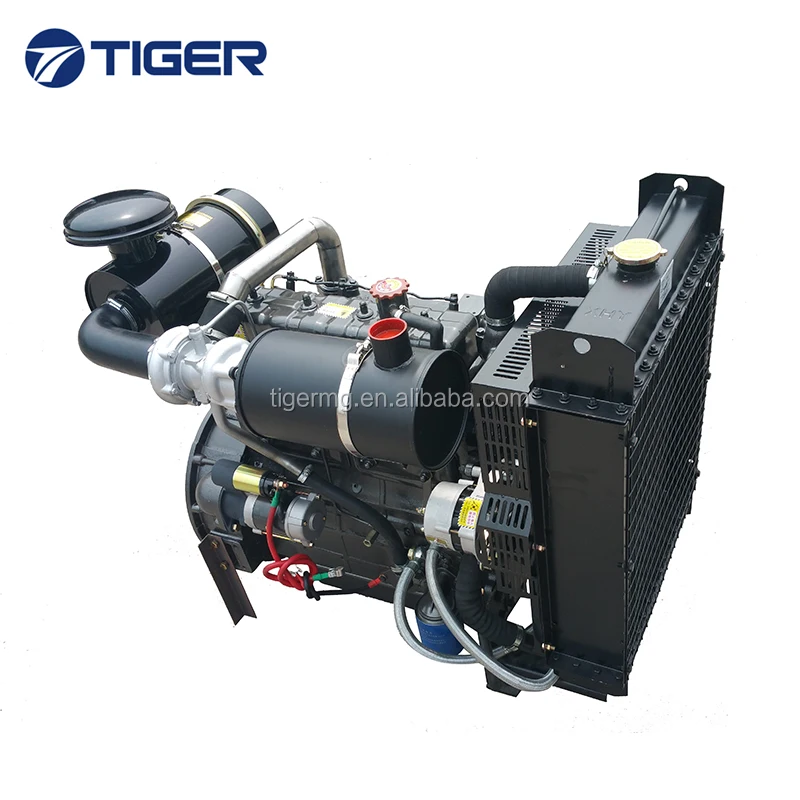

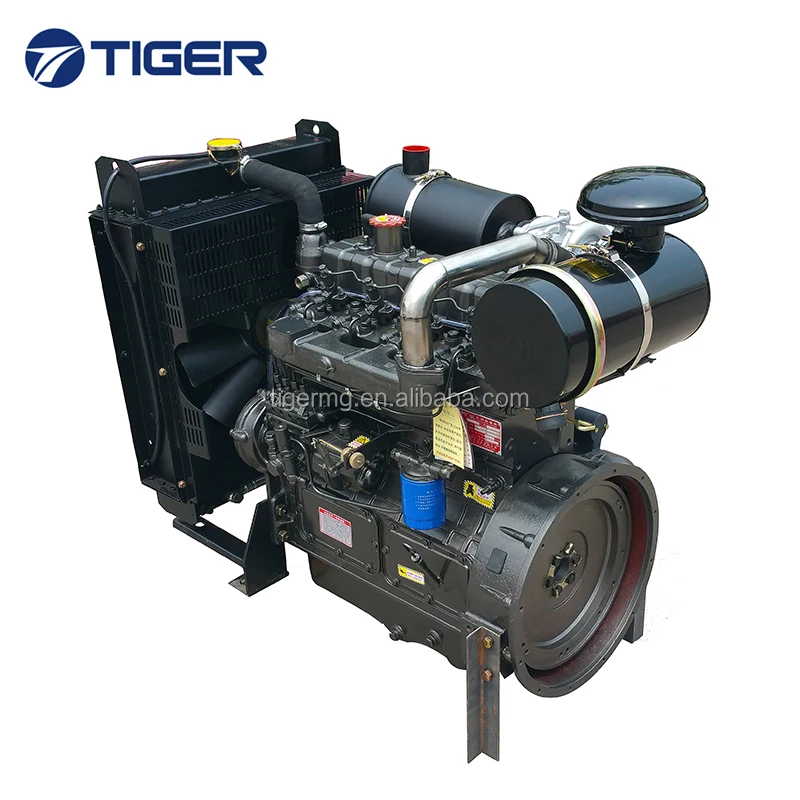

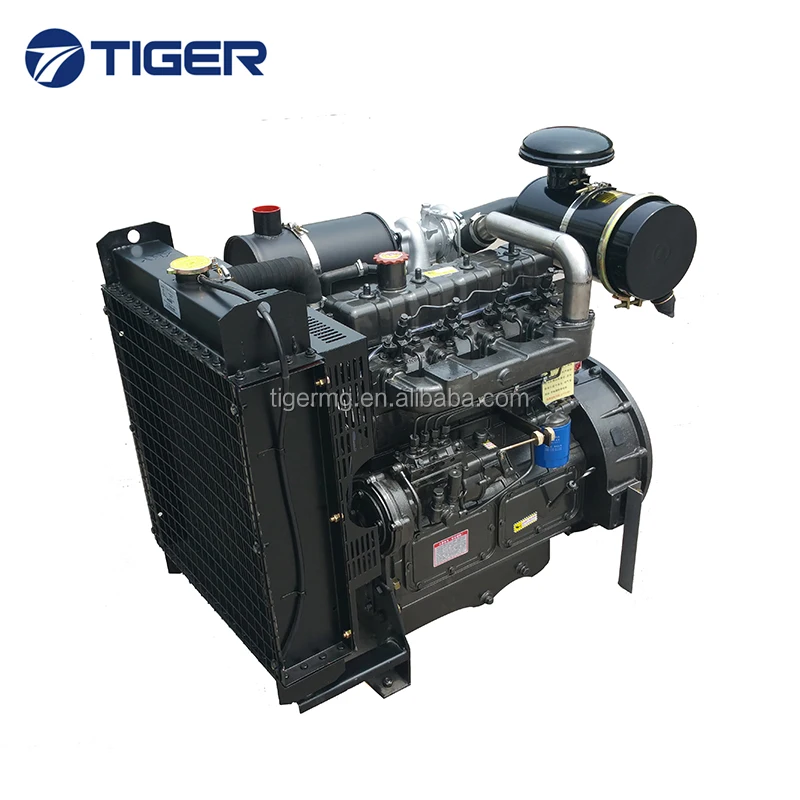

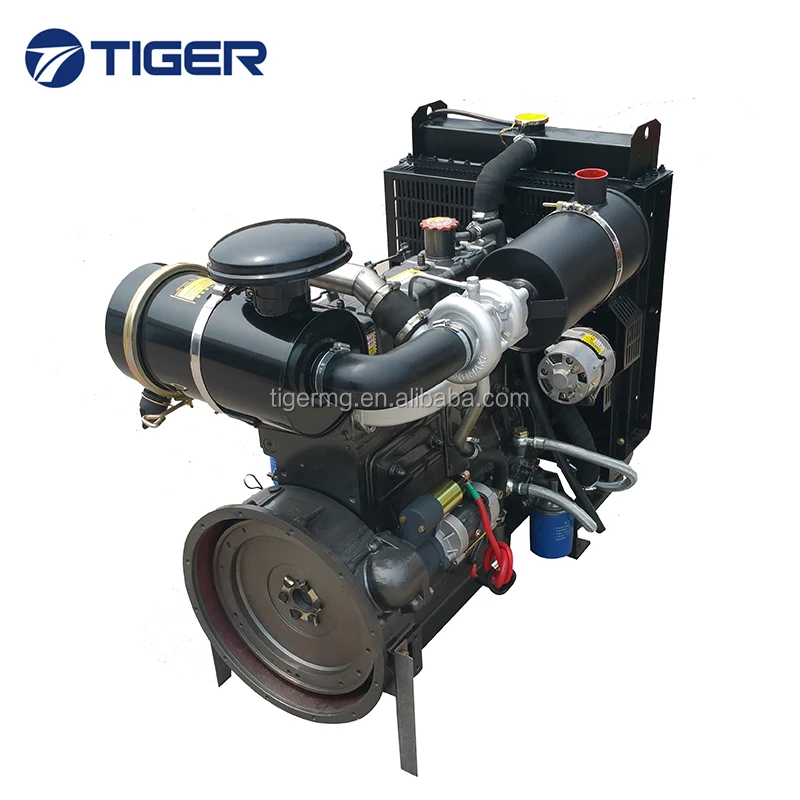

good price ricardo series diesel engine 4100
- Category: >>>
- Supplier: Shandong Tiger Machinery Technology Co. Ltd.
Share on (60616709072):
Product Overview
Description
Product Description
The features of diesel engine 4100
1: designed by British Ricardo for China
2: compact structure, 4 cylinders, mechanical governor

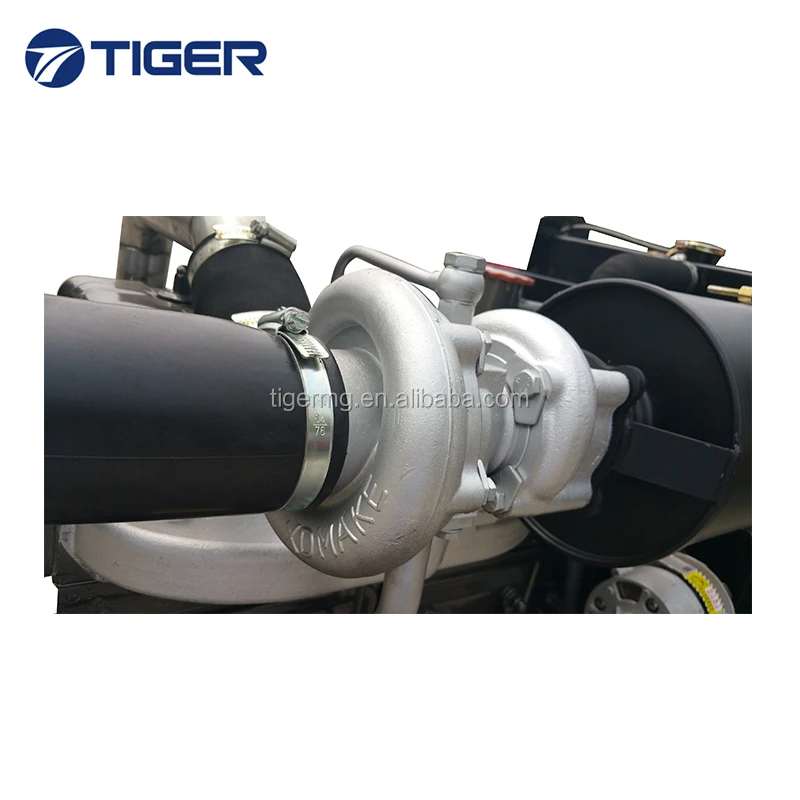

3: turbocharged, with bigger reserved power
4: durable quality, the idea industrial power
Basic parameters for diesel engine 4100
Item | 495D | 495ZD | ZH4100D/K4100D | ZH4100ZD/K4100ZD | ZH4102D/K4102D | ZH4102ZD/K4102ZD |
Power /speed | 26kw/1500rpm | 36kw/1500rpm | 30.1kw/1500rpm | 41kw/1500rpm | 33kw/1500rpm | 44kw/1500rpm |
30kw/1800rpm | 40kw/1800rpm | 35kw/1800rpm | 45kw/1800rpm | 36kw/1800rpm | 47kw/1800rpm | |
Overload capacity | Can overload 10% for 1 hour every 12 hours | |||||
Cylinder quantity | 4 cylinders inline | |||||
Bore*stroke(mm) | 95x115 | 95x115 | 100x115 | 100x115 | 102x115 | 102x115 |
Displacement | 3.26L | 3.26L | 3.61L | 3.61L | 3.75L | 3.75L |
Compression ratio | 1:19 | |||||
Governor type | Mechanical or Electronic | |||||
Intake type | NA | T | NA | T | NA | T |
Idle speed | ≤600rpm | |||||
Max idle speed | ≤1575rpm or ≤1890rpm | |||||
Electric Starter | 12V | |||||
Cooling method | Water-cooled by radiator | |||||
Fuel consumption | ≤240g/kw.h | ≤238g/kw.h | ≤237g/kw.h | ≤236g/kw.h | ≤238g/kw.h | ≤237g/kw.h |
Oil consumption | ≤1.83g/kw.h | ≤1.83g/kw.h | ≤1.63g/kw.h | ≤1.63g/kw.h | ≤1.60g/kw.h | ≤1.60g/kw.h |
Oil replaced period | 250 working hours | |||||
Type of filters | Dry type | |||||
Interface size | SAE3# flywheel shell, 11.5' flywheel ; single bearing or double bearing | |||||
Packing size(mm) | 1070x640x1030 | 1100x680x1110 | 1070x640x1070 | 1110x680x1130 | 1070x640x1070 | 1110x680x1130 |
Net weight(kg) | 380 | 390 | 380 | 390 | 380 | 390 |
Offer details for diesel engine 4100
1) diesel engine (mechanical governor, low inertia injectors)
2) fixed water cooled radiator
3) air filter, fuel filters, oil filter, silencer.
4) 12V Starter with relay, 14V 350W copper wires alternator with AVR
5) luxury monitors for water temp, oil pressure etc
6) tool case with free parts, instruction manual, parts catalogue.
Optional parts for diesel engine 4100
parts quality upgrade kits.
Packaging & Shipping
Quality control
1) parts: Only choose reliable parts like P type injectors, Weifu fuel pump, quenched liners, mo-sprayed piston rings, famous brand starter & alterantor etc
2) advanced equipments: like smart bolts tightening machine, air passage test equipment, cylinder block digital machine center, seal test center etc.
3) workmanship: 100% assembled as per technical drawing & request
4) test: professional 8 hours test on 0 , 25% , 50% , 75% , 100% , 110% load before delivery.
About us
Cases
The reliable quality & service make us win the customer's deep trust.
FAQ
1) Are you manufacurer?
Yes, we invested the factory and manufacture diesel engines since 2007, welcome you come here to visit us !
2) How much power of diesel engines do you produce?
We produce diesel engines with power from 10kw to 330kw.
3) What are the usages for the diesel engines produced?
The diesel engines can use used for generator, firefighting, marine, water pump for irrigation etc.
4) Which countries do you ever exported to?
The diesel engines has even been exported to Russia, Egypt, Nigeria, Suriname, Turkey, Philippines, KSA etc.
5) What about the warranty?
We offer international warranty for 1 year or 1500 running hours.
Any broken parts within warranty period will get free ones by express.
6) What about the delivery time?
Usually about 7-30 days according order quantity.
7) Is the quality good?
Yes, they are with good design and durable parts, as long as they are well maintenanced as per request, they will give you surprises.
