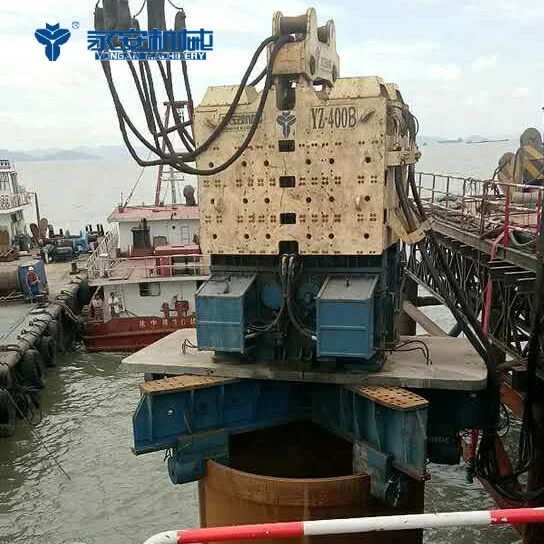

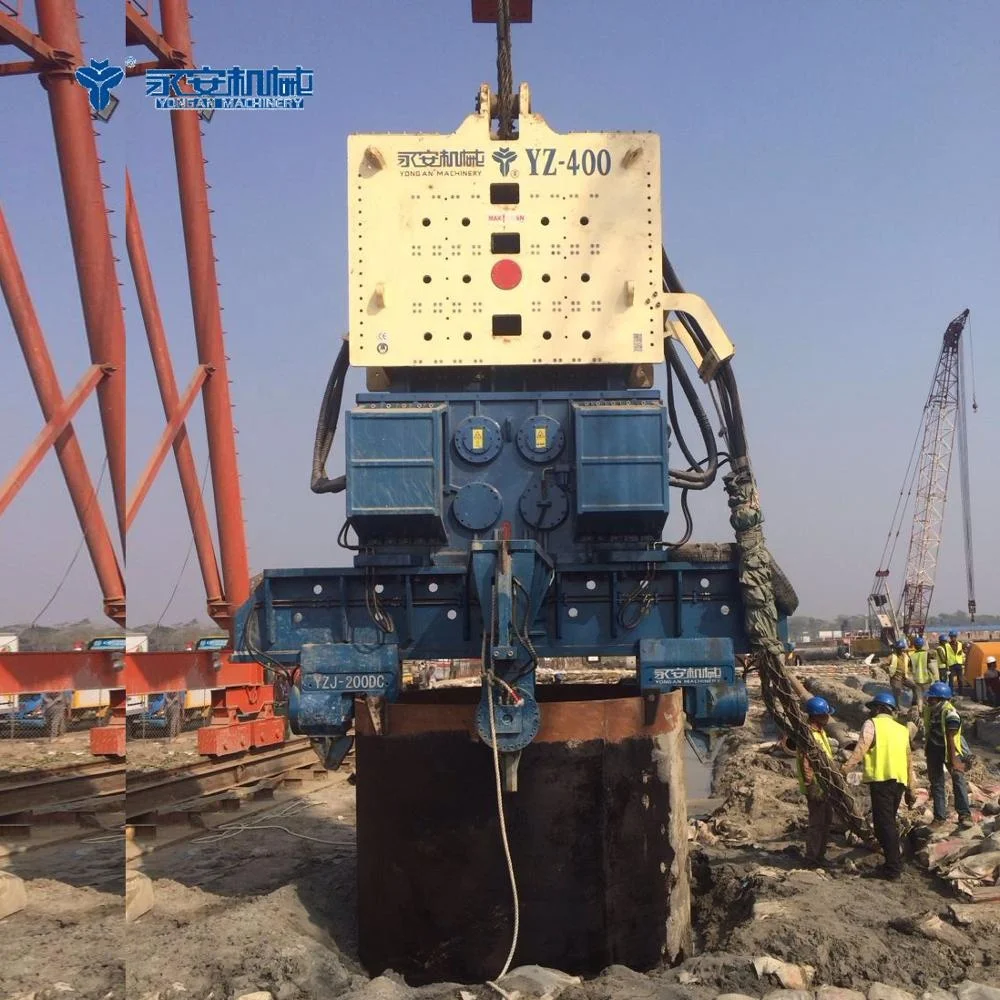

YZ400 Big Hydraulic Vibratory Hammers ,hydraulic piling hammers, piling machine for sale
- Category: >>>
- Supplier: Shanghai Yongan Machinery Co. Ltd.
Share on (60616734411):
Product Overview
Description
Product Description
Product Application
1. Pre-Made Concrete Pile
With custom designed concrete clamp, vibratory hammer YZ400 can be used for various types of pre-made concrete piles, cast-in-place concrete pile, concrete expanded bore pile,lime pile and,stone column pile.
2. Cofferdam
Piling hammers YZ400 is used to drive sheet pile to build the coffer wall. It is high efficiency to drive and pull sheet piles.
3. Trestle Work and Offshore Working Platform
Drive sheet pile or casing pile to build working passage and platform before build bridge, dork, port, etc. It is easy to build and easy to remove.
4. Offshore Wind Mill Single Pile and Group Pile
Foundation machines YZ-400 is efficient to use vibratory hammer drive casing pile into the sea, environmentally friendly and easy to adjust.

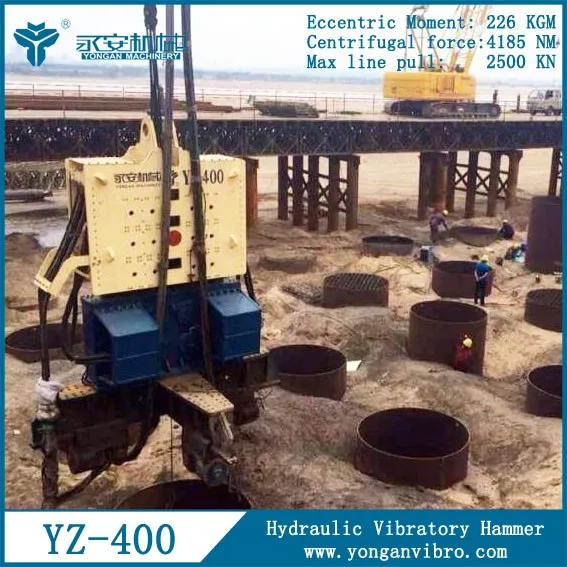

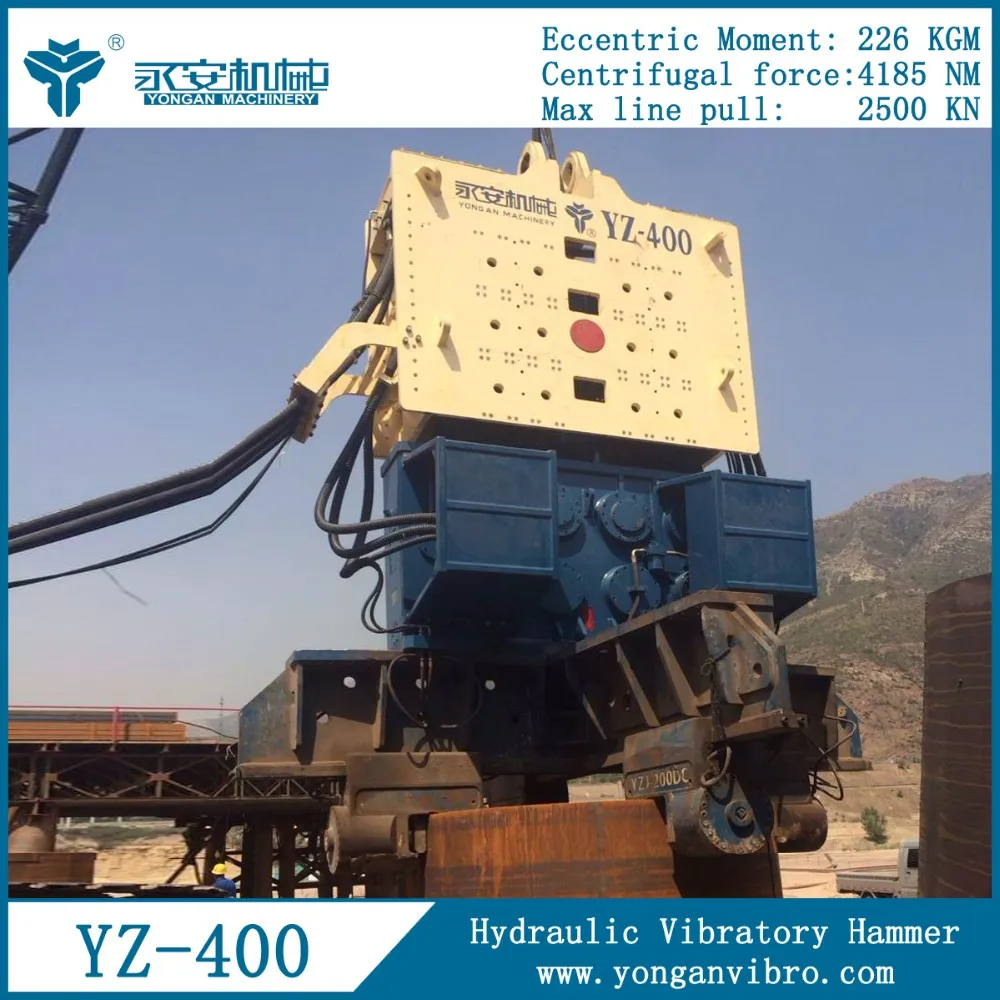

Hydraulic Vibratory Hammer YZ-400 | ||
Eccentric Moment | 226kgm | |
Max Frequency | 1400rpm | |
Centrifugal Force | 4185kn | |
Max Centrifugal Force | 4853kn | |
Max Line Pull | 2500kn | |
Max Amplitude | 40mm | |
Max oil flow | 1500L/min | |
Size w/o clamp | 2650*1280*4280mm | |
Weight w/o clamp hose | 18000kg | |
Power Pack | ||
Engine Type | C15*2 | |
Max Power | 866kw/1160hp | |
Max Frequency | 2100rpm | |
Working pressure | 350 bar | |
Max Oil Flow | 1200L/min | |
Weight | 14500kg | |
Size L*W*H | 5400*2350*2700mm | |
Single Clamp YZJ160 | |
Clamping force | 1600kn |
Weight | 1600kgs |
Size | 1107*800*440mm |
Double Clamp YZJ200DC | |
Clamping force | 4000kn |
Clamping Scope | 800-3500mm |
Size | 4500*400*1548mm |
Weight | 3270kgs |
Main Features
1. . Excellent flow characteristic for continuous duty application.
2. High strength design endures high surge and shock conditions.3. Flat-crested stub ACME threads and all steel construction withstand storage and ring-up damage.
4. Structurally compatible with high pressure hose and system induce shock load.
Certifications
Detailed Images

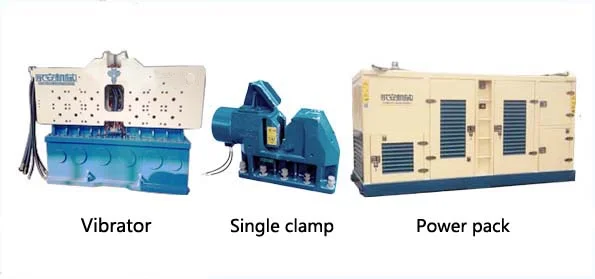

Machine Parts
Name: Power Pack
Machine Parts

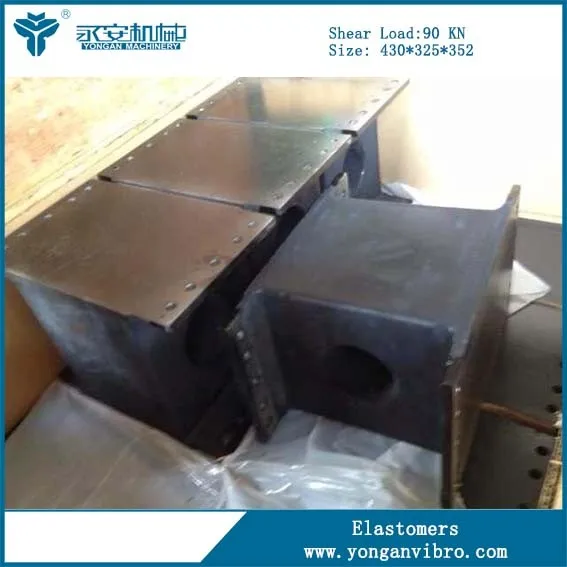

Name: Elastomer.
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* View our Factory.
After-Sales Service
* Engineers available to service machinery overseas.
Packing & Delivery
Packaging | ||
Size | ||
Weight | ||
Packaging Details | Vibratory Hammer packed with shrink film, accessories packed in the wooden box, together with power pack reinforced in one container. | |
