YH waterjet direct drive pump for waterjet cutting machinery price

Direct drive pump ( Crankshaft pump ) & intensifier pump

     Shanghai Yuanhong waterjet have two types of pumps used today in waterjet cutting: the linear intensifier pump and the rotary direct drive pump. Both intensifier and direct drive pumps are capable of reliably delivering ultrahigh-pressure water for heavy-duty industrial use for today's manufacturers.

     Crankshaft pumps are inherently more efficient than intensifier pumps because they do not require a power-robbing hydraulic system. In addition, crankshaft pumps with three or more cylinders can be designed to provide a very uniform pressure output without use of an attenuator system. Crankshaft pumps were not generally used in ultra-high pressure applications until recently. This was because the typical crankshaft pump operated at more strokes per minute than an intensifier pump and caused unacceptably short lives of seals and check valves. Improvements in seal design and materials combined with the wide availability and reduced cost of ceramic valve components now make it possible to operate a crankshaft pump in the 40,000 to 55,000 psi (280,000 to 379,000 kPa) range with excellent reliability. This represented a major breakthrough in the use of such pumps for abrasivejet cutting.Today, crankshaft pumps can operate reliably up to 55,000 psi (379,000 kPa).
The main advantage of the crank-shaft style pump is that is provides more cutting power per dollar, and is therefore cheaper to purchase and run.
The main advantage of an Intensifier style pump is that the high pressure seals last a little bit longer.

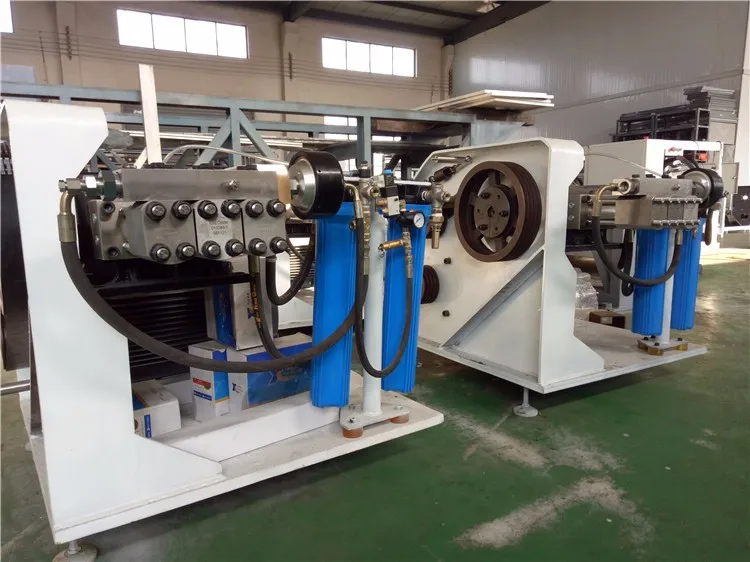

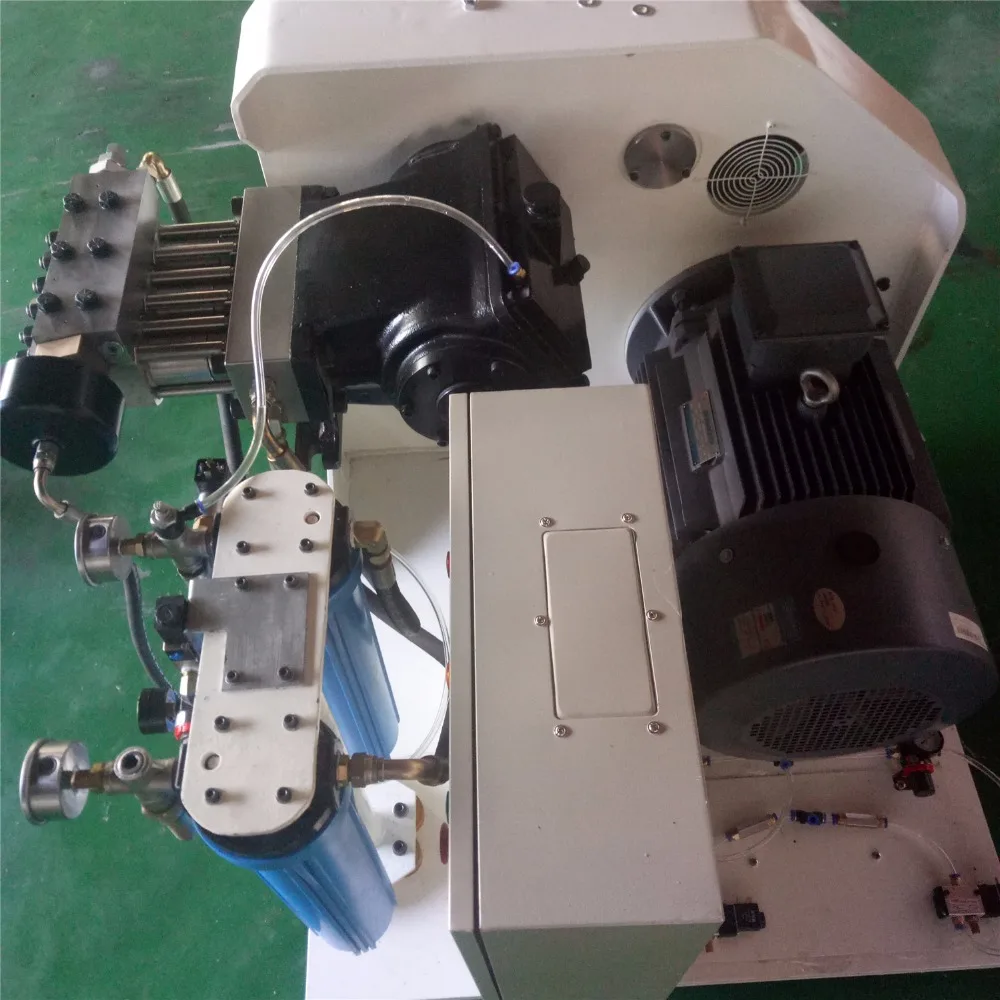

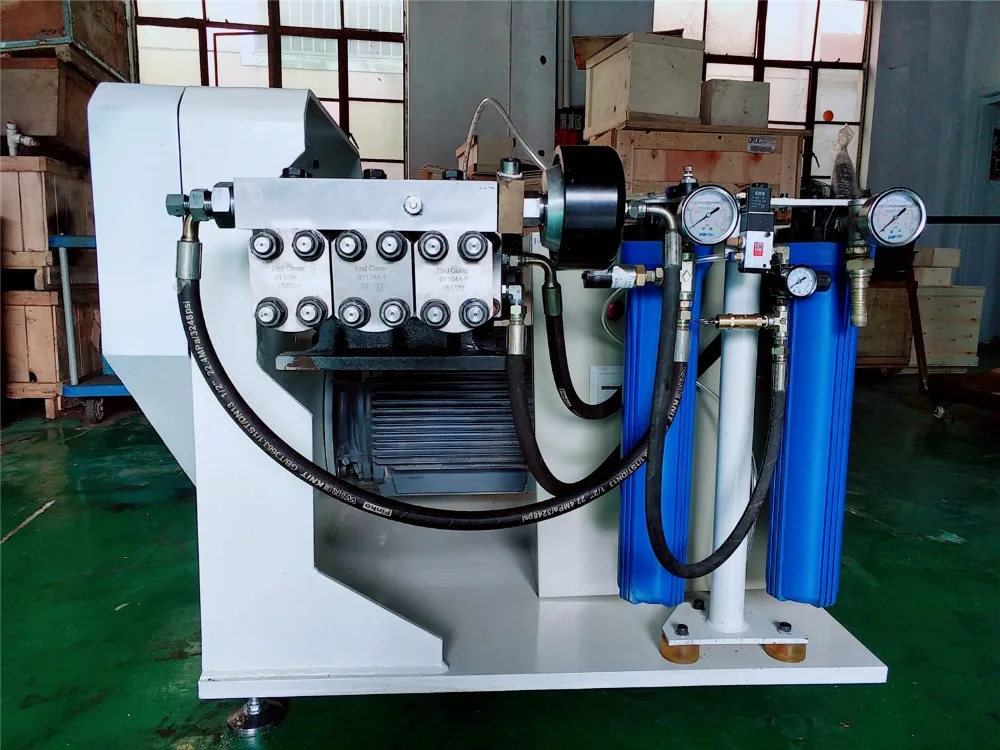

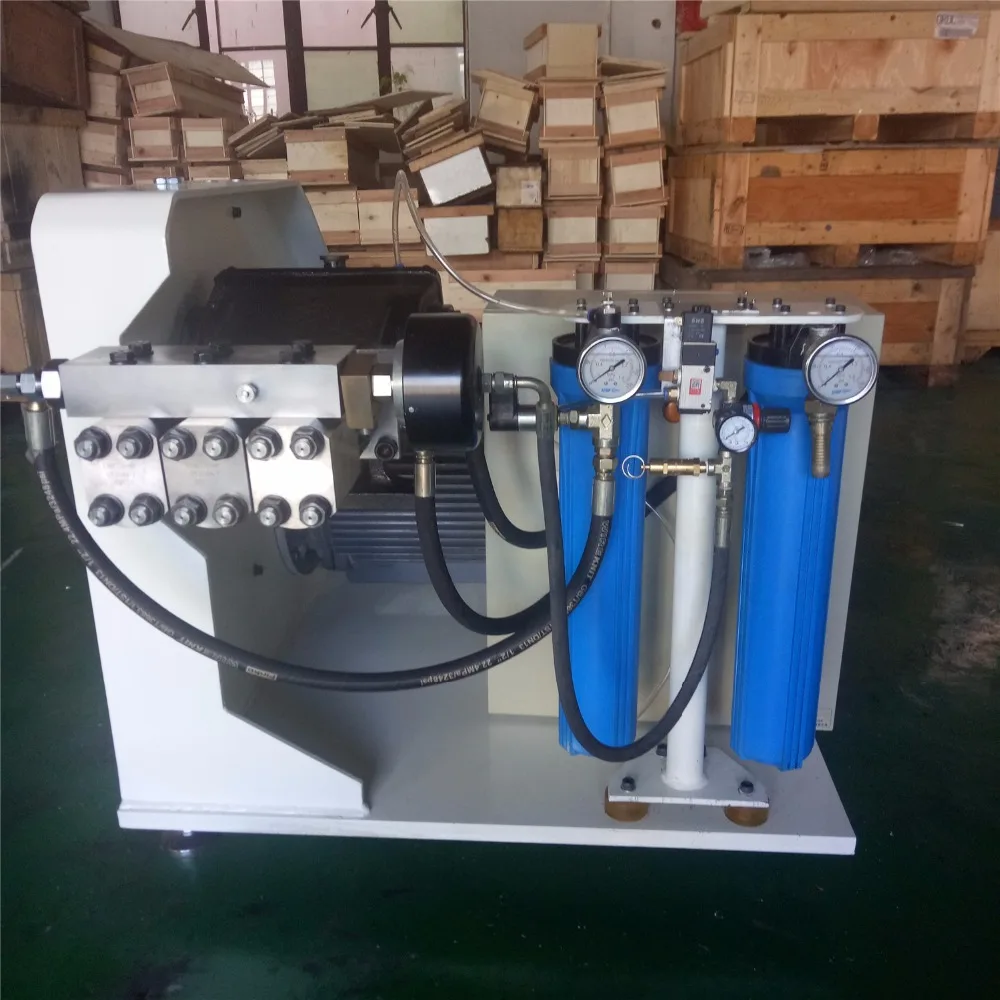

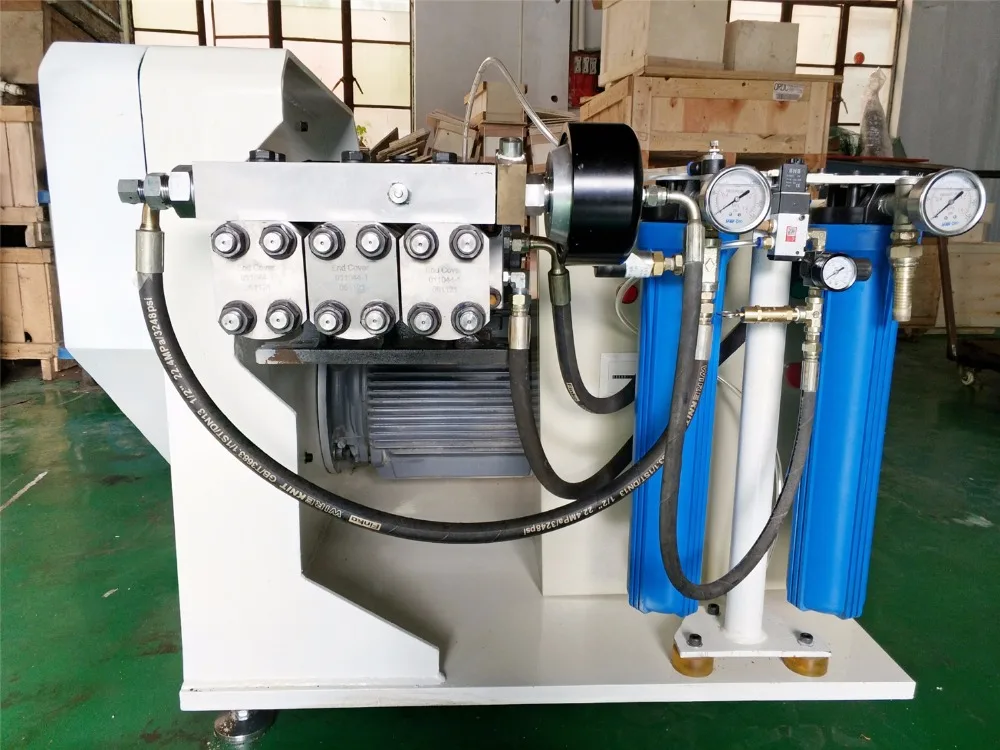

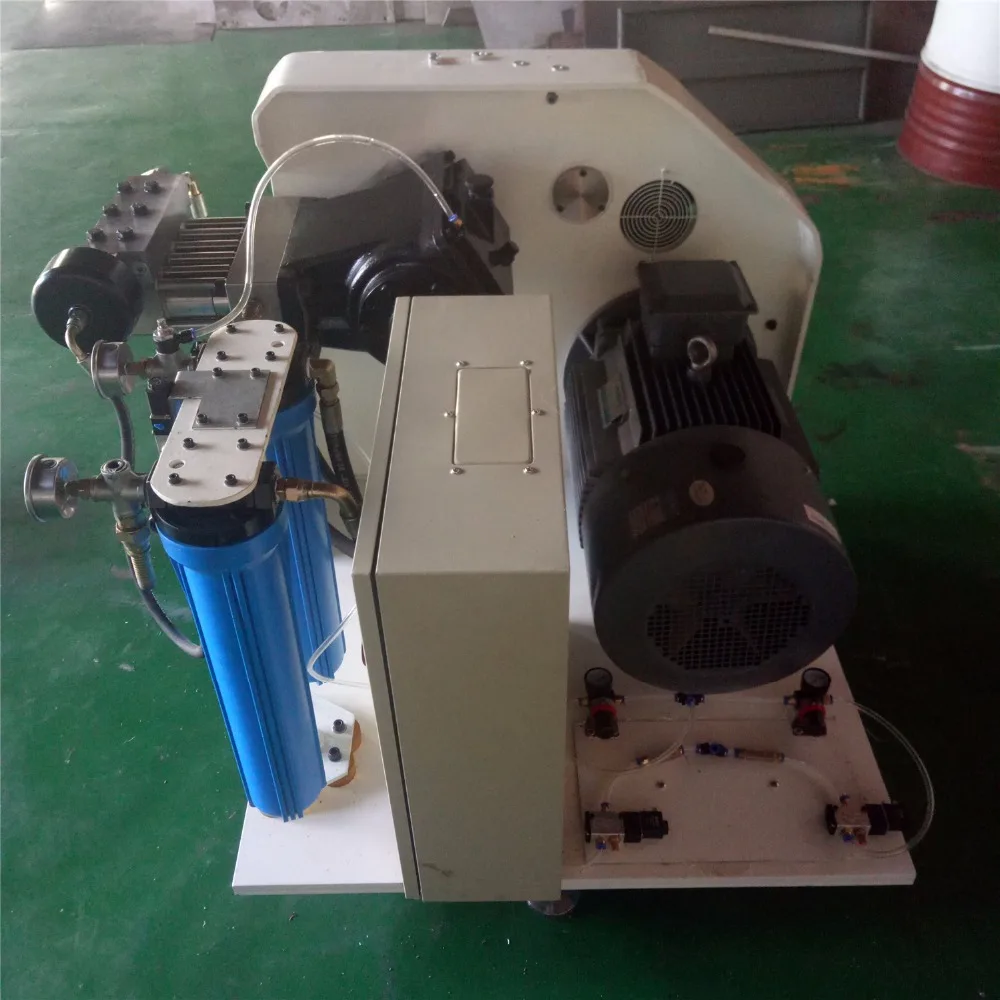

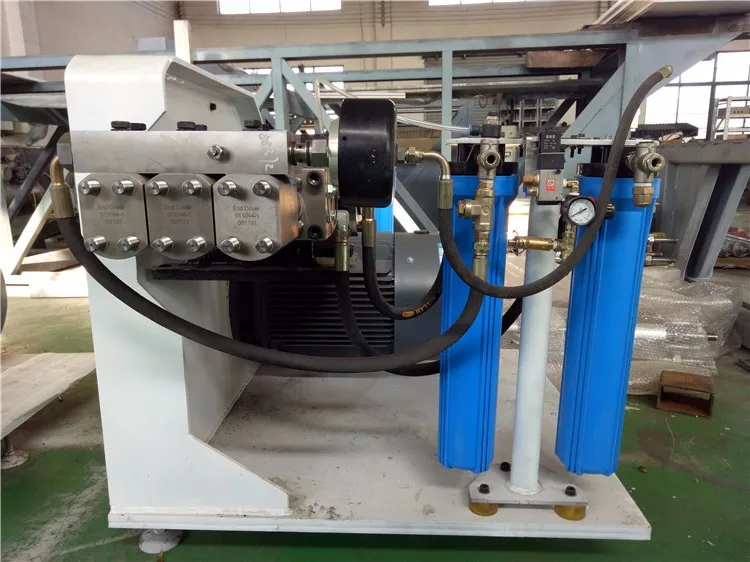

YH-DDP-30 direct drive pump for waterjet cutter

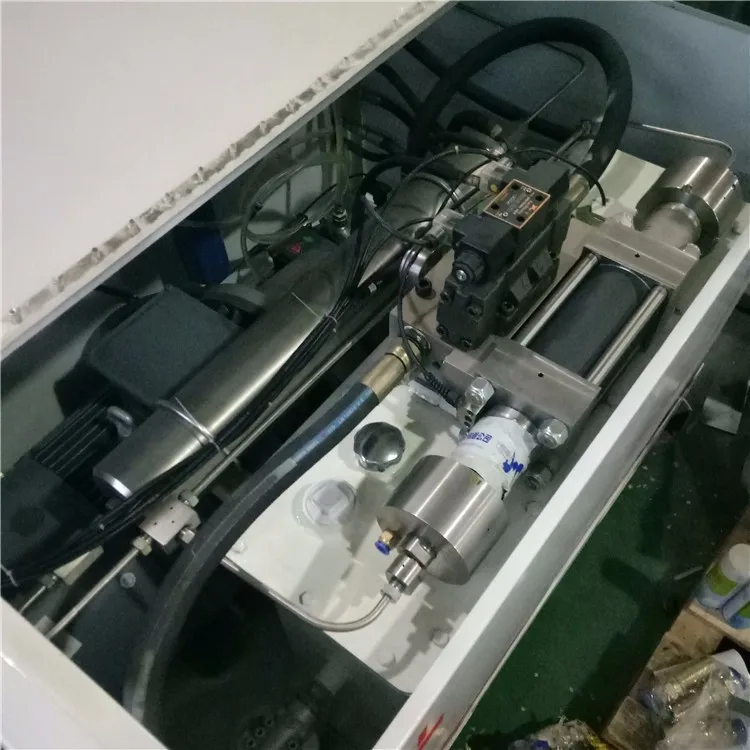

YH-SIPA( single intensifier pump assy)

Maximum Pressure(PSI/BAR)\t60000/4137
Output Flow(GPM/LPM)\t1.24
Max. Nozzle Diameter(Inch)\t0.015
Recommended Nozzle Diameter (Inch)\t0.010*2
Conrolling Type\tMicrologix 1000
Accumulator Size\t125in³(1 Liter)
 Minimum Cooling Water Flow Rate(GPM)\t4
Environment Temperature\t2 ℃ to 49 ℃

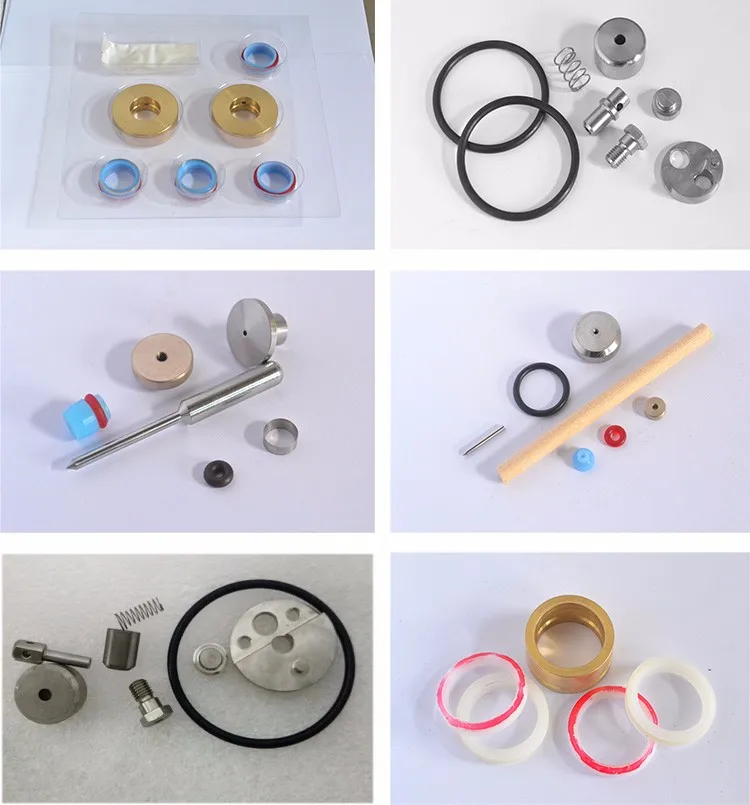

Repair kit & Maintenance kit

HP repair kit ,LP repair kit ,check valve repair kit,on/off repair kit ……

Shanghai Yuanhong Team: WE ARE A BIG FAMILY !

   China has an old saying,"Unity is strength",which means the importance of teamwork.
   In Shanghai Yuanhong Ultra high pressure CO.,ltd is a team like family ,We've committed ourselves to the success of our customers for over 40 years. As a result, nearly 1 out of every 3 systems built is delivered to repeat customers. We are proud to provide the largest and most highly trained support team, with the experience to ensure your success.
   Our customers come in all different sizes. Though the specific needs and applications may be different, we are committed to providing every one of our customers the highest quality service and support !

After Sales Service & Warranty in Shangahi Yuanhong

   Our factory is in charge of transport from Shanghai Port. Customer need to prepare the Lift hoisting for loading and unloading; After inspected the running of equipment at our factory. Then will be finished the installation and commission at customer’s factory, provide details of instruction book;Training course to operator and maintainer, including normal operating, maintenance, trouble shooting and so on.
   A warranty of 24 months on “Insert Supplier Name” fabricated equipment components is included with the purchase of the equipment. Purchased components will be warranted per the manufacturer’s warranty. The warranty period starts after successful start-up in the Purchaser’s plant and after final acceptance has been signed off.
