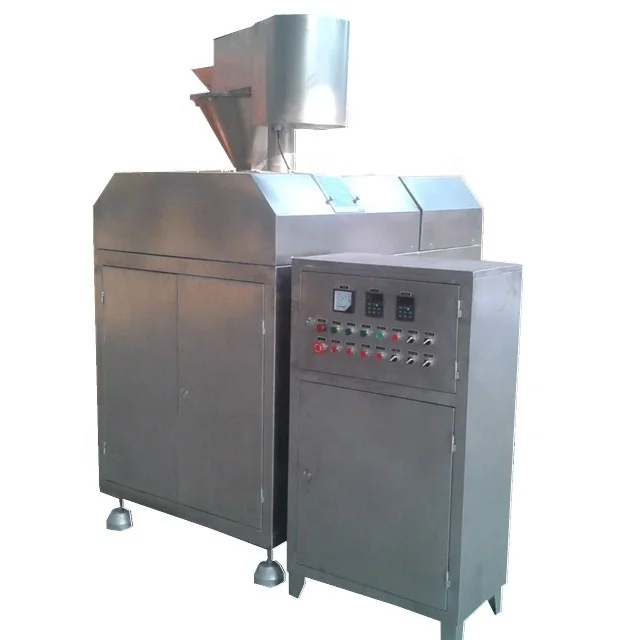

GK Series Dry Granulator
GK Series Dry Granulator
GK Series Dry Granulator

GK Series Dry Granulator

Share on (60617098393):


Price:$4,000.00

Quantity:


Product Overview

Description


Product Description

Main Application

1.Medicine: tablet, capsule filling particles, etc;
2.Food: food manufacturing particles, seasoning particles, etc;
3.Plastic: all kinds of plastic molding particles;
4.Chemical industry: catalyst, pigment, detergent and other particles.

Equipment Features

1. Even density of dry granules, good disintegration and high granule ratio.
2. Unique feeding structure guarantees efficient material feeding.
3. Circulated cooling water refuses sticky problems.
4. No need of water,wetting agent or second-time drying, less procedures, high efficiency and low cost.
5. Advanced electric hydraulic pressure, easy to operate with high automation.
6. No pollution due to closed operation, so as to meet the sanitation standard.
7. Especially suitable for the granulating of those material which can not be done by wet granulating method.

Working Principle

Powder material after mixing,sent to the feeding bin from granulator' top feeding mouth,mixed powder materials is pushed down by screw feeding mechanism,Powder drops into the gap between the two rollers,The roller is rotating and the powder is pressed into slices by cylinder,slices drop down and be granulated by granulator to the particles that needed.

\t
Model
\t
GK-80
\t
GK-120
\t
GK-200
\t
Production capacity（kg/h）
\t
20-60
\t
40-120
\t
50-200
\t
Hopper volume（L）
\t
4
\t
7
\t
10
\t
Roller size（mm）
\t
160*Φ80
\t
200*Φ120
\t
250*Φ200
\t
Roller maximum pressure（MPa）
\t
20
\t
30
\t
50
\t
Roller speed（r/min）
\t
2-20
\t
2-20
\t
2-20
\t
Feeding speed（r/min）
\t
6-60
\t
6-60
\t
6-60
\t
Roller power（kw）
\t
4 kw
\t
11 kw
\t
15 kw
\t
Feeding power（kw）
\t
1.5 kw
\t
2.2 kw
\t
3 kw
\t
Granulating power（kw）
\t
2.2kw
\t
2.2kw
\t
3kw
\t
Oil pump power（kw）
\t
1.1kw
\t
1.1 kw
\t
2.2 kw
\t
Weight(kg)
\t
 1200
\t
1600
\t
 2000
\t
Overall dimension(mm)
\t
1540×1250×2400
\t
1800×1650×2600
\t
2200×2500×2200
Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
\t
Packaging
\t
Size
\t
It depends
\t
Weight
\t
It depends
\t



Packaging Details
\t
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
\t
Packaging
\t
Size
\t
It depends
\t
Weight
\t
It depends
\t



Packaging Details
\t
If machine is big, we will fix the machine inside container with steel wires and nails.Machine won't move inside the container.
Related Products

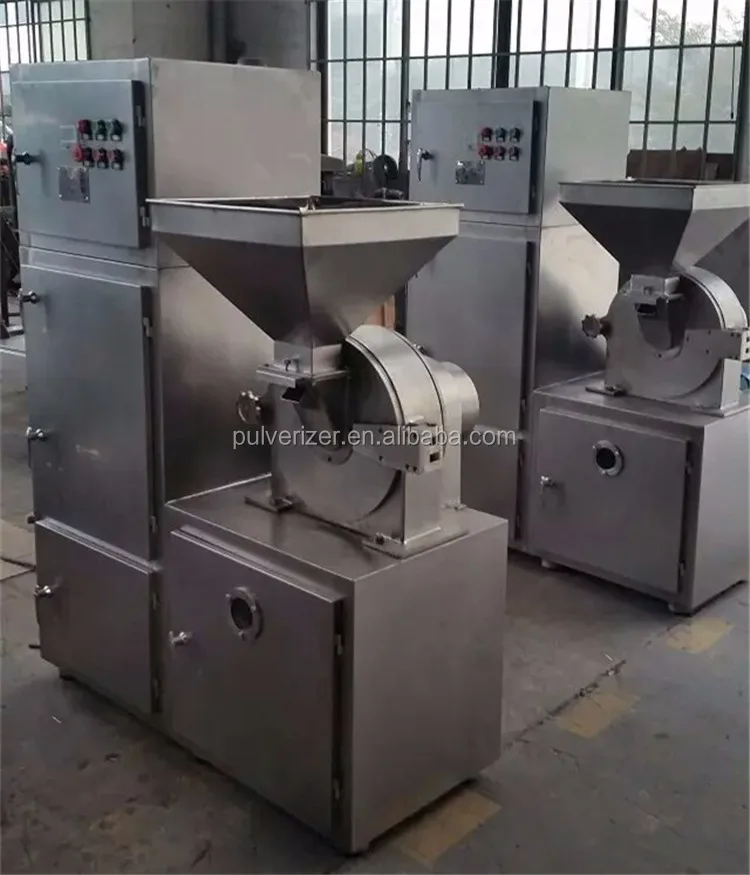

Universal crusher

fine powder grinder

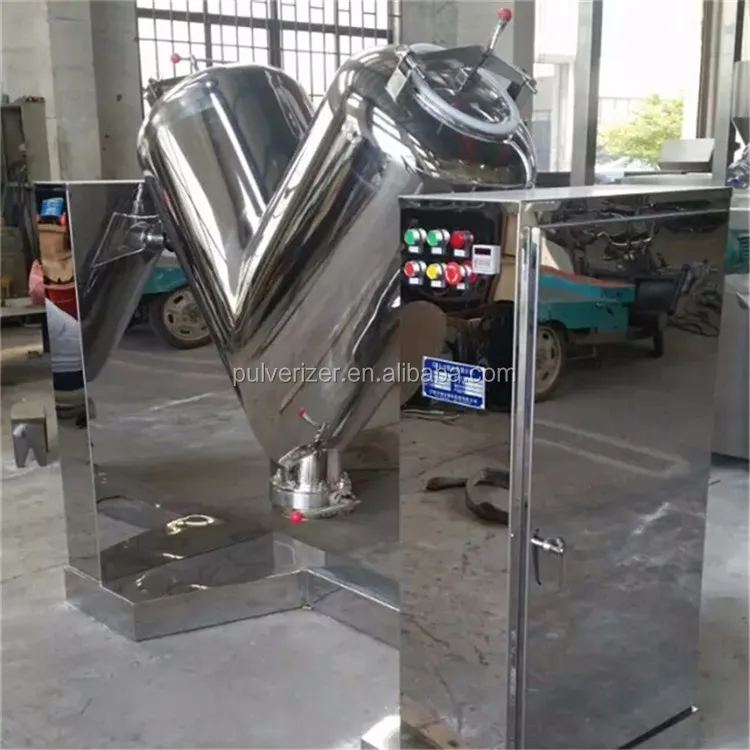

V shaped mixer

mix powder and particles

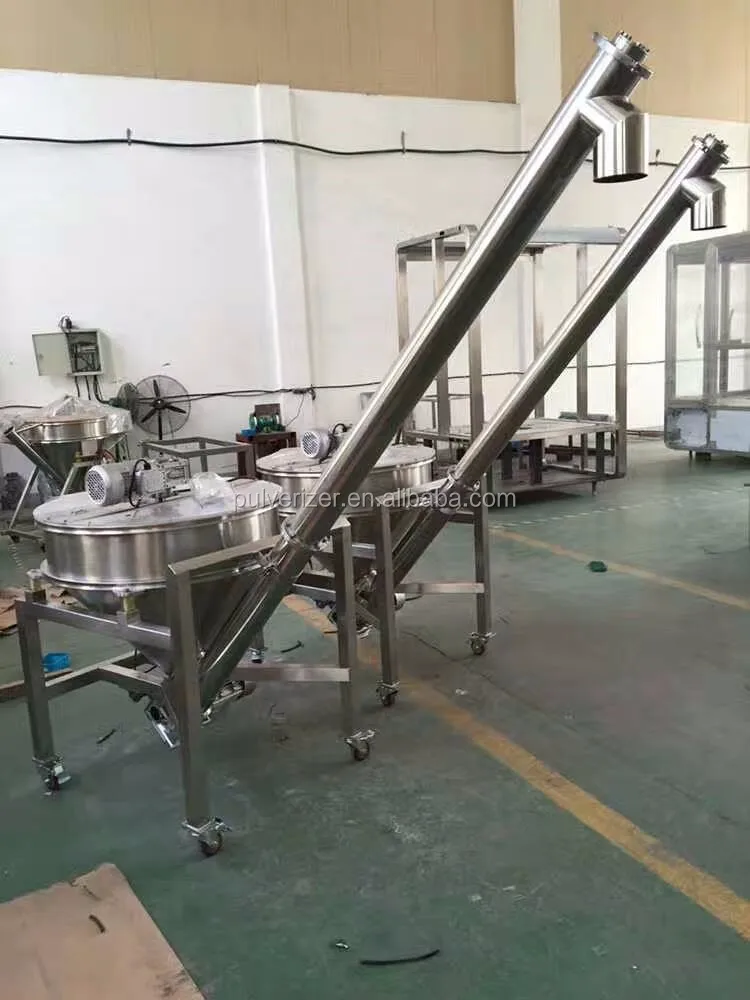

Screw conveyer
