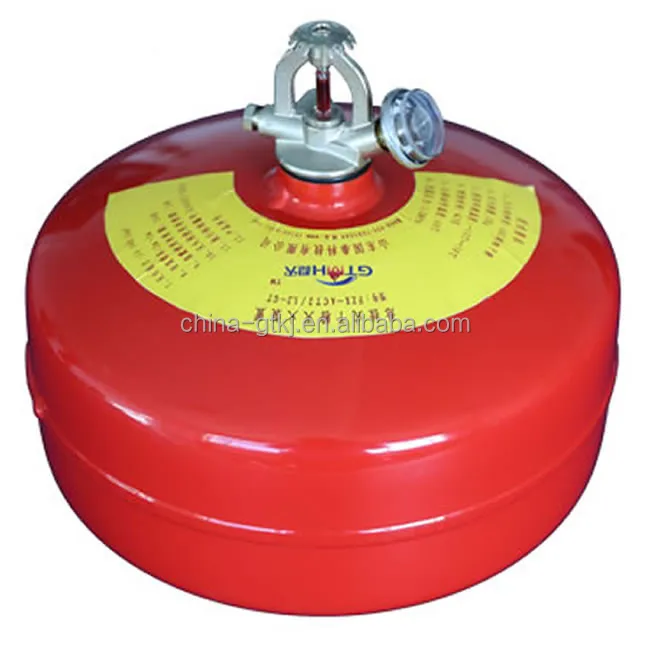

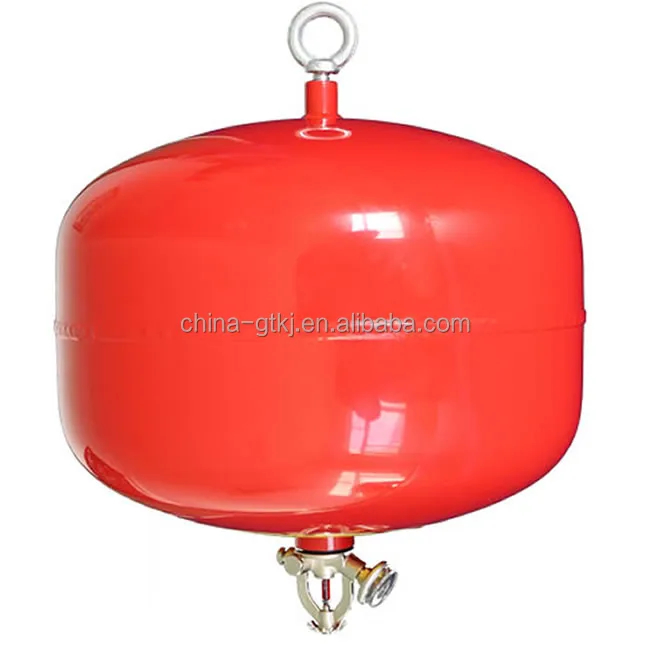

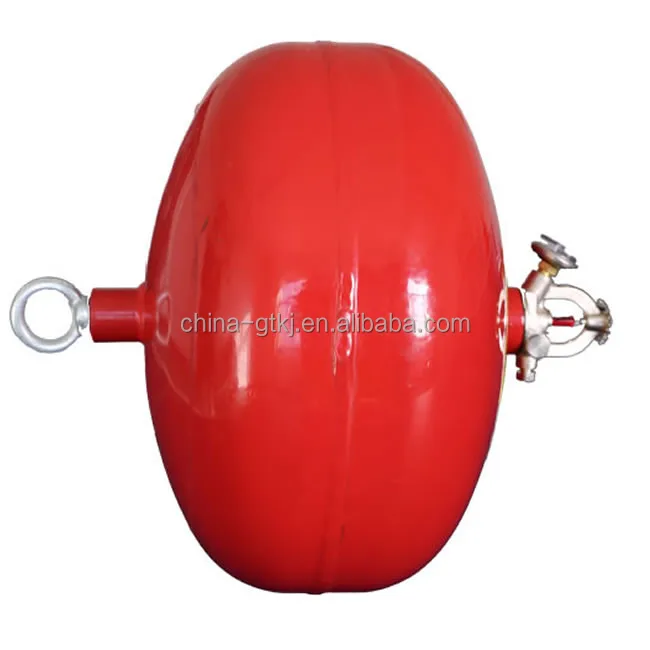

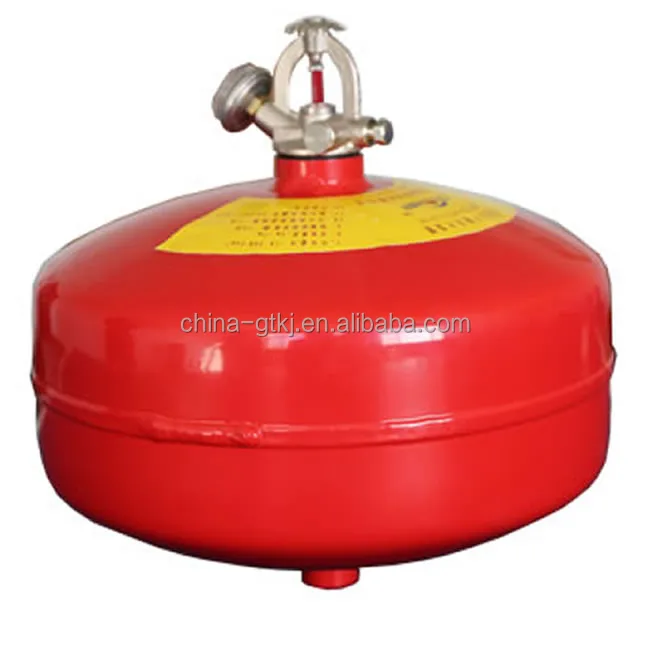

(stored pressure 6KG)hanging dry powder fire extinguisher for firefighting

Share on (60617128358):


Price:$97.00

Quantity:


Product Overview

Description


Product Description

 Characteristics of hanging dry powder fire extinguisher:

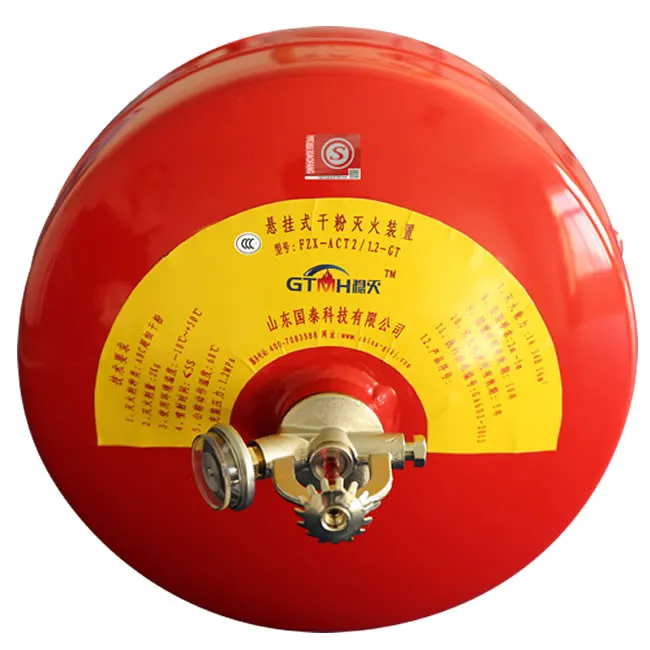

This introduction describes FZX-ACT10(2;4;6;8)/1.2-GT stored-pressure hanging dry powder fire extinguisher device (hereinafter referred to as the extinguishing device). The hanging dry powder fire extinguisher can put out A, B, C fire and electric fire (below 35KV).

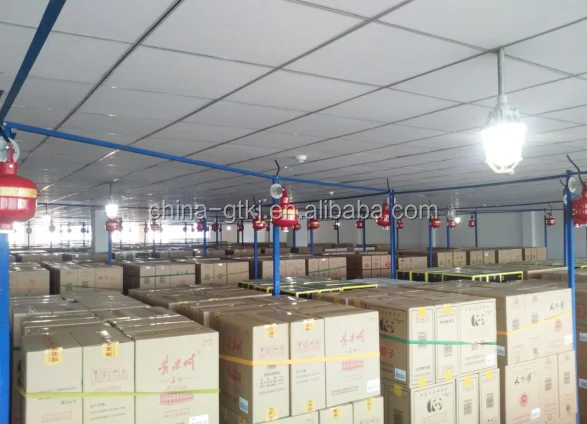

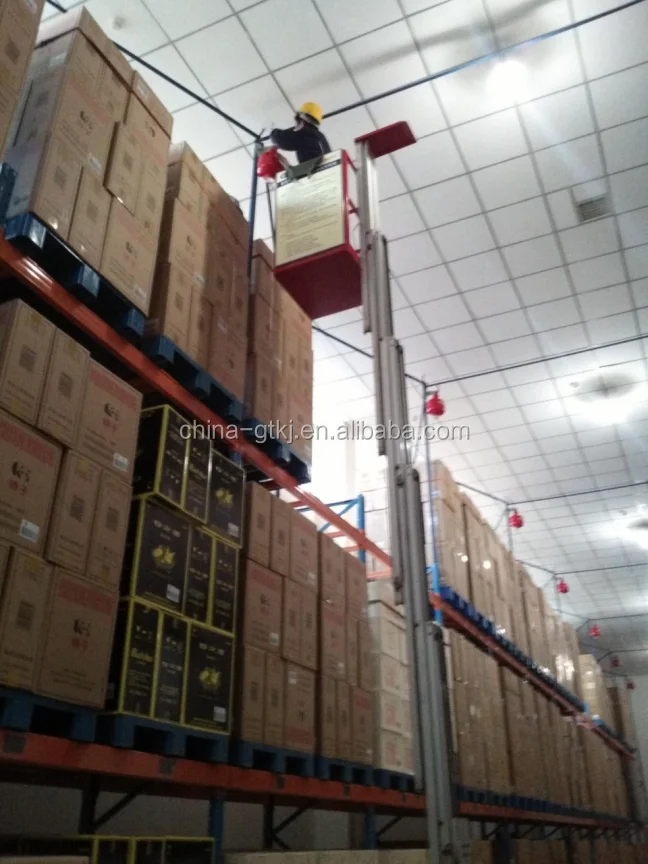

The hanging dry powder fire extinguisher can be hung on the protected area, such as industrial workshops (new, expanded or renovated), warehouses, transformer rooms, cable channels and petrochemical facilities, etc.

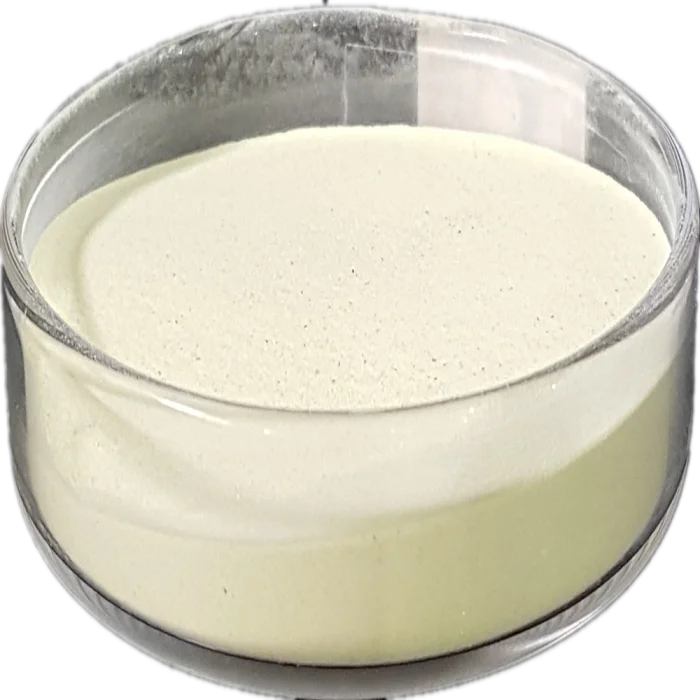

Its extinguishing agents are high quality ABC superfine dry powder, free from harmful substances. It can be activated electrically though DC24V starting voltage and over 0.5A starting current. It can also be started manually or automatically by connecting with the alarm extinguishing system.
Its manufacture and testing standard is line with GA602-2013 dry powder extinguishing device

\t
Specification/
Technical  parameter
\t
FZX-ACT

2/1.2-GT
\t
FZX-ACT

4/1.2-GT
\t
FZX-ACT

6/1.2-GT
\t
FZX-ACT

8/1.2-GT
\t
FZX-ACT

10/1.2-GT
\t
Extinguishing dose(kg)
\t
2
\t
4
\t
6
\t
8
\t
10
\t
Extinguishing
Class A
\t
1A
\t
1A
\t
2A
\t
4A
\t
6A
\t
Extinguishing
Class B
\t
34B
\t
55B
\t
55B
\t
70B
\t
89B
\t
Total flooding protection area(m³)
\t
≤16
\t
≤32
\t
≤52
\t
≤66
\t
≤75
\t
Local application protection area (㎡)
\t
≤6
\t
≤10
\t
≤14
\t
≤18
\t
≤22
\t
Remaining injection rate(%)
\t
≤5
\t
Effective injection time(s)
\t
≤5
\t
20℃ nitrogen filling pressure(MPa)
\t
1.2
\t
Glass ball nominal operating temperature(℃)
\t
68
\t
Hydrostatic test pressure(MPa)
\t
2.1
\t
Suitable temperature range(℃)
\t
-10~+50
\t
Installation requirement(m)
\t
2~5
\t
Extinguishing agent validity(Y)
\t
5
\t
Device validity (Y)
\t
10

Main Features of automatic dry powder fire extinguisher

1) Significantly more effective than alternative extinguishing agents.

2) Effective on class A,B,C,E and F fires.

3)Ease of installation-- just hang the devices on the top of protection.

4)Low cost of ownership and maintenance.

5)Various starting methods:manual start,system linkage start and temperature control start .

6)Attractive appearance --due to considering various design elements,products and both stylish and efficient.

7)Provides reliable,cost effective protection for a wide range of fire hazards.

8)Suitable for total flooding extinguishing space and local applications.

9)Safe for personnel--non-harmful to personnel at design application rates.

10)Working temperature ranging from -40℃ to 50℃.

11)No floor space requirement.

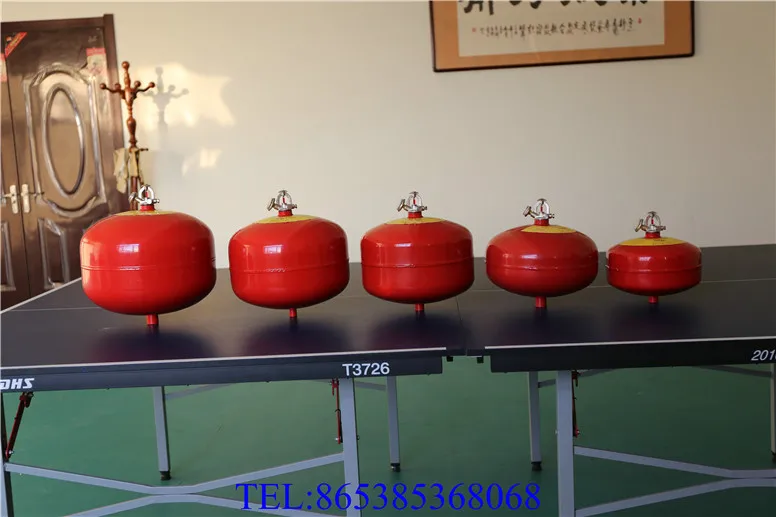

12)Available in various sizes.

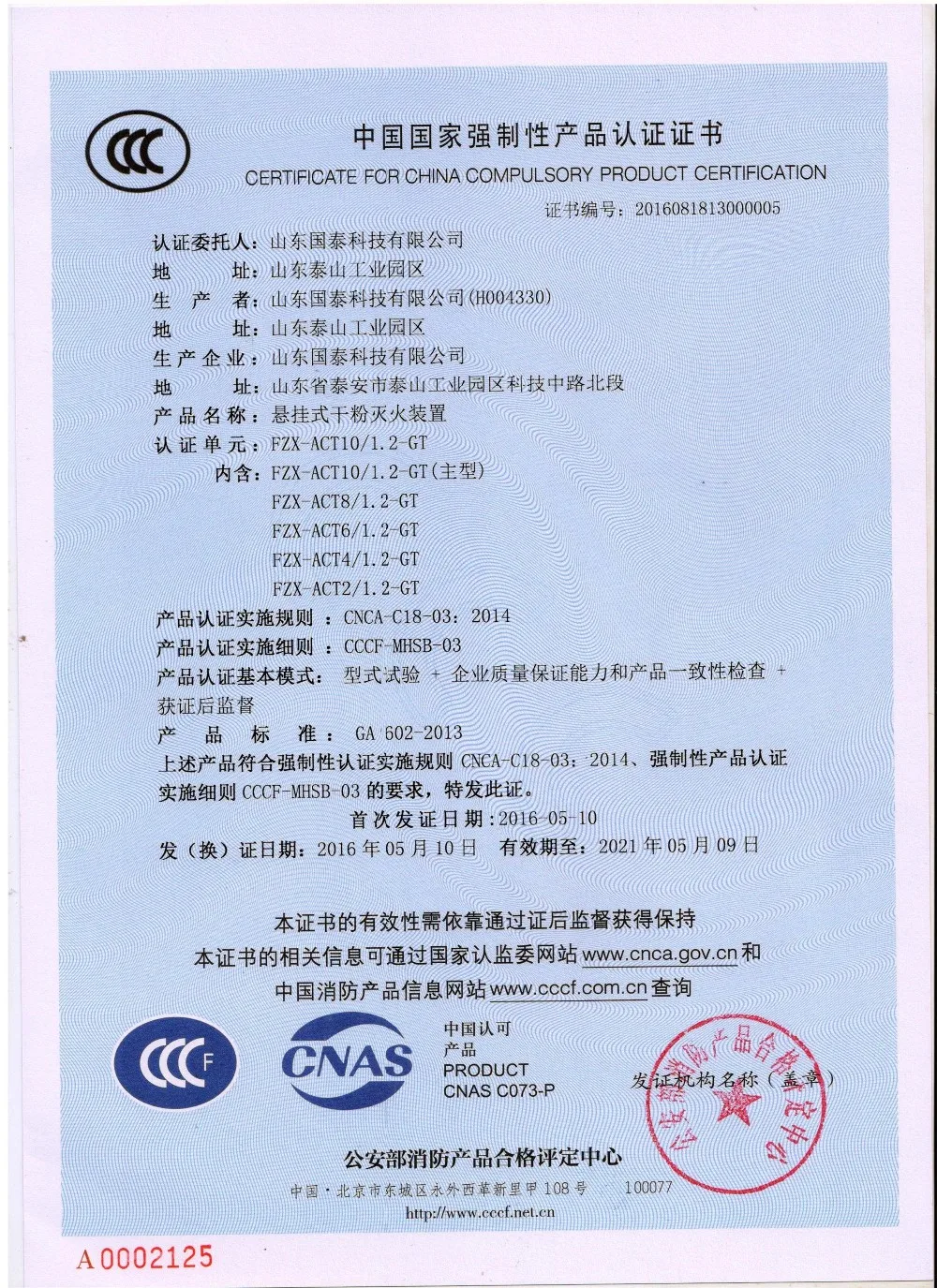

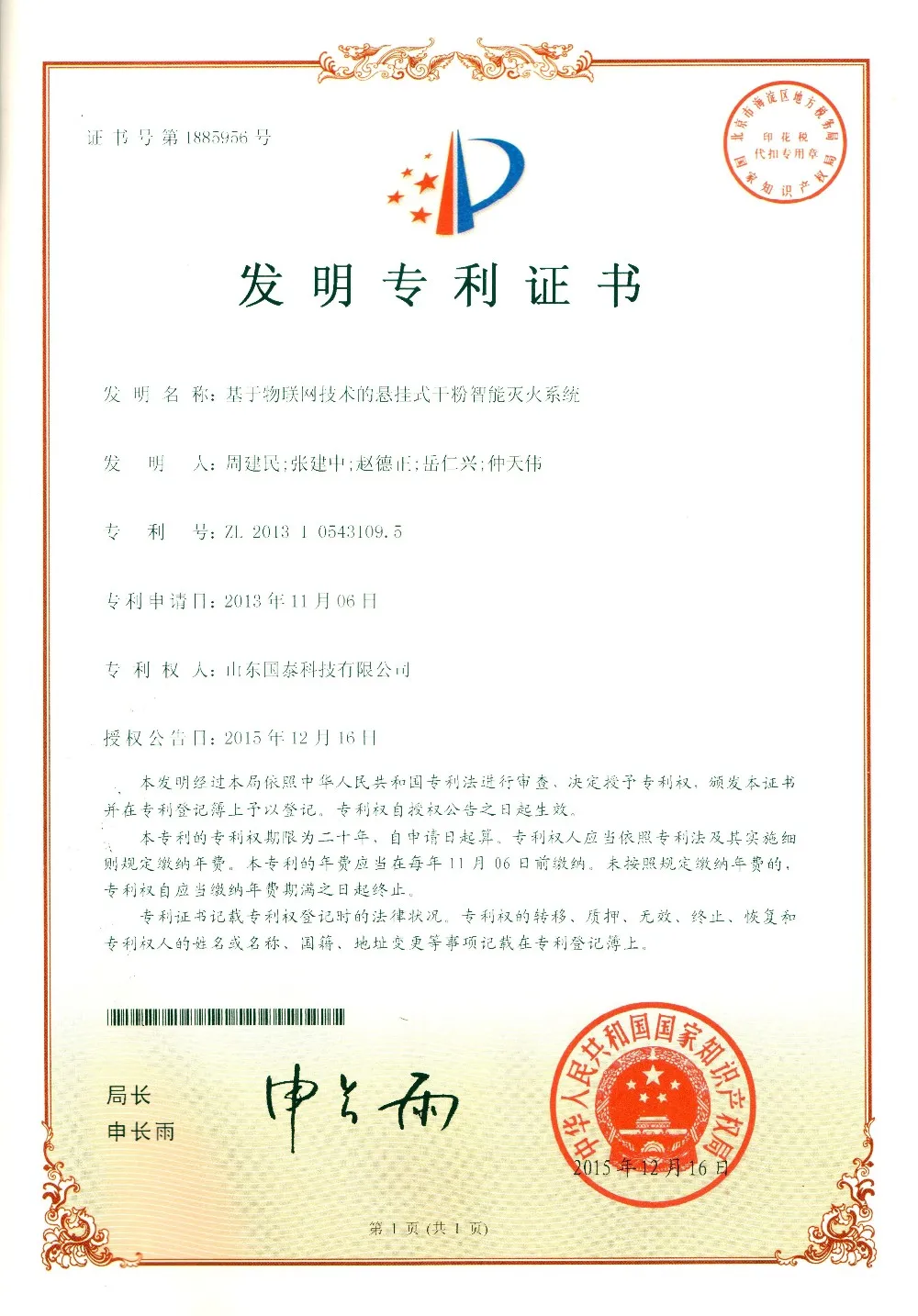

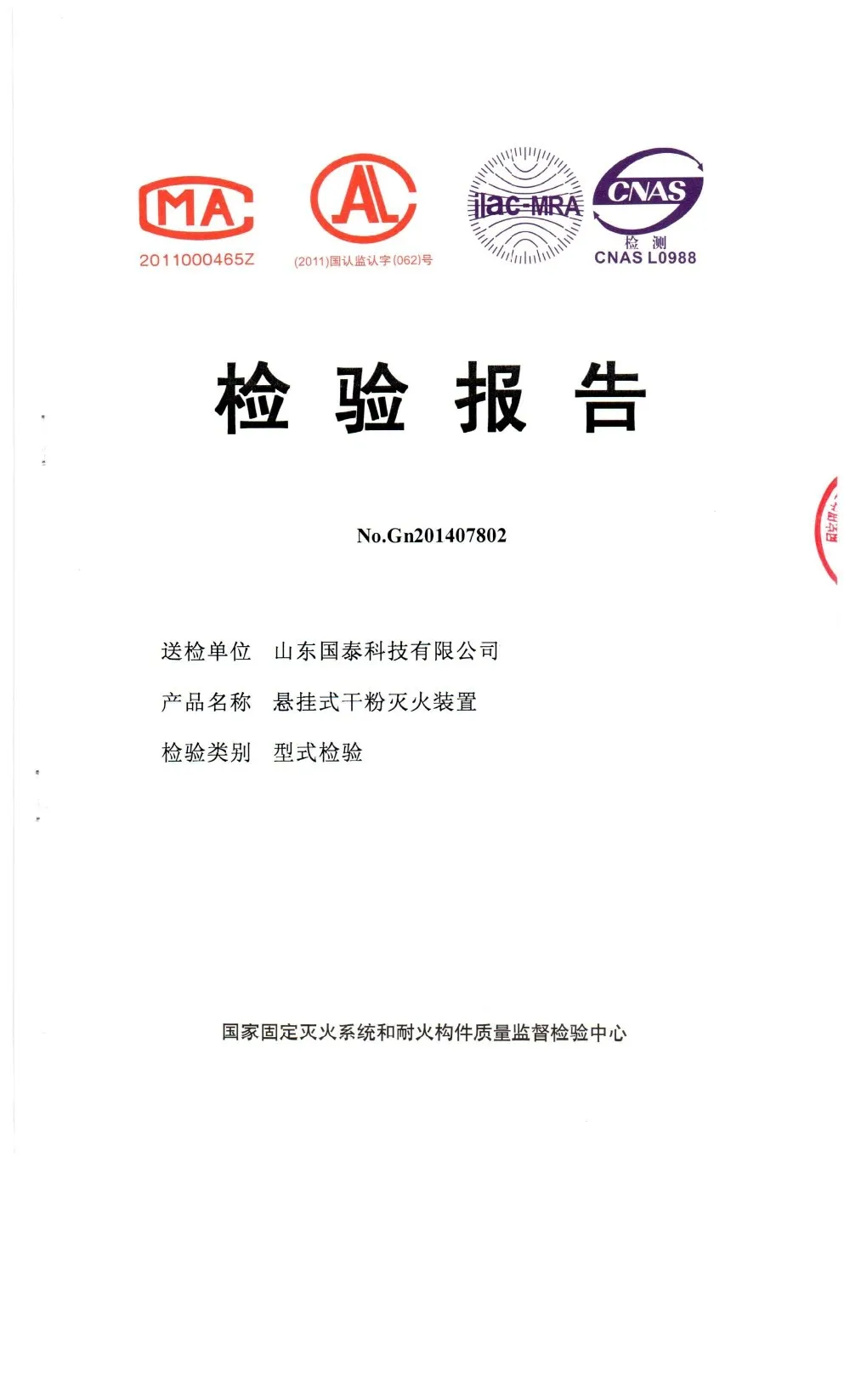

Certifications
Company imformation

Company

Name: Shandong GuoTai Technology Co.,Ltd.

Brand: WEN MIE

Original: CHINA





Why choose us:

1.Our products have the certification of China National Center for Quality Supervision and Test.So the quality of our products can be guaranteed

Why choose us:

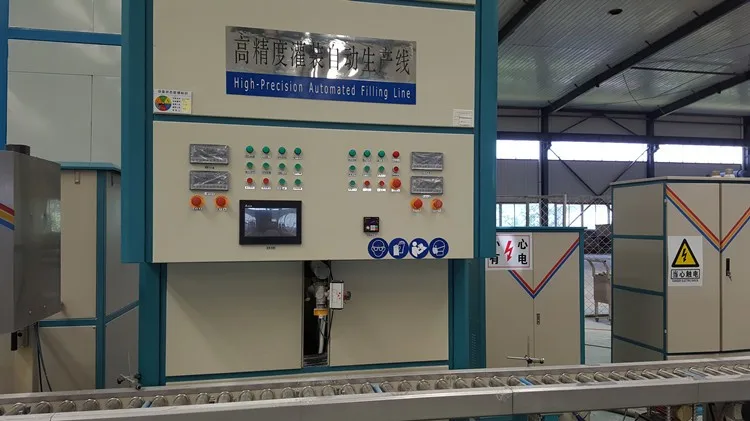

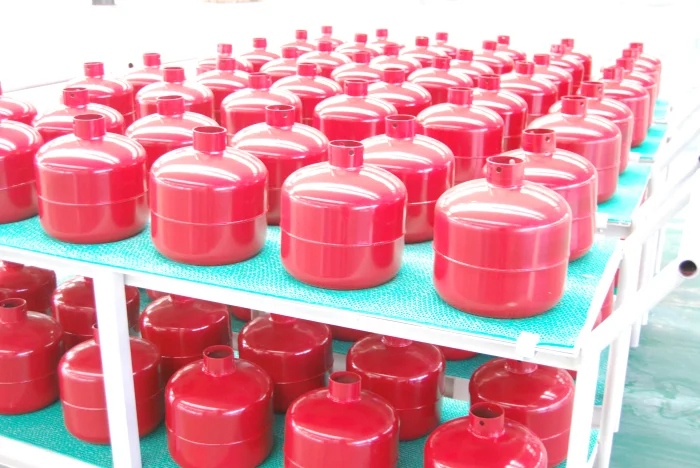

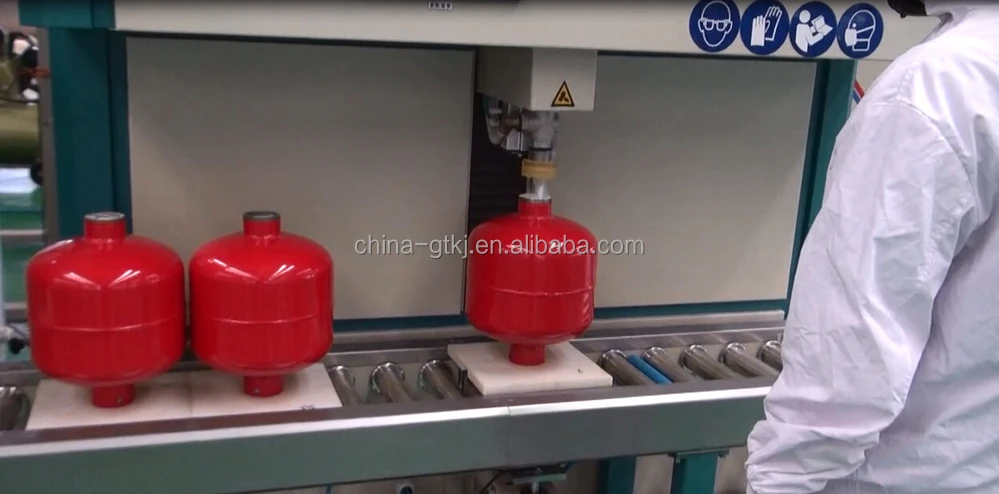

2.Our production line can produce 200,000 products every year,which is the best in China.

Why choose us:

3. we can provide resonable price for you.

Our main product:

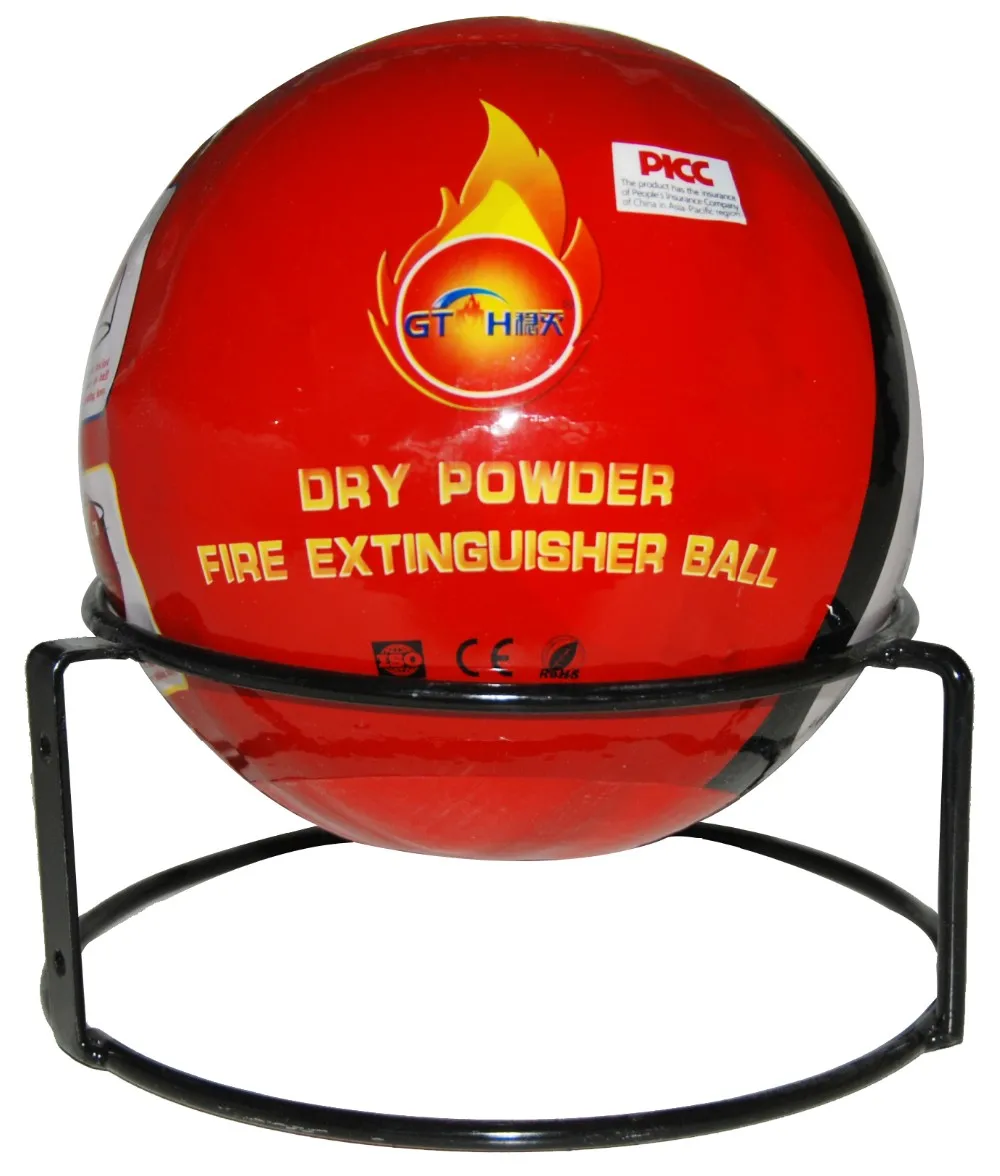

1.Fire extinguisher ball(no-stored-pressure)
2.Fire extinguisher ball(Non-stored pressure)
3.Remote control fire extinguishing robot
4.Portable dry chemical fire extinguisher
5.Trolley-type dry chemical fire extinguisher
6.Portable CO2 fire extinguisher
7.Portable type water-based fire extinguisher
8.Trolley-type water-based fire extinguisher

Our Service

Service principle:

Customer first, service first, reputation first, efficiency first

Service time: 7 x 24 hours

Phone number:8615662055089

Service target:

All for your 100% satisfaction

Related Products

(No-stored pressure)

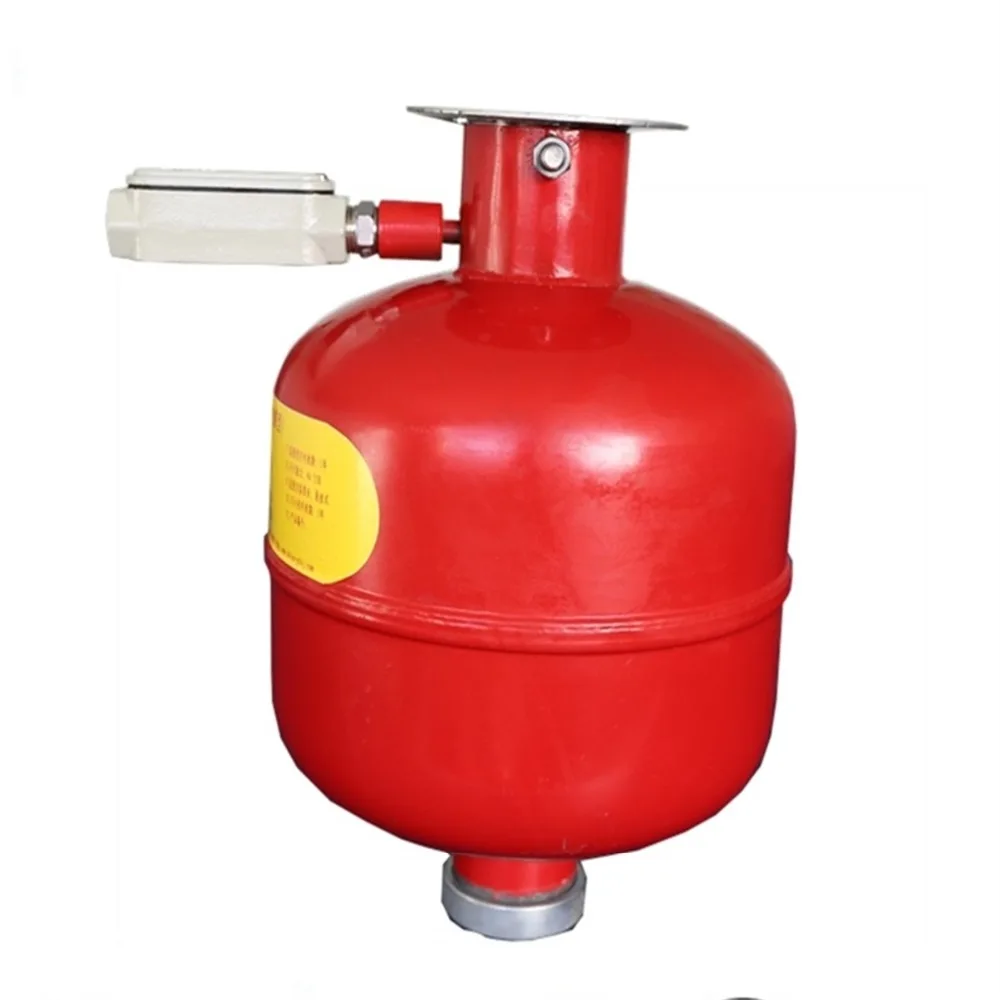

Hanging dry powder fire extinguishing device

(Explosion-proof)

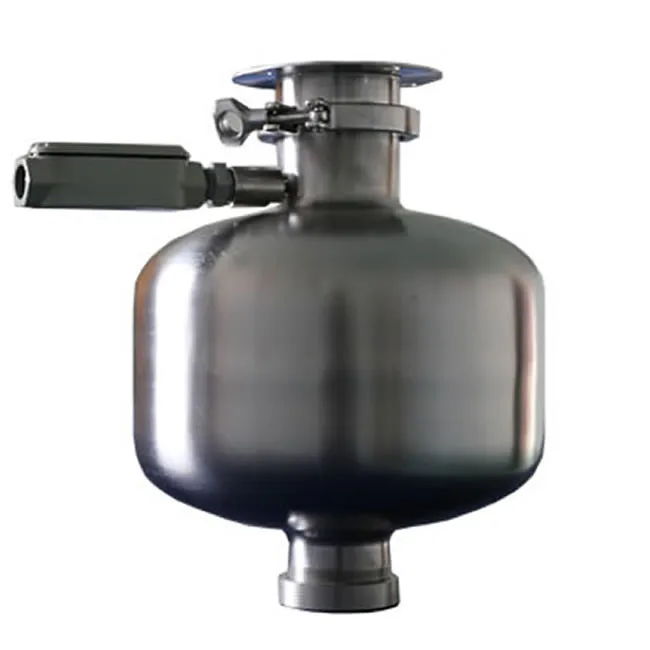

Hanging dry powder fire extinguishing device

(Wall mouted)

Hanging dry powder fire extinguishing device

Related Products

Dry powder fire extinguishing ball device

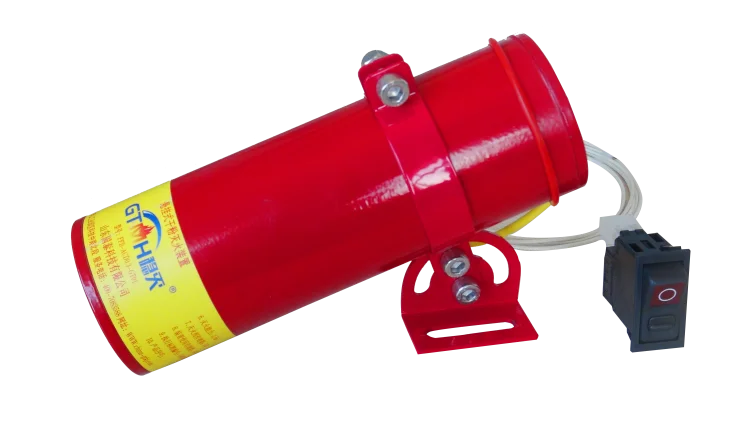

Engine compartment dry powder fire extinguishing device

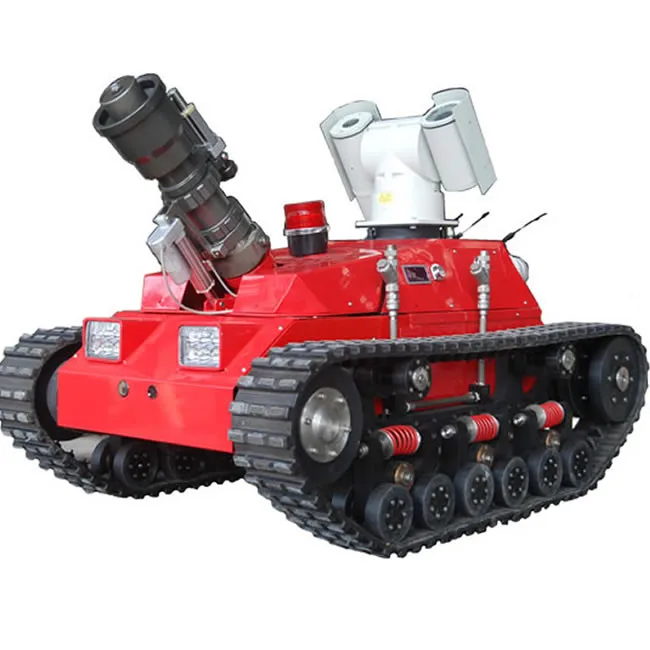

Fire extinguishing robot

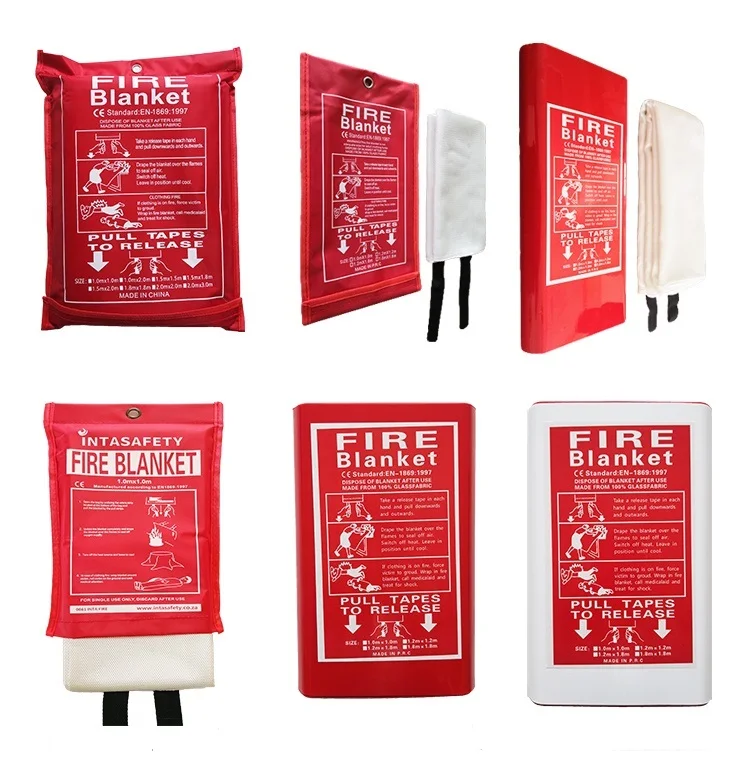

Fire Blanket

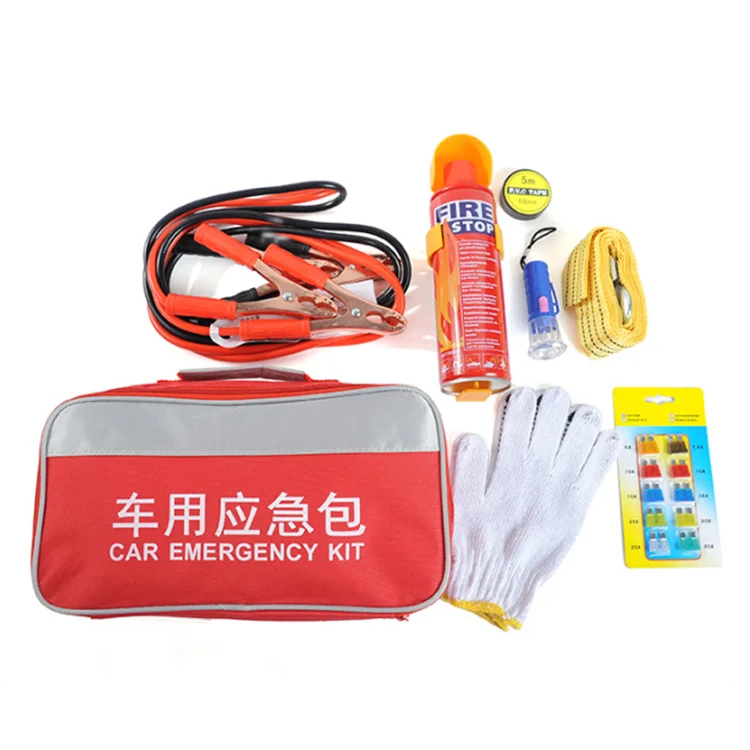

Car Emergency Kit

Mini Superfine Powder

Fire Extinguisher

Portable Dry Powder

Fire Extinguisher


Dry Chemical Powder

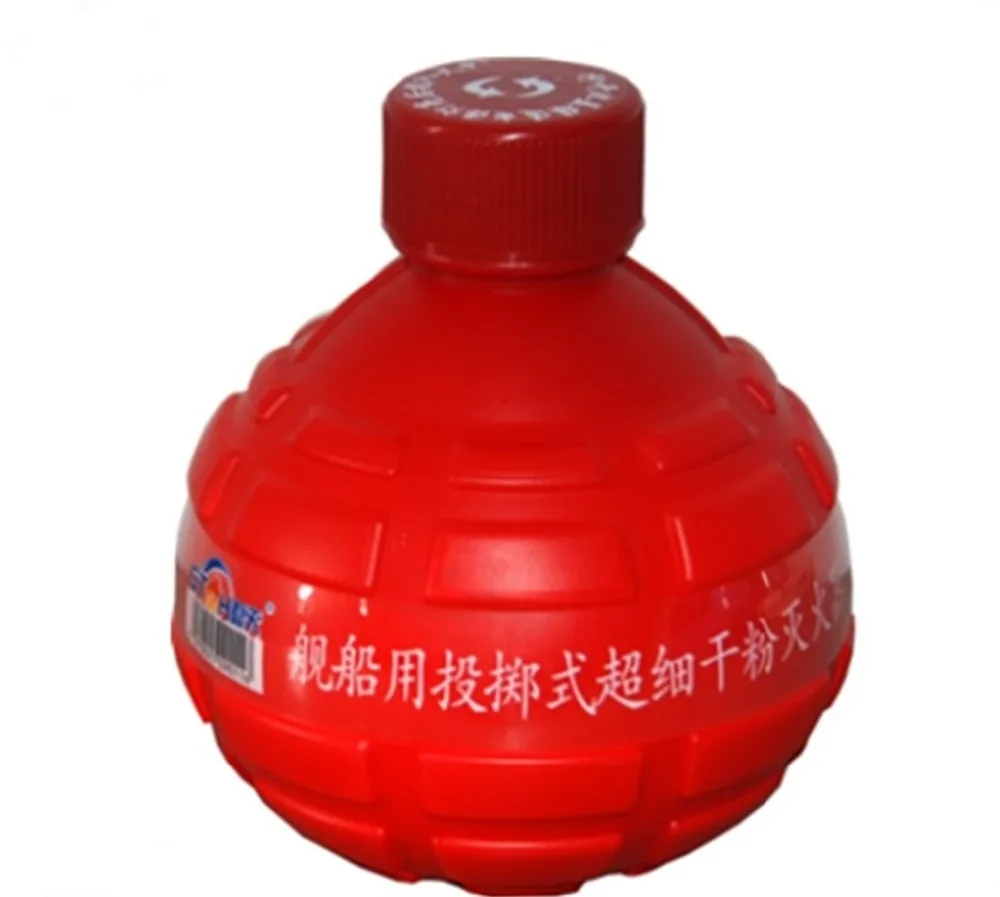

Throwing Superfine Powder
