4. Kelly box: Bauer type(200*200mm, etc.), Sany type(200*200mm, 150*150mm, etc.), Soilmec type(75*75mm, 100*100mm, 130*130mm, etc.), etc.
Product Name

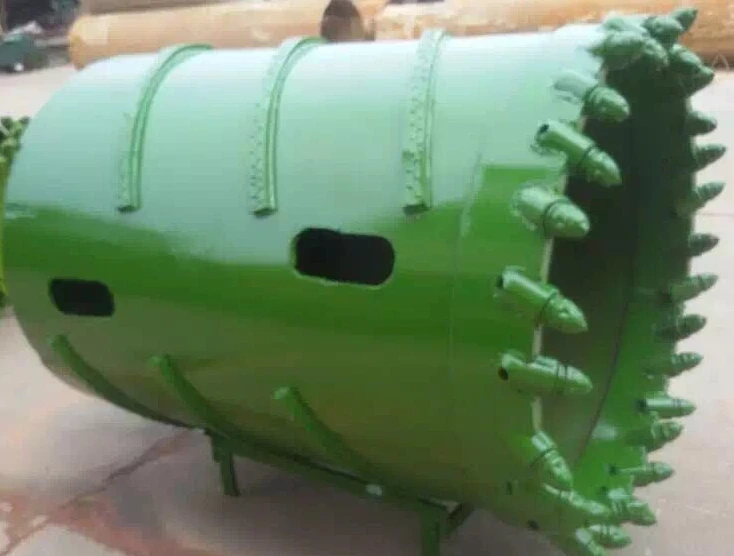

Core Barrel With Bullet Teeth
Material
Q345B
Technique
Welding
Kelly Box
Bauer Type 200mm*200mm as usual
Teeth
WB47K-17
Model
Diameter (mm)
Shell Length (mm)
Shell Thickness (mm)
Bottom Ring Thickness (mm)
Teeth (Pcs)
Weight (kg)
ZWT-Y 600
600
1200
16
40
13
520
ZWT-Y 700
700
1200
16
40
15
580
ZWT-Y 800
800
1200
16
40
18
650
ZWT-Y 900
900
1200
16
40
20
730
ZWT-Y 1000
1000
1200
16
40
23
820
ZWT-Y 1200
1200
1200
16
40
29
1050
ZWT-Y 1400
1400
1200
16
40
34
1230
ZWT-Y 1500
1500
1200
16
40
36
1350
ZWT-Y 1600
1600
1200
16
40
39
1470
ZWT-Y 1800
1800
1200
20
40
44
1720
ZWT-Y 2000
2000
1200
20
40
49
2000
ZWT-Y 2200
2200
1200
20
40
55
2350
ZWT-Y 2500
2500
1200
20
40
63
2850
Customize:
1. Diameter: 500~3000mm
2. Shell length: 800~2000mm
3. Shell thickness: 16~25mm
4. Kelly box: Bauer type(200*200mm, etc.), Sany type(200*200mm, 150*150mm, etc.), Soilmec type(75*75mm, 100*100mm, 130*130mm, etc.), etc.
Product Name

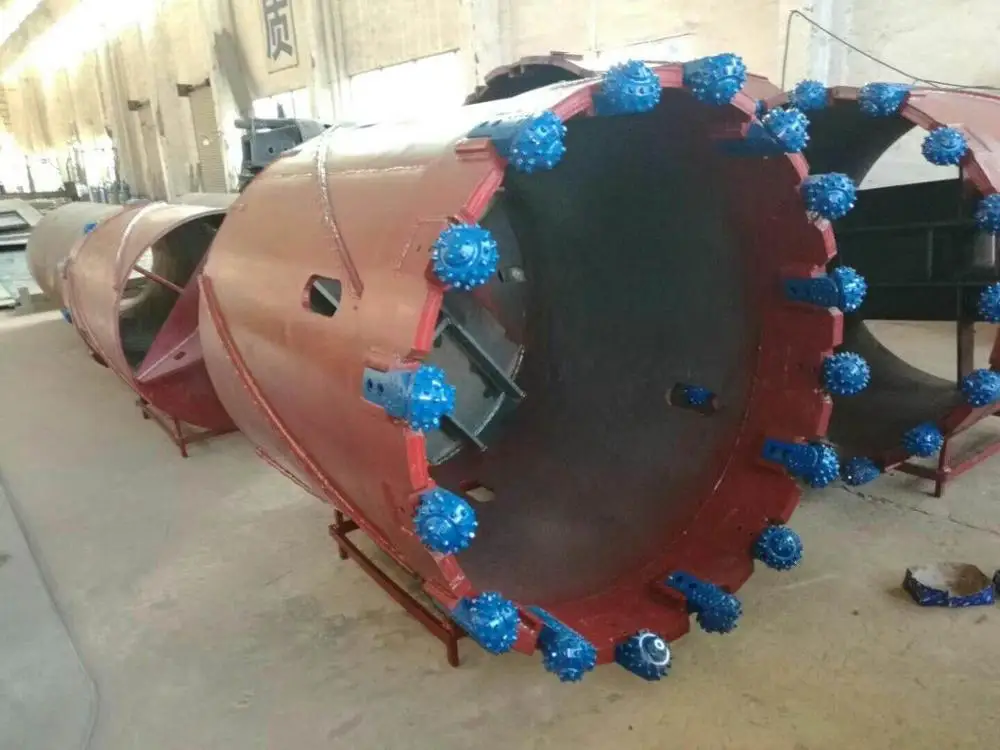

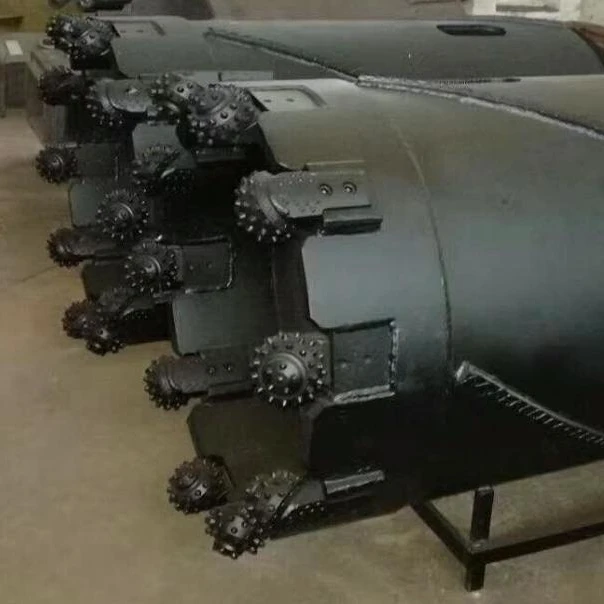

Core Barrel With Roller Bits
Material
Q345B
Technique
Welding
Kelly Box
Bauer Type 200mm*200mm as usual
Teeth
8.5'' roller bit (IADC 537)
Model
Diameter (mm)
Shell Length (mm)
Shell Thickness (mm)
Bottom Ring Thickness (mm)
Teeth (Pcs)
Weight (kg)
ZWT-L 600
600
1200
20
40
4
700
ZWT-L 700
700
1200
20
40
4
780
ZWT-L 800
800
1200
20
40
5
880
ZWT-L 900
900
1200
20
40
5
970
ZWT-L 1000
1000
1200
20
40
6
1080
ZWT-L 1200
1200
1200
20
40
8
1420
ZWT-L 1400
1400
1200
20
40
8
1500
ZWT-L 1500
1500
1200
20
40
9
1750
ZWT-L 1600
1600
1200
20
40
10
1800
ZWT-L 1800
1800
1200
20
40
11
2000
ZWT-L 2000
2000
1200
20
40
12
2300
ZWT-L 2200
2200
1200
20
40
13
2680
ZWT-L 2500
2500
1200
20
40
15
3200
Customize:
1. Diameter: 500~3000mm
2. Shell length: 800~2000mm
3. Shell thickness: 16~25mm
4. Kelly box: Bauer type(200*200mm, etc.), Sany type(200*200mm, 150*150mm, etc.), Soilmec type(75*75mm, 100*100mm, 130*130mm, etc.), etc.
* Rotary Drilling Core Barrel With Roller Bits
2. Brief introduction
Core barrels are used to cut an annular ring in rock or concrete or reinforced concrete. The centre core of the rock or concrete is usually crushed with rock auger. The most important advantage of a core barrel is that it assists to concentrate the torque and crowd force on a small ring of cutting teeth.
*Rotary Drilling Core Barrel With Roller Bits 3. Types a) Core barrel with flat teeth (Applicable for strong rock up to 100MPa or lightly reinforced concrete) b) Core barrel with bullet bits ( Applicable for strong rock up to 100MPa or Rock with deep cracks) c) Core barrel with roller bits (Applicable for very strong rock formations with compressive strength greater than 100MPa)
* Other types can be manufactured as per customers' demand.

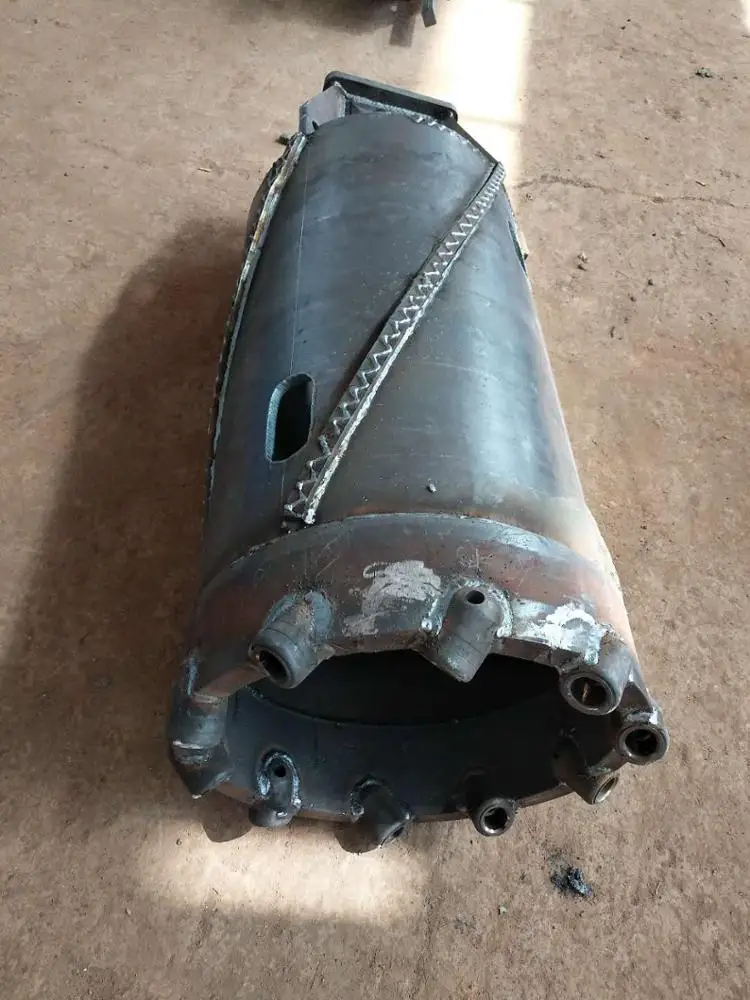

3. Structure
1. Kelly box
2. Top plate
3. Main body
4. Bottom ring
5. Flat teeth / bullet teeth / roller bits
*Rotary Drilling Core Barrel With Roller Bits
