Waste tire recycling plant/ Tire cutting machine/ Tire shredding machine

Product Overview

Description

 Used rubber tire recycling machine/tire recycling equipment price is to crush waste tires into rubber powder in different sizes. The final rubber powder is with purity of 99.99%, can be used to make rubber tiles, rubber mat, asphalt, waterproof material, filler of artificial grass,etc

Specification of used rubber tire recycling machine/tire recycling equipment price:

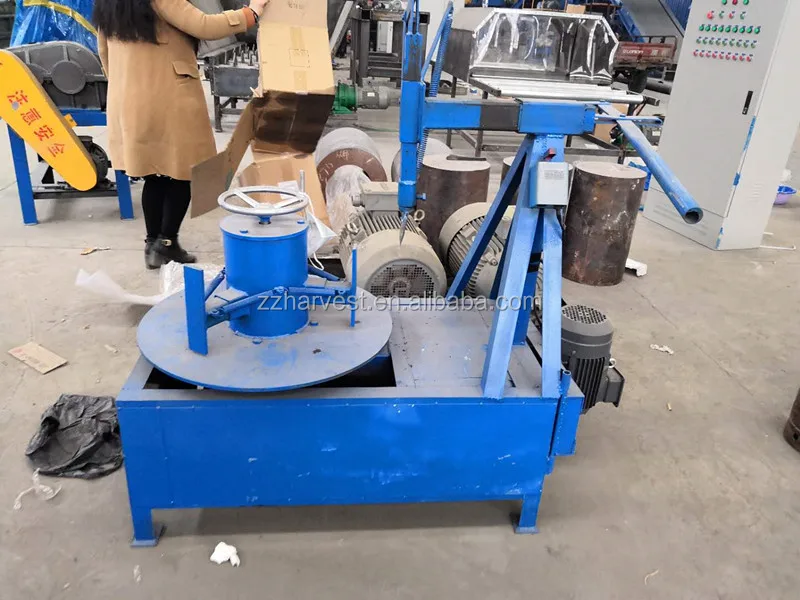

1. Tire circle cutter is used to cut the tire sidewall off.

Name	Motor   power	Weight	Capacity	Tire   specification
Tire   circle cutter	4.75kw	650kg	40pcs/h	650-1200mm (Both   reinforced and nylon tires)

2. Rims separator is used to separate the wire steel rings from tire sidewall.

Name	Motor   power	Weight	Capacity
Rims   separator	18.5kw	1300kg	100pcs/h

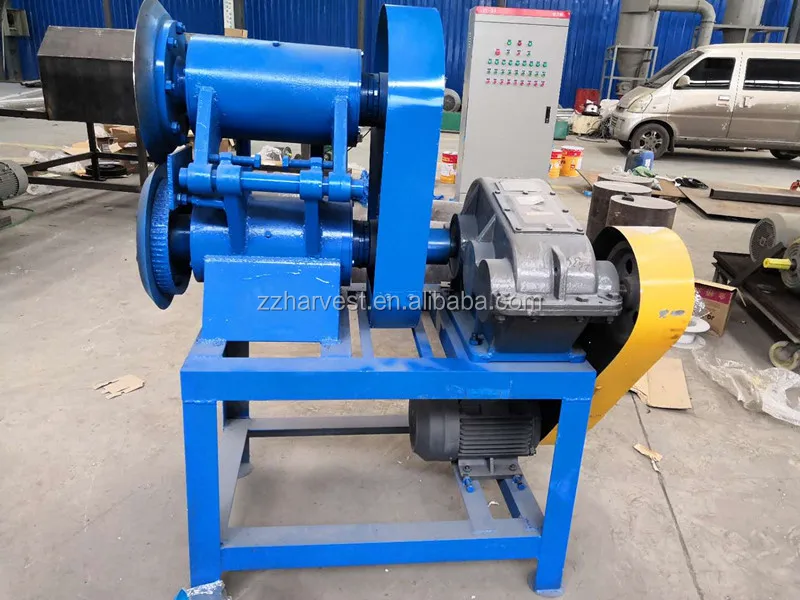

3. Tire strip cutter is used  to cut the tire cirlce into strips 5x8 cm .

Name	Motor   power	Weight	Capacity	Cutting size
Tire   strip cutter	18.5kw	850kg	2.5t/h	5x8cm

4. Tire slice cutter is used  to cut the strips into small chunks about 3.5 cubic centimeter.

Name	Motor   power	Weight	Capacity	Cutting size
Tire   slice cutter	18.5kw	800kg	0.8t/h	3x5x8cm

5. Rubber crusher is to crush the rubber blocks into different smaller rubber sizes with purity of 99.99%.

Model	Capacity	Drum diameter	Drum length	Front roll linear	Roll speed ratio	Max roller spacing	Motor power
XKP-350	3ton	350mm	500mm	26.2m/min	1:2.5	8mm	30kw
XKP-400	6ton	400mm	600mm	34.5m/min	1:2.5	8mm	45kw
XKP-450	8ton	450mm	760mm	38.0m/min	1:2.5	8mm	55kw/75kw
XKP-560	10ton	560mm	800mm	38.6m/min	1:2.5	8mm	75kw/90kw
XKP-610	20ton	610mm	1000mm	42.5m/min	1:2.5	8mm	132kw/160kw

Advantages of our rubber crusher machine:
1. Crusher roller speed ratio: Ours is 1: 2.5, while the old type roller speed ratio is 1: 1.38.
2. Roller structure: Our two rollers are both grooved, which increase the friction and then improve the output, while the old type is one with groove, and the other is smooth.
3. Roller material: The roller is made by Welding wear resistant alloy materials, 5Cr6MnMo. We can offer you 3 years warranty of the roller. While the old types machine use cast iron to make the rollers, very easy to break or crack in two .
4. Machine feature: Our machine is energy saving 1/3. For example, producing 1T powder, our machine electricity consumption is only 150°, while their electricity consumption is about 250- 280° in making 1T powder.
5. Bearing: Our machine use rolling bearing, there are 8 pieces bearing inside, while the old machine use the slide bearings ( bush) , which is not as good as ours.

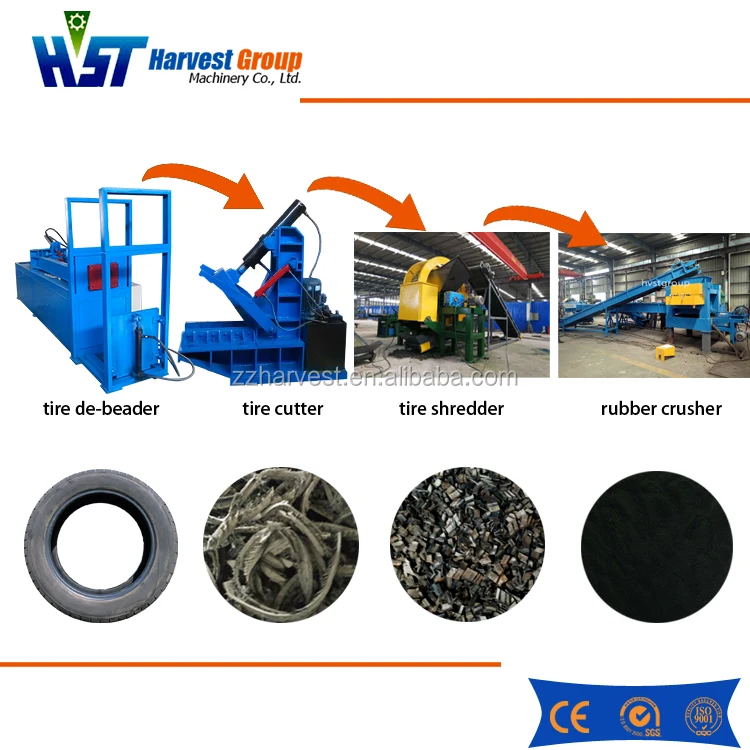

Fully automatic tire recycling machine:
