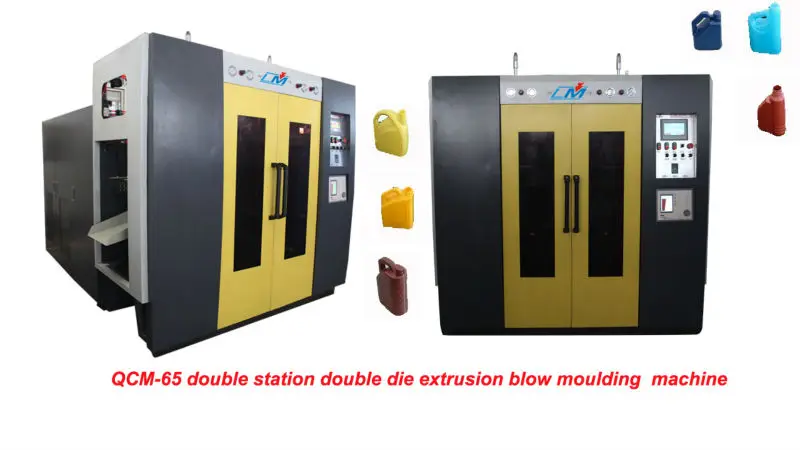

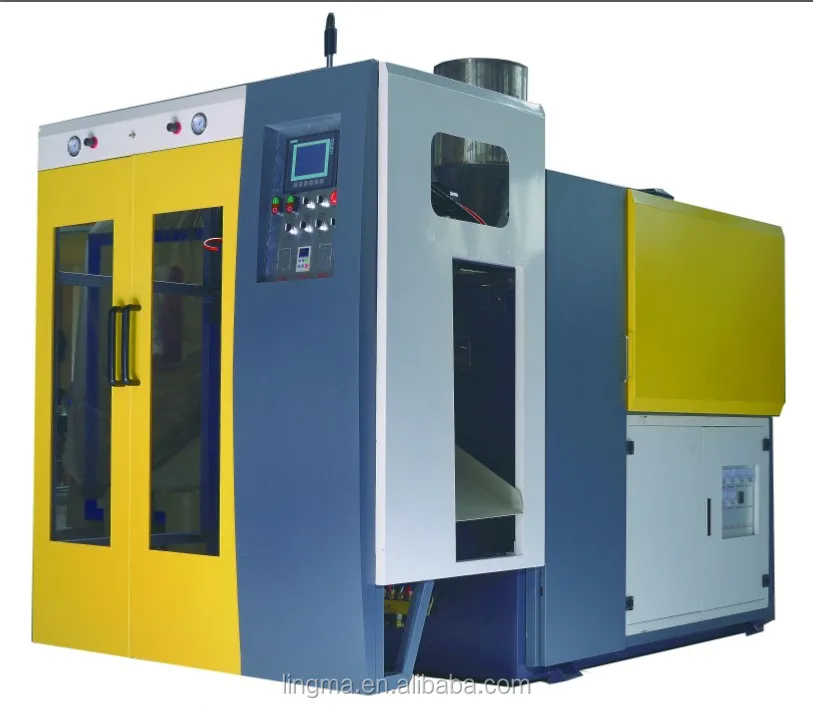

lubricating oil extrusion blow moulding machine for jerry can bottle/hdpe plastic bottle making machine
lubricating oil extrusion blow moulding machine for jerry can bottle/hdpe plastic bottle making machine
lubricating oil extrusion blow moulding machine for jerry can bottle/hdpe plastic bottle making machine
lubricating oil extrusion blow moulding machine for jerry can bottle/hdpe plastic bottle making machine
lubricating oil extrusion blow moulding machine for jerry can bottle/hdpe plastic bottle making machine
lubricating oil extrusion blow moulding machine for jerry can bottle/hdpe plastic bottle making machine

lubricating oil extrusion blow moulding machine for jerry can bottle/hdpe plastic bottle making machine

Share on (60617508432):


Price:

Quantity:


Product Overview

Description


Product Description

Product Application

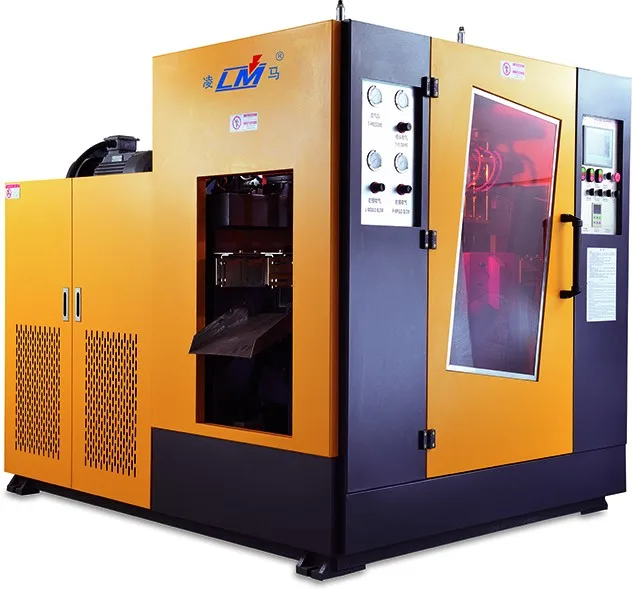

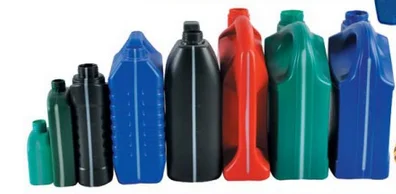

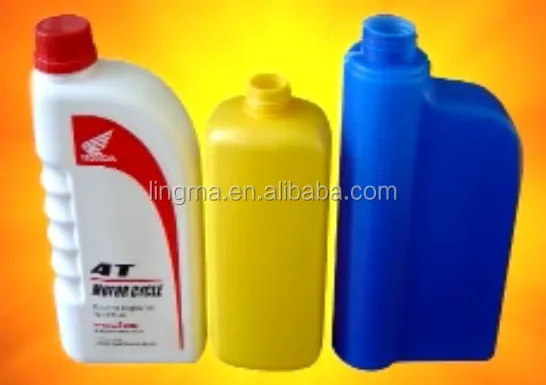

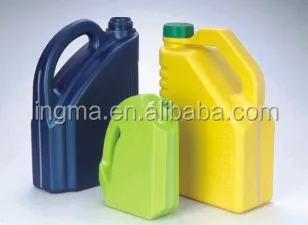

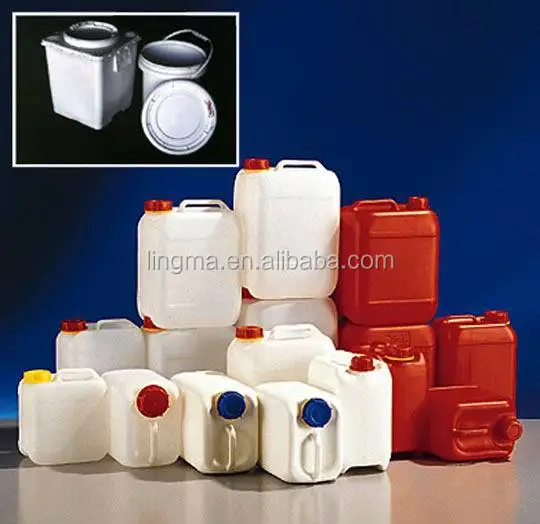

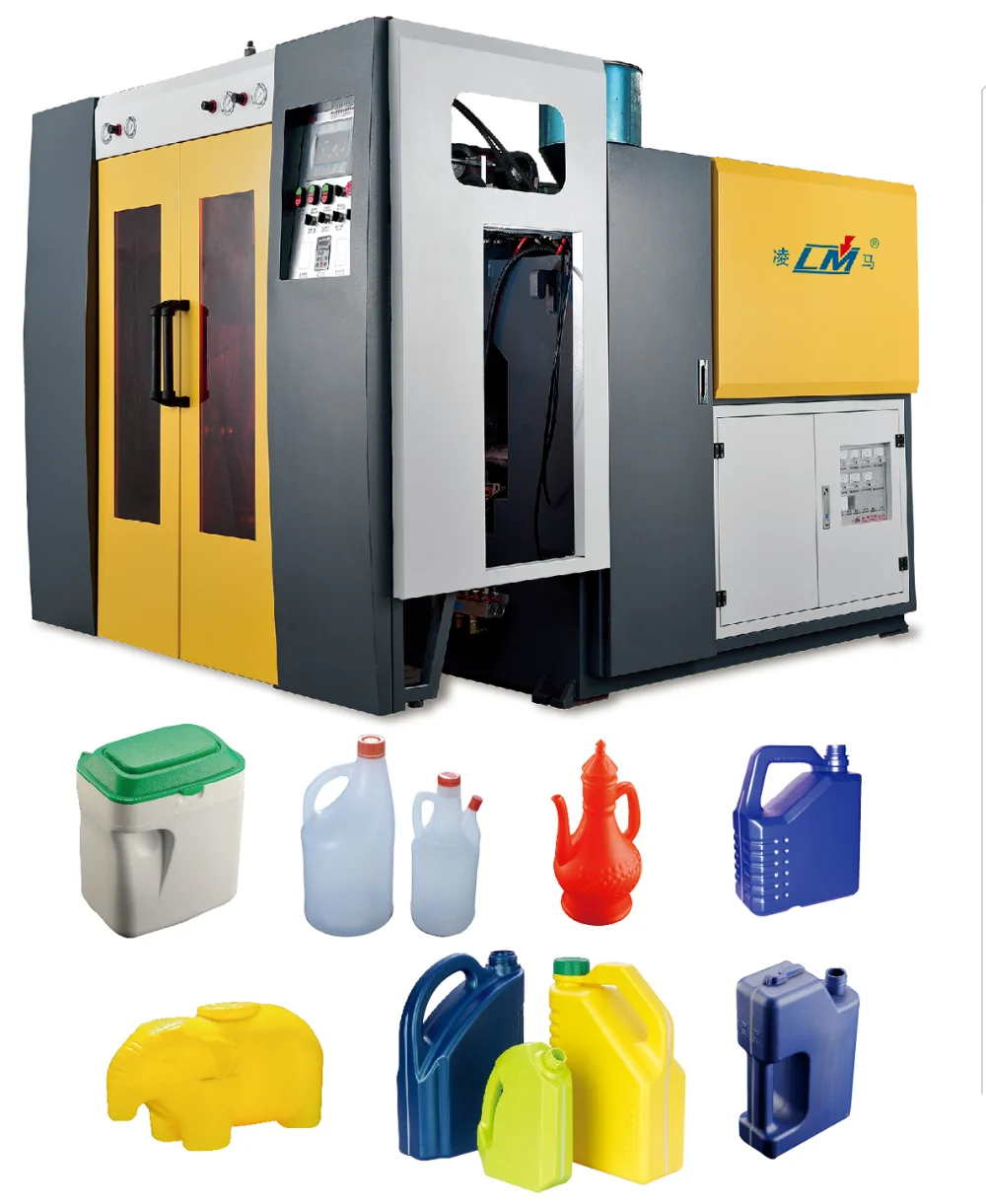

our machine is equipped with SEIMENS PLC control system,operating manual in English, hydraulicy system  operated, clamping by hydraulic system .Moreover,It is also equipped with de-flashing system, resulting in saving time and manual cost for clients, servo motor elected for energy saving. its  Suitable for various materials, such as PE/PP/PVC/PS/EVOH/EVA/PET and so on. it was  used to make  various kinds of plastic products, such as oil jerry can, detegent bottle ,cosmetics bottle, pharmaceutical bottle, food package, plastic toys, Christmas ball, plastic lubricating oil bottle .

\t
Basic Parameters
\t
suitable material
\t
PE,PP,PVC,PS,PETG,so on
\t
\t
max volume
\t
4000mL
\t
\t
Die head number
\t
1
\t
\t
Size
\t
3.2×2.2×2.4(M)
\t
\t
weight
\t
6.8T
\t
\t
Total power
\t
35KW
\t
\t
Stations
\t
2
\t
System
\t
specification
\t
parameters
\t
Extrusion System
\t
Summarize
\t
High efficient low power consumption plasticizion system, transducer control, self-protect function when started at low temperature
\t
\t
reducer
\t
Hard finishing, high intension, low noise reducer
\t
\t
screw
\t
∮75mm,L/D ratio 22-24/1,38CrMoALA with nitriding surface HV≥800, brittleness≤2;
\t
\t
Plasticization
\t
90Kg/H
\t
\t
Screw Heating zone
\t
7 Aluminum heater
\t
\t
Screw Heating power
\t
7.2Kg/H
\t
\t
extrusion Motor
\t
three phase asynchronous motor(380V,50HZ)75HP
\t
\t
Cooling Fan power
\t
\t
Die System
\t
Summarize
\t
high-grade alloy steel,center feeding
\t
\t
Max die mouth
\t
∮30mm
\t
\t
Die Heating zone
\t
7 Stainless steel heating cycle
\t
\t
Die Heating power
\t
5KW
\t
Clamping System
\t
Summarize
\t
High intension,rigidity,center mold locking,stable mould opening and clamping system
\t
\t
Clamping force
\t
120KN
\t
\t
Template distance
\t
180-450mm
\t
\t
Template stroke
\t
500-1401mm
\t
\t
Max mould size
\t
W*H:32 0×320mm
\t
\t
Mould material
\t
High grade 50 ﹟steel
\t

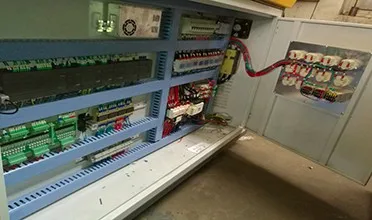

Electric System
\t
Summarize
\t
PLC+touch screen(man-machine interface)standard extrusion blow molding machine controlling system(AUTO monitoring, fault alarm, auto counting, auxiliary function available)
\t
\t
Operate interface
\t
10 inch colorful touch screen, automatic self-diagnose alarm system
\t
\t
Temperature control
\t
Automatic temperature control module Temperature controlling precision: Various in ±1%;
\t
\t
Movement control
\t
SEIMENS, Chinese/English Version
\t
\t
Electric protection
\t
Ampere overload, electric short circuit self-portection function
\t
Hydraulic System
\t
Summarize
\t
Multipel function hydraulic integrated block proportional control, high eficient
\t
\t
Oil pump motor
\t
three phase asynchronous motor(380V/220V, 50/60HZ)15KW
\t
\t
Oil pump
\t
Japanese double Vane pump
\t
\t
Valves
\t
YUKEN valves and connections
\t
\t
Oil pipes
\t
double layer overpressure resistant
\t
\t
system pressure
\t
60Kg/cm²
\t
\t
cooling system
\t
separate water cooling cycle, oil cooler cooling system
\t

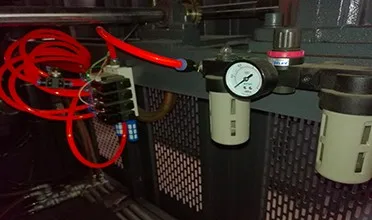

Pneumatic System
\t
Summarize
\t
FESTO an airtac pneumatic system
\t
\t
Air pressure
\t
0.8Mpa
\t
\t
Air displacement
\t
1M3/min
\t
\t
Electromagnetic valve
\t
FESTO
\t
Cooling System
\t
Summarize
\t
Sparate cooling system of mould, barrel and oil system
\t
\t
Water pressure
\t
0.3-0.6Mpa
\t
\t
Cooling medium
\t
Water
main construction

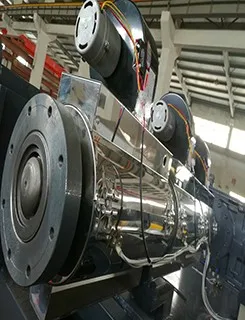

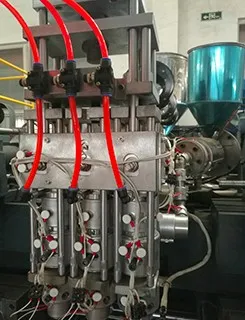

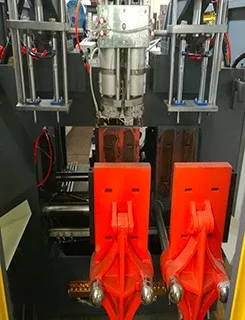

extrusion sytem detail.

Drives by a generator with frequency conversion, our extrusion system can realize the requirement of a transformable rotate speed of the screw for the blow machine process.

extrusion sytem detail 1

Screw with a big length-diameter ratio, has a good capability for processing all kinds of plastic with high plasticizing efficiency, low power expenditure.

extrusion sytem detail 2

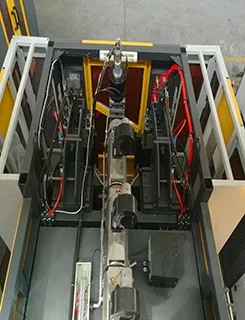

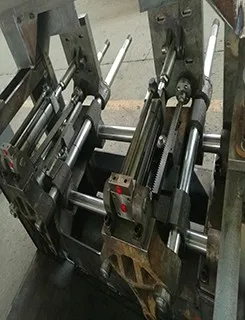

Import linear guide rail with double station leads flexible and stable movements for the mould.

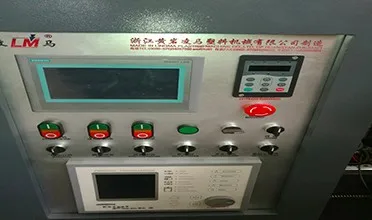

Siemens PLC human-machine interface control system, automatic fault-alarm, credible and highly automatic work, available for 40 molding process data in the compute

 system Capable of manual, half-automatic and full-automatic operating methods. Electrical and mechanical safety structures (stop working automatically when safety door open) guarantee operating security.

.Products with content level line or double-layer, triple-layer can be produced when 2 or 3 machines work together on the team extruding system with different die-head one each machine

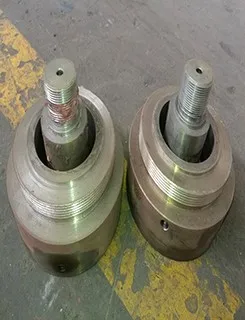

adapt the different size of diehad core and cup .

1.)\tMaterial of screw: Special design according to the material request, High quality nitriding steel 38CrMoAlA，with nitriding surface HV≥800，brittleness≤2；

2.)\tMaterial of barrel: High quality nitriding steel 38CrMoAlA，with nitriding surface HV≥900，brittleness≤2；

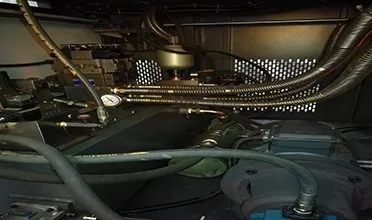

The whole hydraulic system adopts Japanese YUKEN components and proportional controlling circle. It’s moving stand, exactly and longtime using.
Import hydraulic valve, seal and proportional control.

Optimized hydraulic oil loop design gains a stable, fast, energy saving property. working together with good brand pneumatic system.
