Price:$86,400.00 - $87,400.00

Quantity:


Product Overview

Description



Product Description

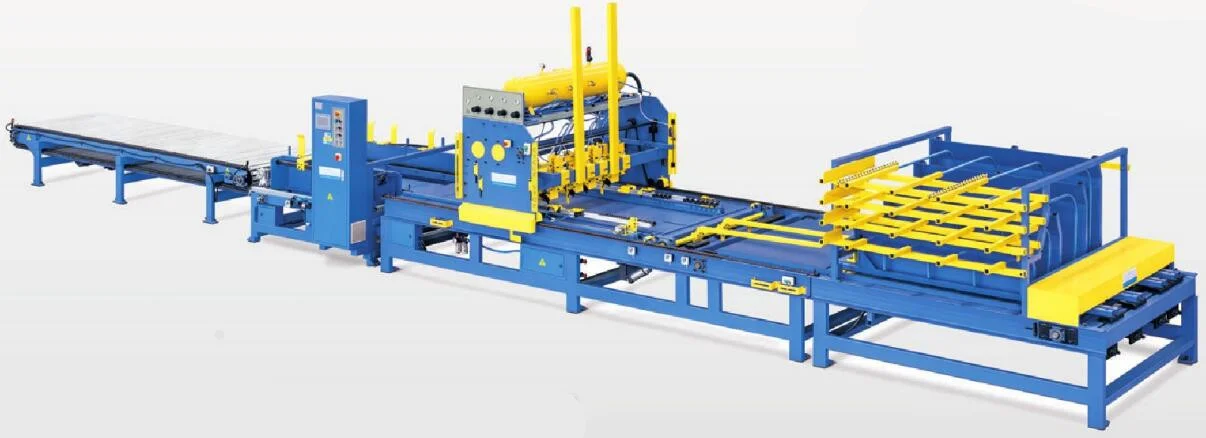

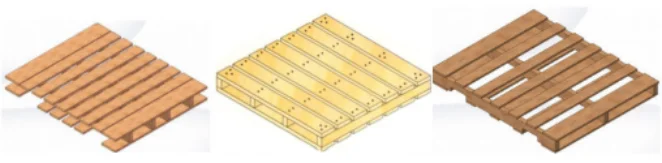

This is an full automatic assembly/nailing line for Stringer/American pallets (As below pictures), manually feed the wood into machine, and machine will auto nailing the bottom, auto turn the pallets, auto nailing the face, auto stack, and auto convey.
Working video for reference: https://youtu.be/ClR9Q0YTt3U


Pallet type
Stringer/American pallets
Pallet width
600-1500mm
Pallet length
700-1500mm
Pallet height
80-150mm
Stringer height
70-130mm
Stringer width
30-50mm, +/-3mm tolerance
Foot & roof board thickness
10-25mm
Productivity
1000pc/8h shift (For 1*1m pallet)
Nailing gun
4pc MAX CN70
Coil nails
3000 nails/coil, 45-70mm length,
shank diameter 2.5-2.9mm, head diameter 5.7-7.2mm
Gantry servo motor
1.5KW
Hydraulic motor
2.2KW
Stack motor
0.37KW*2
Discharging table power
2.2kw
Total power
6.7KW
Machine working power
Max. 4.5KW
Voltage
380v 50HZ 3 phase
Air pressure
7-8kg/cm2
Air tank volume in machine
0.3 cubic meters
Extra Air tank volume
prepared by buyer
2-3 cubic meters
Air compressor required
Min. 2 cubic meters/min
Electric components
Schneider brand
Pneumatic components
Airtac brand
PLC, touch screen
Siemens
Machine dimension
15m*2.5m*2.6m (L*W*H)
Machine weight
7000kg


Detailed Images

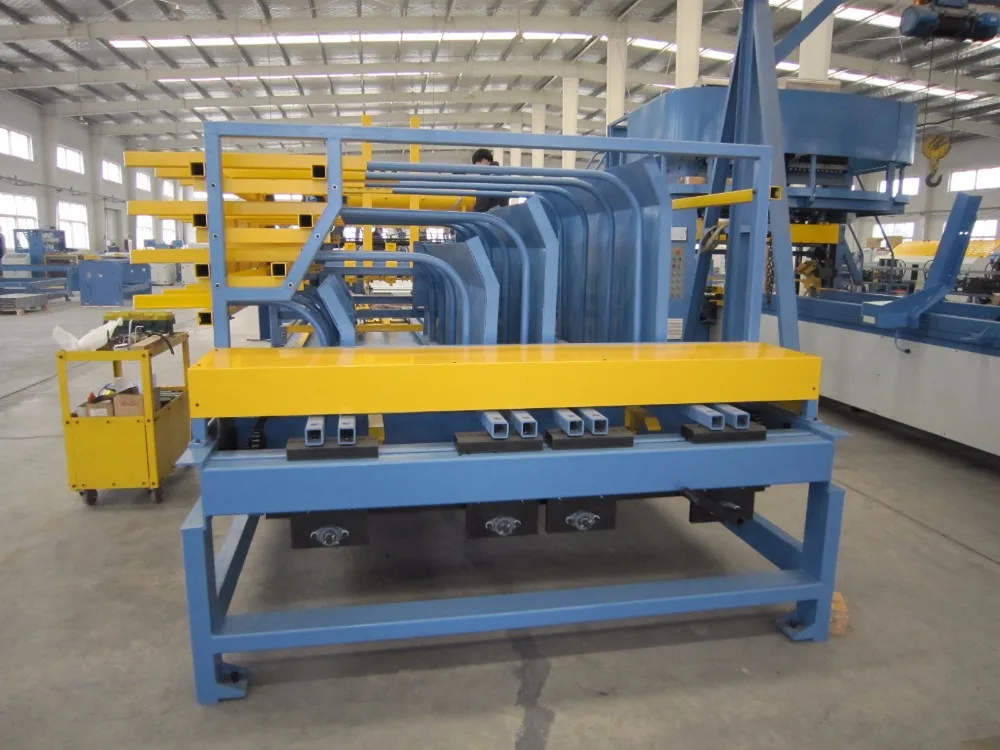

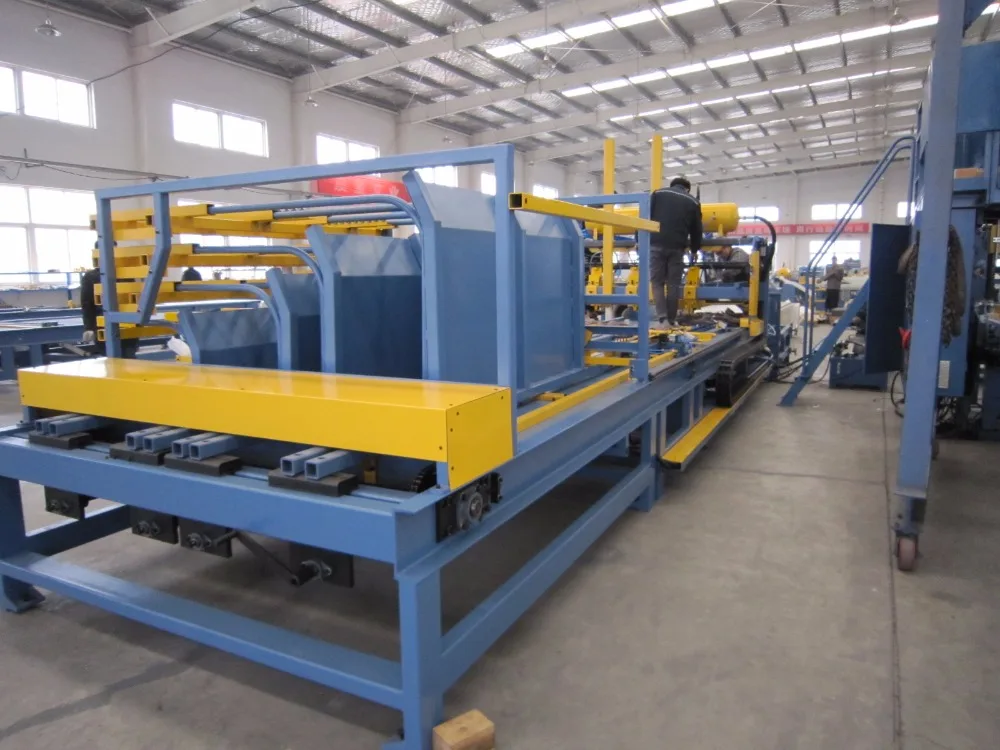

Stringer feeding system.

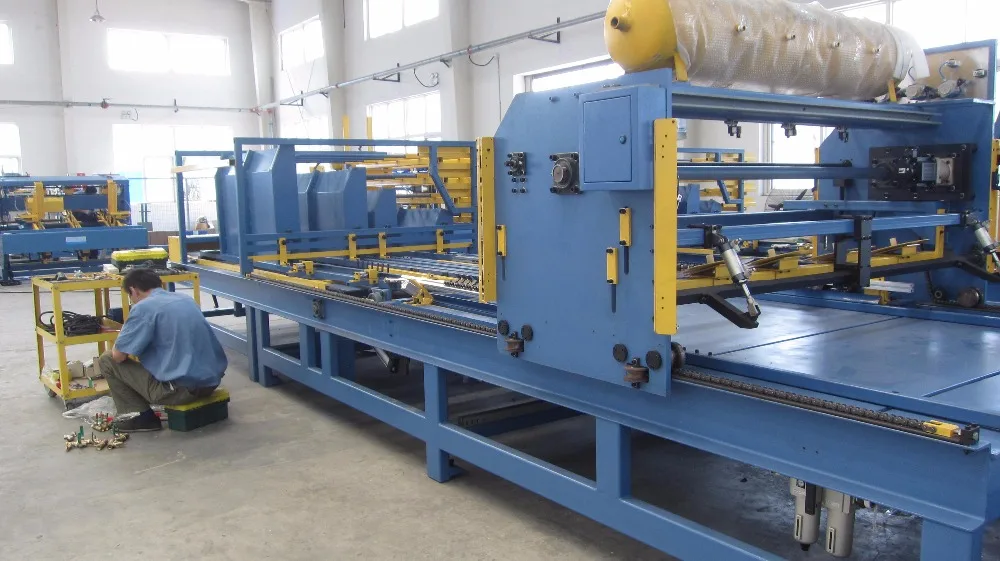

Nailing table with feeding and turning system, stringers will auto feed here, pallet deck and bottom boards load here manually.

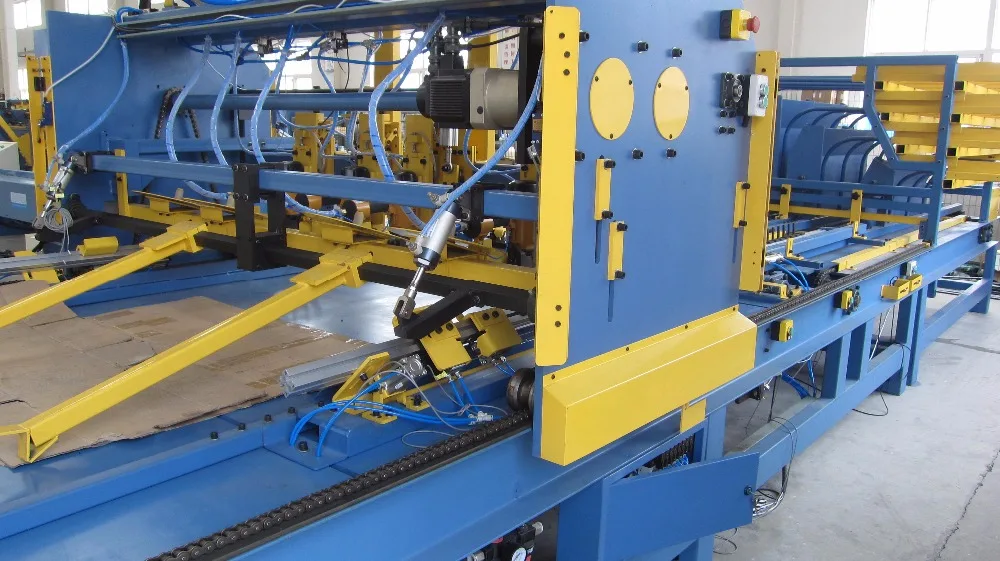

Pneumatic unit, the nailing system.

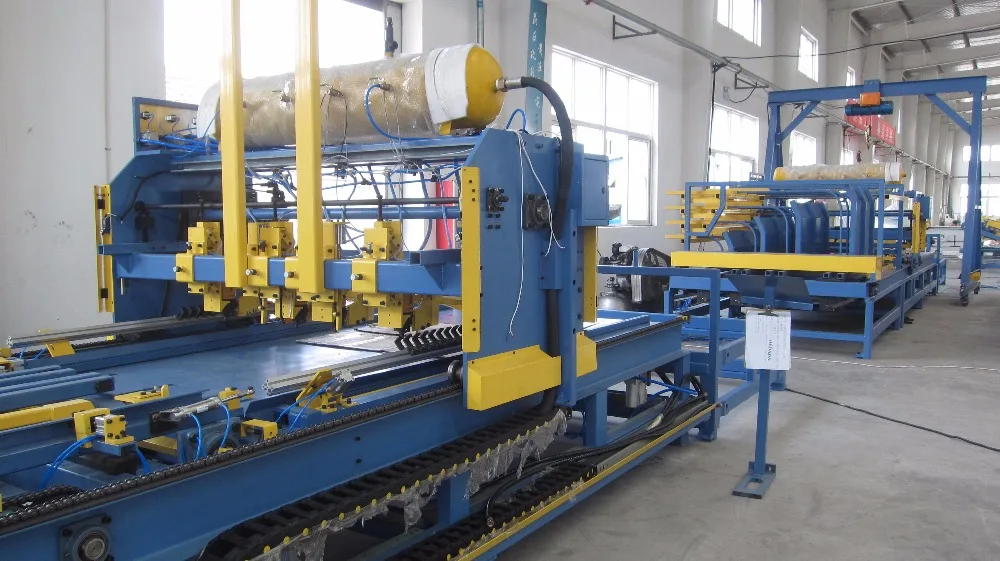

4 pneumatic nailing guns, position is movable, can assemble 3 or 4 stringers pallets, auto feeding nails.
Pusher, after pallets finished assembly, will be pushed to stacking system.
Strong feeding basement


Auto stacking system, up to a certain height will auto convey away.
Convey table, forklift away stacking pallets from here.


Related Products

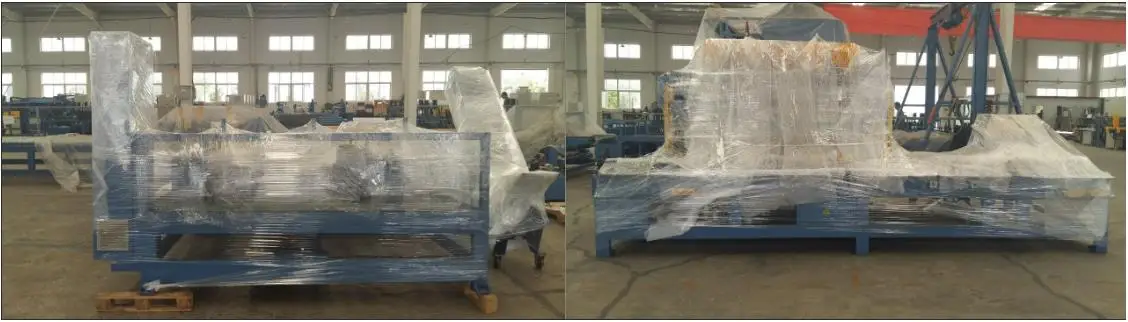

Packing&Shipping
