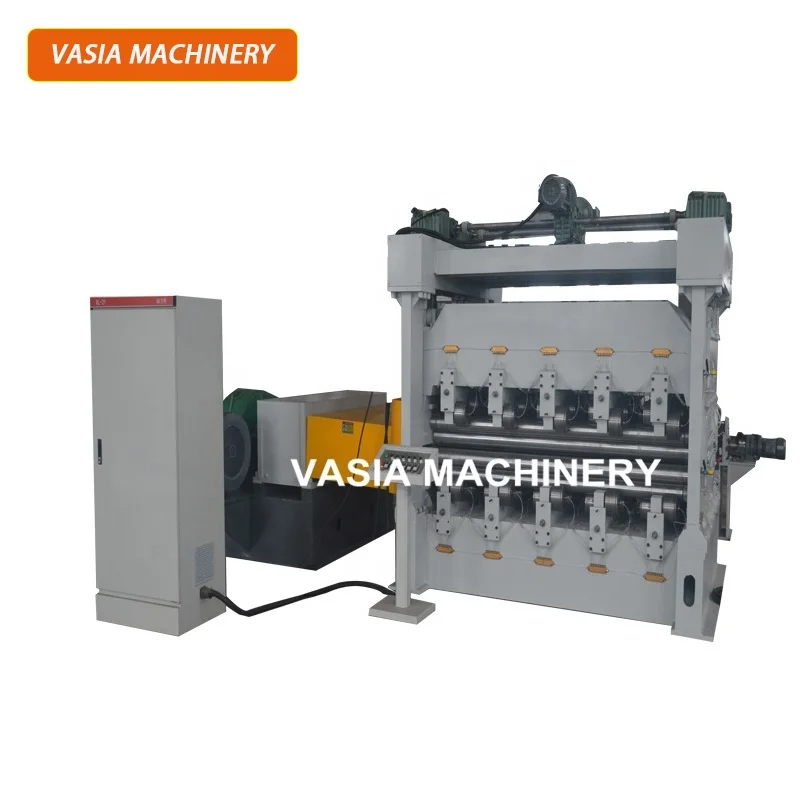

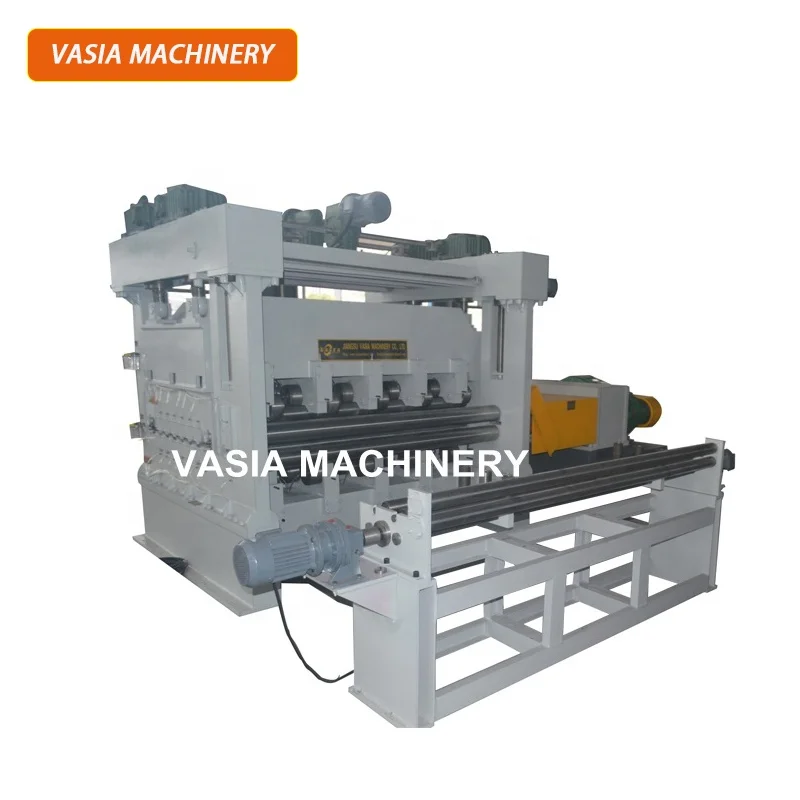

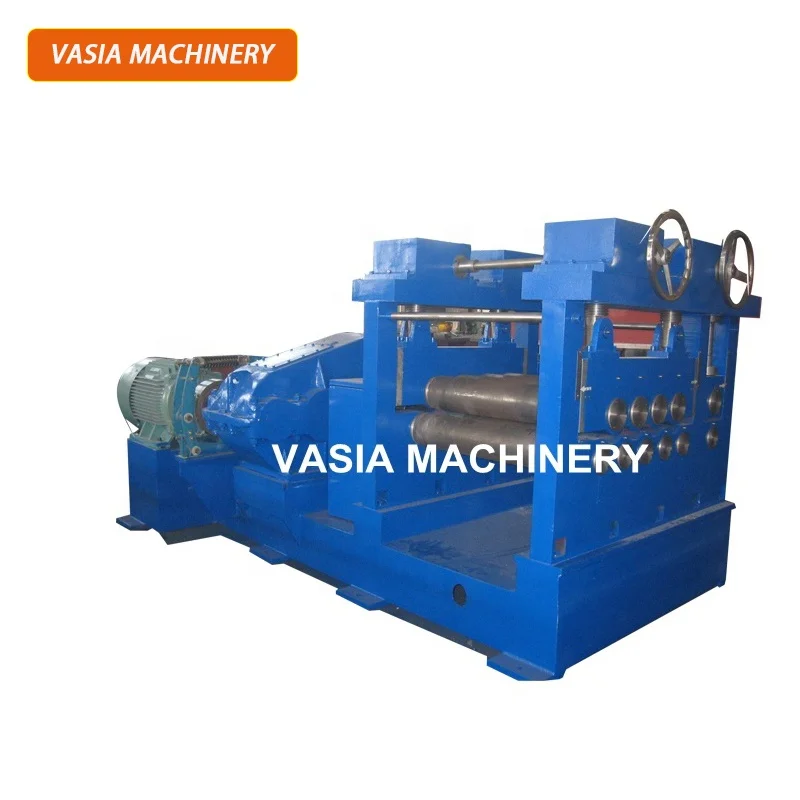

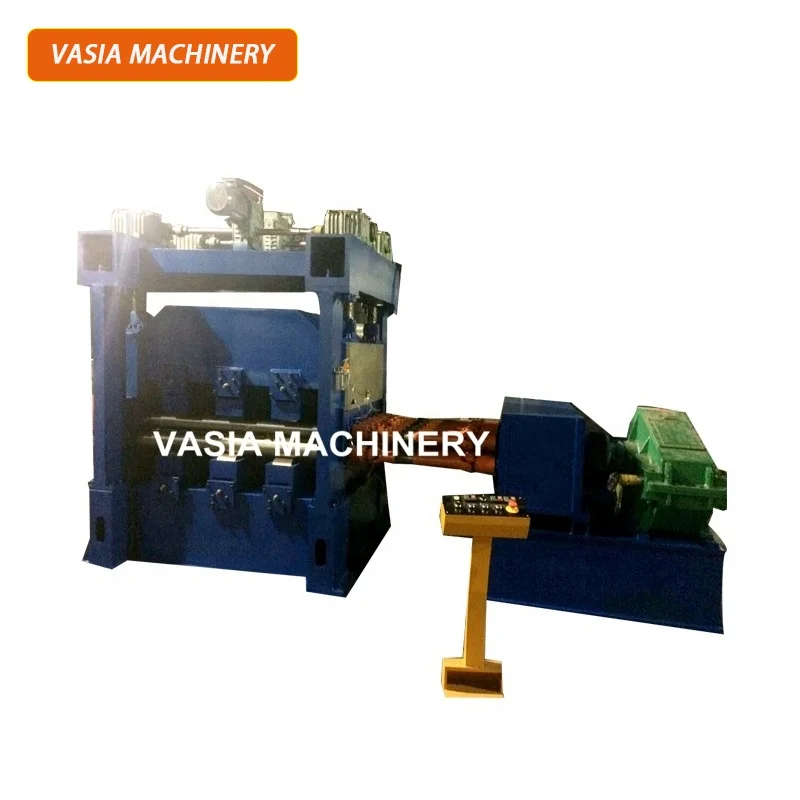

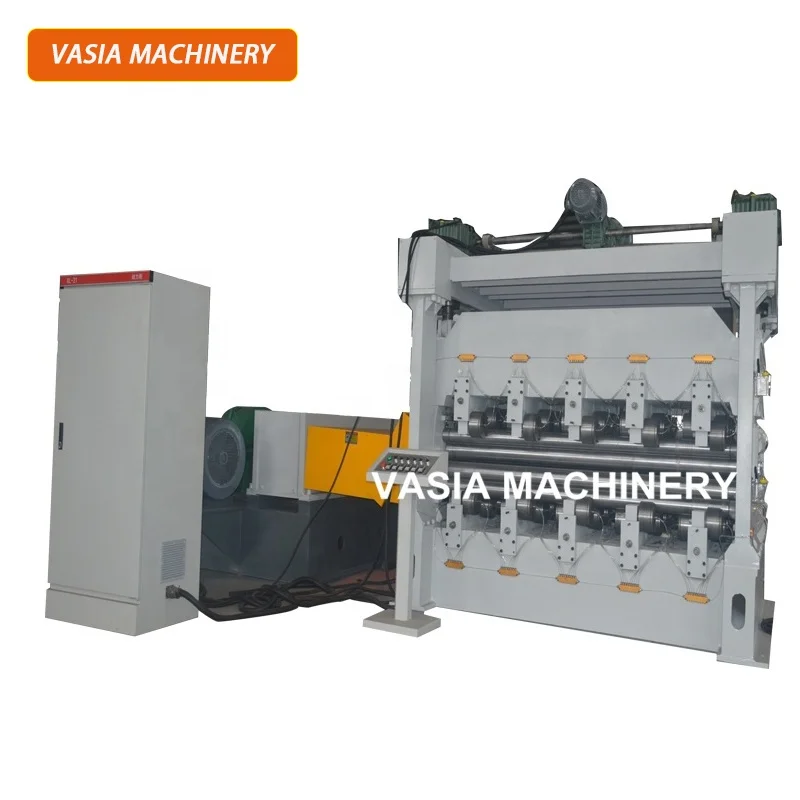

ATLANTIC shearing machine and levelling machine production line

Product Overview

Description

Shearing machine and levelling machine production line,

Machine Introduction:

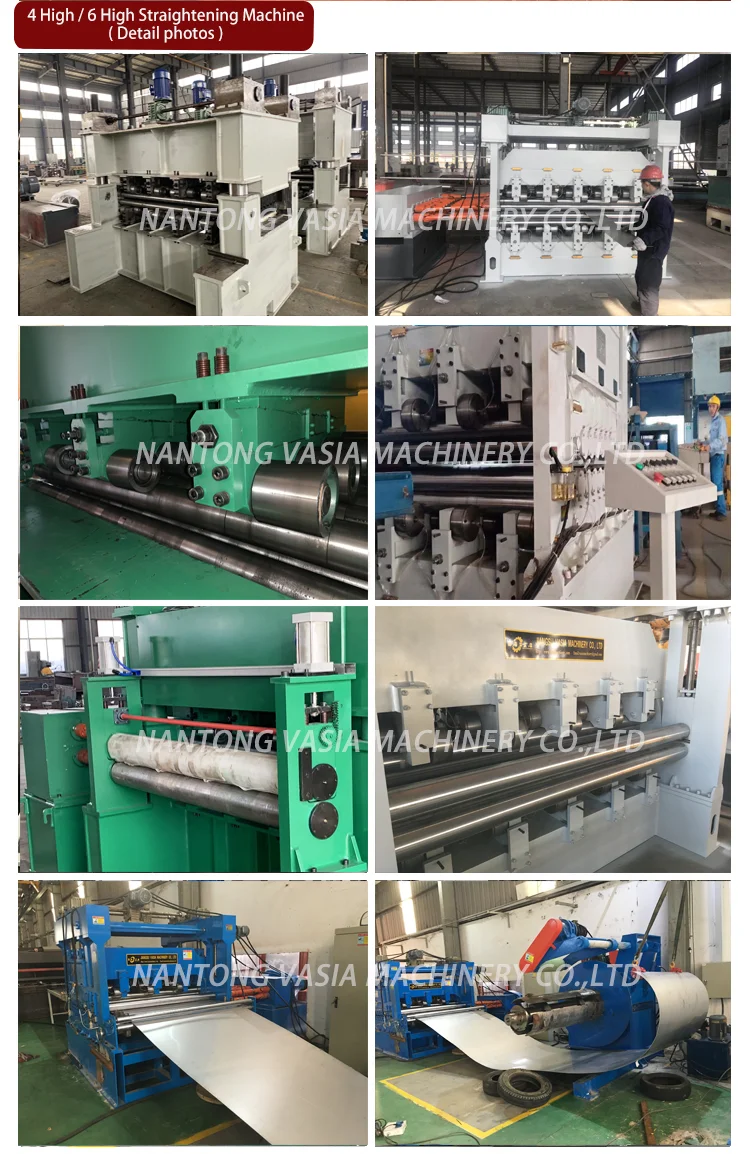

1.The machine employs three structure , 2-high,4-high,6-high and can be matched with multi-group support rolls.

2.Straightening roll material: 42CrMo, GCr15, 9CrSi and 9Cr2Mo is available for selection.

3.Straightening roll treatment: stress relief by quenching and tempering, quenching (HRC54, HRC60), hard plating treatment for cold plate, stainless steel plate and leveling roll surface.

4.Reducer: ZQ standard reducer, ZY reducer and TR reducer with hard tooth surface is available for selection.

5.Distribution box: self-made; it employs one-stage drive and two-stage distribution structure, and its gear is the 20CrMnTi penetration gear.

6.Universal connecting shaft: automobile universal shaft and universal roll for the metallurgical industry.

7.Adjustment methods: manual and electrical adjustment.

8.Lubrication methods: mainly focus on lubrication operated by manual or electric pump.

9.Applications: applicable for general leveling for carbon steel plate, stainless steel plate.

10.We can design and produce for special requirements.

Optional Specifications:( Special requirements are optional )

Model	Thickness (mm)	Width (mm)	Straightening roller diameter   (mm)	Working roller distance  (mm)	Qty. of working rollers   (PCS)	Straightening  speed    m/min
VASIA-1.5x1600	0.15-1.5	1600	50	55	19	0-20
VASIA-3x1600	0.5-3	1600	75	80	15	0-20
VASIA-6x2000	1-6	2000	95	100	13	0-15
VASIA-8x2000	2-8	2000	130	140	13	0-15
VASIA-12x2500	3-12	2500	150	160	11	0-10
VASIA-16x2500	4-16	2500	180	200	11	0-10
