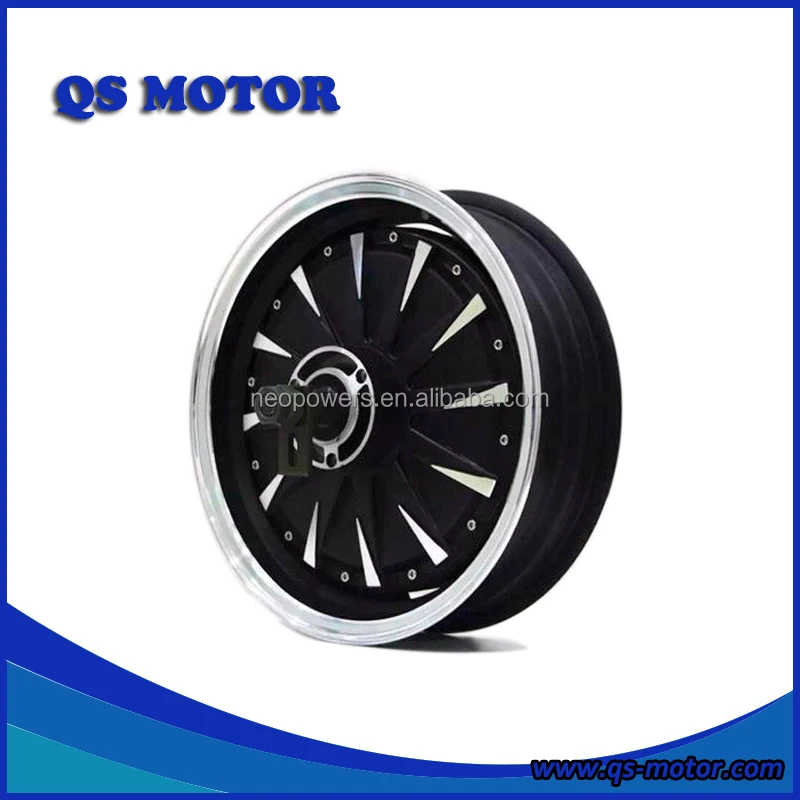

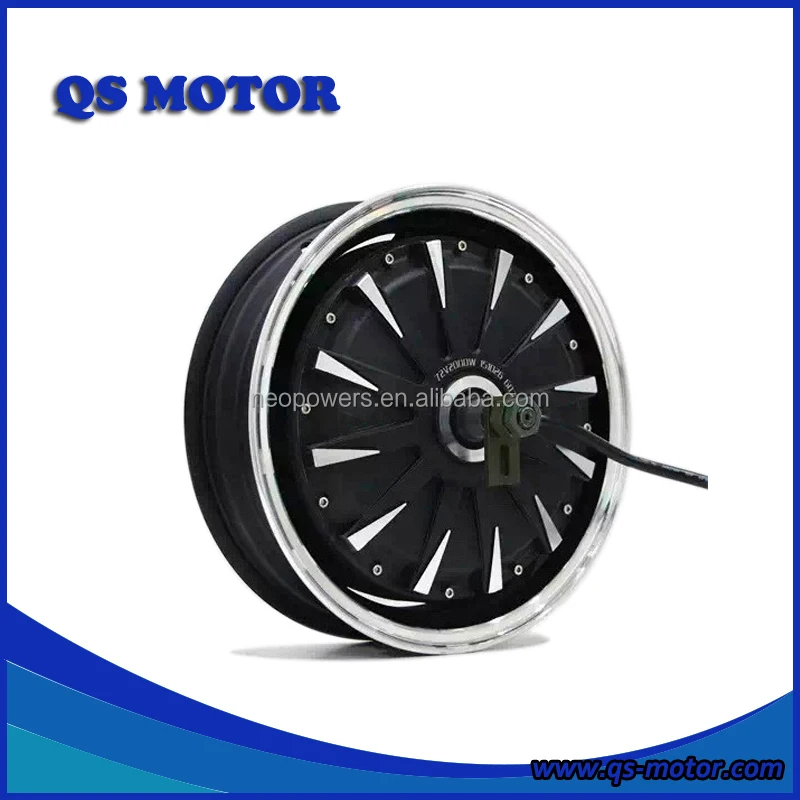

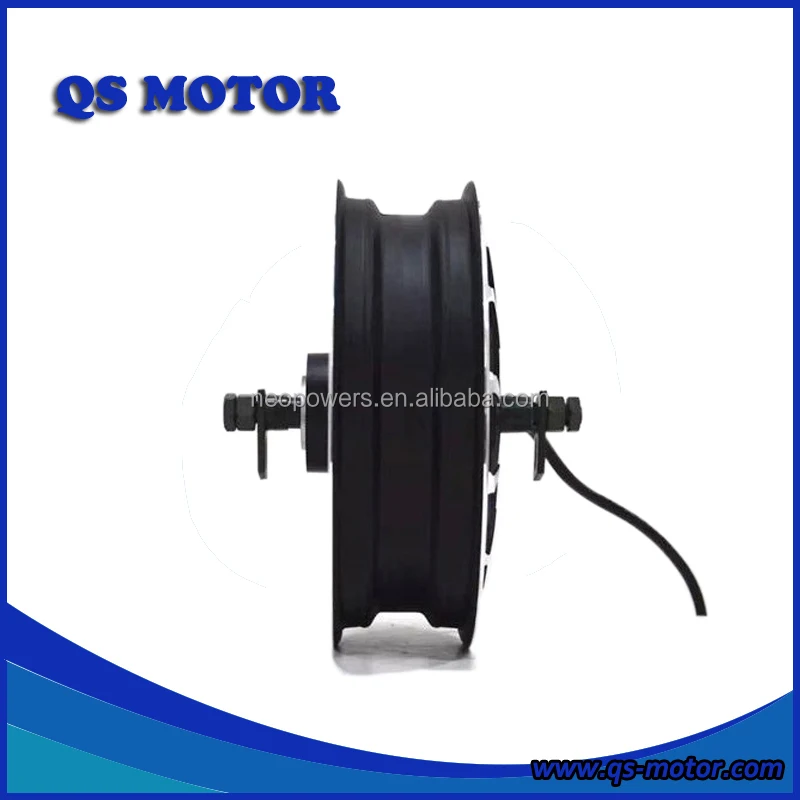

QS Motor 13 inch 260 model 3000W 72V( 60V 96V)Brushless E Scooter Hub Motor (40H) Type V1

Product Overview

Description









13inch 260 E-Scooter Hub Motor(40H) 3000W V1 Type





13inch 260 Hub Motor specially designed for electric motorcycle or electric scooters, the rated power can be made at 1500W,2000W,3000W or 5000W. Max speed can be customs at 35-100km/h.









1.      Motor Type: BLDC Hub Motor with Permanent Magnets

2.      Motor design: Double axle out with 13inch rim

3.      Rim size:3.5x13

4.      Matching Tire: 130/70-13

5.      Magnet Height: 40MM

6.      No. of Pole Pairs: 23 pairs

7.      Rated Power: 3000W

8.      Max Power: 4500W

9.      Rated Voltage: 72V( 60V-96V Can be optional)

10.  Speed: 70km/h (30-80km/h can be customized)

11.  Max No-load RPM: 1100RPM

12.  Max Torque: 170N.M

13.  Max Efficiency: 86%

14.  Continious current:46A

15.  Max current:80A

16.  Brake type: Disc brake

17.  Rear Fork width for installation: 200mm

18.  Winding Core material: Iron

19.  Cross Section of Phase wire: 10mm2

20.  Hall sensor phasing angle: 120 degree

21.  Temperature Sensor: Optional

22.  Max. Working Temperature: 70 degree, Peak 120 degree

23.  Waterproof Grade: IP54

24.  Color: Black

25.  N.W./ G..W. : 21kgs / 22kgs



26.  Package Size: 44*43*41CM
