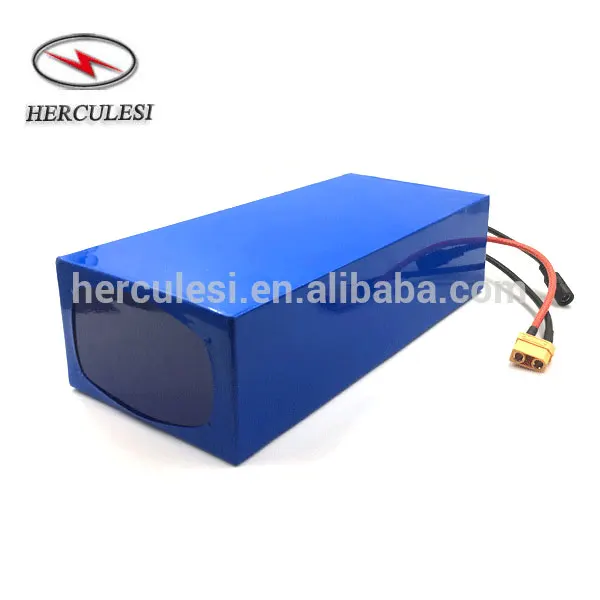

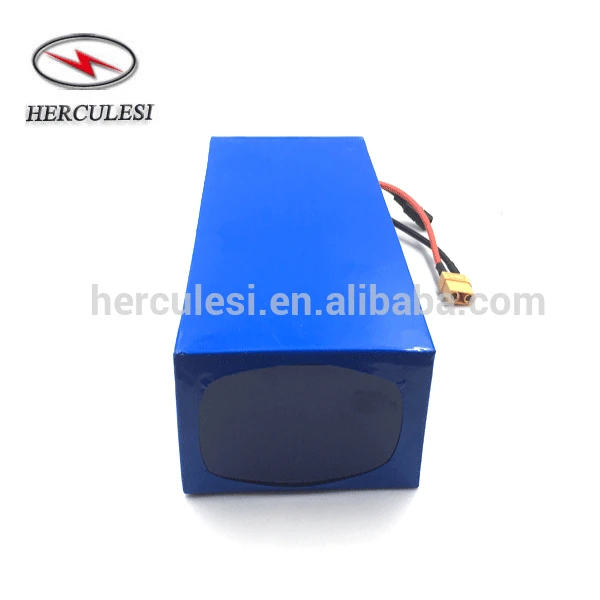

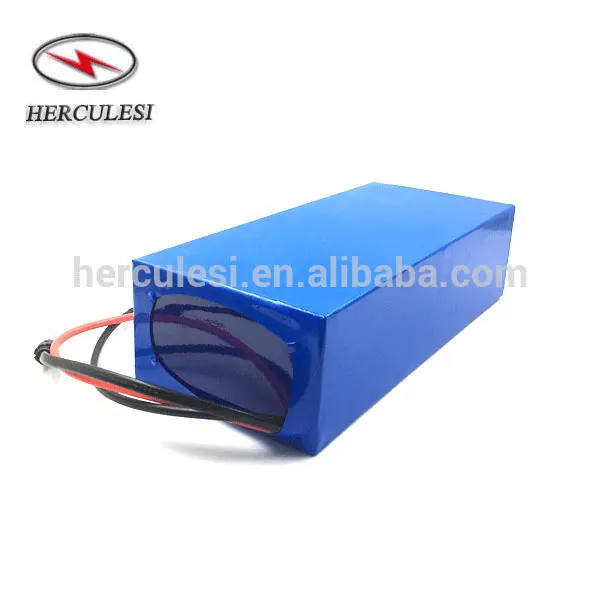

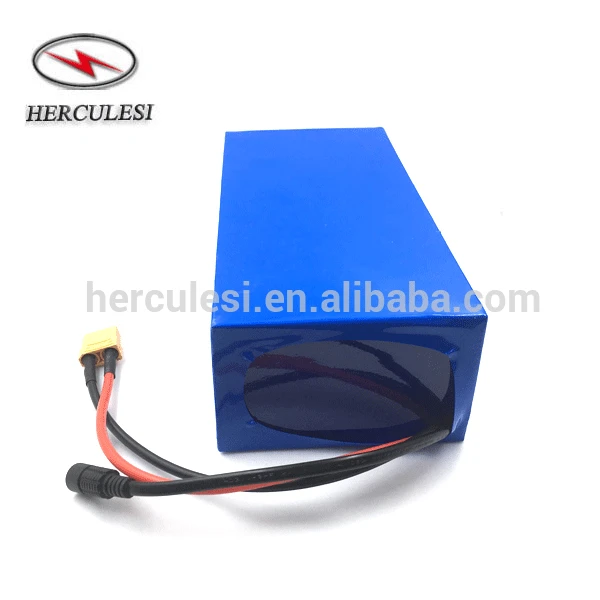

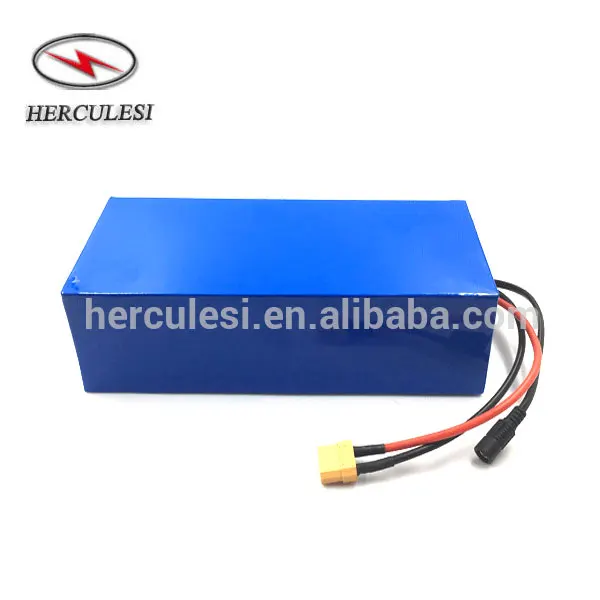

36V 20Ah Ebike Li ion 36 Volt Deep Cycle Lithium Ion Battery Pack For Electric Bike with Charger

Product Overview

Description

36V 20Ah Ebike Li-ion 36 Volt Deep Cycle Lithium Ion

Battery Pack For Electric Bike with Charger



Material	Lithium Ion Battery (LiNiCoMnO2)
Nominal Voltage	36V
Nominal Capacity	20Ah
Cell Assembly	18650 3.7V 2200mAh
	10 series with 9 parallel
Built-in BMS (10S 30A BMS)	Over-charge & discharge protection. Temperature control function. Short circuit protection. Balances the cells and ensures long cell life.
Charge	Charge Model	CC / CV
	Charge Current	2A / 5A Charger
	BMS Charge Cut-off Voltage	42V
	Cell Overcharge Protection Voltage	4.2V / Cell
Discharge	Max Continuous Discharge Current	30A
	Peak Discharge Current	60A
	BMS Discharge Cut-off Voltage	28 +/-1V
	Cell Over-discharge Protection Voltage	2.8V / Cell
Working Temperature	Charge Temperature Range	0~45°C
	Discharge Temperature Range	-20~60°C
Cycle Life	800~1000 cycles
Our certifications	ISO9001, UL 1642, CE, ROSH
Dimension	70*115*290 mm / 70*175*195 mm
Weight	about 4.5 Kg
Application	E-Bike, Scooter, Motorcycle...
Warranty	13 Months

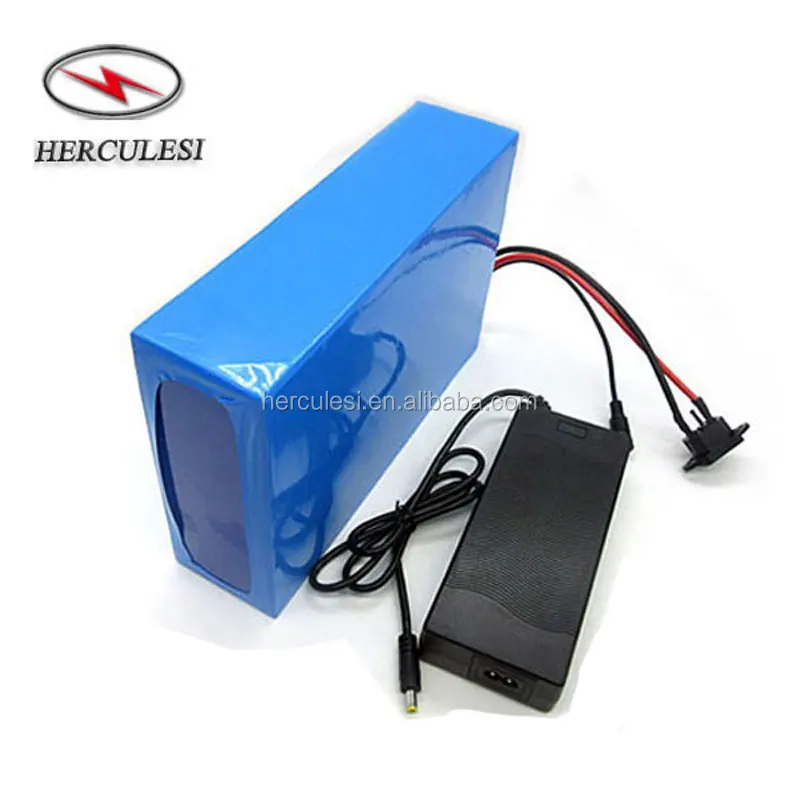

Part Included	1× 36V 20Ah Lithium Ion Battery 1× 42V 2A Charger



Herculesi is one of white hair for battery business in China since 2008.

1. "Quality is our culture", passed ISO9001, UL 1642, CE, ROSH

2. "With us your money in safe, your bussiness in safe", full refund in case of bad quality.

3. OEM is also welcome in our factory!

4. "Quality is the soul of an enterprise", CE ROSH UN38.3 MSDS can be provided if needed.

5. Fully 13 months warranty with good after customer services.

6. Down tube/ Rear Carrier / Folding / Under Saddle E-Bike, Scooter, Motorcycle, Boat, Wheelchair, Solar Storage, EV, RV, Forklift LiFePO4 battery solution available.



We provide high quality battery to clients all over the world and help cleints deliver battery from China to them by sea and by air at reasonable price. Also we provide necessary technical solution and warranty to you!
