Product Overview
Description
Product Description

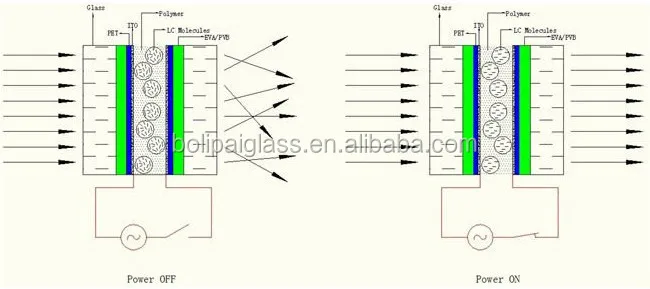

Structure & Principle
When you shut off the power,the distribution of liquid crystal molecules appear irregular,so that the light could not be scored,the glass apper opaque appearance. After the power is switched on,the liquid crystal molecules will arrange neatly,the light can penetrate,glass will appear transparent state--working principle from Yuki.
Switchable glass film is also named liquid crystal film, the scientific name is polymer-dispersed liquid crystal film, it is based on liquid crystal material "light valve" characteristics of the liquid crystal film.when the liquid crystal of the film droplets is in the applied electric field,according to the sequence distribution,, the film becomes colorless and transparent when the incident light is completely through, When the applied electric field disappears, liquid crystal droplets arrangement distribution sequence is disrupted, so that the incident light is scattered . It will generate milky "ground glass" effect.

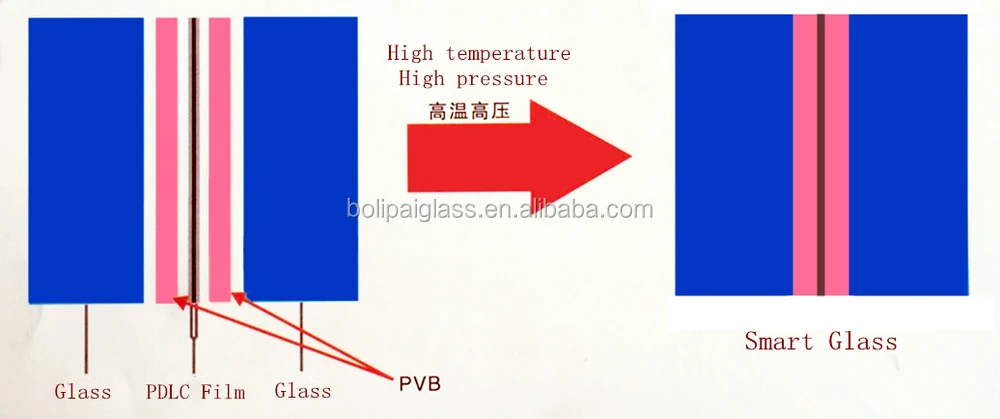

There are two types of smart glass film when used for glass,acrylic and the materials, one is laminated type smart film and other is self-adhesive smart film, those two types smart film is with the same working principle and parameter specifications, the main difference is the use of the methos, the details of those two smart film please check their introduction.
Based on it can be instantly convert the transparency of the smart film and glass, acrylic materials fit after installation and use. Not only can realize people's perspective requirements, but also meet the needs of the protection of privacy. the liquid crystal layer of the middle of smart film can be very good absorb ultraviolet ray and reflect infrared ray, thus it will be warm in winter and cool in summer in the house.to achieve environmental protection and energy saving. So advanced intelligent material to let our life, work, entertainment become more and more wonderful.
Switchable glass film is also named liquid crystal film, the scientific name is polymer-dispersed liquid crystal film, it is based on liquid crystal material "light valve" characteristics of the liquid crystal film.when the liquid crystal of the film droplets is in the applied electric field,according to the sequence distribution,, the film becomes colorless and transparent when the incident light is completely through, When the applied electric field disappears, liquid crystal droplets arrangement distribution sequence is disrupted, so that the incident light is scattered . It will generate milky "ground glass" effect.
There are two types of smart glass film when used for glass,acrylic and the materials, one is laminated type smart film and other is self-adhesive smart film, those two types smart film is with the same working principle and parameter specifications, the main difference is the use of the methos, the details of those two smart film please check their introduction.
Based on it can be instantly convert the transparency of the smart film and glass, acrylic materials fit after installation and use. Not only can realize people's perspective requirements, but also meet the needs of the protection of privacy. the liquid crystal layer of the middle of smart film can be very good absorb ultraviolet ray and reflect infrared ray, thus it will be warm in winter and cool in summer in the house.to achieve environmental protection and energy saving. So advanced intelligent material to let our life, work, entertainment become more and more wonderful.
Smart Film | ||
Total light transmittance | ON >83%,OFF>50% | |
Haze | ON<6%,OFF>90% | |
Minimum privacy distance | 3cm(switch off) | |
Operating Temperature | -20 to 70(℃) | |
Storage Temperature | <30°,Humidity<85% | |
Rated Voltage | 48 V/60V(AC,50/60 Hz) | |
Current | <0.1A/sq | |
Energy Consumption | 4W/sq.m. | |
Viewing Angle | >140° | |
Rate of Anti-UV | ≥98% | |
Response Time | <45ms | |
Working life | >50000 hours | |
Switching times | >80,000,000 | |
Sound insulation | >35dB | |
Heat insulation | >class 2 | |
Shotgun bag impact | II-1 | |
Vibration performance | GB 189 10.5-2008 | |
Falling-ball impact peel performance | GB 15763.3-2009 | |
Heat resistance | GB 15763.3-2009 | |
Damp heat test | GB 15763.3-2009 | |
Radiation resistance | GB 5763.3-2009 | |
Performance Feature
Safety
Environmental protection and energy saving:Can use the glass, heat insulation, heat preservation function, can save energy, at the same time it could block more than 90% of the infrared, and more than 98% of the ultraviolet ray, reduce the infrared thermal radiation, both reached the environmental protection and energy saving, and make us to feel comfortable to enjoy the bright sun
Sound insulation:Effective prevention of various types of noise
Control mode diversification:Voice control, temperature control, remote control, remote network control etc( According to customer's demand, can be customized for you)
High transparency
Environmental protection and energy saving:Can use the glass, heat insulation, heat preservation function, can save energy, at the same time it could block more than 90% of the infrared, and more than 98% of the ultraviolet ray, reduce the infrared thermal radiation, both reached the environmental protection and energy saving, and make us to feel comfortable to enjoy the bright sun
Sound insulation:Effective prevention of various types of noise
Control mode diversification:Voice control, temperature control, remote control, remote network control etc( According to customer's demand, can be customized for you)
High transparency
Application
1.Electric curtain
Environmental and energy-saving for green building material. It uses transparent or haze temperature control film, makes the smart film a haze state when the indoor temperature is high, when the light reduces, the smart film is in a translucent state; when the light is weak, the smart film is in a transparent state.

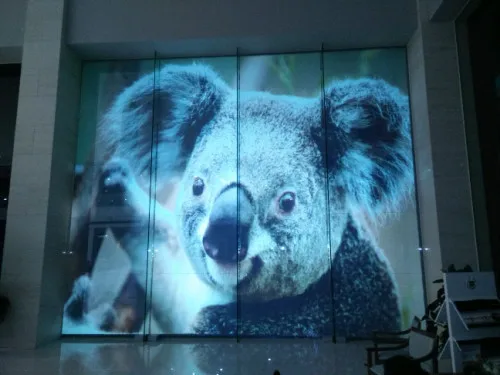

2.Projection screen
Smart film can be used as a switchable projection screen on a store window for advertising. 3G smart film is good for both front and rear projection and projected images can be viewed from both sides.

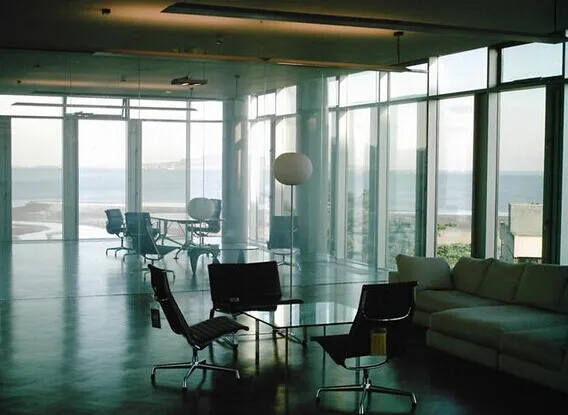

3.In the office
*Applied to the glass enclosure of a conference room. When the glass is transparent, one can see into or out of the room, and when it is non-transparent it can be used as a projection screen.
*Energy-saving function of glass curtain wall

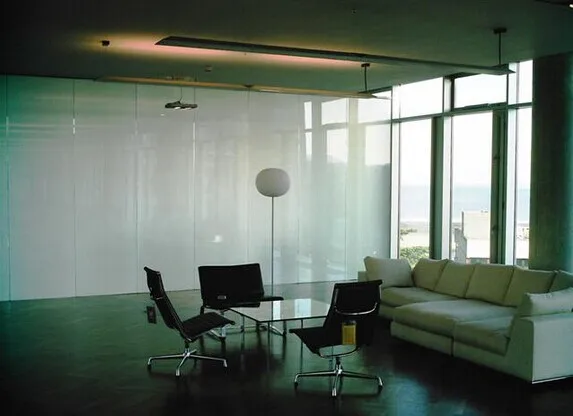

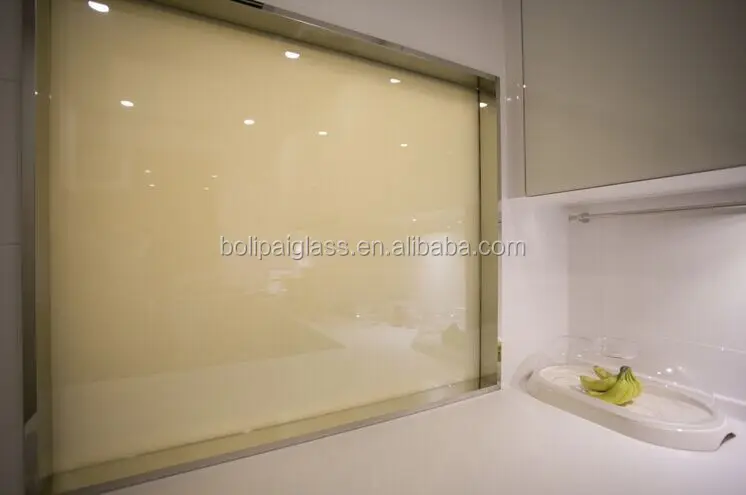

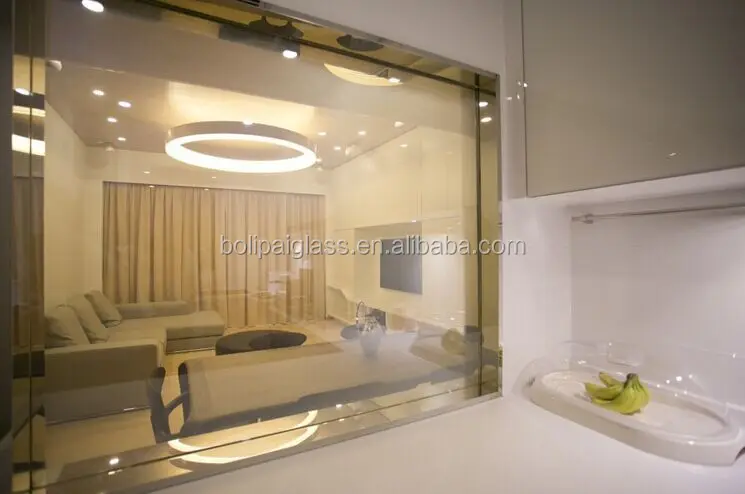

4.Indoor decoration of up-scale residence
Lighting cover glass curtain, sunshine house, living room and bathroom compartment. The glass is in a cloudy state when out of use, which protects privacy, and when it turns to transparent, one may fully bathed in sunshine.
5.Product display and commercial advertisement
Glass display window, protect the products when it is non-transparent, and may used for projection to introduce products; when it is transparent, it may be used for store advertising.
6.Use for special occasions
*The glass door of a rest room is non-transparent when out of use, and immediately turns to a cloudy state when the door is closed.
*Glass floor and stairs on the second floor appear cloudy when walked upon, otherwise they are transparent.
*Privacy uses in hospitals, e.g., windows of infants' room and intensive care units, replacing curtains, to reduce dust and noise.
*Applied to dust-free rooms and cleaning rooms, smart films may be used to switch between transparent and non-transparent, and can reduce inconvenience for customers having to wear dust-free clothes passing in and out of the room.

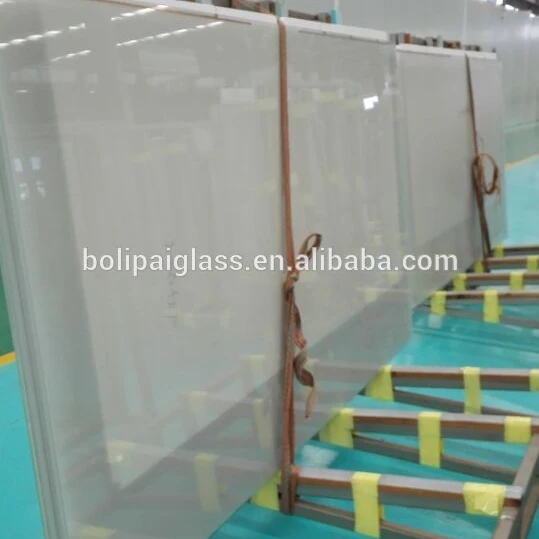

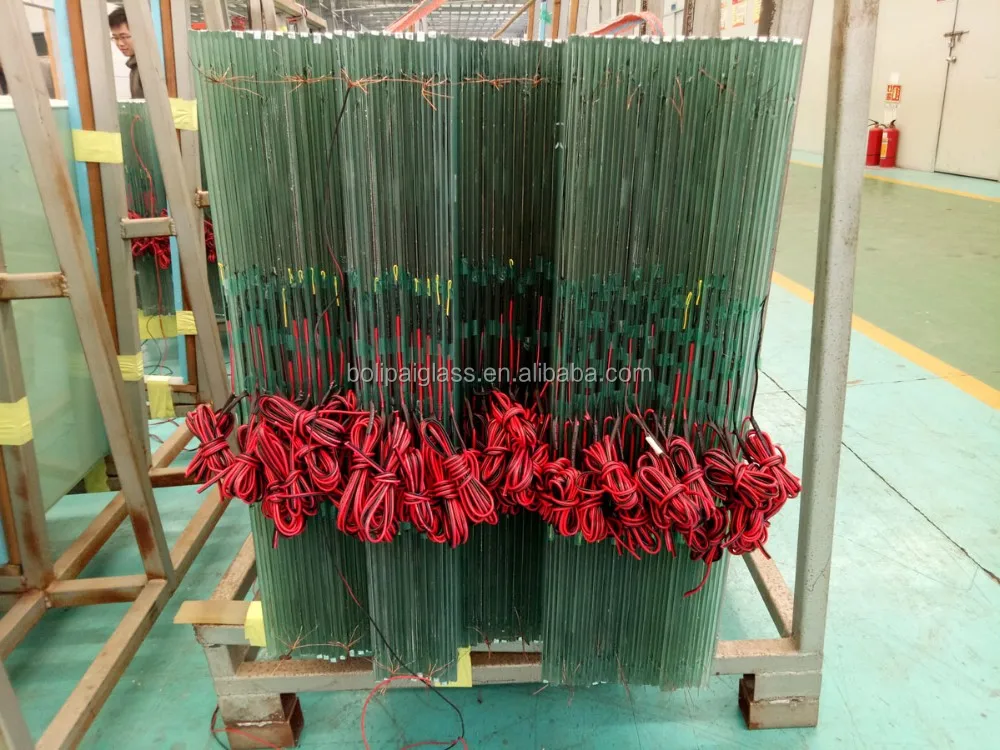

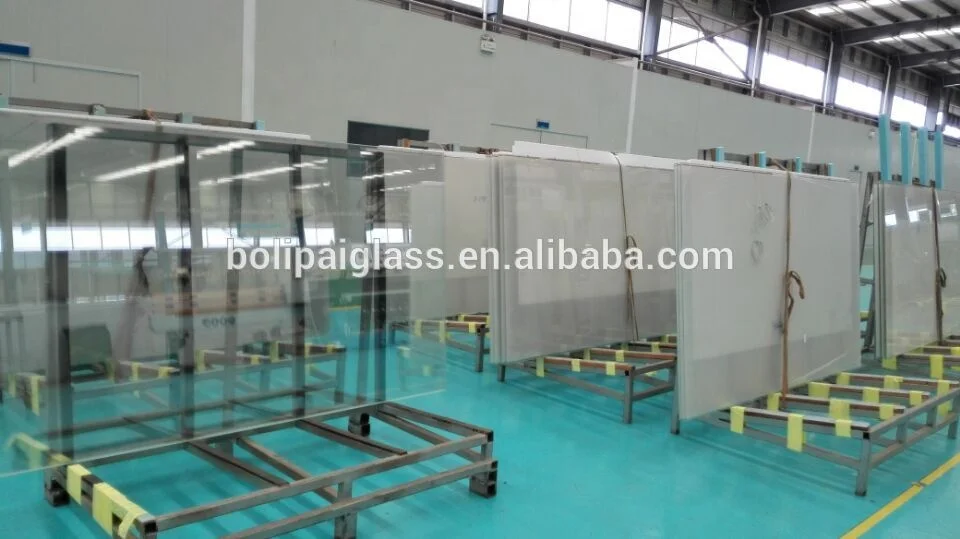

Product Pictures

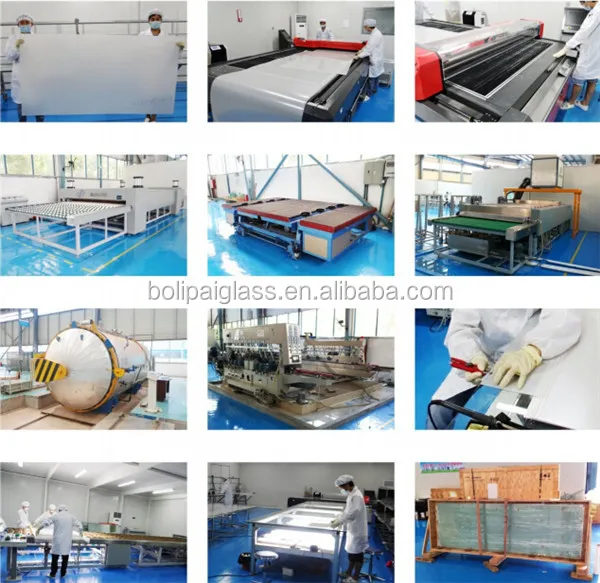

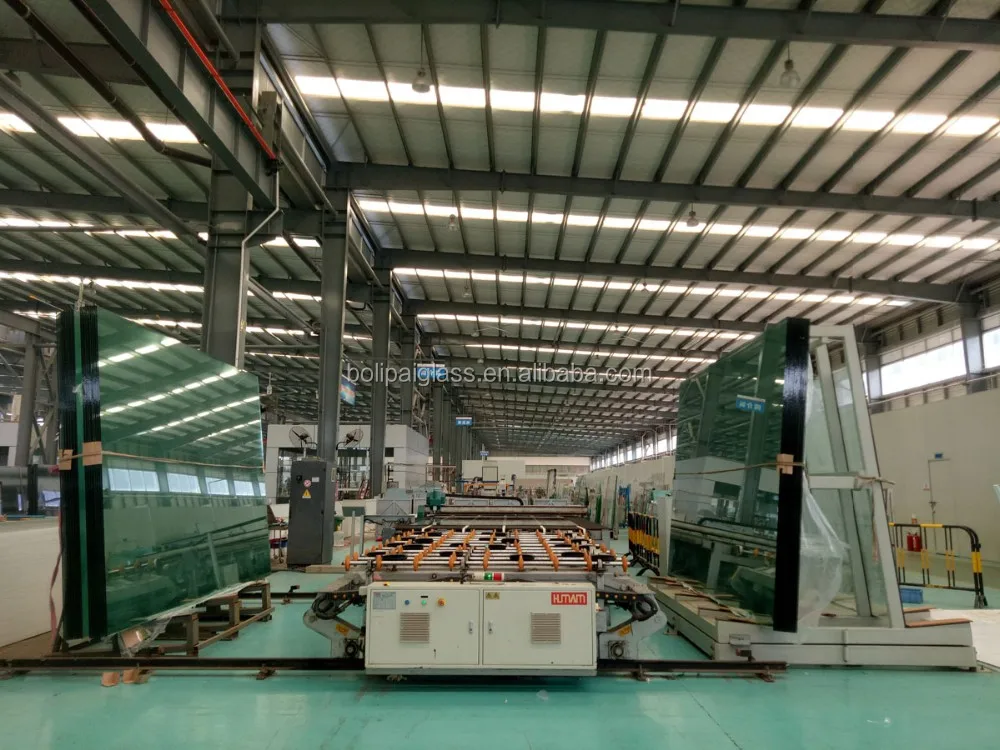

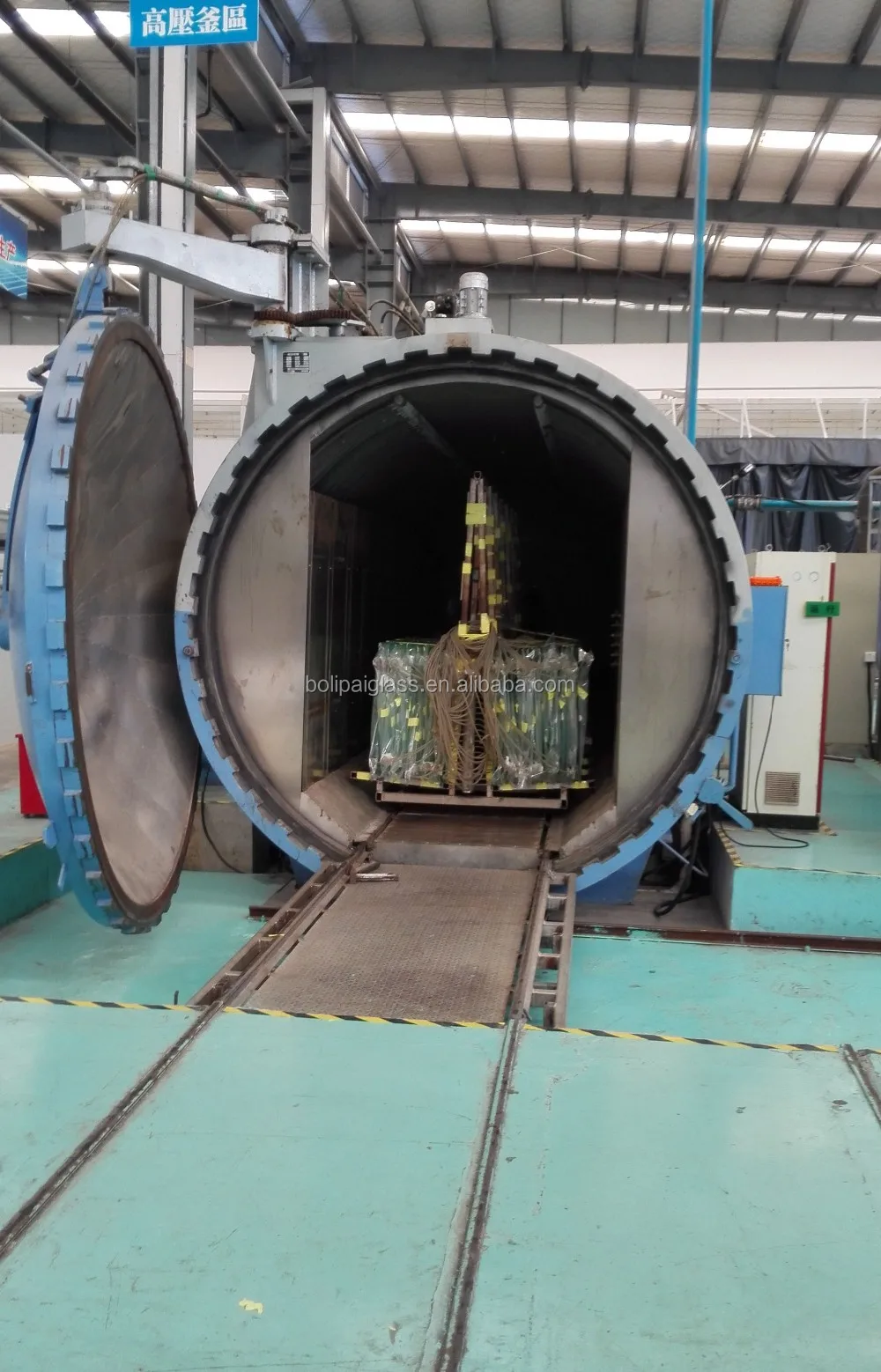

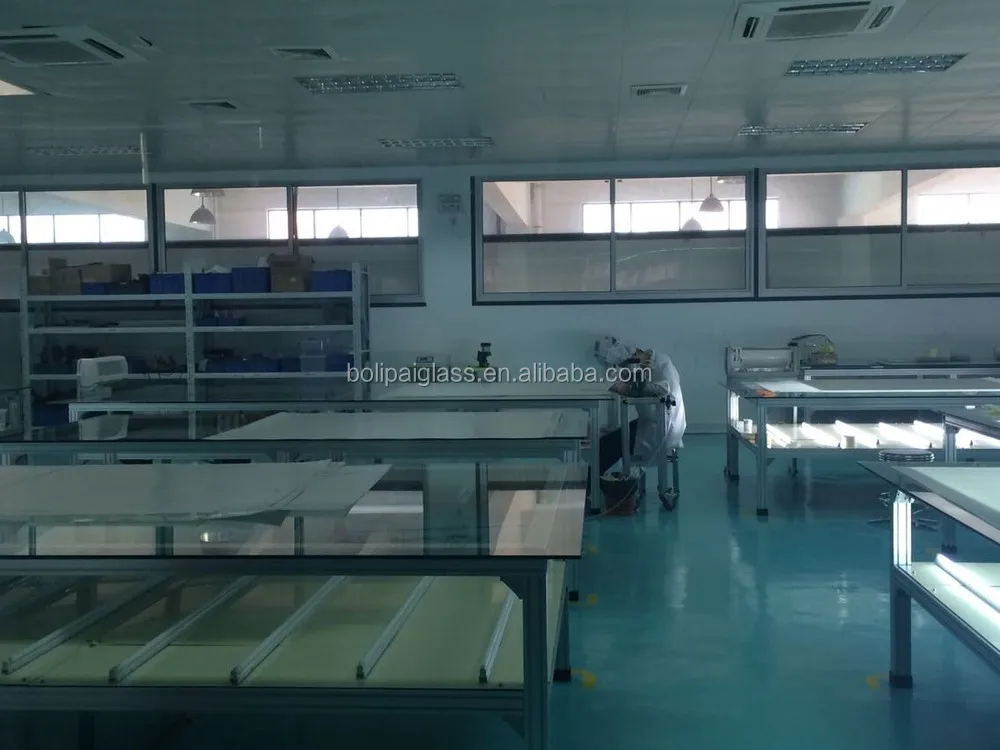

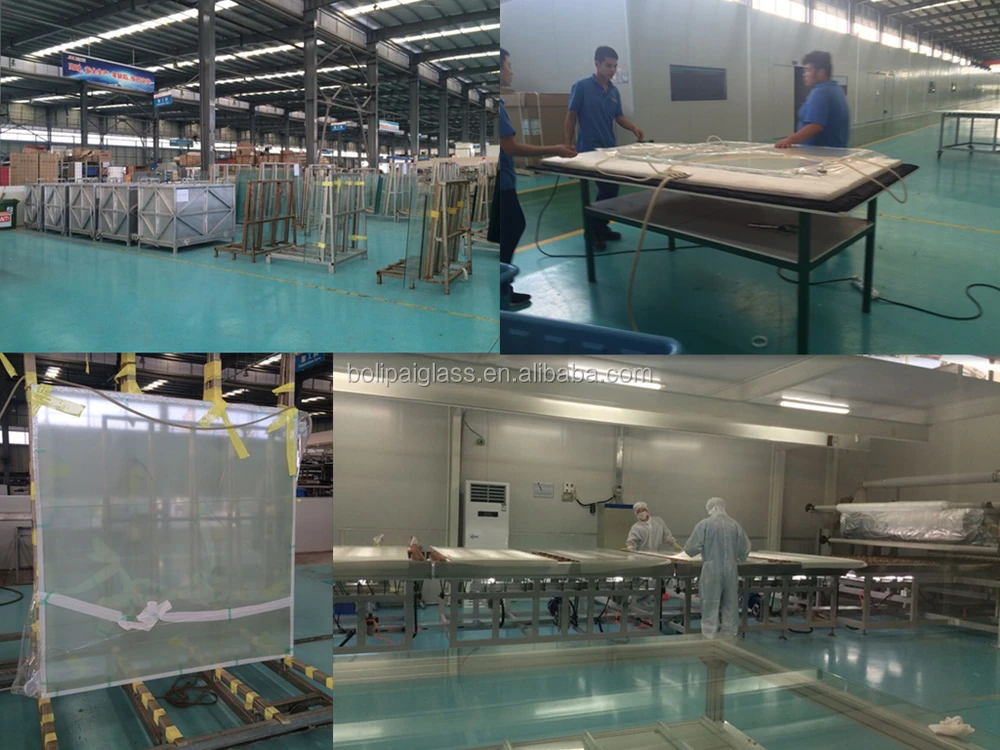

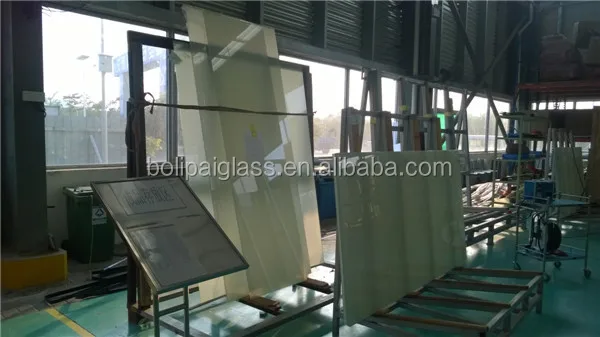

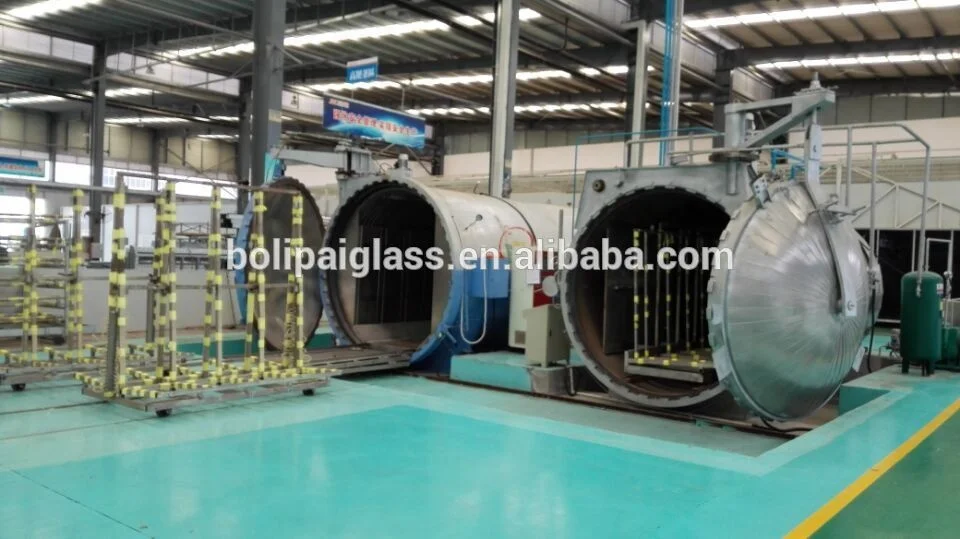

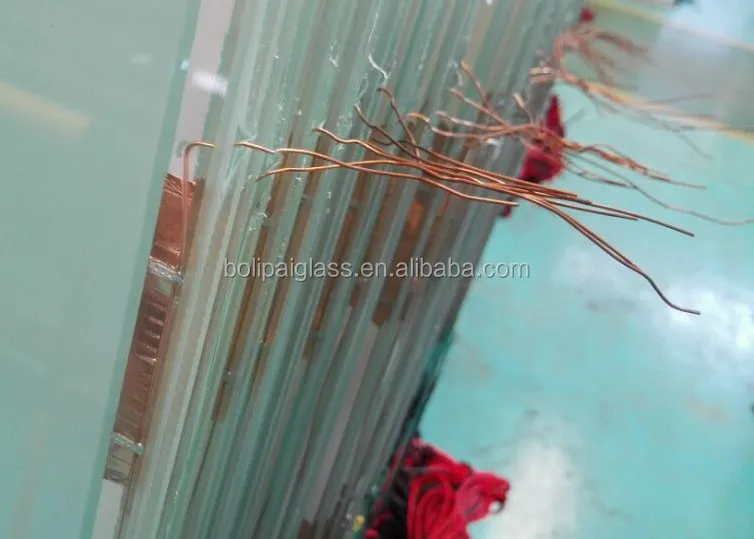

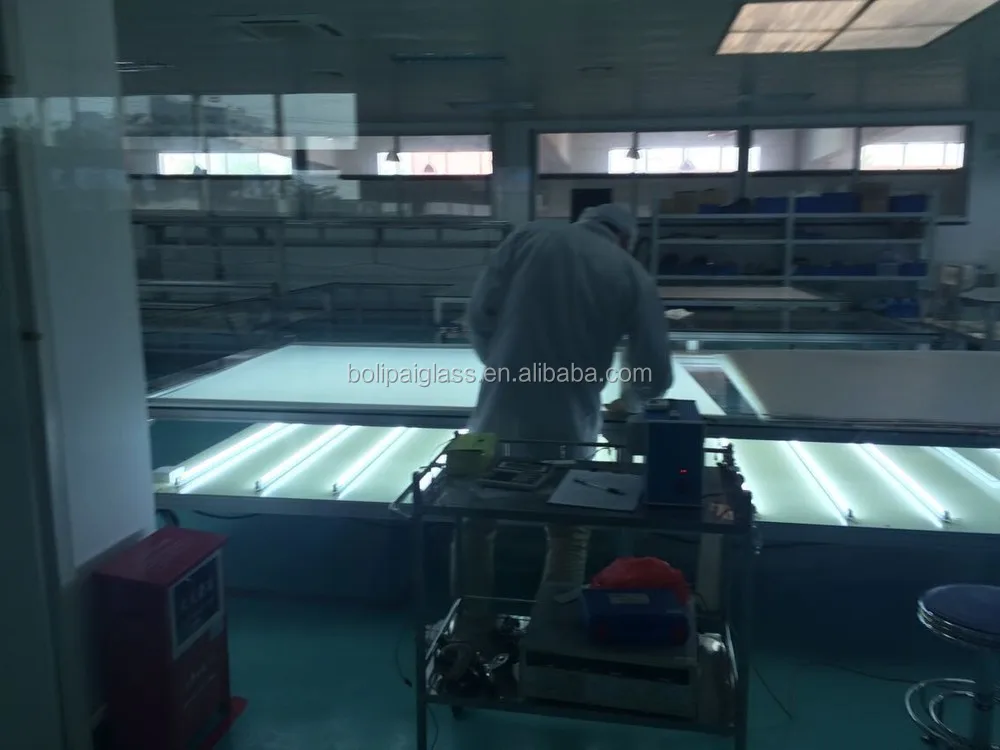

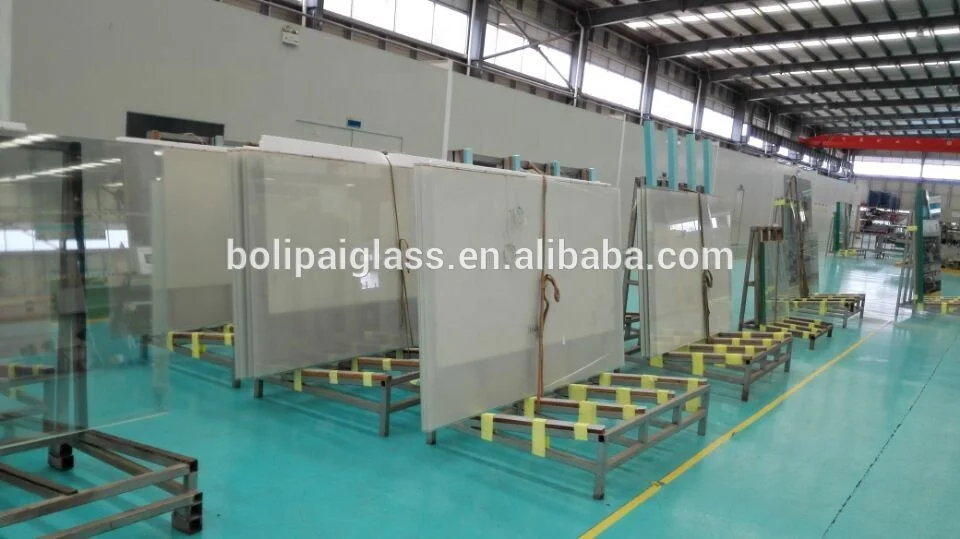

Product Procedure

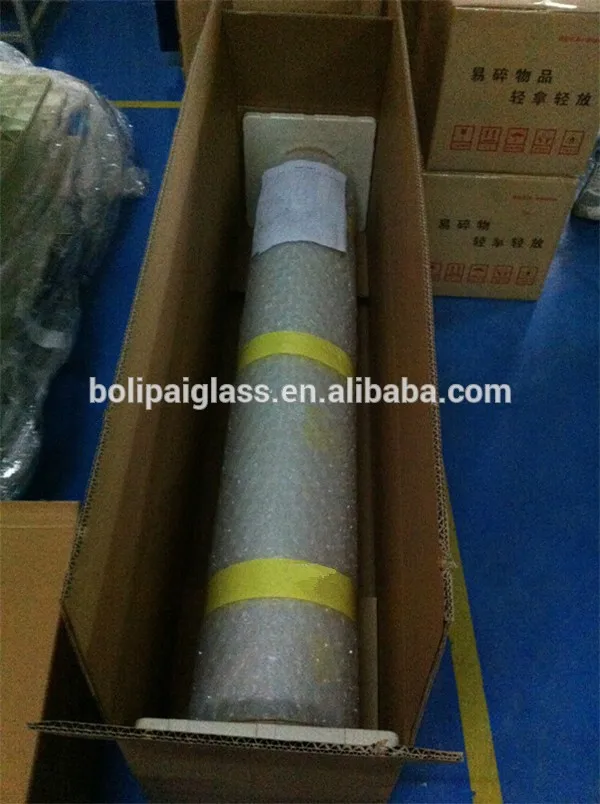

Packing & Delivery
FAQ

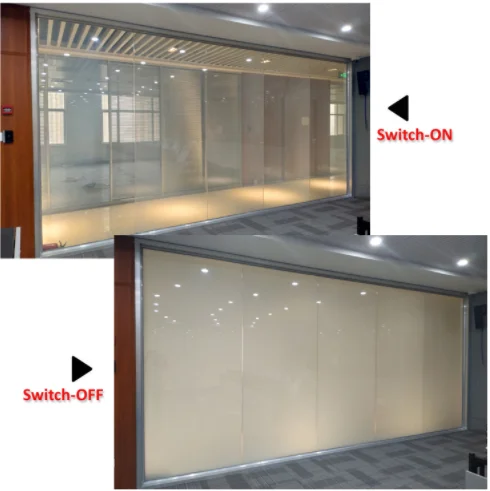

1 How does Smart Film work?
- On, clear; off, frosting
2 What is smart film lead time?
- Lead time for its PDLC Film Products is 7-15 days after PO confirmation.
3 What is the size of your roll?
- Self-adhesive film 1.2*50m;1.5*50m
- Non-adhesive film 1.8*50m
-Smart Glass 1.8m*3.6m
4 What are your shipment terms?
- Sea transportation & international express
For quick quotation and service, please kindly send us your inquiry with below information:
1. Usage
2 .Dimension in length and width
3. Quantity
4. Simple drawing if you have
5. Other information for our better understanding
