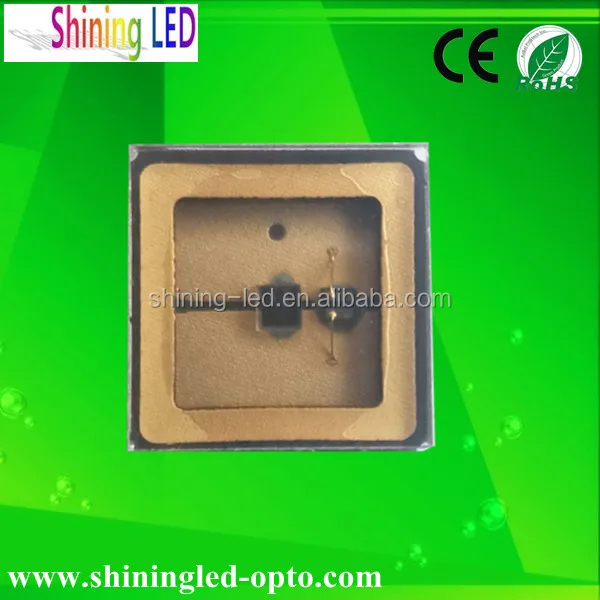

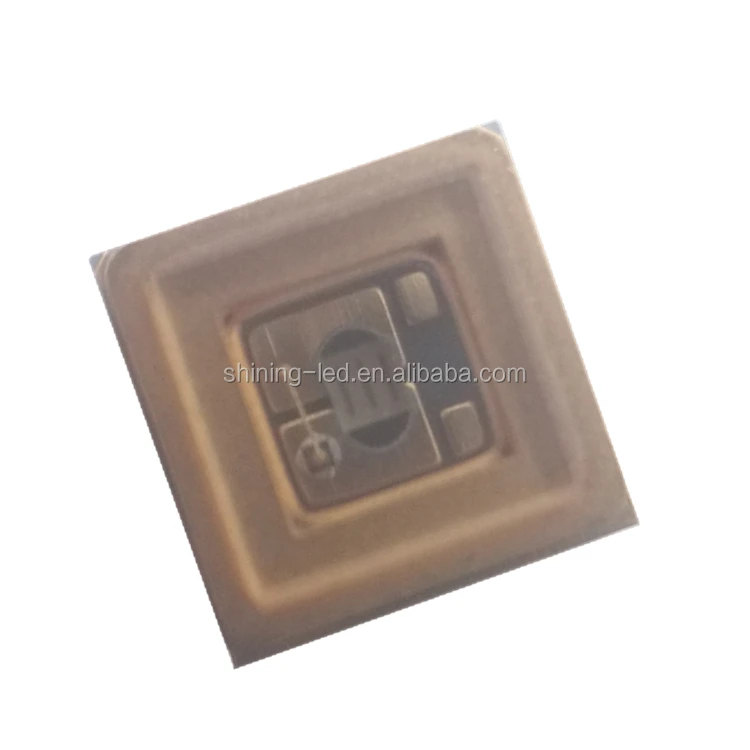

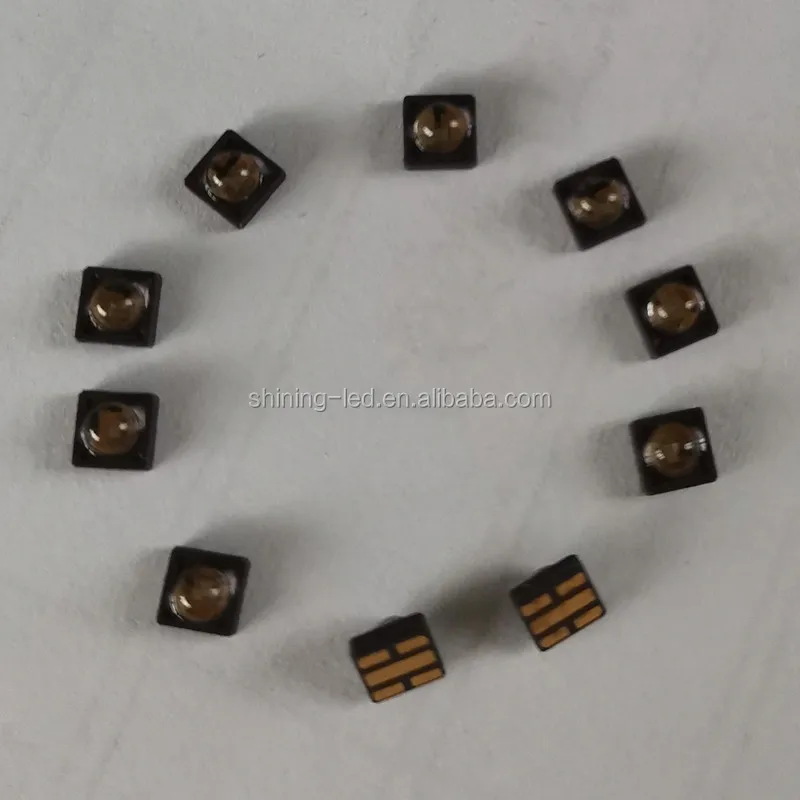

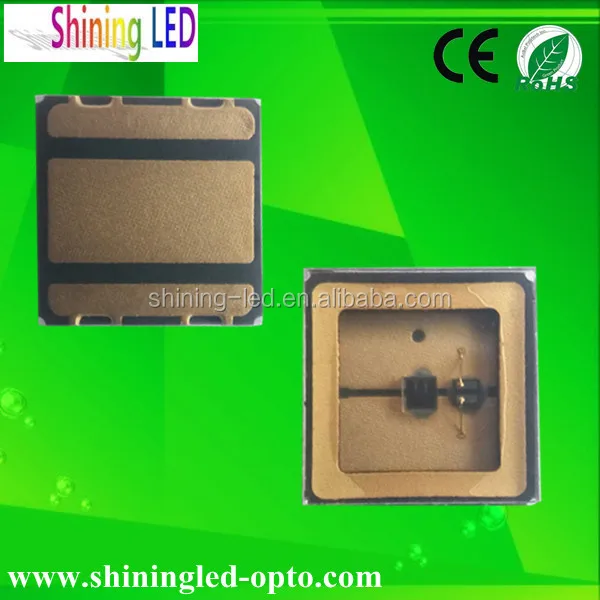

SMT Type 3535 SMD Deep UV LEDs altraviolet UV C Diode 0.5w 0.6W 250nm 254nm 255nm 260nm UVC LED Chip

Product Overview

Description

SMT Type 3535 SMD Deep UV LEDs altraviolet UV-C Diode 0.5w 0.6W 250nm 254nm 255nm 260nm UVC LED Chip









1. Conditions of use and preservation methods: (TA = 25℃)



	Unit	Ratings
Working current (CW-DC)*	mA	20
Working voltage	V
Working temperature	℃	-30~55
Storage Temperature	℃	-30~55
Operating / Storage humidity	%	0~80



*Maximum operating current: 20mA.



2. Chip parameters (TA=25℃, IF=20mA)



parameters	Condition	min	max		average	Unit
Peak Wavelength (λp)	20mA	275	285	280		nm
Output Power (Pout)	20mA	0.5	2.0	1.0		mW
Half-wave width	20mA					nm
Forward Voltage (VF)	20mA	5.0	8.0	6.0		V
