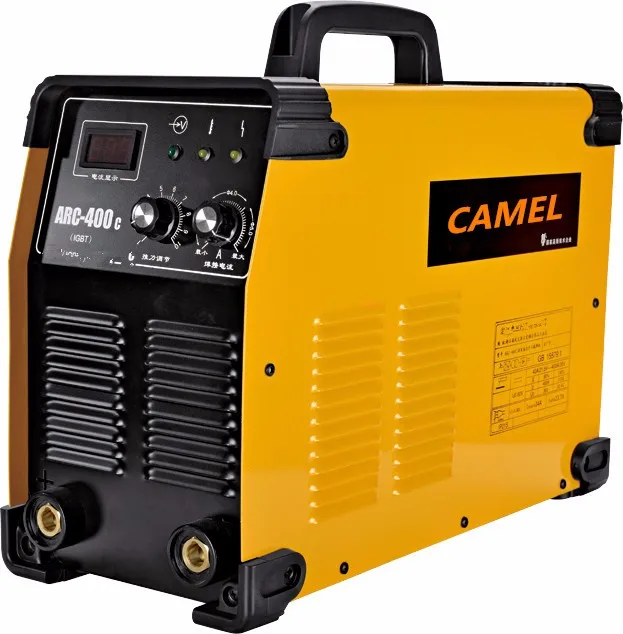

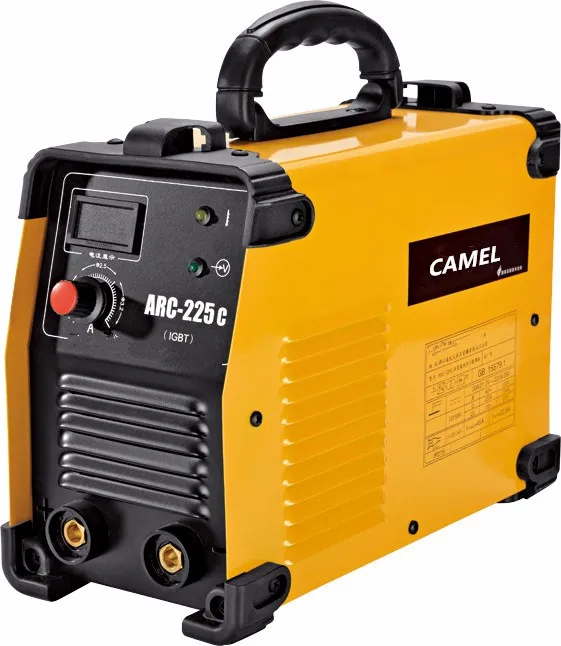

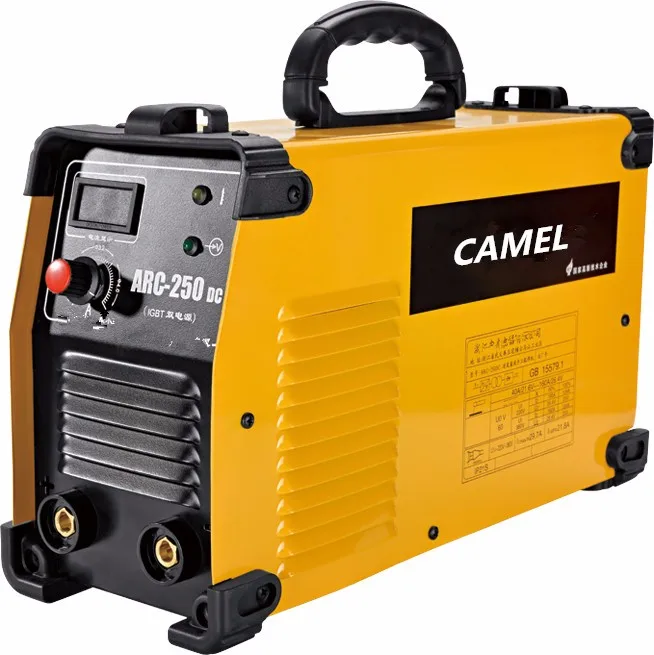

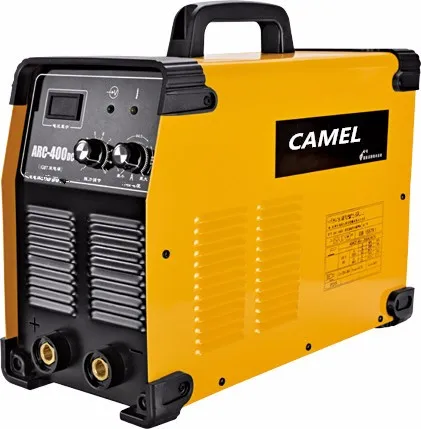

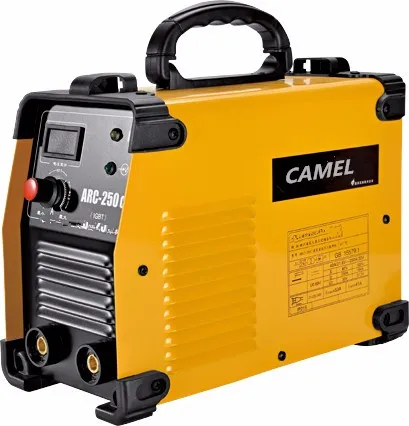

Transformer Type Single Phase Arc Welding Machine

Share on (60617933988):


Price:RUB 2,898.76

Quantity:


Product Overview

Description

Parameter




Model
ARC-200
Input voltage(V)
1PH AC220V±15%
Input power(KVA)
8
Input current (A)
36
Output current(A)
20-200
No-load voltage (V)
68±5
Duty Cycle% (40℃ 10min)
200A 30%
110A 100%
Efficiency (%)
70
Protection grade
IP21
Insulation grade
F
Net weight (KG)
5.4
Gross weight (KG)
6.8
Dimension of machine (mm)
370*155*270
Dimension of package (mm)
426*219*283

Main Features

1IGBT DC Inverter Home-used machine


Electrode: 3.2mm-4.0mm acid or basic type

Function: Anti-stick, hot start, adjustable arc force, EMC and VRD

Material: carbon steel and stainless steel

Portable: 5.4KGS only
Certifications
Detailed Images
Our workshop




*

Packing & Delivery
Packaging
Size
123 (L) * 456 (W) * 789 (D)
Weight
3.8kg



Packaging Details
The normal package is carton box(Size: 426*219*285).
