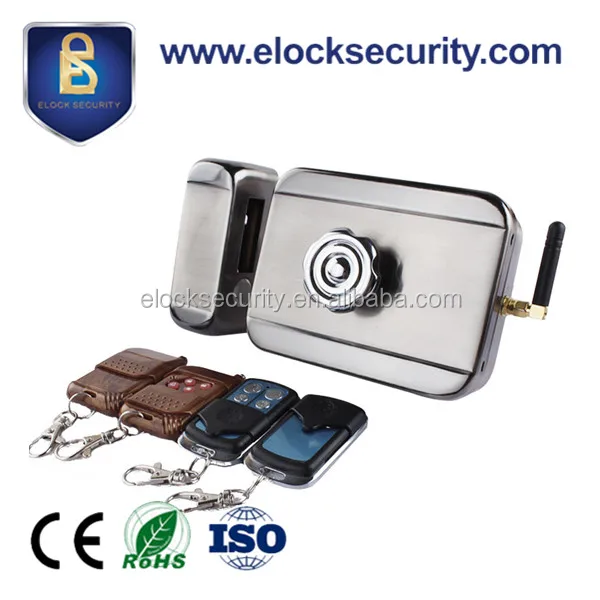

2017 Newest Smart Hidden Remote Control Gate Lock, Electronic Lock

Product Overview

Description

2017 Newest Smart Hidden Remote Control Gate Lock, Electronic Lock





Features

1)      Lock body size: 130x100x44mm (Exclude knob)

2)      Weight: 1000g (exclude battery)

3)      Frequency: 433MHZ

4)      Distance of remote: 0~50 meter (depends on environment )

5)      Life of battery: 4pcs AA alkaline battery work around 12 months (Power alarm as standard)

6)      Low battery warning: Alarm at each 20 s, press square button to cancel.

7)      External power: DC5V, Micro USB

8)      Static current: 20mA

9)      Working current: 200mA.

10)   Working environment: -20~+60 ℃



11)   Quantity of register remote: 20 (If over 20, automatically cover the earliest registered remote).







Specification



Model	ES2088RC
Finish	Nickel plated
Lock Size	130x100x44mm
Remote	4pcs
Thickness of lock body	2.0mm
Voltage	12VDC,4pcs AA alkaline battery
Working current	200mA
Static current	20mA
Frequency	433MHZ
Distance of remote	0~50 meter (depends on environment )
Unlock mode	Remote
Service life	500,000 times
Locking method	magnet induction
Operating Temp	-40~+50°C
Weight	Approx. 1.8kg
Standard Packing	12pcs

























Packing

Carton Size: 36X28.5X24.5cm

Qty/Carton: 12pcs

N.W: 20 KG

G.W: 21 KG

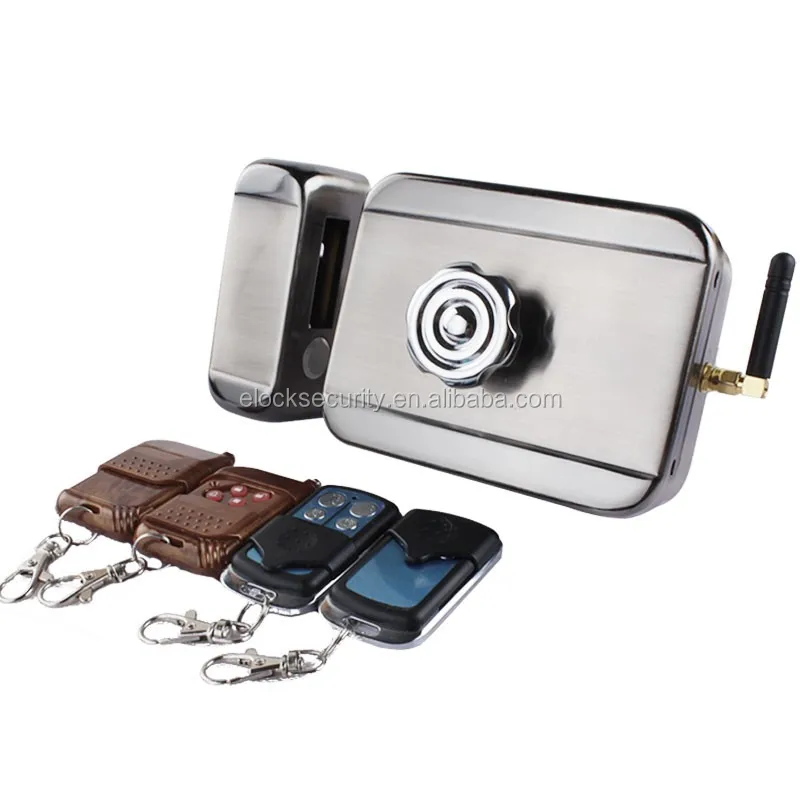

Sample Photo
