3kw low speed permanent magnet alternator on sale

Product Overview

Description

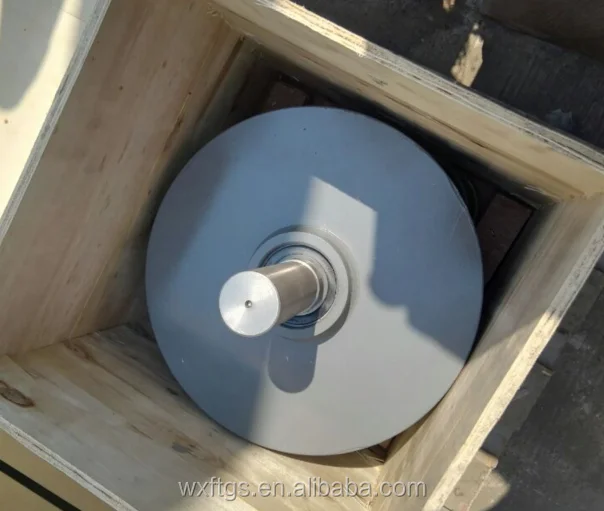

Picture of 3kw low speed permanent magnet alternator on sale

Detail parts of 3kw low speed permanent magnet alternator on sale





Features of 3kw low speed permanent magnet alternator on sale

• Low start up speed
• Low cogging torque
• Suitable for both Horizontal and Vertical Turbines
• Gearless, direct drive, low RPM generator
• Alternator generator Type permanent magnet generator
• For use in all environments
• Excellent heat dissipation
• Designed for 20-year operation life.

Parameters of 3kw low speed permanent magnet alternator on sale

Model	NE-3000P
Rated Power(w)	3000w
Max Power(w)	4800w
Rated Voltage(v)	96/120v
Rated Rotated Speed(r/m)	300r/m
Top Net Weight(kg)	70kg
Output Current	AC
Start Torque(N*M)	0.96Nm
Rated Torque(N*M)	95.5Nm
Generator	3 phase permanent magnet synchronous generator
Insulation Class	F
Service Life	More Than 20 years
Bearing	HRB or for your order
Shaft Material	Iron
Shell Material	Carbon Steel
Permanent Magnet Material	Rare Earth NdFeB
Protection Grade	IP54
Lubrication	Lubrication Grease
Working Temperature	-40℃ - 80 ℃

System drawing for 3kw low speed permanent magnet alternator on sale

Standard packing for 3kw low speed permanent magnet alternator on sale

Professional delivery

Co-operation around the world

Exhibition review

UA}4K2IG){9E`T%U8H$87V.png" width="590" height="496" ori-width="708" ori-height="595"/>

Certificates

Contact Information: 24 hours always online for you!
