Cheap price low speed DSTG bucket elevator bucket lifts for sale
- Category: >>>
- Supplier: Wuhan Good Rain Machinery Co. Ltd.
Share on (60618192083):
Product Overview
Description
Product Description
Product Application

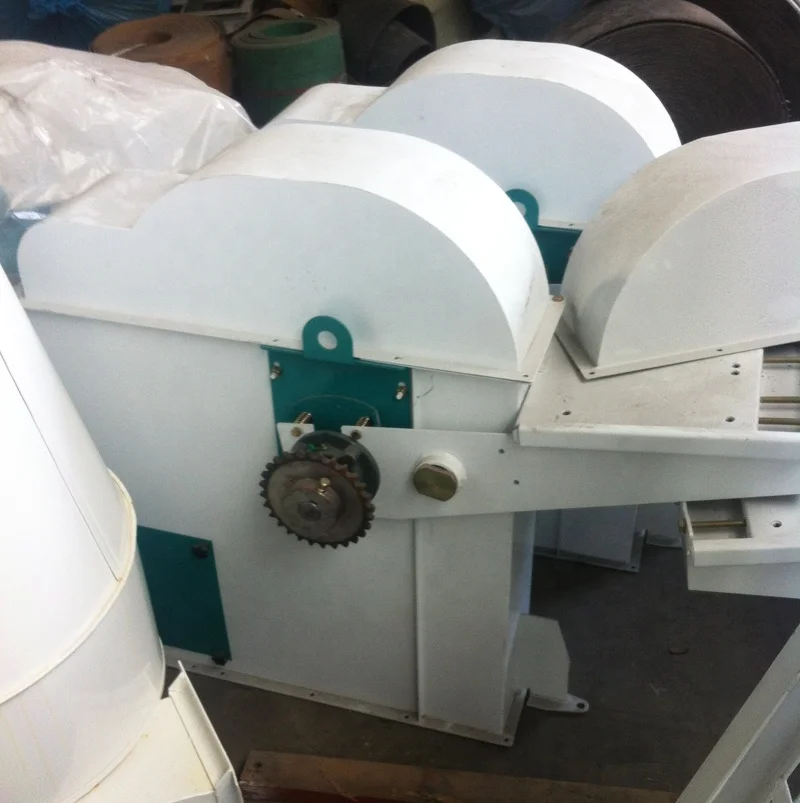

DSTG series Low-speed bucket elevator is a new type transportation device widely used for the vertical lifting of the powder, granules and small food materials in a low velocity. This elevator is characterized by compact structure, better sealing, easy operation, high efficiency, low energy consumption and so on.
Model | DSTG-6 | DSTG-10 | DSTG-15 |
Capacity（t/h） | 6～8(paddy) | 10～13(paddy) | 15～18(paddy) |
Rotating velocity（rpm） | 50 | 38 | 27 |
Line speed（m/min） | 30 | 30 | 30 |
Height（m） | ≤13.5 | ≤18 | ≤22 |
Power(kw) | 1.1KW | 1.5～2.2KW | 2.2～3KW |
Transmission type | bush roller chain | bush roller chain | bush roller chain |
Main Features
By adopting decelerating electric machine to carry directly , DSTG series elevator could operate smoothly at a low speed without noise and vibration, It is easy to instal the self-unloading sliding discharging. effective dust absorption and explosion proof can be realized for there are many dust hood outlets on the machine head and base .
Working principle

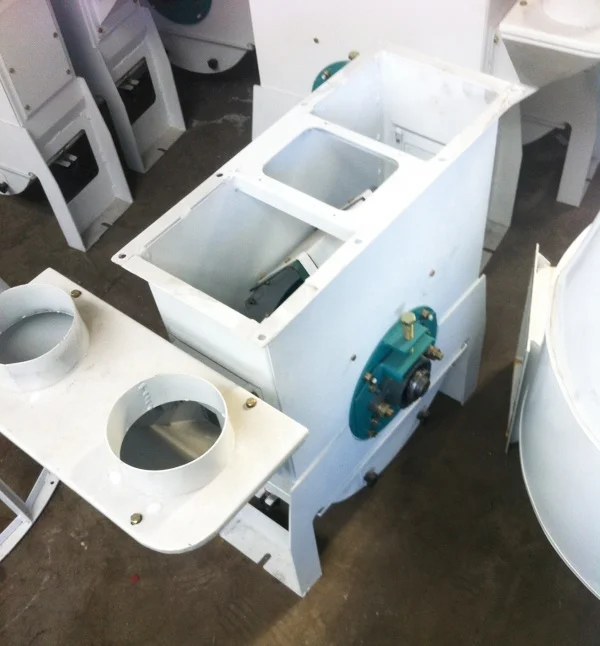

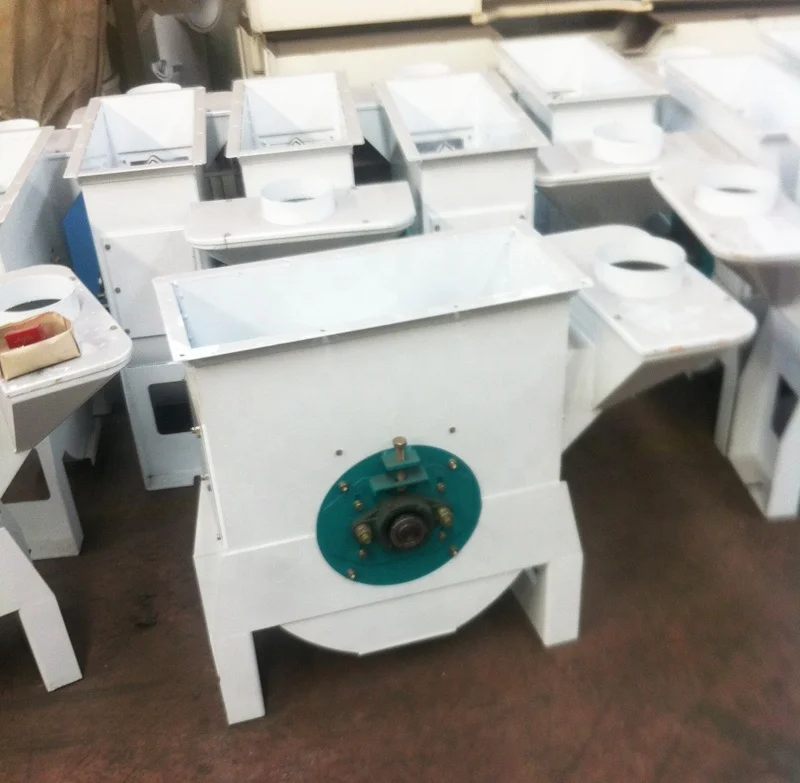

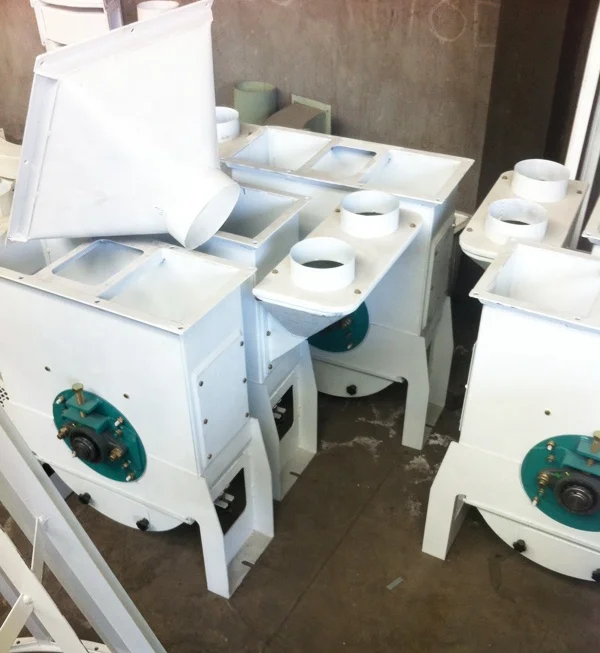

DSTG series low-speed bucket elevator is consist of head, machine seat, double straight pipe, transmission device and other accessories (the feed port, discharging port, gate). Their work include feeding the bucket, vertical lifting and gravity-type discharging
Packing & Delivery
Packaging | ||
Size | Size depends on QTY | |
Weight | 500 kg | |
Packaging Details | The machine head and base are packed with wooden box, other parts are nacked . | |
Packaging | ||
Size | Size depends on QTY | |
Weight | 500KG | |
Packaging Details | The machine head and base are packed with wooden box, other parts are nacked . | |
Our Service
1. For all your inquires about us or our products, we will reply you ASAP
2. Machines are under guarantee repair for 1 year except for human reasons, after service forever.
3. Lifetime spare parts available
2. Machines are under guarantee repair for 1 year except for human reasons, after service forever.
3. Lifetime spare parts available
