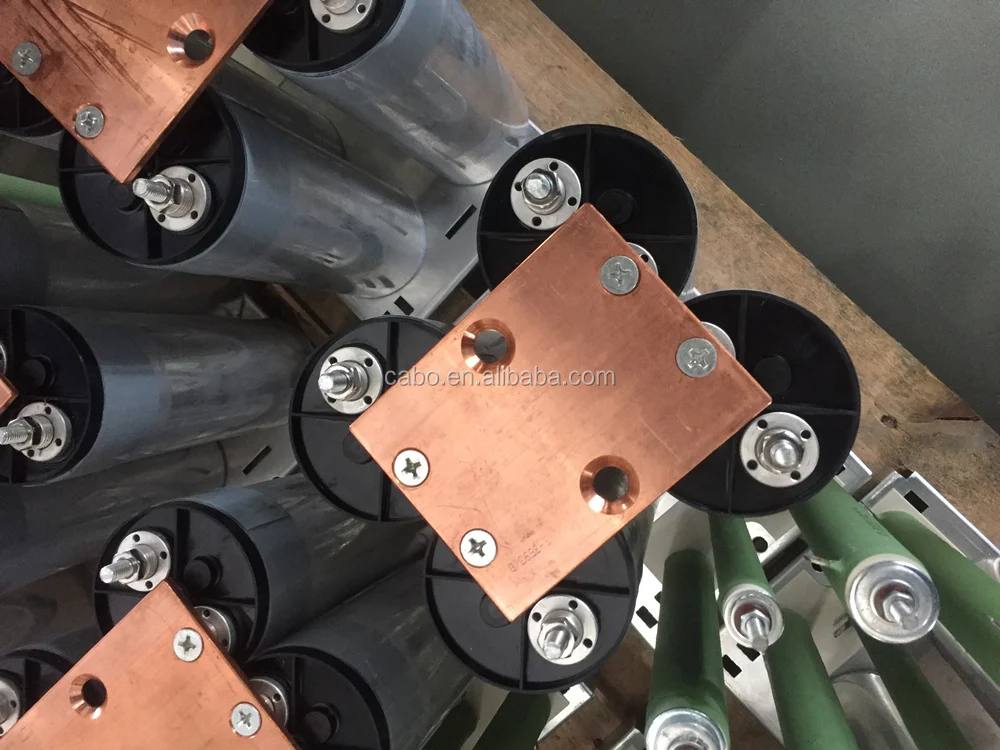

LL series//120uF 2700V DC link capacitor for high voltage power supply(soaking in oil)
LL series//120uF 2700V DC link capacitor for high voltage power supply(soaking in oil)
LL series//120uF 2700V DC link capacitor for high voltage power supply(soaking in oil)
LL series//120uF 2700V DC link capacitor for high voltage power supply(soaking in oil)

LL series//120uF 2700V DC link capacitor for high voltage power supply(soaking in oil)

Share on (60618225878):


Price:

Quantity:


Product Overview

Description


Product Description


>IEC 61071
>Dry type structure
>High over-voltage and over-current
>Self-healing
>Transition metal layer
>Aluminum resin infusion
>VARI
>Outer diameter reel

Electrical Parameter
\t
Capacitance
\t
48～3500μF
\t
Temperature
\t
-40℃～+85℃
\t
Capacitance Tolerance
\t
±5%(J);±10% (K)
\t
Rated Voltage
\t
400～8000V.DC
\t
Test Voltage between terminals
\t
1.5Un 60s
\t
Test Voltage between Terminal/Case
\t
√2Un≤1000,2000VAC(60s)

√2Un＞1000,(√2Un+1000)VAC(60s)
\t
Max.Altitude
\t
＜2000m
\t
Insulation Resistance
\t
R*C≥5000S(100VDC, 60S)
\t
Flame Resistance
\t
UL 94V-0
\t
Max Torque of terminals
\t
6Nm
\t
Max Torque of installation
\t
10Nm
\t
Lifetime Expectancy
\t
≥100,000Hours (Un≤70℃)
\t
Failure
\t
50FIT

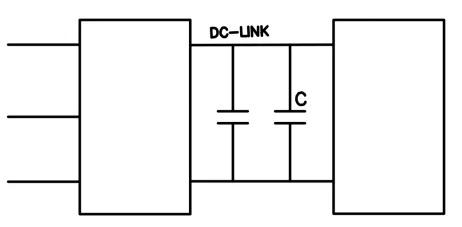

Typical Circuit



It can be widely used in:
Wind,Solar power inverter / Welding machine / Frequency converter /power supply / Plating power supply / UPS.

For DC-link , energy storage and filter.

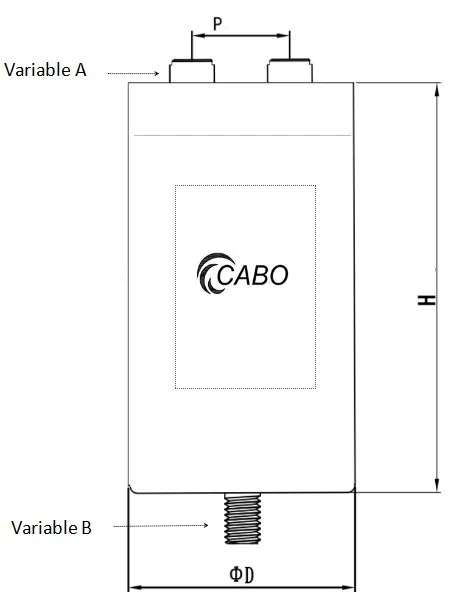

Outline Drawings
\t
Variable A
\t
Variable B
\t
Nuts /Bolts
\t
Bolt/Null
\t
M6/M8/M12
\t
M8*12mm/M12*16mm

More installation leads please contact your customer manager

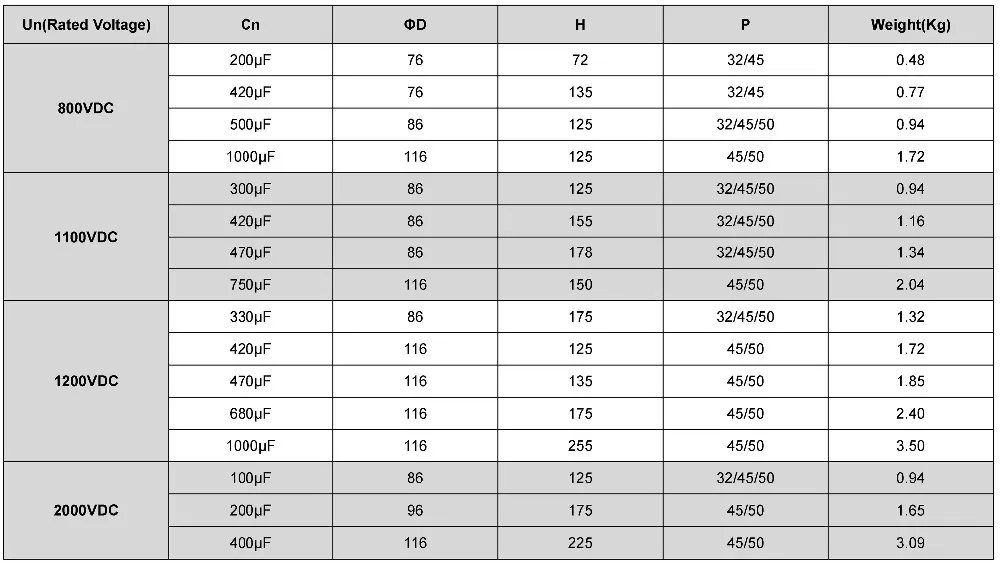

Common Design

(Customization available)

Note:The above parameters are just for your reference only,the details please check your specification.

Packing & Delivery

Be a environment friendly enterprise, CABO under control of IS0 9001 and ISO 14001 quality and environment standard.

All of our packing materials are environmentally friendly.


CABO is a leading manufacturer of electric & electronic components in China. As a popular brand in China,its products widely used for electric & electronic industry.


We have  4 factories in China: Nantong city, Shenzhen city, Dongguang city and Foshan city,all of our factories are under control of ISO9001 quality control standard.
