Product Overview

Description

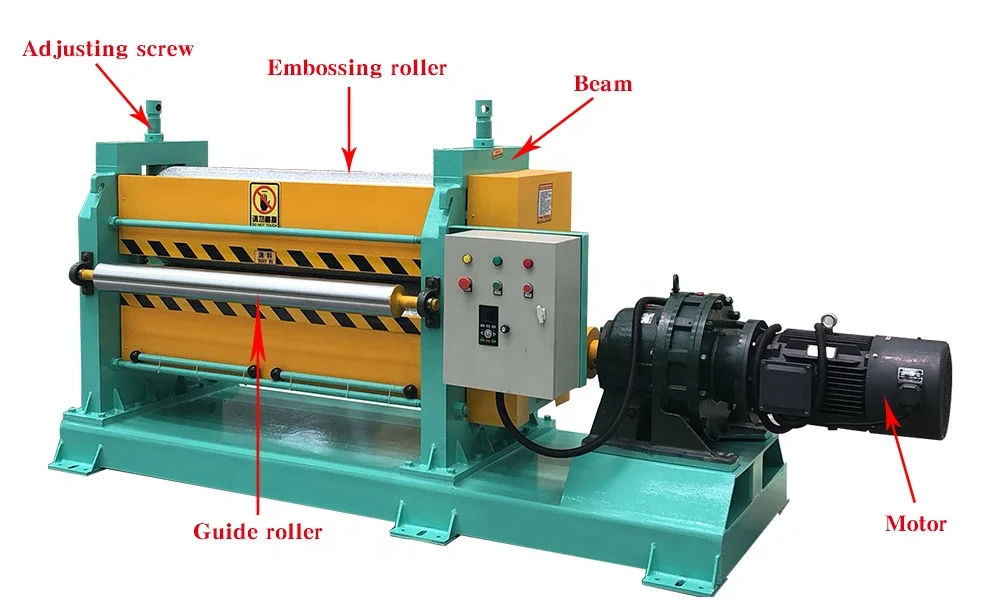

Color steel Sheet cold emboss metal printing machine manufacturer

Our company specialized in designing and making metal sheet embossing machinery,there are many kinds of LK series of steel embossing machine which are suitable to you.



The metal embossing machine suitable for aluminum, colorful steel sheet, heat zinc plated sheet, copper sheet, cold rolling steel sheet, stainless steel sheet, and so on.

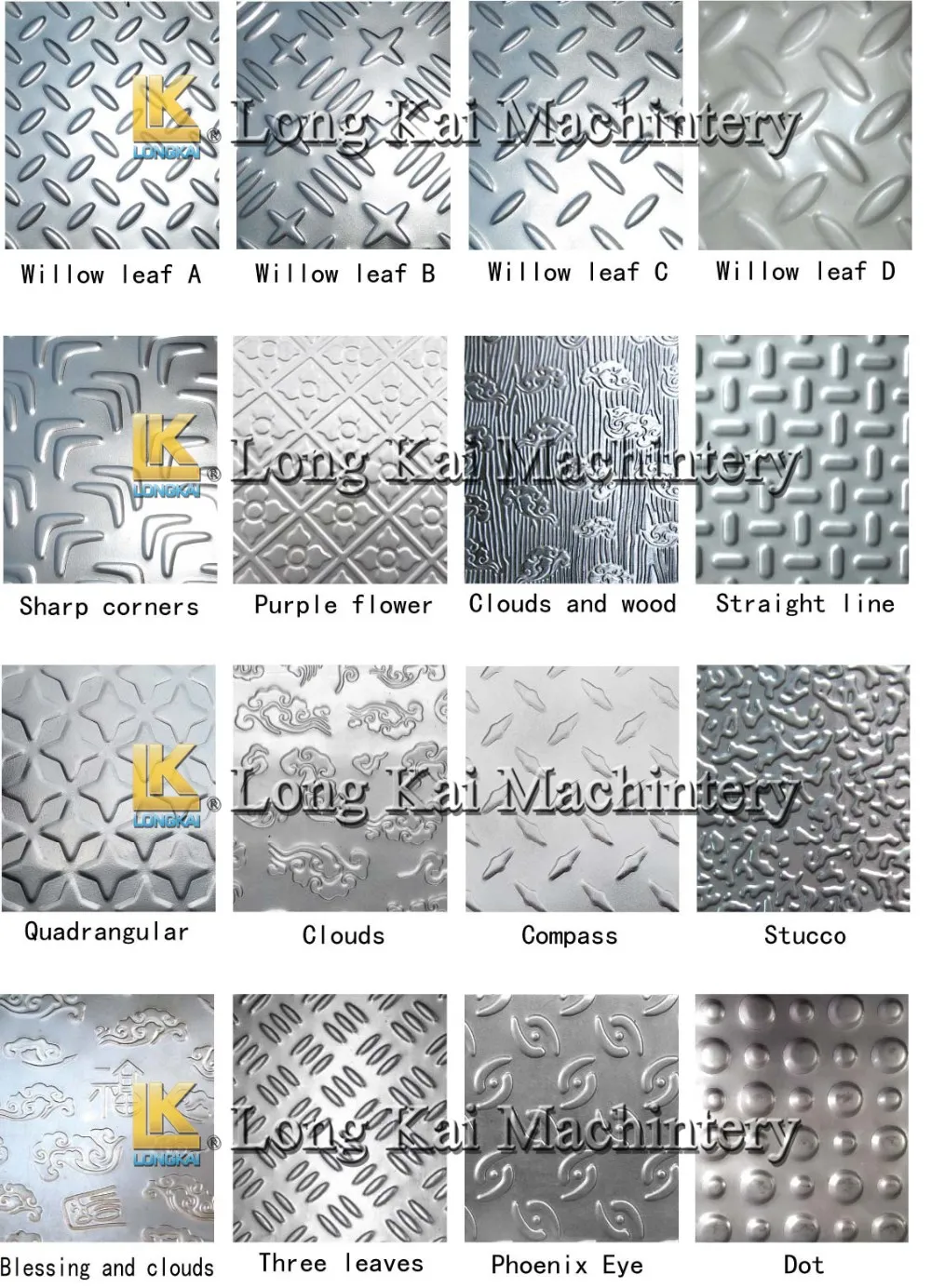

The patterns can be designed according to customers' requirements.



1. Roller specification: Φ300-450×1000-1900mm;

2. Roller Material: superior alloy steel(China Code 42CrMo) forged roller;

3. Roller intermediate frequency quenching, hardness: HRC55-58;

4. Roller Pattern: designed according to customer requirements;

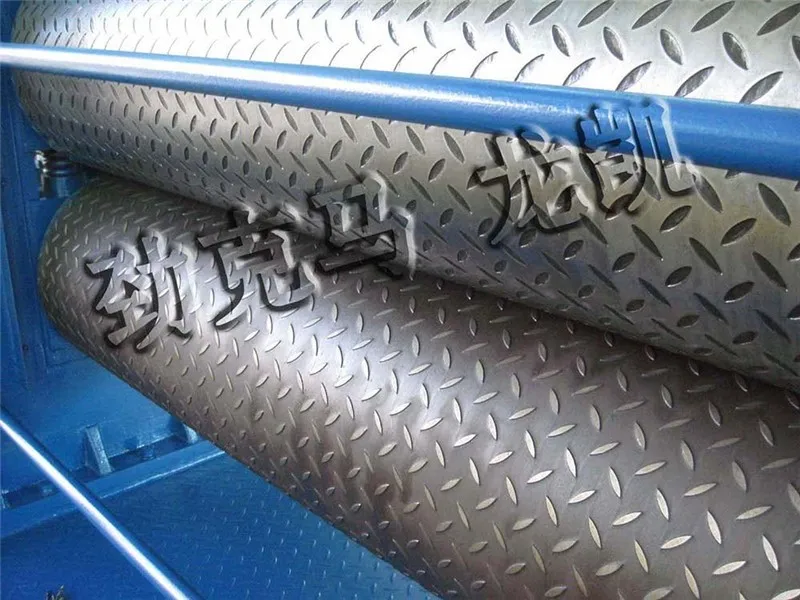

5. Way of embossing: the male and female rollers press each other up and down;

6. The way of controlling the pattern depth: by screw bolts or turbine screw reducer;

7. Transmission: gear transmission;

8. Motor: 15Kw frequency motor, reducer;

9. Embossing speed: 0-40m/min, control by frequency converter;

10. The machine installation safety cover;

11.Guarantee period: One year;
