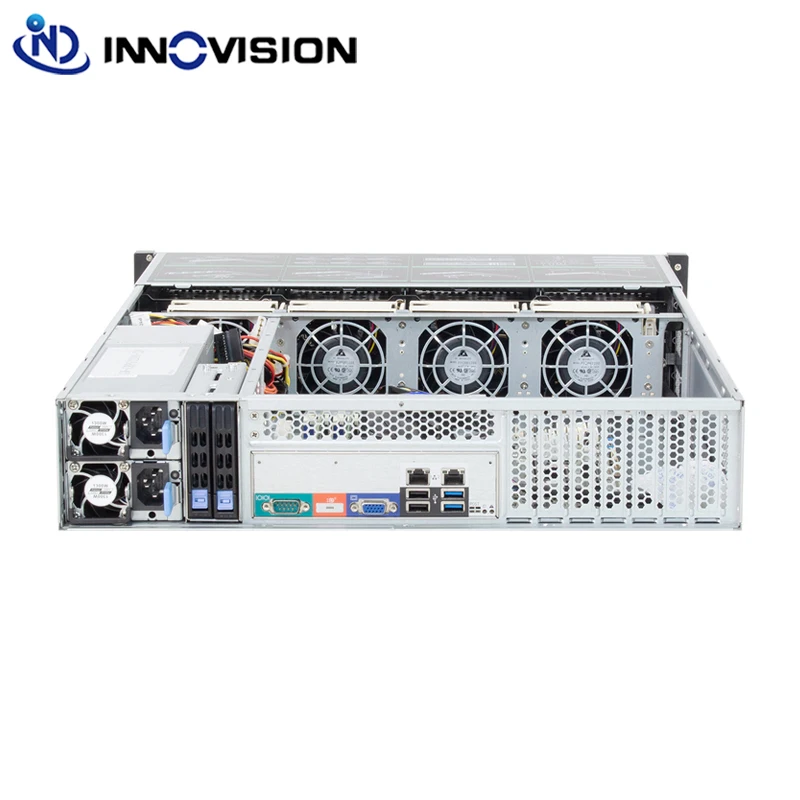

Upscale 2U 12bays rack server Chassis L560MM with 12GB mini HD attached hotswap backplane

Share on:

Price:RUB 14,079.65
Price in USD:Details


Product Overview


Spotlight Features:

• Server Barebone OEM / ODM Available
• Optimized 2U rackmount server chassis

• Support MAX 12"x10.5"etc.Motherboard
• With 3 Hot-swap 80mm PWM cooling fans
• Super Anti-finger ROHs SGCC & Plastic Material
• High-quality stable Mini SAS 6.0Gb/s hot-swap backplane
• 12 Hot-swap 3.5" SAS3/SATA3 drive bays, 2*2.5" drive bays (Inner)
• 500-800W Single / Redundant 1U 80 Plus Server Power Supplies optional
• Flexible expansion slots 7 x low Profile/3x full-height & full-length expansion slot(s) Optional
• Application For Corporate Database, Data Center, Database Processing & Storage, Enterprise Server, HPC, iSCSI SAN
• Similar Product---CSE_R26508S Chassis Avaible(Support MAX 13"x12"etc.Motherboard.)

Item Name
2u 12 bays hotswap rack storage server case for NAS NVR
Item NO.
Motherboard Support
Motherboard Size-MAX 12"x10.5",12" x 9.6",9.6" x 9.6"etc.
Processor Support
Single Intel® and AMD processors
L560*W437.5*H88mm,2U Rack
1.0mm SGCC(Super Coating fingerprint resistant film)&Super ABS ROSHs
Available Color
Front Panel coated Black (Others optional)
Expansion Slots
7 x low Profile expansion slot(s)/3x full-height & full-length expansion slot(s) Optional
Hot-swap Drive Disk Bays
12x 3.5"/2.5" SATA Hot-swap drive bays&Inside 2*2.5" drive Bays
Hot-swap Backplane
Mini SAS 6.0Gb/s hot-swap backplane
Peripheral Drive Bays
1x Slim CD-ROM drive (Optional, Compatible with 1x 2.5" drive)
Front Panel Control
Power On/Off button,System Reset button,Unit Identification (UID) button
1xPower LED,1xPower Fail LED,1xHard drive activity LED,2x Network activity LEDs
1xFan Fail/System Over Heat LED,1xUnit Identification (UID) LED
2x USB Port
System Cooling
4x 3cm Fan Bay(s)
Standard With 4-pin 3 x 8cm high-performance PWM fan(s)
Operating Environment (System)
Operating Temperature Range
10 - 35°C (50° - 95°F)
Non-Operating Temperature Range
-40 - 70°C (-40° - 158°F)
Humidity Range
8 - 90% non-condensing
Humidity Range
5 - 95% non-condensing
Power Supply Support
2U Single/Redundant Server Power Supply
PSU Recommended
1.2U 500W 80Plus Super Quiet power supply Optional
2.2U 600W 80Plus Super Quiet power supply Optional
3.2U 650W Platinum 80Plus Super Quiet power supply Optional
4.2U 800W Platinum 80Plus Super Quiet power supply Optional
Similar Item NO.
Hotswap Disk QTY.
Supporting 8 Bays
Supporting 12 Bays
Supporting 8 Bays
MAX.12"*13" Various MB
MAX.13"*12" Various MB
MAX.12"*10.5" Various MB
Similar Item NO.
Hotswap Disk QTY.
Supporting 6 Bays
Supporting 10 Bays
Customzied Available
MAX.12"*10.5" Various MB
MAX.12"*10.5" Various MB
Customzied Available
Our Company

Shenzhen Innovision Technology Co.,Ltd

was founded in 2001, mainly engaged in network server, industrial server, industrial development, industrial computer and server hardware barebone---Case, Power Supply and other products of the production, assembly, testing and sales. The company R & D and manufacturing base is located in the beautiful Shenzhen River Golf Club.After 15 years of development, we are the China's most professional leading manufacturer of industrial server barebone.
Our Aim: Devoted ourselves to server for you with 100% satisfy.

Our Advantage
OEM Service

Q1. Do you have any MOQ limit ?

A: Low MOQ. 1Set standard product for sample checking is available.
OEM products MOQ is 50Set.

Q2. What's the server chassis OEM sample policy?

A:As our factory sample rule,the sample cost is USD300,which is just as deposit.We will return most sample charge until the order above 50sets.(Deducting one case charge and once-time mould charge.)

Q3. How long to get the exact quotation?

A: Please let us know your requirements and your QTY.My sale engineer will quote it within 1-2working days.

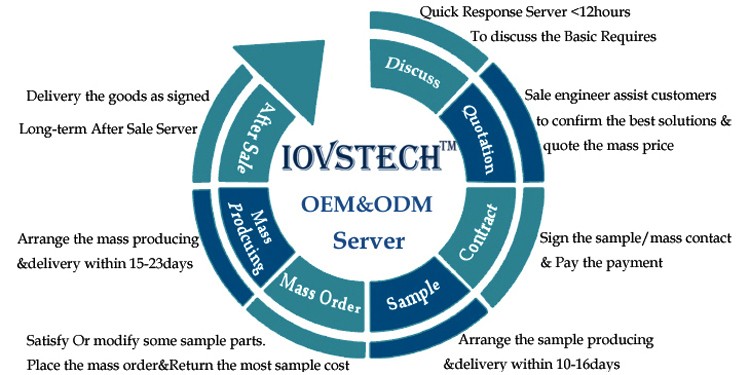

Q4. How to proceed a OEM mass order?

A: 1st.let us know your requirements or application and your planing QTY.
2nd.My sale engineer give the best solution and quote according to your requirements.
3rd.Sign a sample contract and pay the payment.
4th.Make a sample and Confirm it.Satisfy or modify some parts.
5th.Place a mass order.Return the sample cost. Pay the payment.
6th.We arrange the production.Delivery within 15-23days as contract.

Q5. What about the lead time?

A:As usually,we have sufficient Standard products.Delivery within 1-3 days.
OEM/Mass production time takes 15-23days.

Q6. How do you ship the goods and how long does it take to arrive?

A: The shipment is as your choosing.
For small order,it's better by internation express.Eg.DHL, UPS,EMS, FedEx or TNT. It usually takes 3-12 days to arrive. For big volume order,recommended the Airline and sea shipping.
We also can deivery the goods to your signed logistic in China.
Duing of the server chassis big volume weight,sometimes the shipping cost is higher than the chassis cost.We're highly recommend to buy the powersupply,heatsink etc.linked products.We'll give you our best price.

Q7: What's the Payment Options?

Escrow,Paypal,Western Union,Master,Visa and TT. (Trade Assurance)

Q8: Do you offer guarantee for the products?

A: Yes, we offer 1 year warranty to our products.Long term Technical Supports.
