Полностью автоматическая Термоформовочная Машина с роботизированной ручкой
- Category: Plastic Thermoforming Machines >>>
- Supplier: Shantou Rytech Machinery Factory
Share on (60618328416):
Product Overview
Description
Product Description

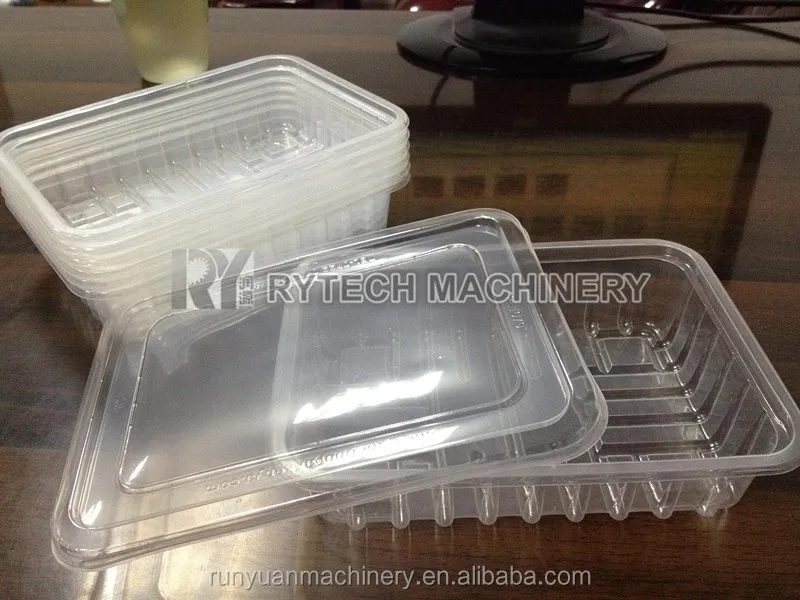

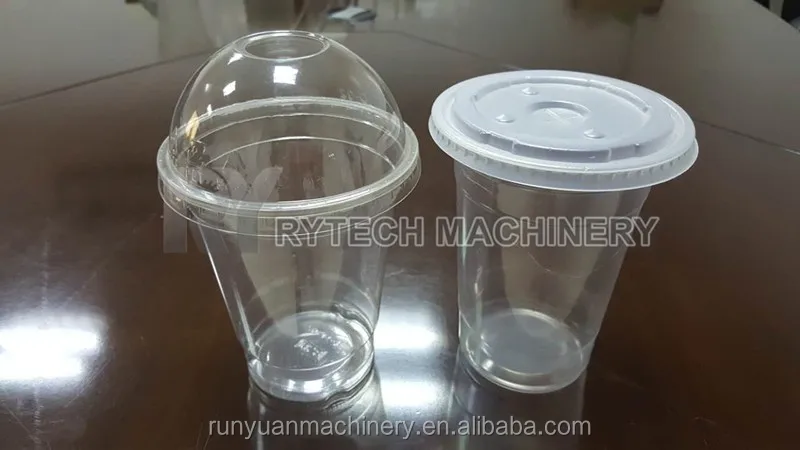

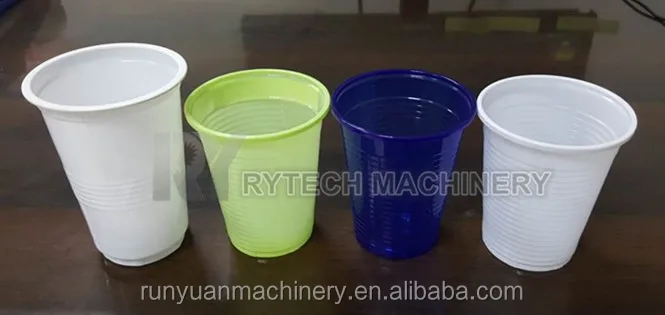

Product Application

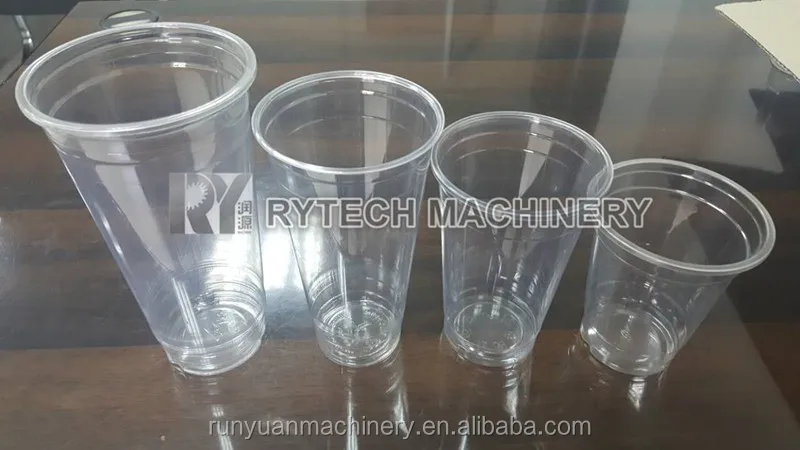

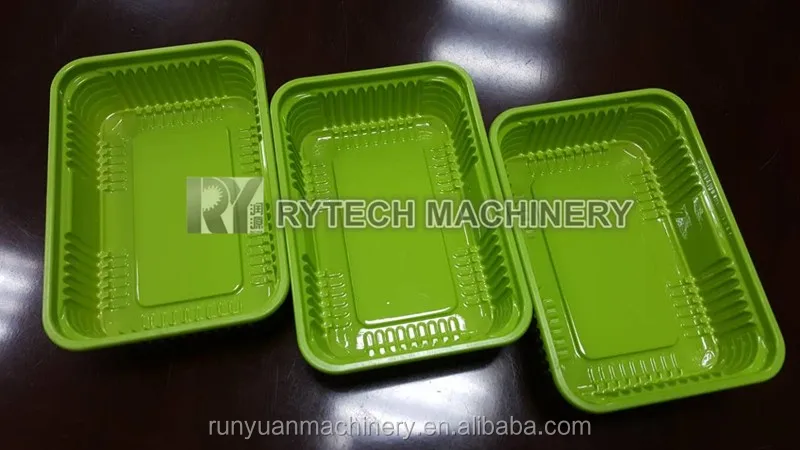

RY-YB720 Series Hydraulic Automatic Thermoforming Machine with Robot Arm developed by our company is a fully automatic plastic container forming machine which features in high speed and high efficiency. Applicable materials include PS, PP, PE, PET, PVC and ABS.
Full Automatic Thermoforming Machine with Robot Hand

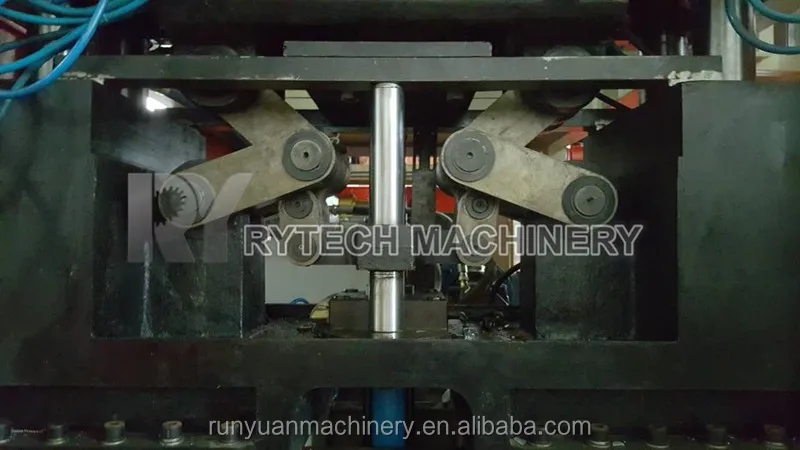

This equipment adopts five-fulcrum rotary arm structure. Machine is driven by hydraulic system. The mould benches (including upper, middle and bottom) are one piece casting. It is equipped with built-in lubricating system. Machine with high efficiency and stable operation can help to improve the service life of the machine. Its stretching part adopts hydraulic cylinder, which features in stable operation and low power consumption.
This machine adopts PLC system to control: mould travel, mould opening and closing. The pressure of cutting is set on touch screen. The travel of mould can be regulated freely. Mould will not fall off when the machine stops.
Robot arm working speed depends on product’s height.
Model | RY-YB720A-R | RY-YB720B-R | RY-YB720C-R |
Applicable Sheet | PP,PS,PE,PVC,PET,ABS | PP,PS,PE,PVC,PET,ABS | PP,PS,PE,PVC,PET,ABS |
Sheet Thickness | 0.2-2.0mm | 0.2-2.0mm | 0.2-2.0mm |
Sheet Width | 600-760mm | 600-760mm | 600-760mm |
Mould Platform Area | 520×720mm | 460×720mm | 430×720mm |
Max Forming Depth | 160mm | 160mm | 160mm |
Max Working Speed | 22time/min | 22time/min | 22time/min |
Rated Power | About 100kw | About 100kw | About 100kw |
Weight | About 8T | About 7T | About 6T |
Dimensions | 7000×1680×2250mm | 7000×1520×2250mm | 7000×1450×2250mm |
Main Features
1) Easy in installation and maintation.
2) Adopting advanced world famous brand components in pneumatic parts, electric parts and operation parts.
3) One piece casting of mould bench.
4) Running in a high automatization and intellectualization.
Related Products
RY-Automatic Multi-stage Hydraulic Thermoforming Machine
RY-SP Series Plastic Sheet Extruder
RY-XC680/1200 Vacuum Forming Machine

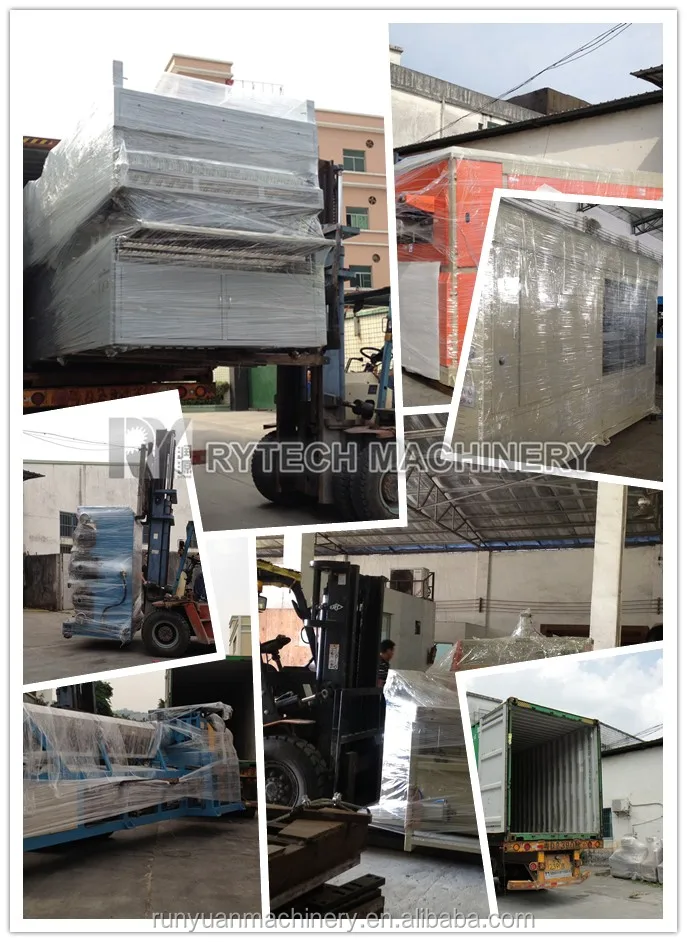

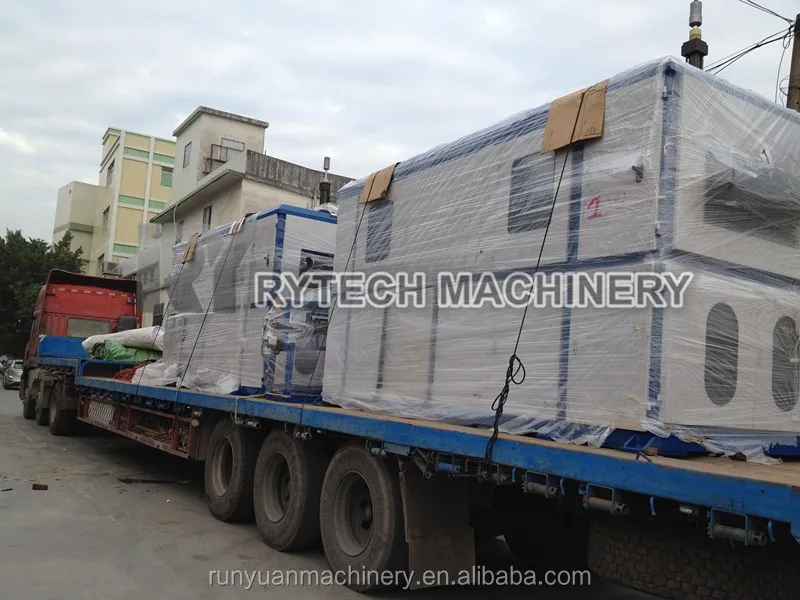

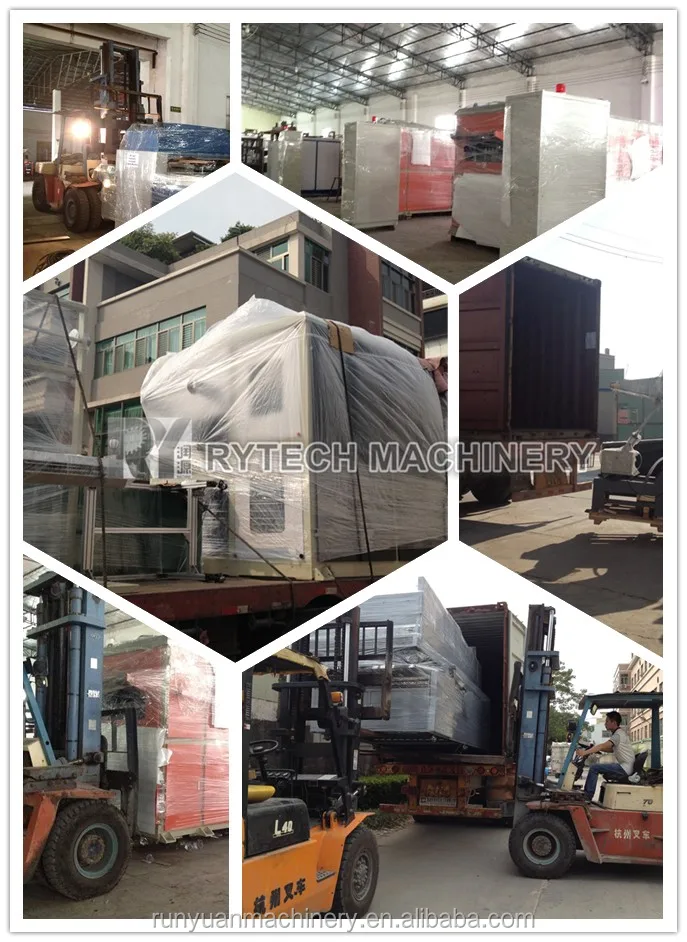

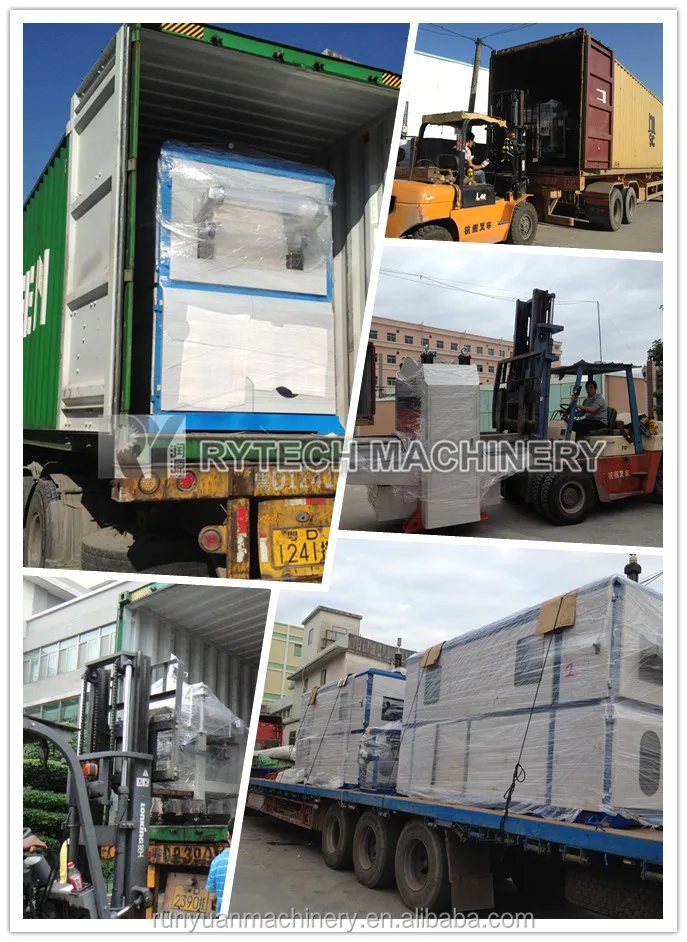

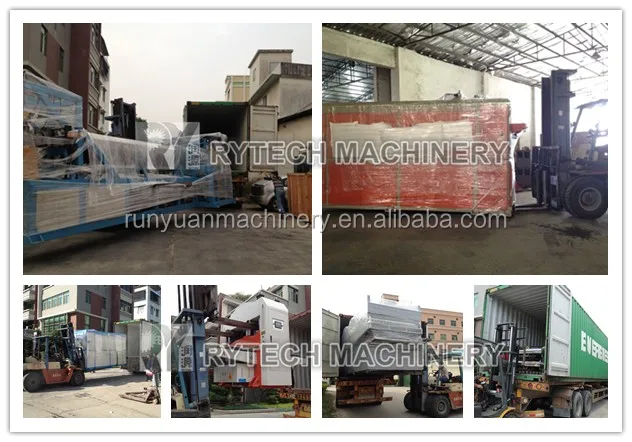

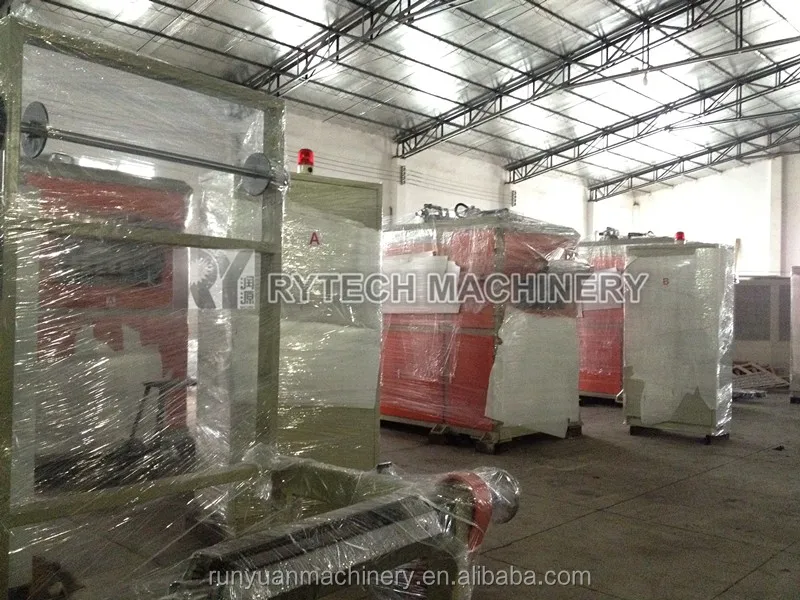

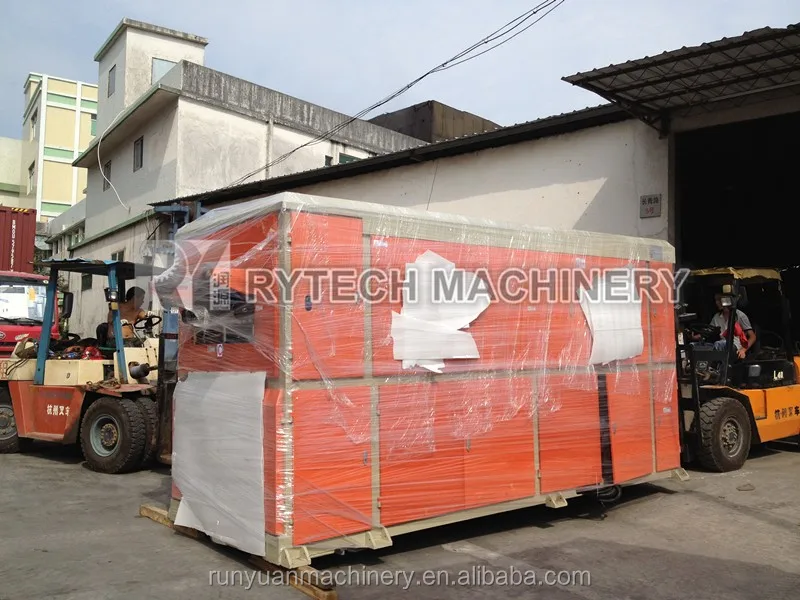

Packing & Delivery

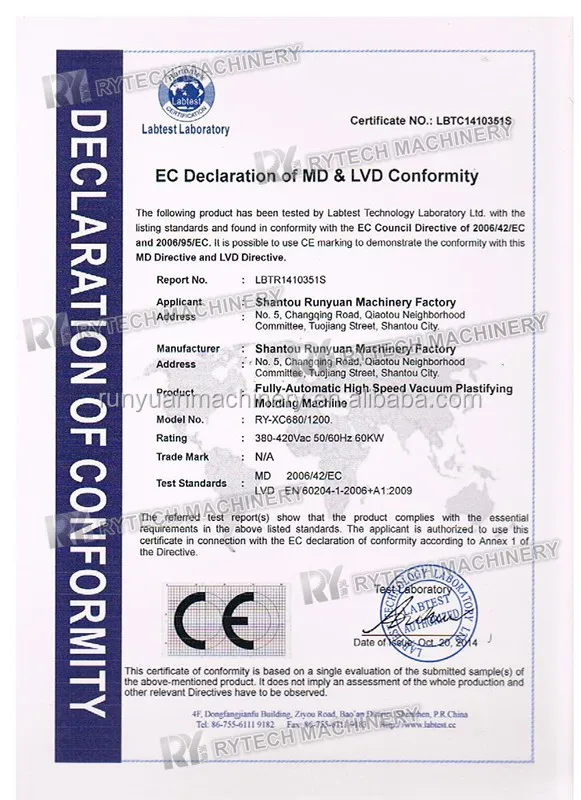

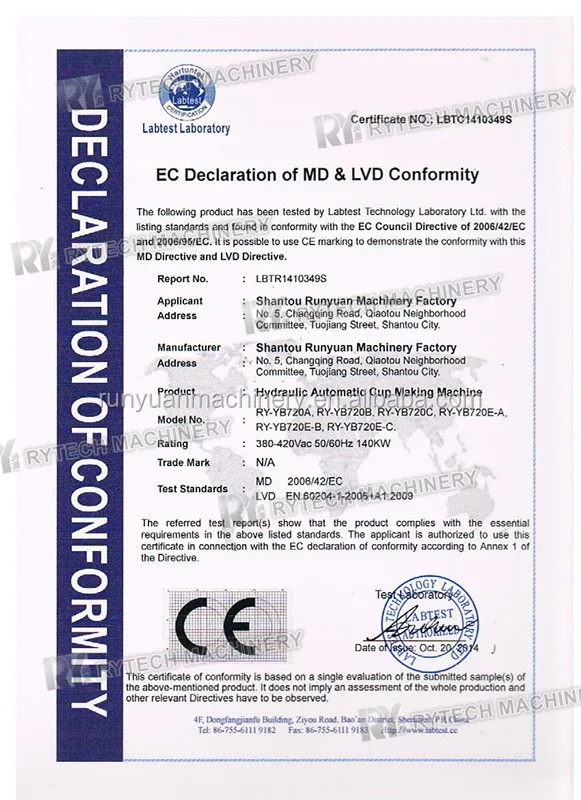

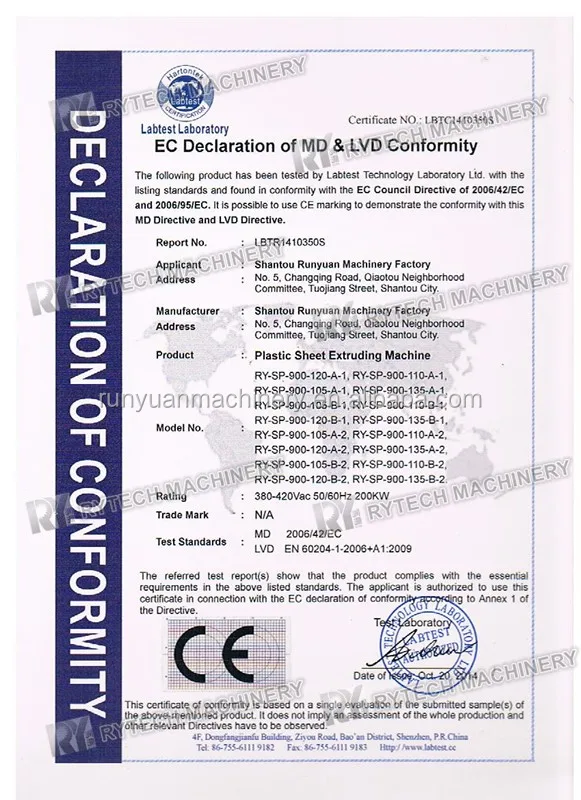

Certifications

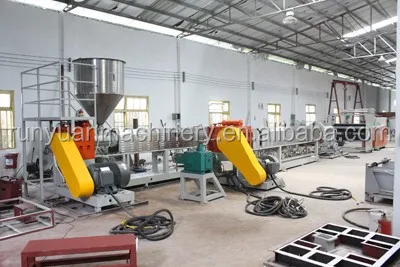

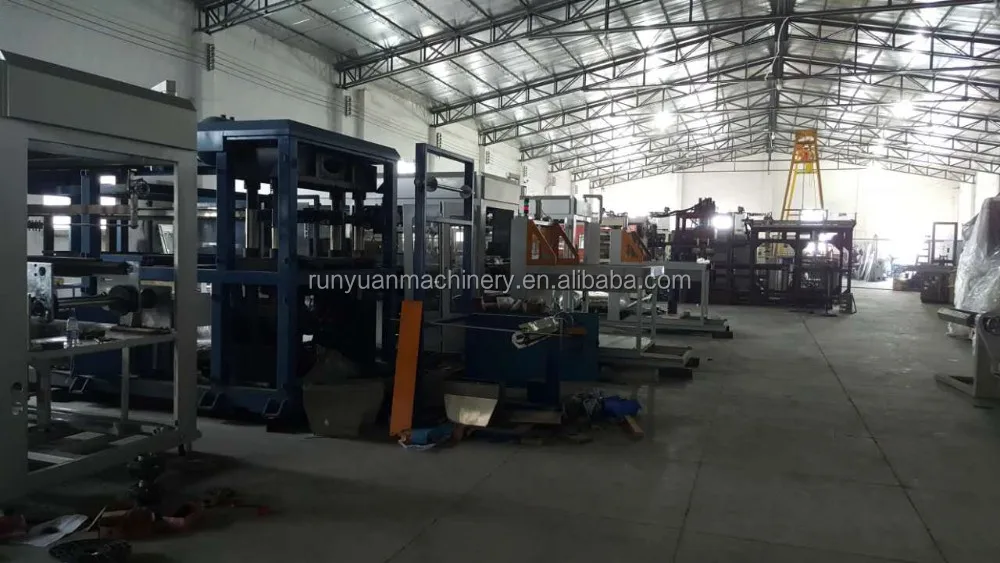

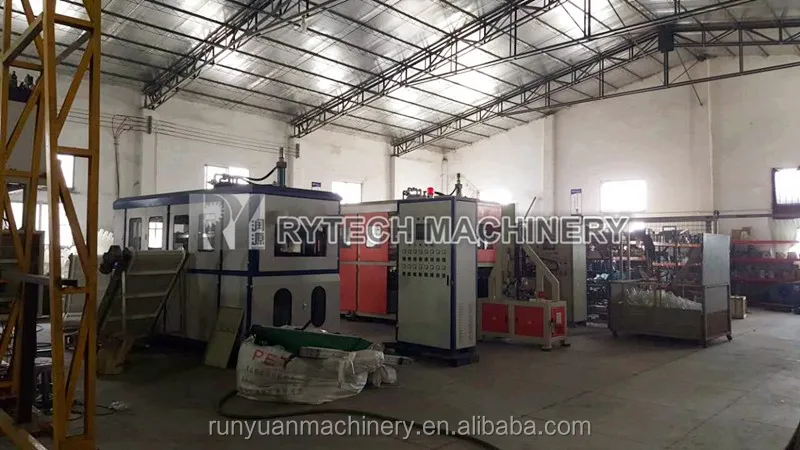

Our Company
RYTECH MACHINERY
RYTECH MACHINERY is specializing in plastic mechanical equipment. We have more than 10 years of professional production experience and have a team of advanced technicians.
Complete Operating System
Our company has a complete operation system with design, research & development, production, installation and after-sale service.
Good Reputation
With the concerted efforts of all colleagues, we have a good reputation both at home and abroad. We have CE certificate and several patents..
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
