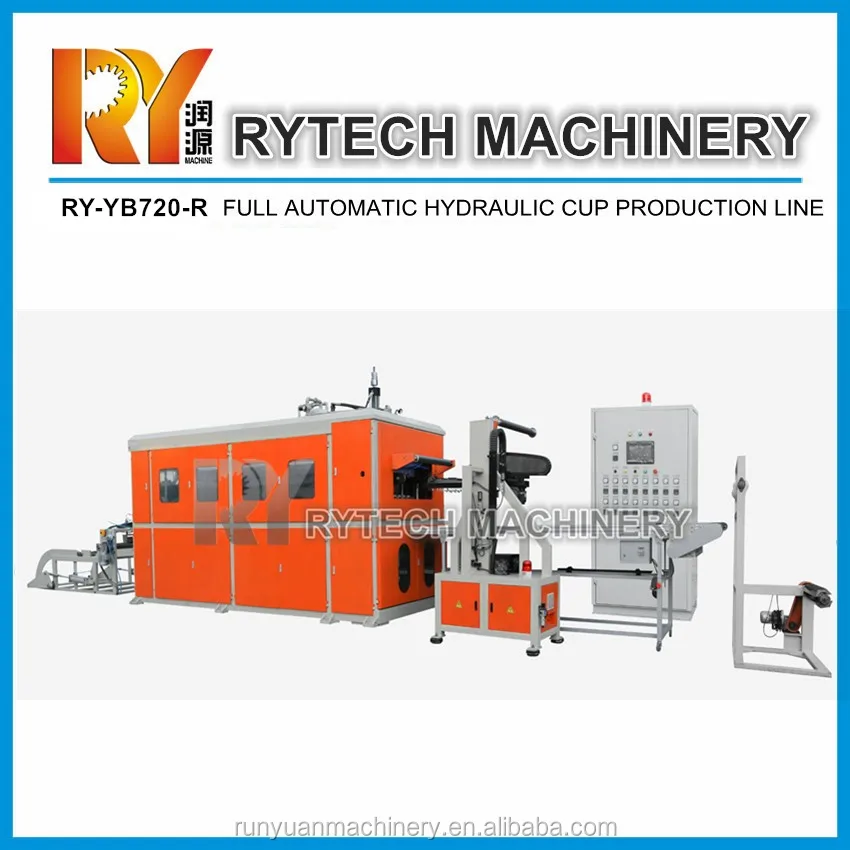

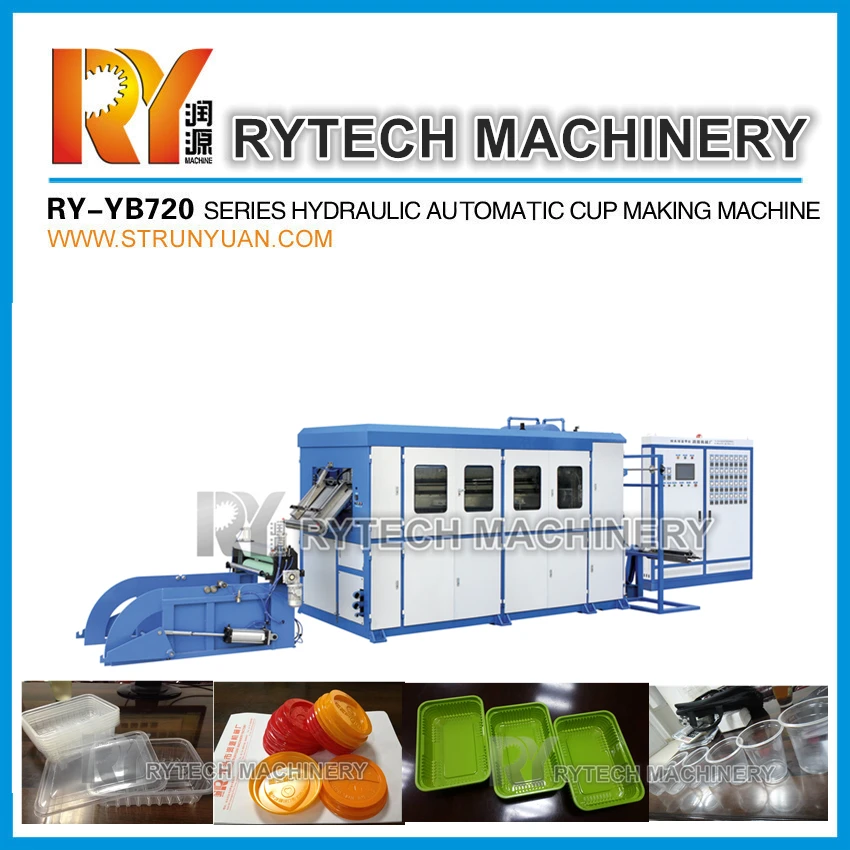

RY-YB720 Series Hydraulic Automatic Thermoforming Machine with Robot Arm developed by our company is a fully automatic plastic container forming machine which features in high speed and high efficiency. Applicable materials include PS, PP, PE, PET, PVC and ABS.

Plastic Cup Making Machine with Auto Stacking

This equipment adopts five-fulcrum rotary arm structure. Machine is driven by hydraulic system. The mould benches (including upper, middle and bottom) are one piece casting. It is equipped with built-in lubricating system. Machine with high efficiency and stable operation can help to improve the service life of the machine. Its stretching part adopts hydraulic cylinder, which features in stable operation and low power consumption.
This machine adopts PLC system to control: mould travel, mould opening and closing. The pressure of cutting is set on touch screen. The travel of mould can be regulated freely. Mould will not fall off when the machine stops.
Robot arm working speed depends on product's height.

Model
RY-YB720A-R
RY-YB720B-R
RY-YB720C-R
Applicable Sheet
PP,PS,PE,PVC,PET,ABS
PP,PS,PE,PVC,PET,ABS
PP,PS,PE,PVC,PET,ABS

Sheet Thickness
0.2-2.0mm
0.2-2.0mm
0.2-2.0mm
Sheet Width
600-760mm
600-760mm
600-760mm
Mould Platform Area
520×720mm
460×720mm
430×720mm
Max Forming Depth
160mm
160mm
160mm
Max Working Speed
22time/min
22time/min
22time/min
Rated Power
About 100kw
About 100kw
About 100kw
Weight
About 8T
About 7T
About 6T
Dimensions
7000×1680×2250mm
7000×1520×2250mm
7000×1450×2250mm
