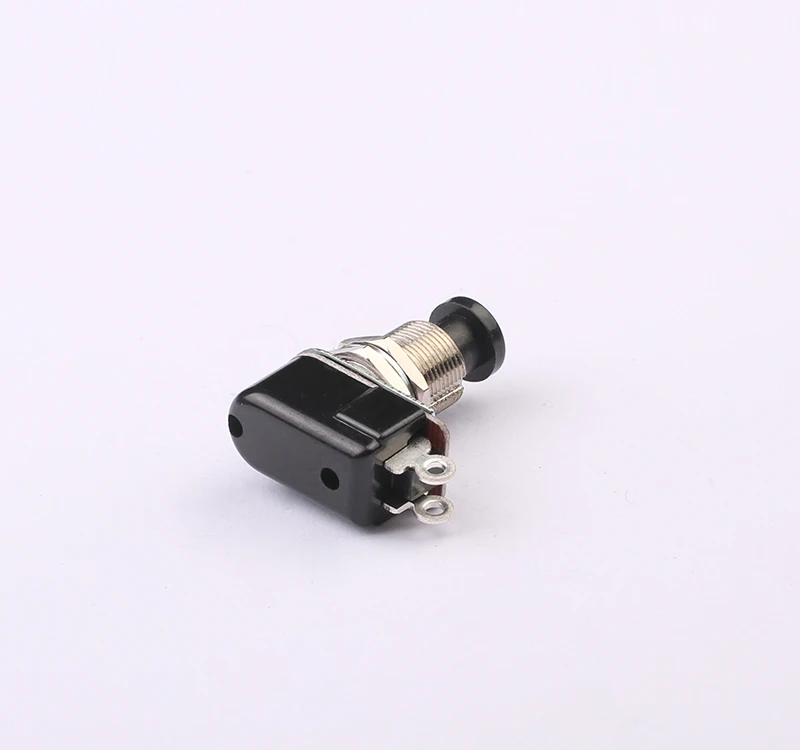

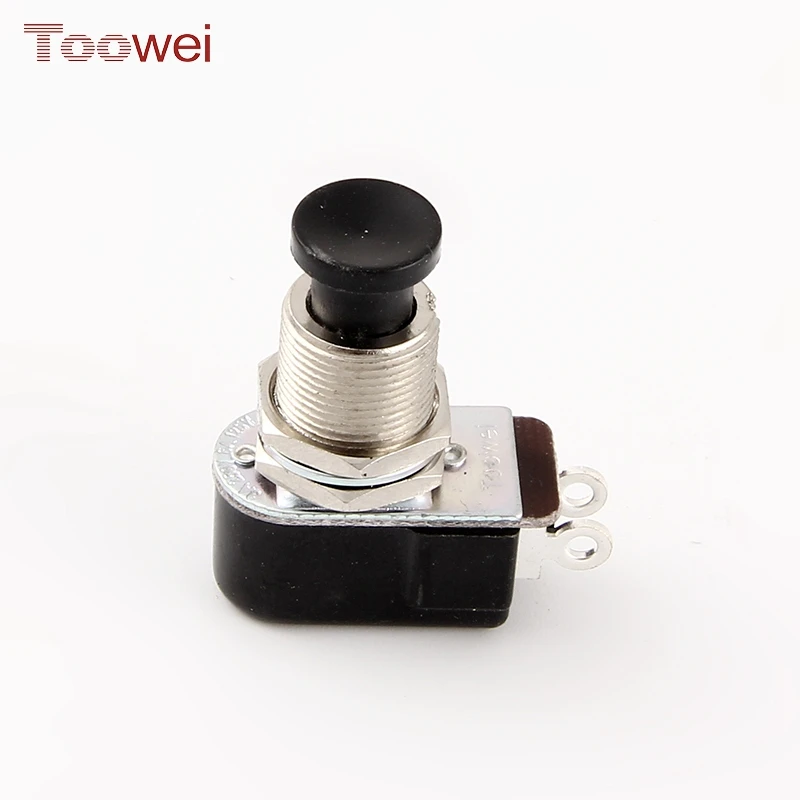

Toowei safety toggle switch 2 pin NC/NO special push button toggle switch with wire
- Category: >>>
- Supplier: Yueqing Toowei Electronic Switch Manufacturer
Share on (60618382280):
Product Overview
Description
Specification
Toggle Switch Information | ||
Model | T601A3 | |
rated voltage | 3A 250VAC 6A 125VAC | |
Base material | Bakelite | |
Ambient Temperature | -25 ~ +80 degree | |
Founction | OFF-(ON)/ON-(OFF) | |
Mounting Dimension | Diameter 12+0.2mm | |
Poles | SPDT,DPDT | |
Usage | Food machinery, generators, industrial control, office automation | |
Product Description
Product Details
Current: 3A and 6A
Movement way: Fixed type and spring return type (both single-throw and double-throw can return)
Terminal block:screw terminal and solder terminal(tab terminal also can be used)
Rainproof cap,water-proof and oil-proof,it is suitable for full series products
Founction : OFF-(ON)
Mounting hole: 12mm
Widely used in Electrical equipment,automatic machine,communication equipment and instrument,electro moton tool etc.
Technical parameter
1. Rating Value: 10A 250VAC/15A 125VAC
2. Operating Force: 8N-24N
3. Ambient temperature: -25℃~+85℃
4. Withstand voltage： 1500VAC 50/60hz
Leakage current：5mA
5. Insulation resistance ≥100mΩ
Contact resistance ≤ 50mΩ
6. Electrical life： 20,000 times
Mechanical life: 50,000 times
7. Humidity： below 85% RH
8. Terminal form : Soldering terminal
Solderable soldering iron: 345±5° 1~2S
Solder resistance soldering iron：345±5° 3~5S
Terminal Form
T601 Series toggle switch just include two type connection method , U type solder connect and X type terminals (with 160mm wire for connection)
T600 | |||
T600 series code | Button Code | Function Code | Terminal Form |
A1(Plastic handle) A2(Metal Handle) A3(Just have red and black color handle) | 1.OFF-(ON) 2.ON-(OFF) | U type terminal(solder) X type Terminal(with 160mm cable) | |
