CE Approved Energy Saving High Temperature Industrial electric furnace
- Category: >>>
- Supplier: Zhengzhou Brother Furnace Co. Ltd.
Share on (60618508744):
Product Overview
Description
CE Approved Energy Saving High Temperature Industrial electric furnace
What is the Details of our Industrial electric furnace ?
Chamber size | 200x200x200mm (Width * Height * Depth) (8 Liter) | |||
Max. temperature | 1200 C (<2hour) | 1400 C (<2hour) | 1700 C (<2hour) | |
Working temperature | 1100 C | 1300 C | 1600 C | |
Temperature controlling | PID automatic control via SCR (Silicon Controlled Rectifier) power control with phase angle fired, current limiting resistor. | |||
51 programmable segments for precise control of heating rate, cooling rate and dwell time. | ||||
Built in PID Auto-Tune function with overheating & broken thermocouple broken protection. | ||||
Over temperature protection and alarm allows for operation without attendant. | ||||
Temperature accuracy | ±1C | |||
Temperature Uniformity | ±5C over 120mm | |||
±3C over 80mm | ||||
Heating rate | 0-15C /min | |||
Thermocouple | K type | S type | B type | |
Heating element | Heating wire | SiC heating element | MoSi2 Heating element | |
Furnace Chamber | 2 layers of ceramic fiber insulation | 3 layers of ceramic fiber insulation | 3 layers of ceramic fiber insulation | |
1st: 1430°C ceramic fiber board | 1st: 1700°C ceramic fiber board | 1st : 1800°C ceramic fiber board | ||
2nd: 1260°C ceramic fiber board | 2nd:1430°C ceramic fiber board | 2nd: 1600°C ceramic fiber board | ||
| 3rd: 1260°C ceramic fiber board | 3rd: 1260°C ceramic fiber board | ||
Furnace structure | Double layer steel casing with dual cooling fan, surface temperature below 60C | |||
Furnace door | Front-side open | |||
Power cutting off when furnace door open | ||||
Working voltage | 110V or 220V or 380V, 50HZ or 60HZ | |||
Rated power | 1-100KW | |||
chamber size (mm) | The chamber size can be customized | |||
Product Picture

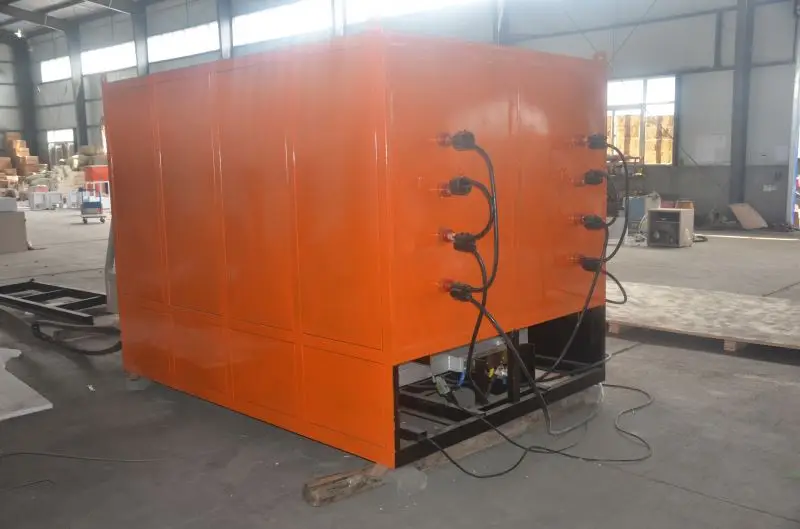

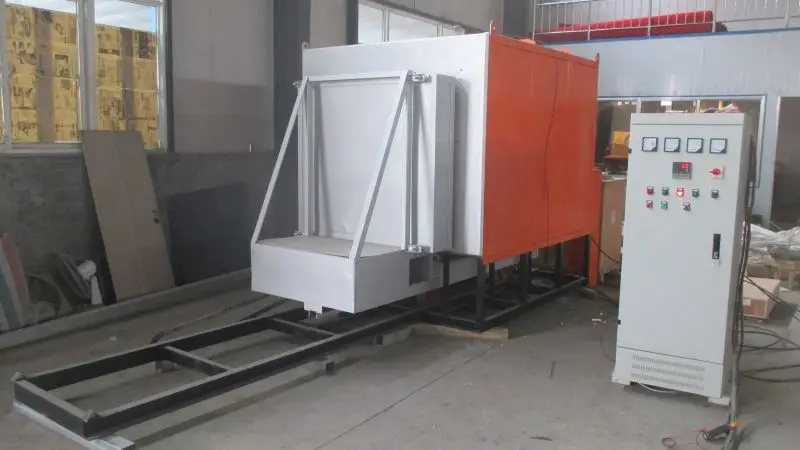

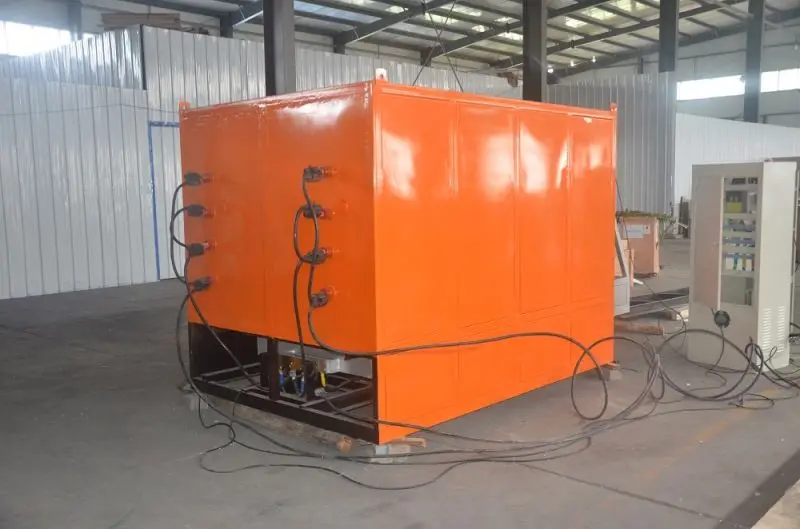

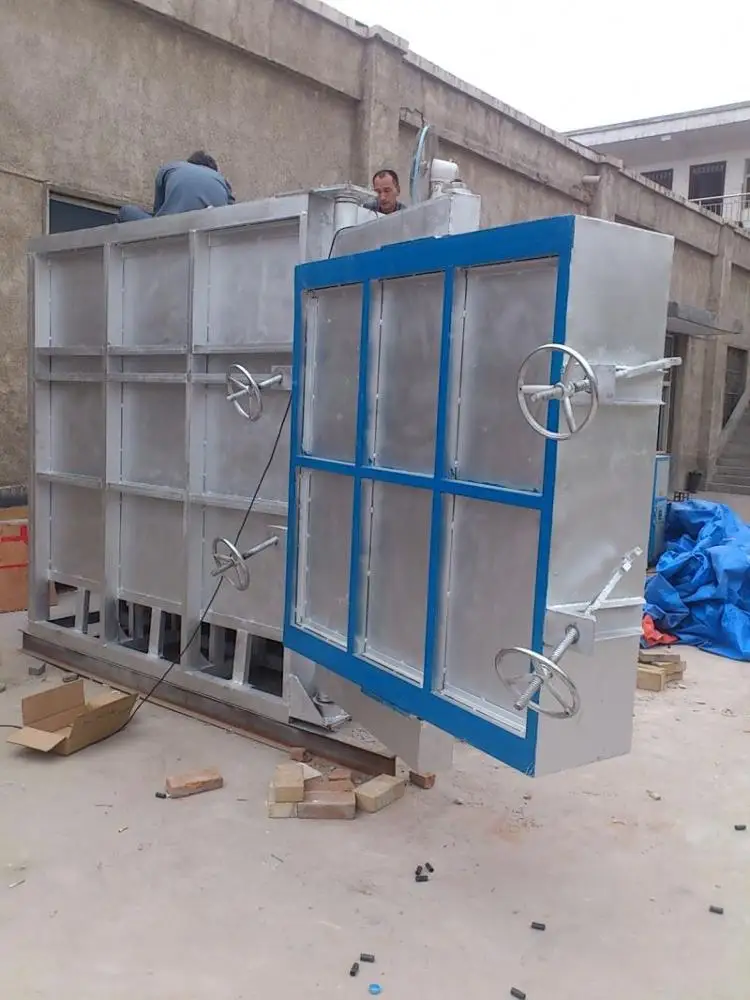

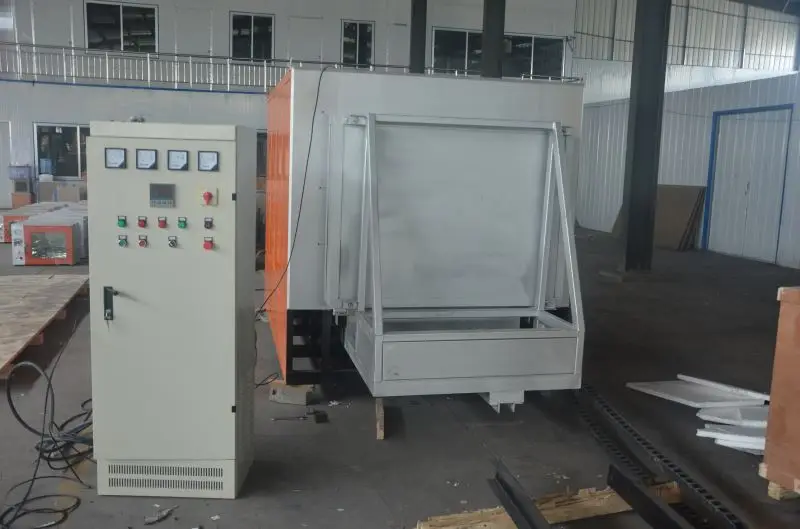

Product Pictures of our Industrial electric furnace
Product Features
PRODUCT FEATURES of our Industrial electric furnace
- Excellent temperature uniformity.
- 30 Segment Easy Use PID Programmable Temperature Controller, allow to control heating rates, dwells ( time holds) and cooling rates.
- One Year Limited Warranty on All Electronic Parts.
- Quality heating elements ensure the longest heating element life, best heat radiation properties and minimum distortion of heating elements at high temperature.
- All models use Ceramic fiber board lining to ensure energy efficiency.
- Safety feature includes a safety interlock system to shut off power when furnace door open.
Why Choose us?
Why Choose Us
Related Items
RELATED ITEMS (Click below picture to see more)
INSPECTION of Our Industrial electric furnace
PACKING AND SHIPPING of Our Industrial electric furnace
Factory Show
FACTORY SHOW
FAQ
FAQ
- QWhat is the MOQ ?
- A1 set for our standard furnace
- QCan I ask for special designs?
- ASure! And it's Free!
- QCan I get a lower price if I order large quantities?
- AYes, cheaper prices with more bigger size orders.
- QCan I send the sample to you to test the furnace before I buy it ?
- AYes, and the testing is Free!
- QWhen you ship my order?
- ANormally 30 days after receiving your payment or based on order qty and production schedule.
- QHow about the quality guarantee period?
- AOne year!
- QHow can you guarantee the production quality ?
- AWe have more than 10years experience in this field. We have strictly quality control system in our production process. We have 4 times inspection for each finished product before package.
