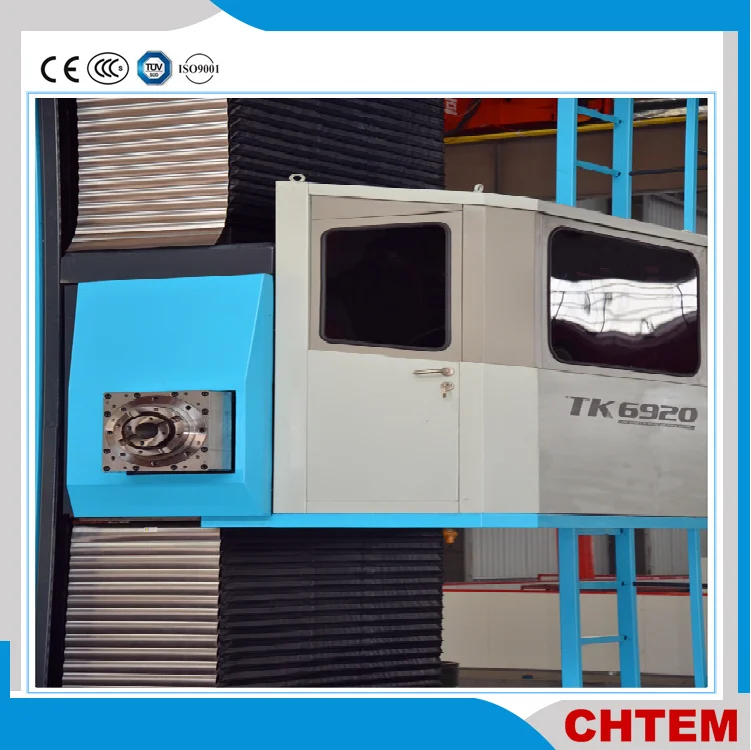

TK6920 floor type horizontal directional boring drilling machine
- Category: >>>
- Supplier: Qingdao Huiteng Machinery Equipment Co. Ltd.
Share on (60618526246):
Product Overview
Description
Product Description
| Item | Units | TK6920- Parameter |
| Spindle bore diameter | mm | Φ200 |
| Spindle taper | ISO 60 | |
| Spindle turning speed | rpm | 2-800 (Op:2000) |
| Section dimension of ram | mm | 480X520 |
| Spindle and ram travel total | mm | 2400 |
| Boring spindle travel (W axis) | mm | 1200 |
| Ram travel (Z axis) | mm | 1200 |
| Boring head travel up/down (Y axis) | mm | 3500 |
| Column longitudinal travel (X axis) | mm | 9000 |
| Ram feedrate (Z axis) | mm/min | 1-4000 |
Boring spindle feedrate (W axis) | mm/min | 1-4000 |
| Column longitudinal travel speed | mm/min | 1-6000 |
| Boring head travel speed up/down (Y axis) | mm/min | 1-6000 |
| X,Y axis positioning accuracy | mm | ±0.025/1000 |
| X,Y repetitive positioning accuracy | mm | ± 0.013/1000 |
| Z,W repetitive positioning accuracy | mm | ± 0.013/1000 |
| Max. Torque of boring head | N.m | 10000 |
| Boring spindle axial resisting force | N | 90000 |
| Main motor power-(CTB servo motor) | Kw | 55Kw |
No | Name | Specification | Quantity | manufacture |
1 | Front bearing of spindle | 71944ACD/P4ATBTB | 1set | SKF--Germany |
2 | Rear bearing of spindle | 71940ACD/P4ADBA | 1set | SKF--Germany |
3 | Fine lubrication oil | LGLT2 | 1.5kg | SKF--Germany |
4 | Screw rod bearing | 7602045TVP/P4SQBC | FAG--Germany | |
5 | Table bearing | NN3024 | 1set | FAG--Germany |
6 | Roll ball screw rod | 63/80, T5 | 5pcs | BLIS--Germany |
7 | CNC system | Siemens 840D/Fanuc | 1set | Siemens/Fanuc |
8 | Feed servo motor | 6pcs | Siemens/Fanuc | |
9 | Linear grating scale | FAGOR | 4pcs | FAGOR--Spain |
10 | Circular grating scale | HEIDENHAIN RON | 1set | HEIDENHAIN-- Germany |
11 | Main hydraulic units | Compass | Serial | Taiwan |
12 | Auto lubrication station | VERSA III | 3sets | Yongjia lube-Taiwan |
13 | Electrical parts | Low voltage | Siemens, ABB, Schneider | |
14 | Oil coolant | CO-24 | 1set | LOM-Taiwan or Japan |
15 | Roller | RWB PR | 44pcs | IKO-Japan or INA-Germany |
16 | Transverse switch | LXZ | 5pcs | Omron-Japan |
17 | Seal unit | Serial | BUSAK+SHAMBAN-American |

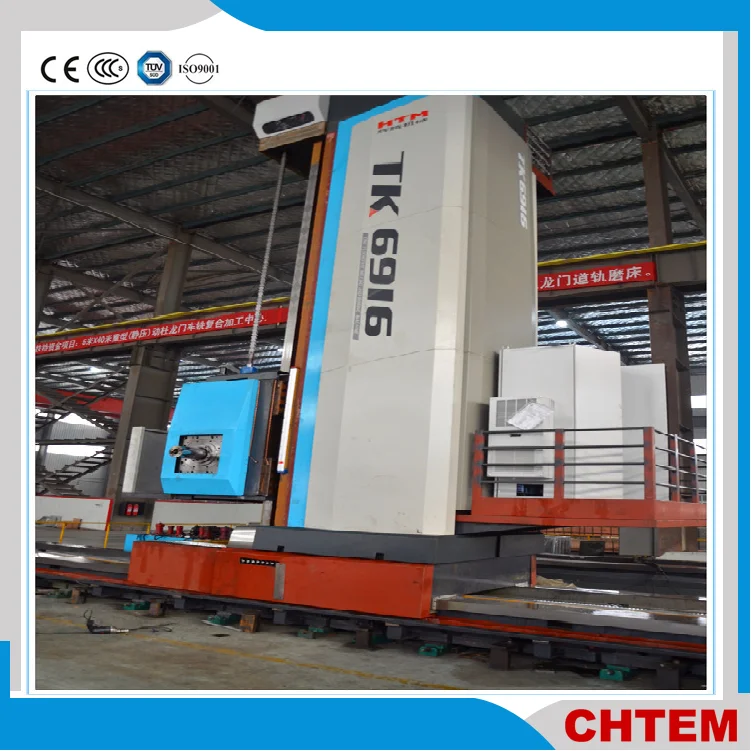

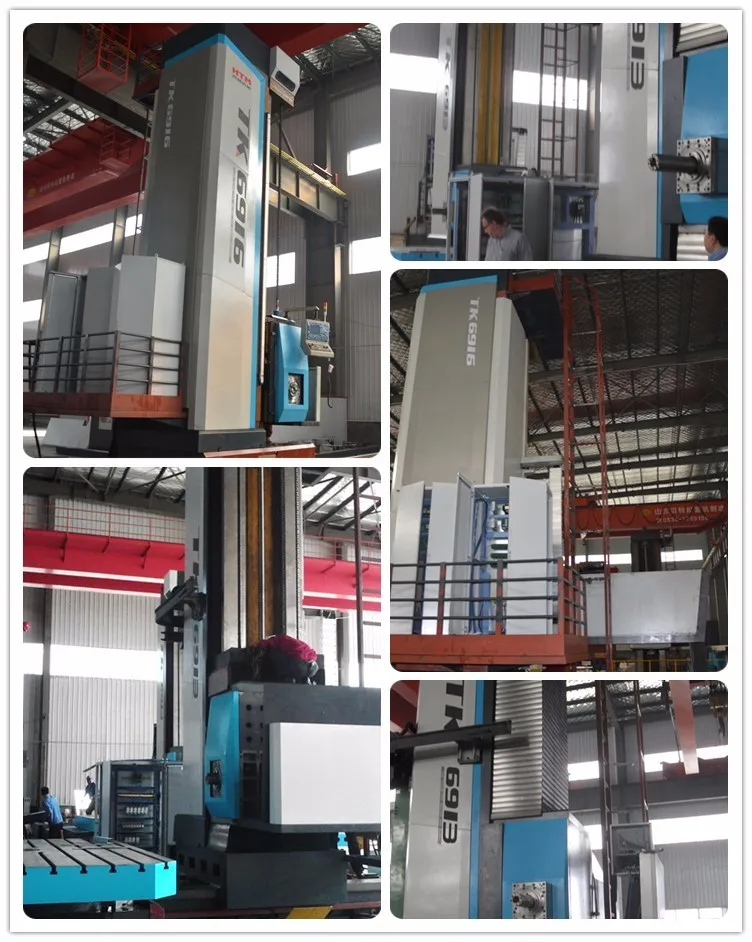

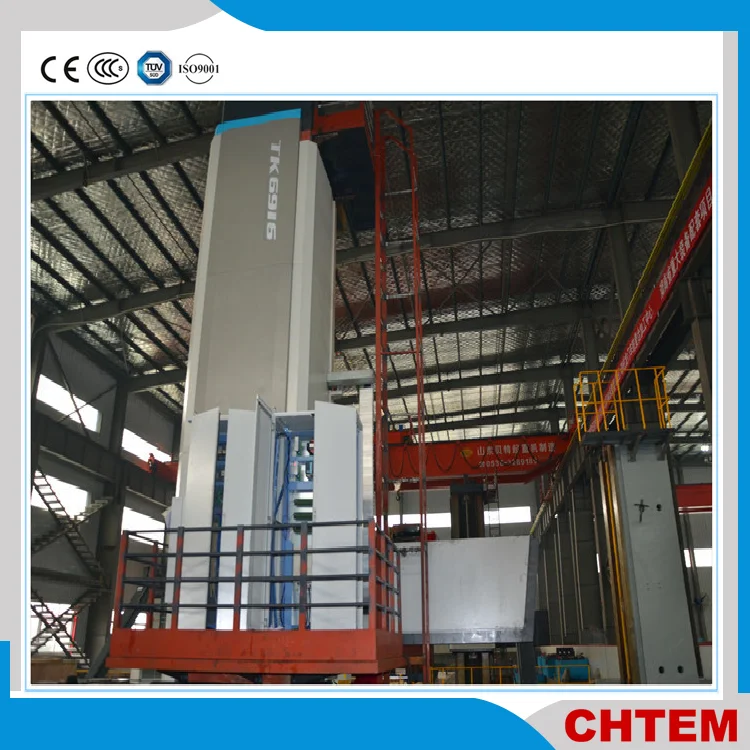

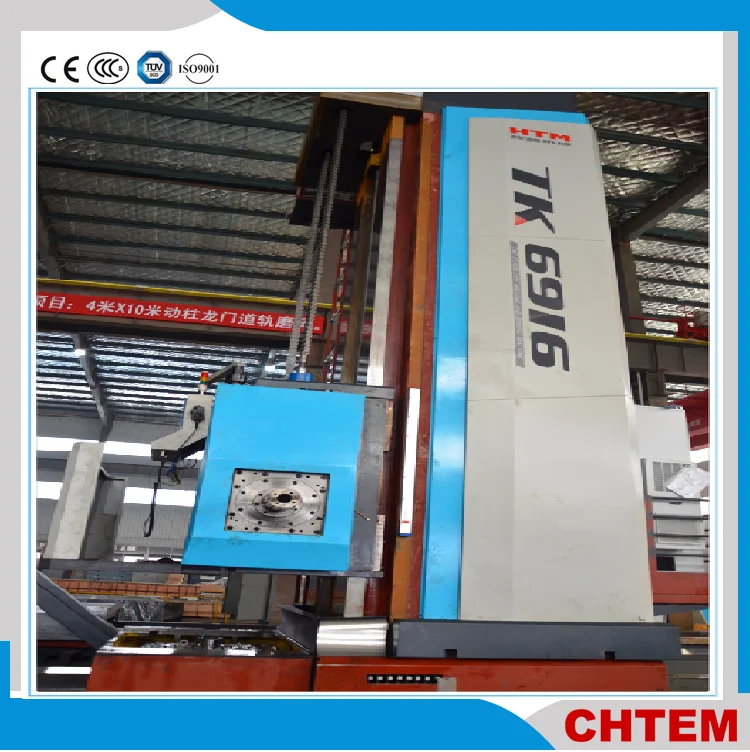

TK6920 floor type horizontal boring equipment
