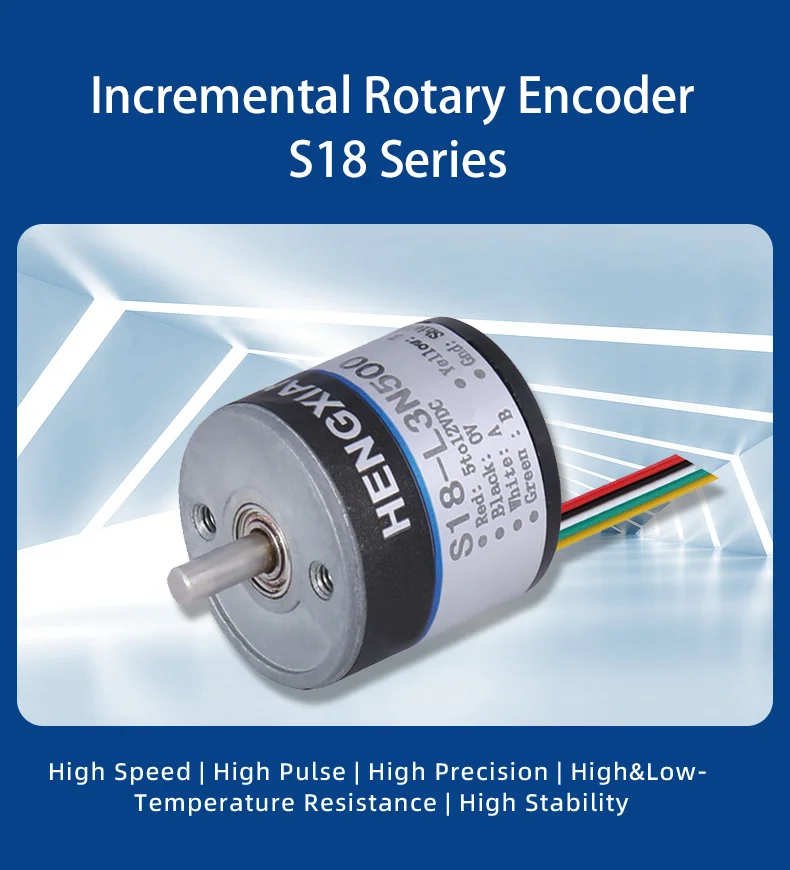

S18 Outer Diameter 18mm Solid Shaft 2mm 360 Pulse NPN Low Level Effective DC5V Cable Length 150mm IP50 Incremental Encoder
S18 Outer Diameter 18mm Solid Shaft 2mm 360 Pulse NPN Low Level Effective DC5V Cable Length 150mm IP50 Incremental Encoder
S18 Outer Diameter 18mm Solid Shaft 2mm 360 Pulse NPN Low Level Effective DC5V Cable Length 150mm IP50 Incremental Encoder
S18 Outer Diameter 18mm Solid Shaft 2mm 360 Pulse NPN Low Level Effective DC5V Cable Length 150mm IP50 Incremental Encoder
S18 Outer Diameter 18mm Solid Shaft 2mm 360 Pulse NPN Low Level Effective DC5V Cable Length 150mm IP50 Incremental Encoder
S18 Outer Diameter 18mm Solid Shaft 2mm 360 Pulse NPN Low Level Effective DC5V Cable Length 150mm IP50 Incremental Encoder
S18 Outer Diameter 18mm Solid Shaft 2mm 360 Pulse NPN Low Level Effective DC5V Cable Length 150mm IP50 Incremental Encoder

S18 Outer Diameter 18mm Solid Shaft 2mm 360 Pulse NPN Low Level Effective DC5V Cable Length 150mm IP50 Incremental Encoder

Share on (60618537631):


Price:$33.60 - $41.50

Quantity:


Product Overview

Description



Products Description

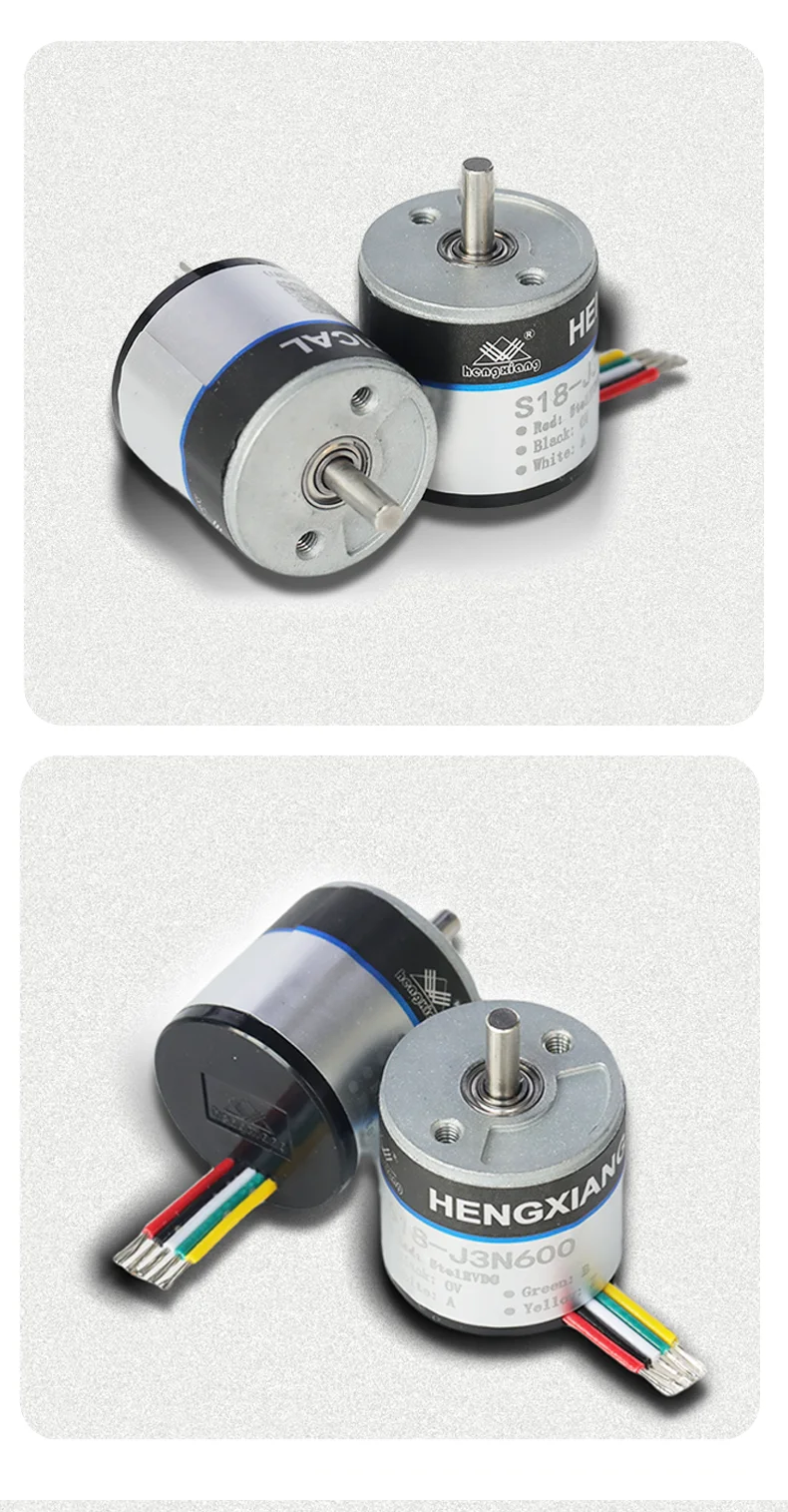

Details Images

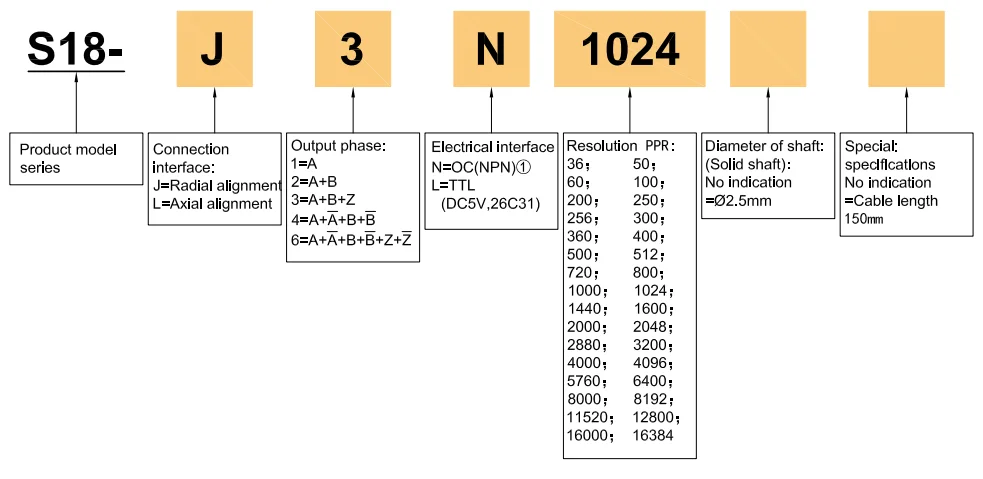

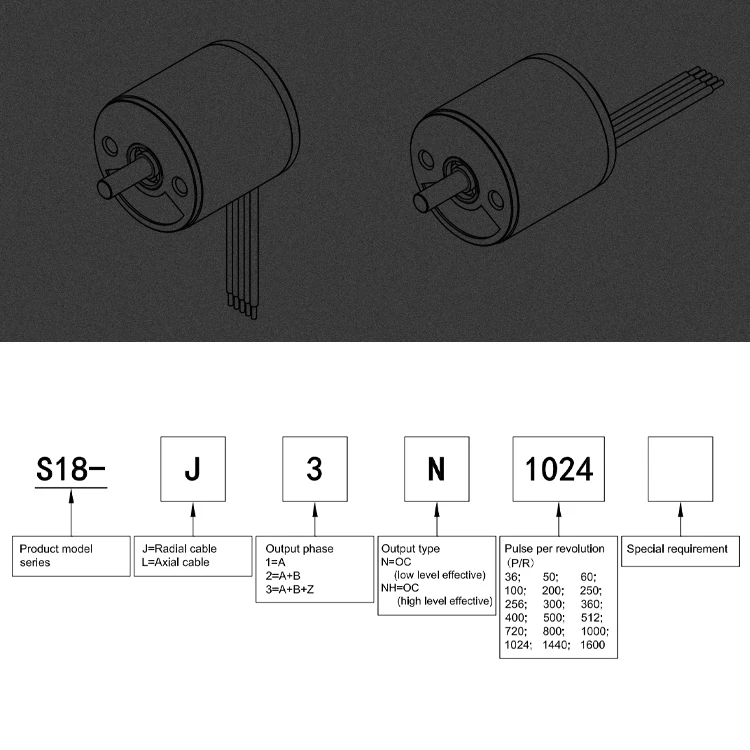

Product Paramenters






Brand
HENGXIANG

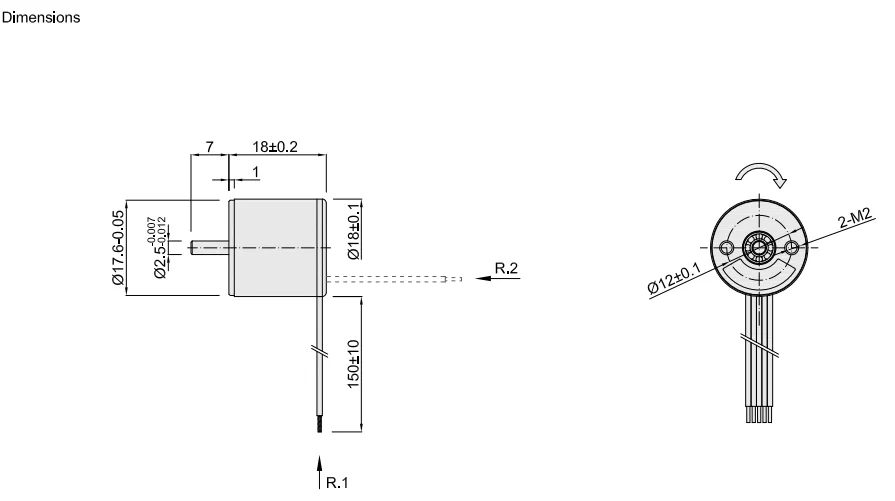

External dimensions
External diameter: 18mm
Thickness: 18mm

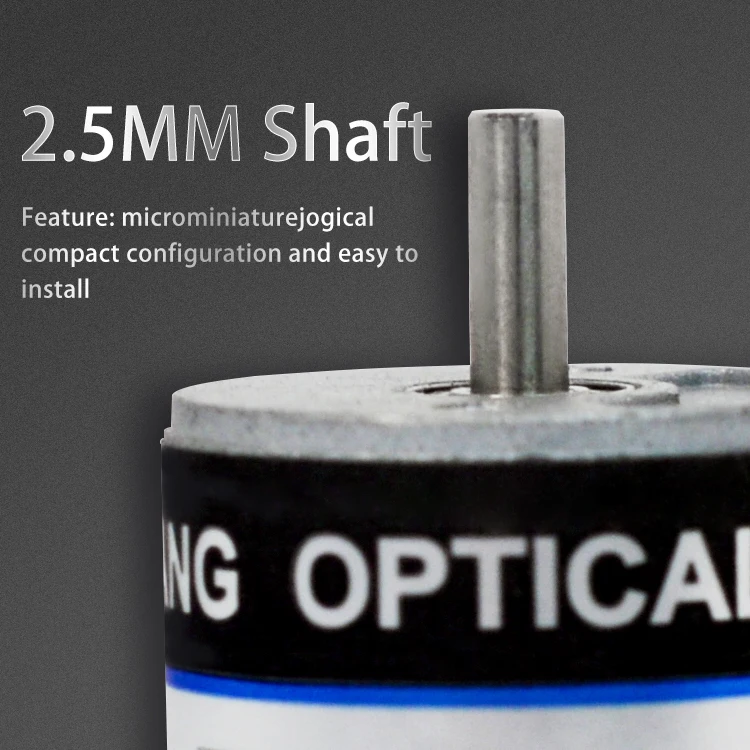

Solid Shaft Diameter: ⌀2.5mm
Resolution
36;50;60;100;200;250;256;300;360;400;500;512;720;800;1000;1024；1440;1600
Output phase
Phase A,B,Z
Supply voltage
DC5V ; DC8-30V
Outlettype
Cable out from side
Cable out from back
Output mode
Collector open circuit output(NPN &PNP)
Environmental temperature
Operating temperature: -20~+80° (Non icing)
Storage temperature: -25~+85° (Non icing)
Environmental humanity
Operating and storage: 35~85%RH (non-condensing)
Top Resonse Frequency
100kHz Max
Top Rev
5000rpm
Protection grade
IP50
Consumption current
50mA Max
Rise/ Fall time
100nsec Max
Shaft Load
Radial: 2N; Axial:2N
Vibration(endure)
Amplitude 0.75mm,10-50Hz,1 hour for X/Y/Z direction individually
Shock(endure)
49/m/s2,three times for X,Y,Z direction individually

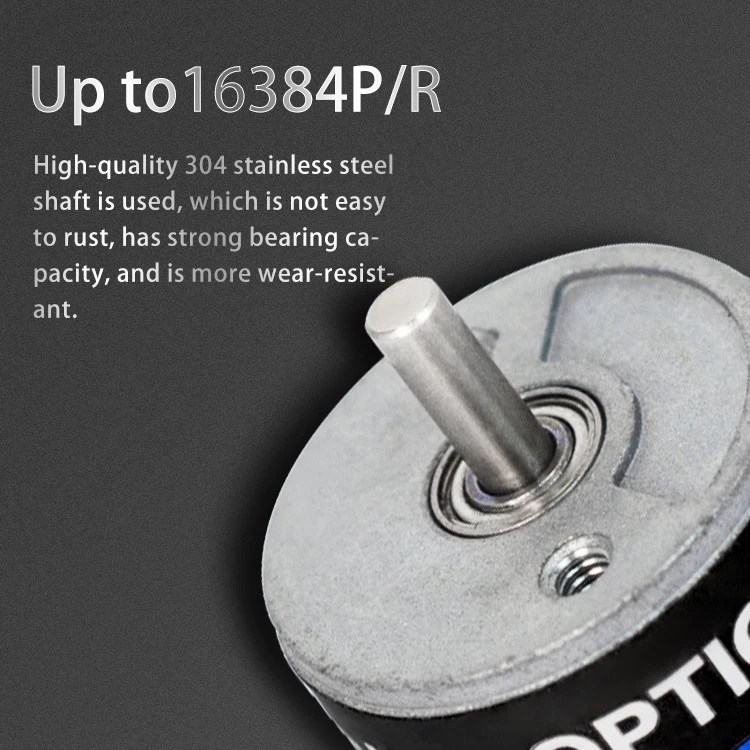

Shaft Material
304 stainless steel

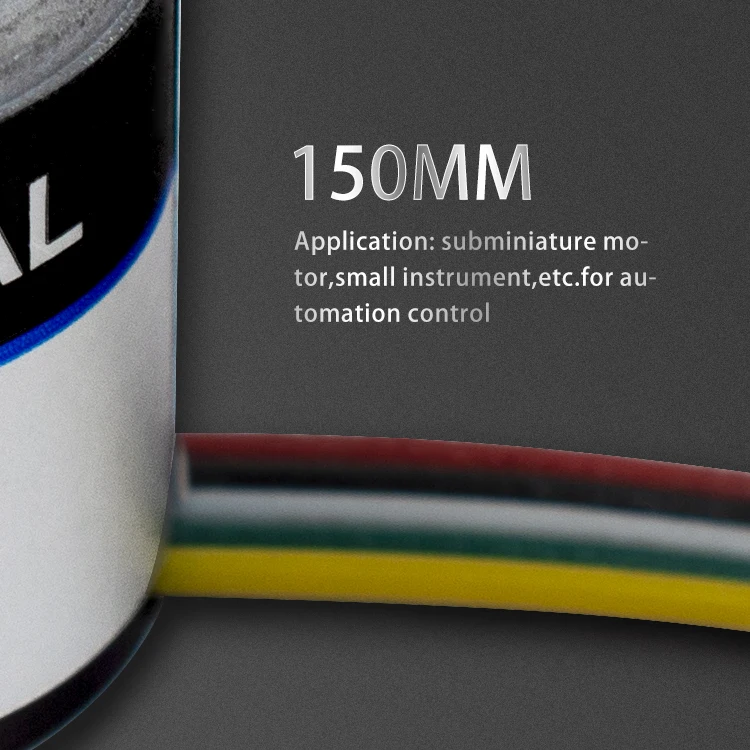

Cable length
150mm
Shell
Aluminium Alloy
Package
Carton box
Net weight
About 20g (with package)
Certification
CE
Allowable ripple
≤3%rms
Load Voltage
≤DC30V
Insulation strength
AC500V 60s
Insulation resistance
10MΩ
GND
not connect to encoder
starting torque
less than 10m N.m
Intertia moment
less than 3x 10-6kg.m2
Shaft load
Radial 60N; Axial 40N
Top REV
6000RPM ;IP65≤3000r rpm
Bearing life
1.5x109 revs at rated load(100000hrs at 2500RPM)
Environmental temperature
Operating:-20 ～+80°；storage:-25 ～+85°
Enviromental humidity
Operating and storage: 35-85%RH(noncondensing)
Vibration(endure)
Amplitude 0.75mm,5-55Hz,2 hours for three axis individually
Sock(endure)
490m/s2 ,11 ms three times for X,Y,Z direction individually
Shaft Material
Stainless steel
Shell Material
Dia cast aluminium
Cable length
1000mm(cable with shielding)
Certification
CE
package
Carton box
Net weight
About 420g (with package)


About Factory




Our Certifications


CE/ATC/ISO/QMS/INVENTIONS OF PATENTS
Awarded 3 invention patents and 17 utility model patents, CE-ATC certificate, ISO quality management system certificate, QMS quality management system certificate, pioneer enterprise and other honorary enterprise certificates
We have passed the national quality management system certification and all the inspected projects meet the requirements, possessing professional production qualifications.
