Easy to carry 20W Mini audio power amplifier with auto play MP3 and Power memory function

Share on (60618559003):


Price:RUB 9,288.52

Quantity:


Product Overview

Description

ITC la audio tube amplifiers

Product Description

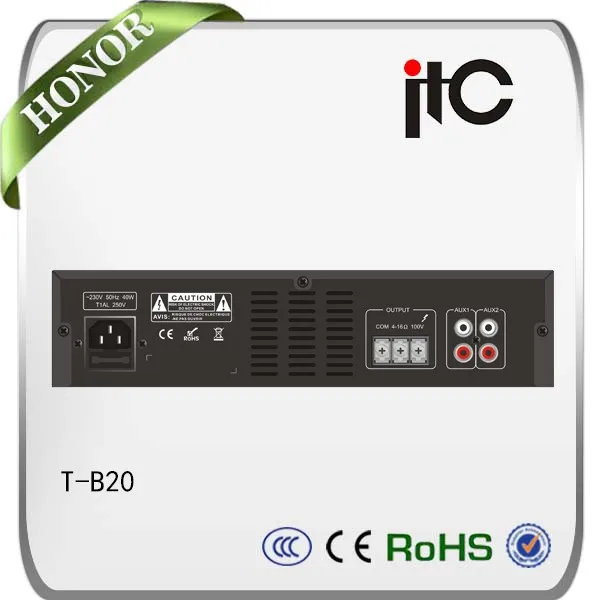

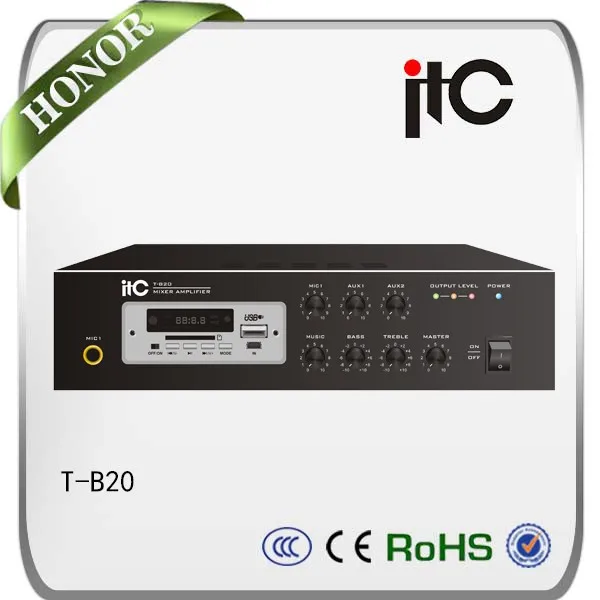

 T-B20



T-B20

Model

T-B20

T-B40

T-B60

Rated output power

20W

40W

60W

Speaker output

4~16Ω/100V

Input sensitivity& Source

MIC Input: +5mV, unbalance 6.3 connector

Impedance

AUX Input: 350mV, unbalance RCA connector

Tone

Bass: 100Hz±10dB, Treble: 10KHz±10dB

Frequency response

80~16KHz(-3dB)

SNR

≥75dB

T.H.D

Rated power output, distortion rate≤1%

Priority Function

MIC1 input has the priority than other input

Protection

Overheating protection, short circuit protection,



overload protection

Input Power

~220V-240V  50/60Hz

Power Consumption

40W

80W

120W

Dimension

284 x 188 x 66.5mm

Weight

2.8Kg

3.5Kg

4.2Kg



Feature

* With desktop design, elegant appearance, light weight, and easy to carry.

* It can be used in different sound effect places. This series include 20W, 40W, and 60W,

which can be selected according to room size inquiries.

* Unmatched sound quality, it can connect 4~16Ω output, meanwhile it can connect

100V output, not only can play short distance beautiful music, but also can broadcast

long-distance beautiful voice.

* The output terminal use standard 6.3 audio microphone jack and line input uses

 RCA jack, to provide users with different audio input interface options.

* 1 Microphone input with independent volume control.

* 2 audio inputs with independent volume control.

* With function of auto play MP3 and power memory.

* With function of priority, when MIC 1 input, the other audio signal can be

disconnected.

* With power indication light, when connect electrical power and turn on switcher,

the light turns blue.

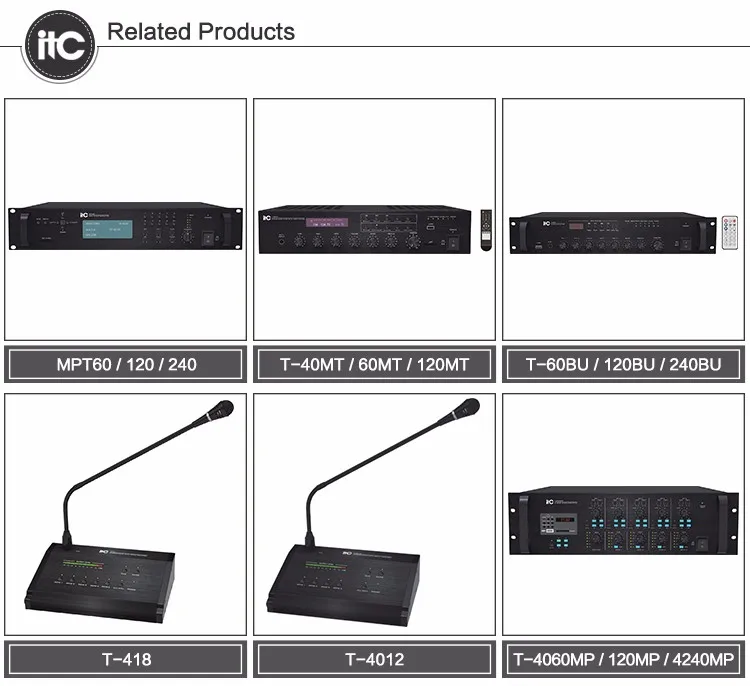

Related Products

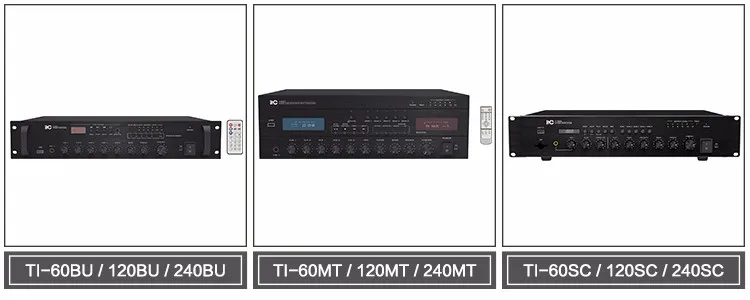

 Amplifier with Audio Source_01Amplifier with Audio Source_02
