SuperbMelt Top Professional Vacuum Casting Machine Jewelry Gold Silver Casting Furnace

Product Overview

Description





Jewelry vacuum casting machine is customized to melt and cast 1-6 kg jewelry gold, silver and other precious metal.

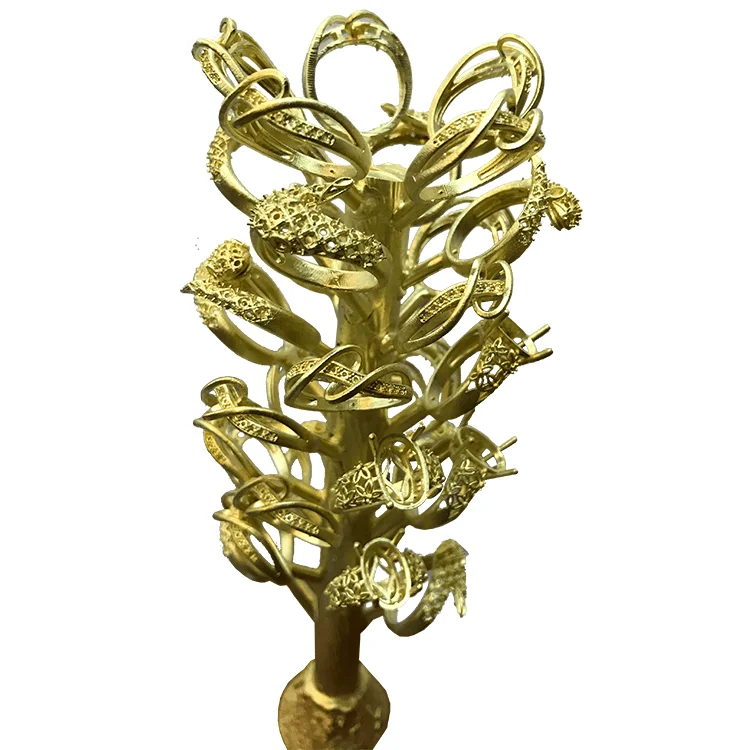

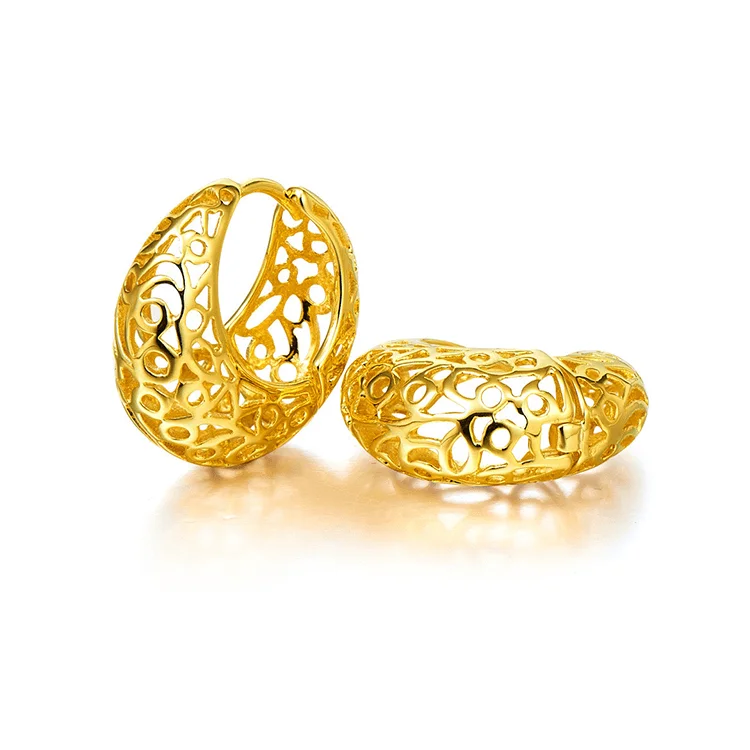

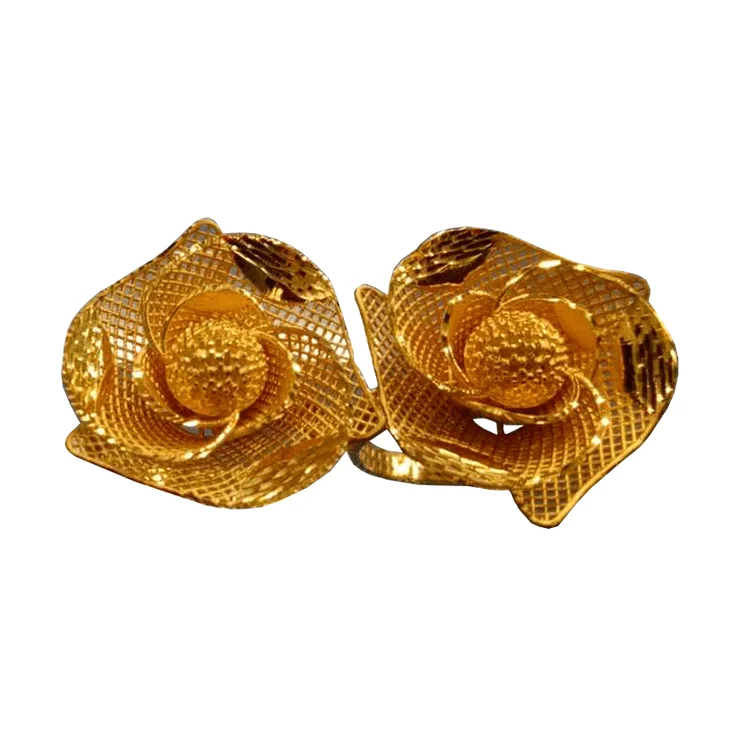

It is suitable for casting gold and silver jewelry, such as necklaces, rings, headwear, bracelets, handicrafts, tableware, etc.

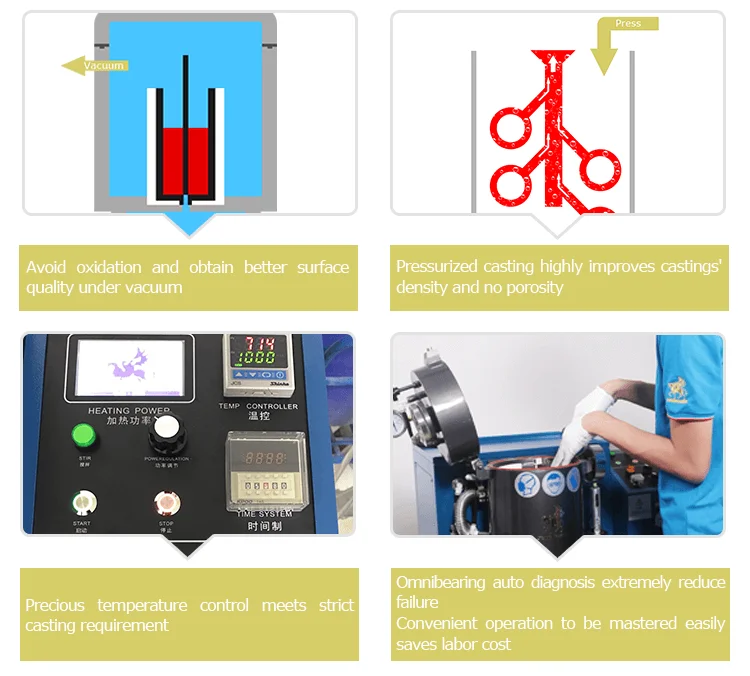

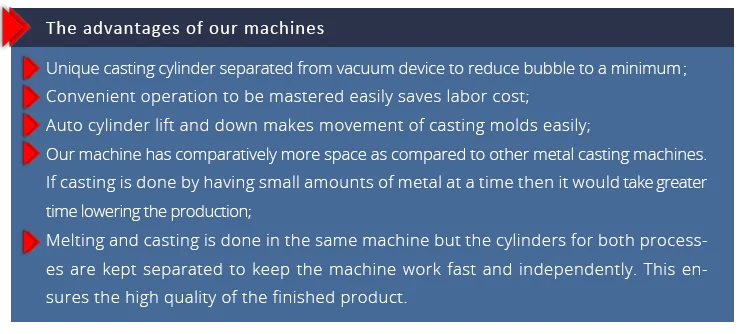

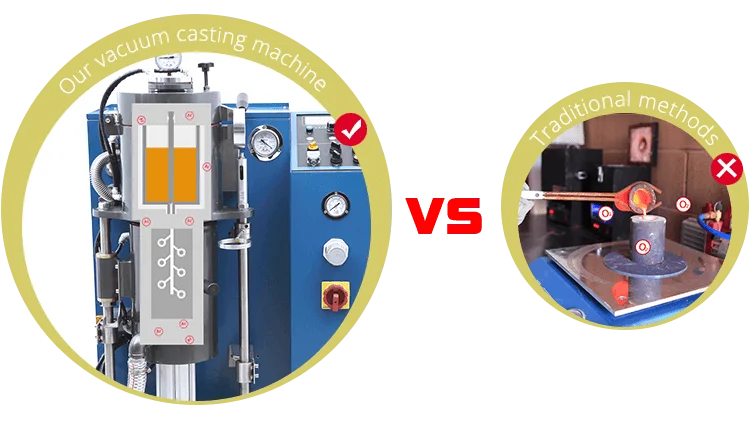

What are the advantages of our machines in comparison with traditional methods?

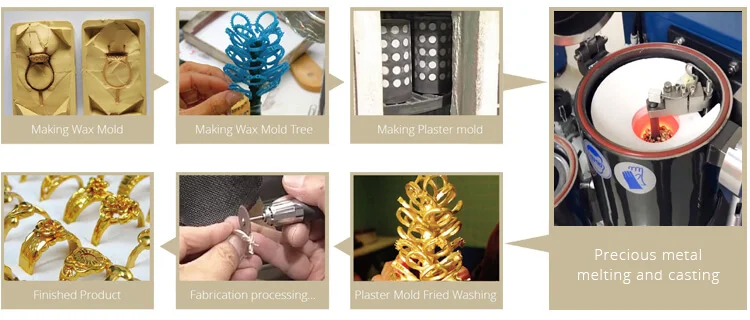

We can provide a one-stop solution for the entire jewelry foundry line





More models available for your choice



Model number	SPB-DM2	SPB-DM4	SPB-DM6
Power source	Single phase 220V/Three phase 380V, 50/60Hz	Single phase 220V/Three phase 380V, 50/60Hz	Three phase 380V, 50/60Hz
Power	8.5 kw	15 kw	25kw
Casting system	Vacuum pressure casting system	Vacuum pressure casting system	Vacuum pressure casting system
Applicable metal	Gold, Silver, Copper, Brass, Bronze, and their alloys	Gold, Silver, Copper, Brass, Bronze, and their alloys	Gold, Silver, Copper, Brass, Bronze, and their alloys
Melting time	3-5 min	3-5 min	3-5 min
The Max capacity	24K Gold: 2.0 kg 18K Gold: 1.5kg 925 Silver: 1.0 kg	24K Gold: 4.0 kg 18K Gold: 3.0 kg 925 Silver: 2.0 kg	24K Gold: 6.0 kg 18K Gold: 4.0 kg 925 Silver: 3.0 kg
Max temperature control R-type	1600℃	1600℃	1600℃
Max. temp control k-type	1100℃	1100℃	1100℃
Dimension	720×700×1150 mm	720×700×1150 mm	720×800×1150 mm
Weight	210 kg	215 kg	250 kg
Control of temperature	by PID	by PID	by PID
Pressure applied	Max. 0.1 Mpa	Max. 0.1 Mpa	Max. 0.1 Mpa
Protective gas	Nitrogen or Argon	Nitrogen or Argon	Nitrogen or Argon
Vacuum pump	63 m³/hour	63 m³/hour	63 m³/hour
Oscillation	Induction heating	Induction heating	Induction heating
Max flask size	D101*H254 mm	Normal D101*H254mm (Customized)	Normal D160*H254 mm (Customized)
Ultimate vacuum	10hPa	10hPa	10hPa
Accuracy of temperature	±2 degrees Celsius	±2 degrees Celsius	±2 degrees Celsius
Pressure differential casting	Y	Y	Y
Vacuum filter	Y	Y	Y
Vacuum leakage detector	Y	Y	Y
Flask check before casting	Y	Y	Y
Flask and chamber lift	Y	Y	Y





Why choose us





There are many patented products are certified by CE, SGS. Our company also passed  ISO 9001:2015 quality management system and authorzied with AAA credit enterprise by government. All of them further verify our top quality for your business safety.
