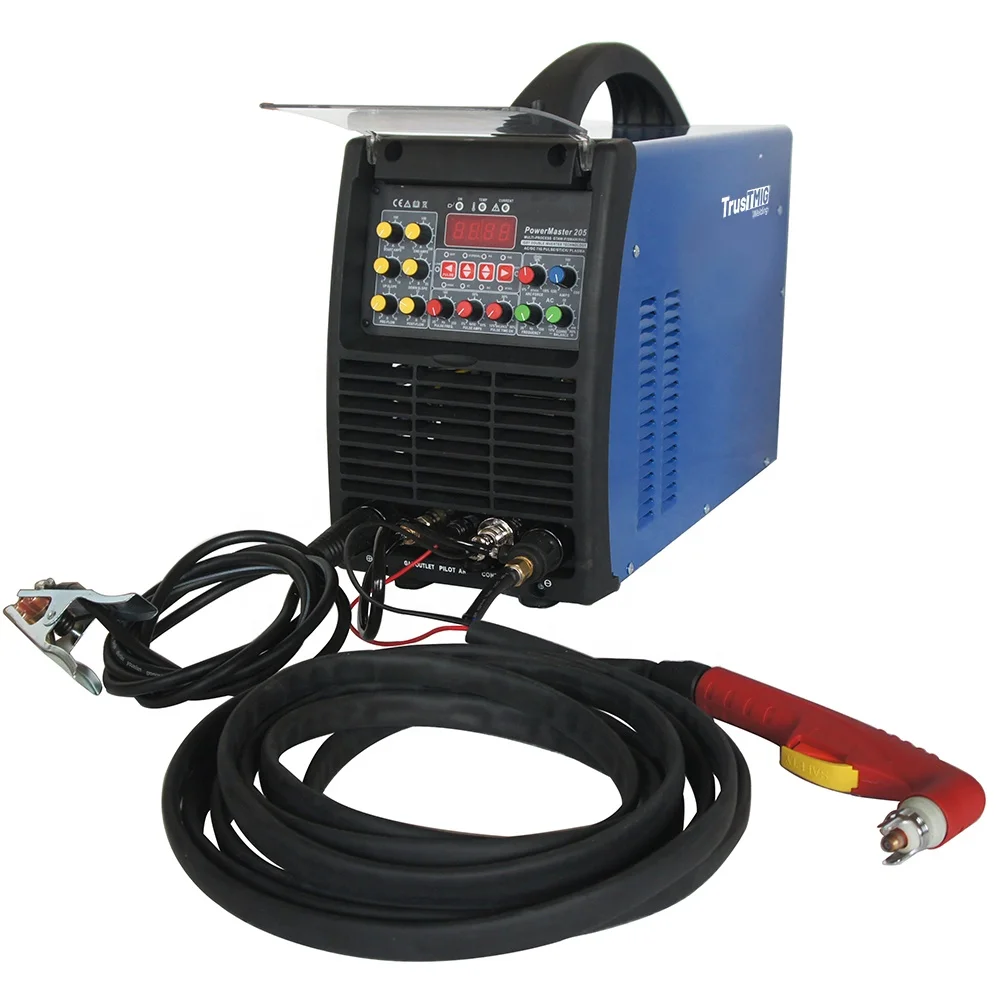

New Inverter Quality 4In1 Plasma Powermaster205 TIG MMA Three Phase Arc Welder
- Category: TIG Welder >>>
- Supplier: Beijing Aland Welding Co. Ltd.
Share on (60618881377):
Product Overview
Description

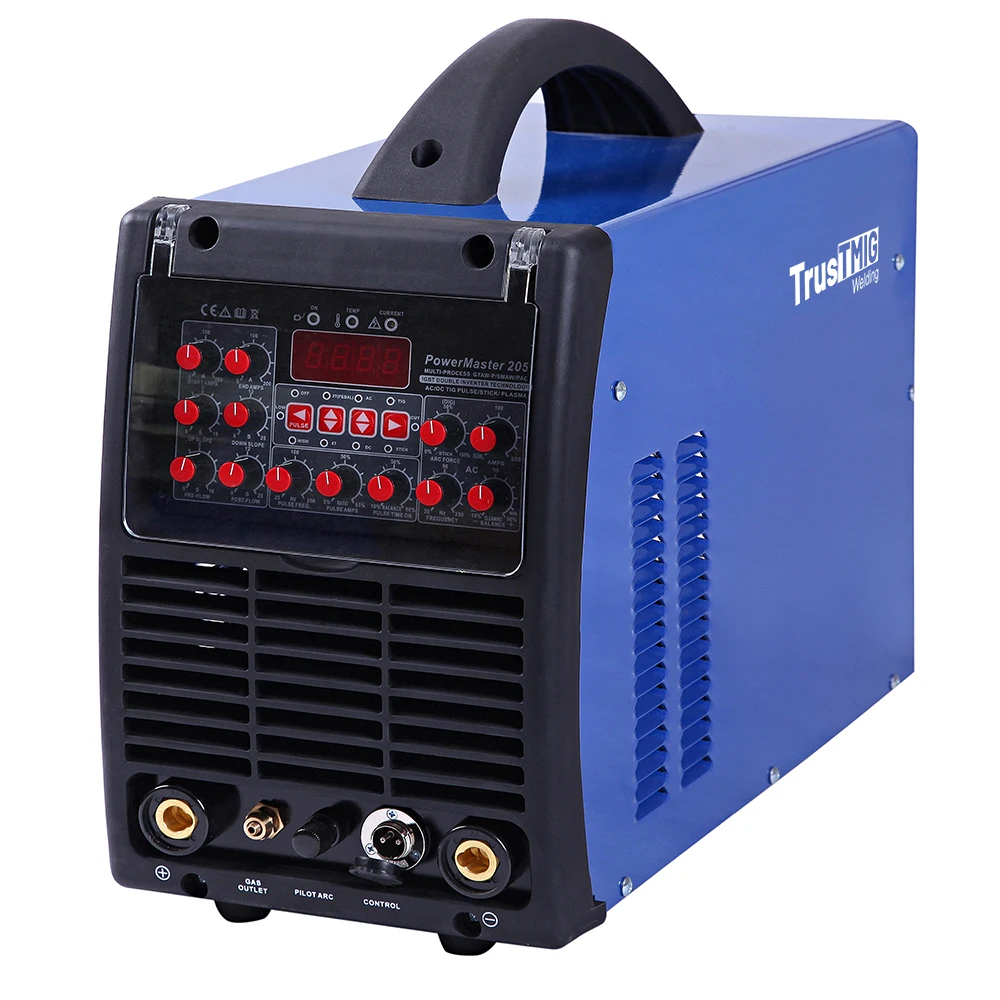

Heavy duty IGBT Inverter 4 In 1 Multi Process Welder Pulse AC DC TIG MMA CUT Powermaster205
Product Description
Functions: AC TIG, DC TIG, Pulse TIG, HF TIG, Plasma Cutting MMA (Stick Welding)
Suitable Material: Aluminum Alloy, Stainless Steel, Carbon Steel
Features:
1. High Frequency IGBT inverter DC MMA, Pulse AC DC TIG and CUT
2. Lift and HF for TIG
3. Hot arc start and arc force, Anti-stick for MMA
4. HF or without HF pilot arc for plasma cutting
5. 32bits MCU inside
6. 2T/4T function
7. Foot Pedal and finger control Current function.
2. Lift and HF for TIG
3. Hot arc start and arc force, Anti-stick for MMA
4. HF or without HF pilot arc for plasma cutting
5. 32bits MCU inside
6. 2T/4T function
7. Foot Pedal and finger control Current function.
8. VRD for MMA (option)
9. PFC (Option)
Optional:
9. PFC (Option)
Optional:
PFC
VRD for MMA

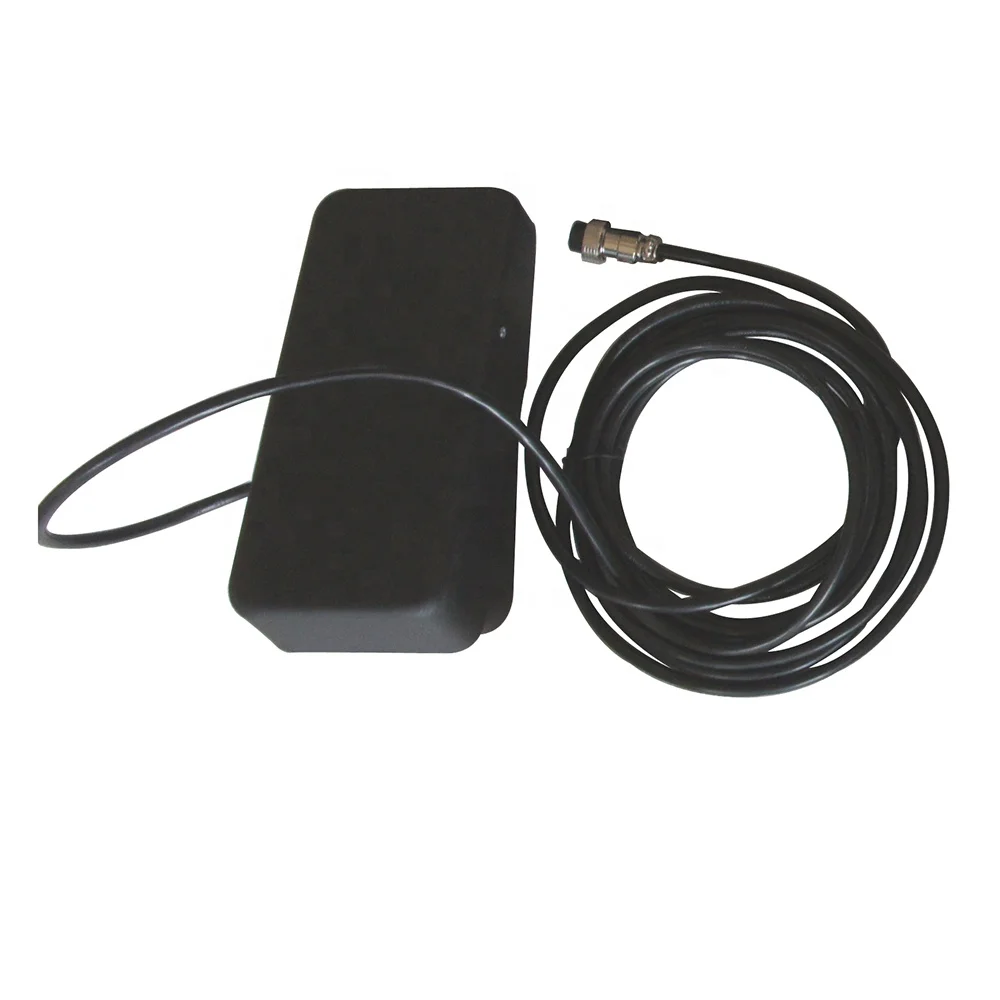

Foot Pedal
Amps Hand control TIG Torch
Main Parameters for PowerMaster256 & PowerMaster205
Model | PowerMaster205 | PowerMaster256 |
Input Voltage | 1*220/230/240V 50/60Hz | 1*230V 50/60Hz |
Input Power Capacity | 6KVA | 9KVA |
Rate Input Current | 32.1 | 38.3 |
No Load Voltage | 60-80V | 60-80V |
Current Range | TIG: 5-200A, MMA: 5-160A, CUT: 20-50A | TIG: 5-250A, MMA: 10-200A, CUT: 20-60A |
Rate Duty Cycle | 60% | 60% |
Net Weight | 25kg | 28kg |
Package Weight | 33kgs | 33kgs |
Machine Size (LWH) | 560x240x460mm | 560x240x460mm |
Packing Size (LWH) | 650x420x520mm | 650x420x520mm |

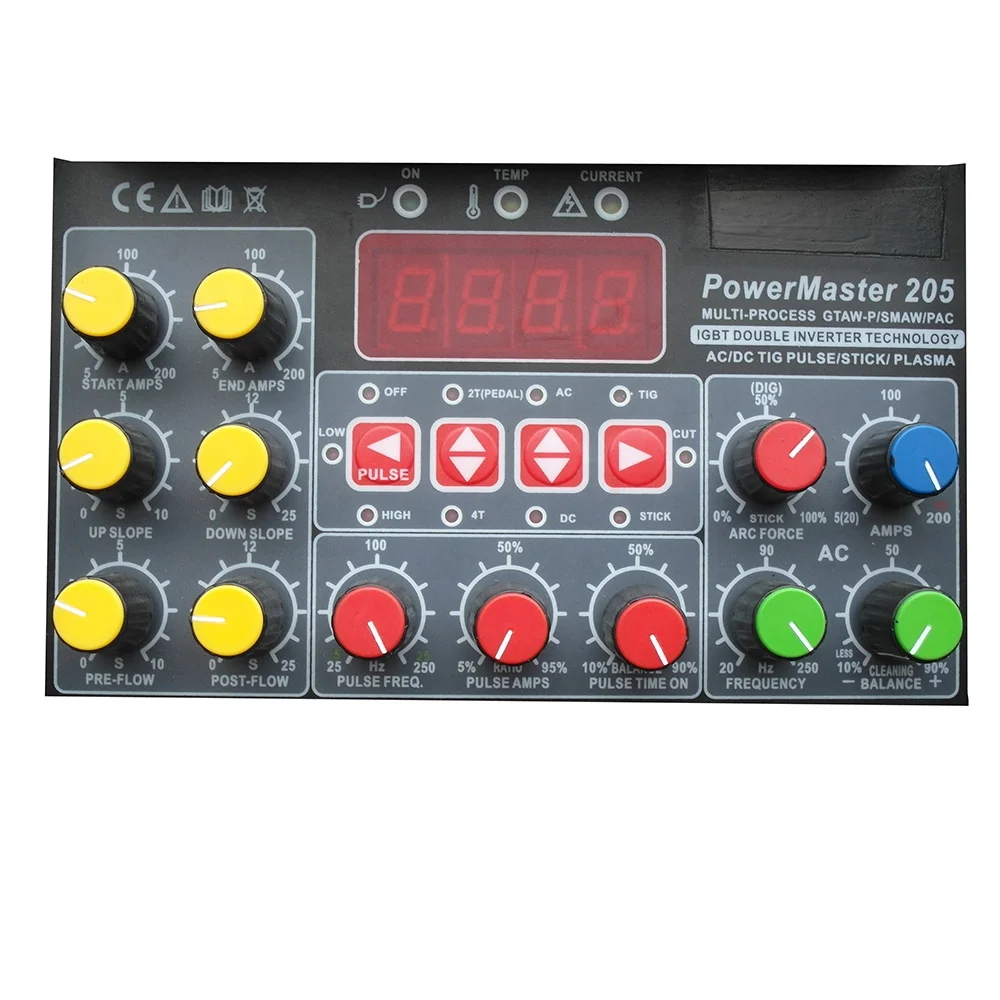

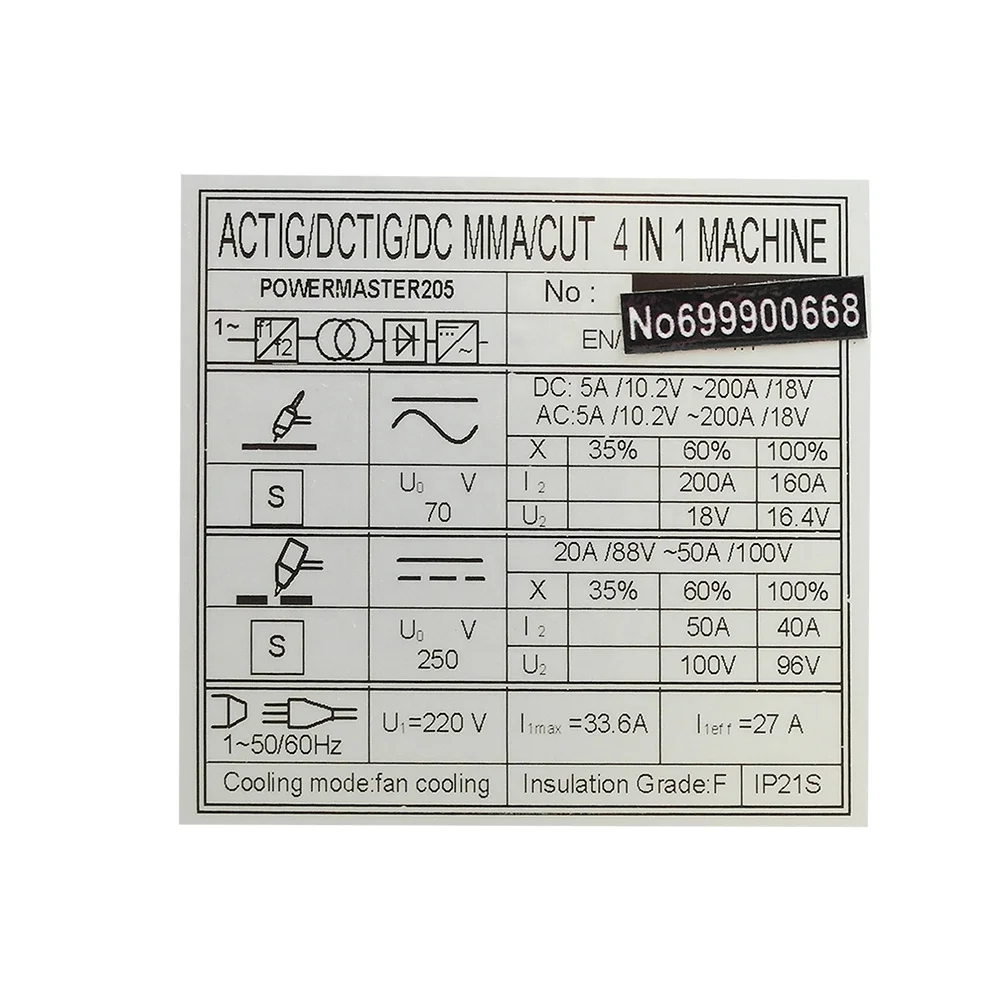

Parameters in Details for PowerMaster205:
MODEL | PowerMaster205 | ||
INPUT | Voltage | 1~AC220/230/ 240V 50/60Hz | |
AC TIG | No-load Voltage | 70V | |
Base Current Adjusting Range | 5~200A | ||
AC Balance | 10%~90 % | ||
AC Square Wave Frequency | 20~250Hz | ||
Rated Duty Cycle | 60% | ||
Start Amps | 20-200A | ||
End Amps | 20-200A | ||
DC TIG | AMP Adjusting Range | 5~200A | |
Rated Duty Cycle | 60% | ||
Current Up-slope Time | 0~10S | ||
Current Down-slope Time | 0~25S | ||
Pluse Time On | 0.1~0.9 | ||
Pluse Frequency | 0.5~25(25~250)Hz | ||
Arc starting Mode | HF arc striking | ||
DC STICK | No-load Voltage | 70V | |
Current Range | 5-160A | ||
Rated Duty Cycle | 35% | ||
CUT | (Base) current Adjusting Range | 20A~50A | |
Rated Duty Cycle | 60% | ||
Efficiency | ≥83% | ||
Protection Class of enclosure | IP21S | ||
Standard Accessories:

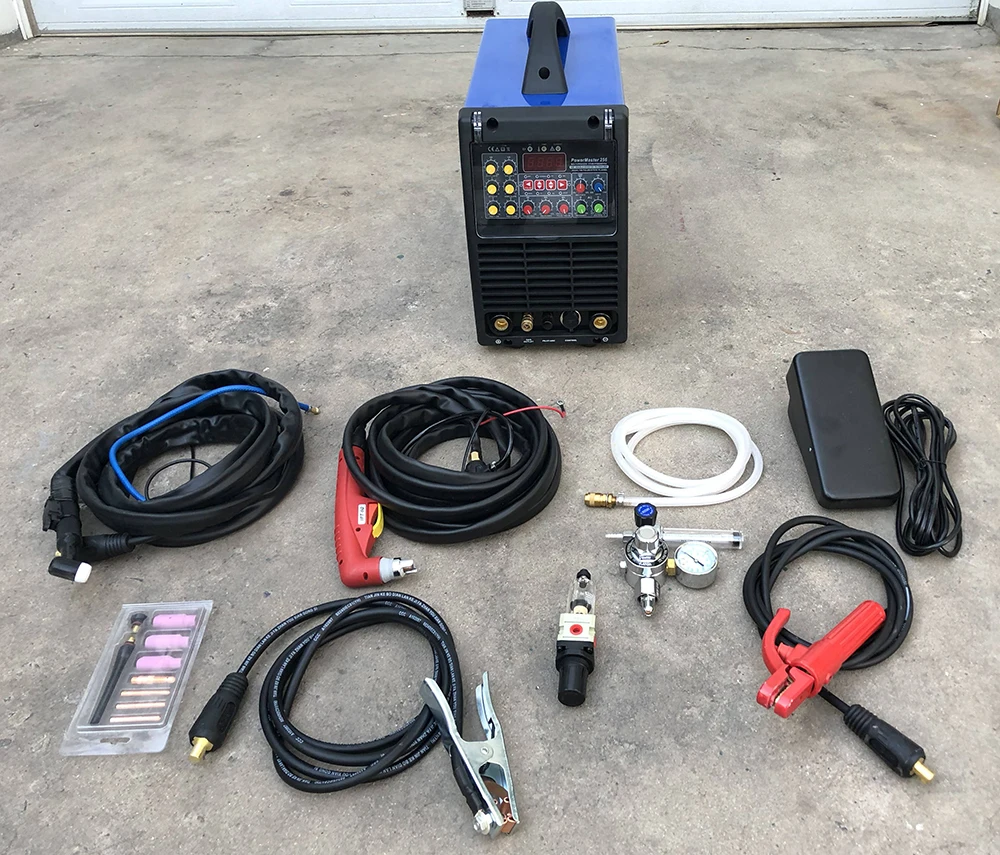

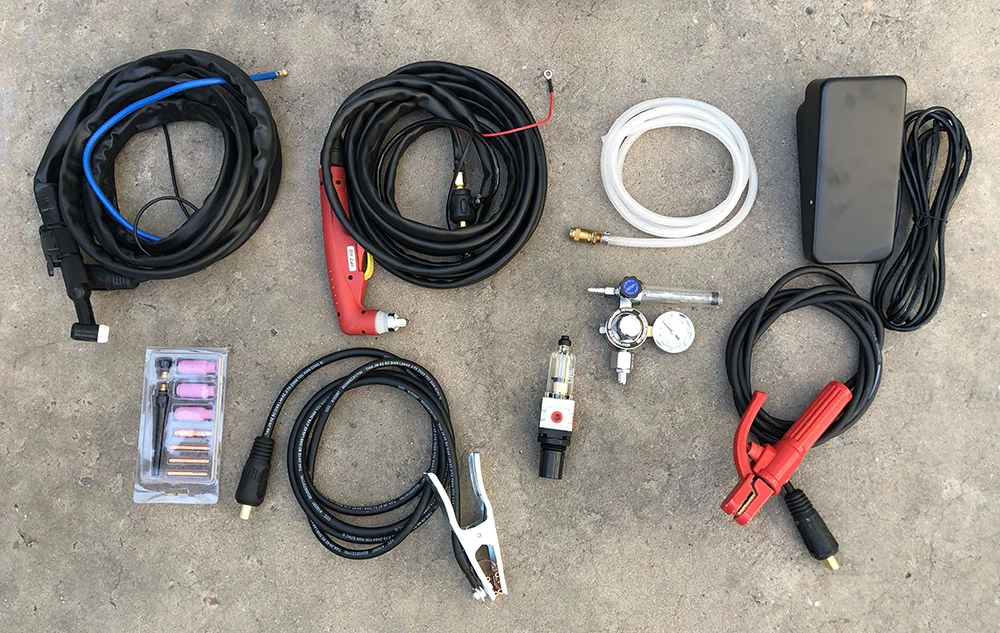

TIG Torch, Plasma Cutter, Electrode Holder, Foot Pedal, Gas Hose, Air regulator
Production Workshop
FAQ.
1. Why Choose us?
- We have nearly 10 years experience in welding industry and export to all over the world.
- We have experienced R&D team. We can adjust the parameter and panels design as per your request.
- We have experienced R&D team. We can adjust the parameter and panels design as per your request.
- Most of key parts are adopted top brand to ensure the quality. Such as the IGBT of Infineon (Simens).
- Each machine will be inspected before shipping.
- One year warranty, life-long technical support and design service.
2. Could you get a customized sample?
Yes, we can adjust some configuration and parameters as your request.
- Each machine will be inspected before shipping.
- One year warranty, life-long technical support and design service.
2. Could you get a customized sample?
Yes, we can adjust some configuration and parameters as your request.
It also includes OEM service.
3. How is your quality control?
We use the world-class quality inspection to make every machine strong, powerful and reliable. We inspect with the world class quality testing to make every single machine strong, powerful and reliable.
Inpection is full range, covered from welding power source to wire feeders, welding torches and up to welding consumables and work safety. Whether you want to weld with 2T/4T, GAS/NO GAS, our components, which have been perfectly tuned to your requirements, acting as excellent quality and the best possible welding results.
4. What voltage could you provide?
We use the world-class quality inspection to make every machine strong, powerful and reliable. We inspect with the world class quality testing to make every single machine strong, powerful and reliable.
Inpection is full range, covered from welding power source to wire feeders, welding torches and up to welding consumables and work safety. Whether you want to weld with 2T/4T, GAS/NO GAS, our components, which have been perfectly tuned to your requirements, acting as excellent quality and the best possible welding results.
4. What voltage could you provide?
110V/220v, 220/380V, 230V etc.
We can make it as per your country voltage.
5. Can you send me the video to show how the machine works?
At present, some machines have video. We will try to make video of featured machine in future.
6. Do you have engineer who can guide me to install system?
Yes, we have a professional team. They can teach you how to work with it.
7. How long is the lead time for welding machine?
If no stockes, usually it takes 30-35 days after confirmation of order.
At present, some machines have video. We will try to make video of featured machine in future.
6. Do you have engineer who can guide me to install system?
Yes, we have a professional team. They can teach you how to work with it.
7. How long is the lead time for welding machine?
If no stockes, usually it takes 30-35 days after confirmation of order.
