Заводская поставка, высокое качество, регулируемая тонкая Расточная головка LBK
- Category: Tool Holder >>>
- Supplier: Shandong Jinjie Machinery Co. Ltd.
Share on (60619164019):
Product Overview
Description

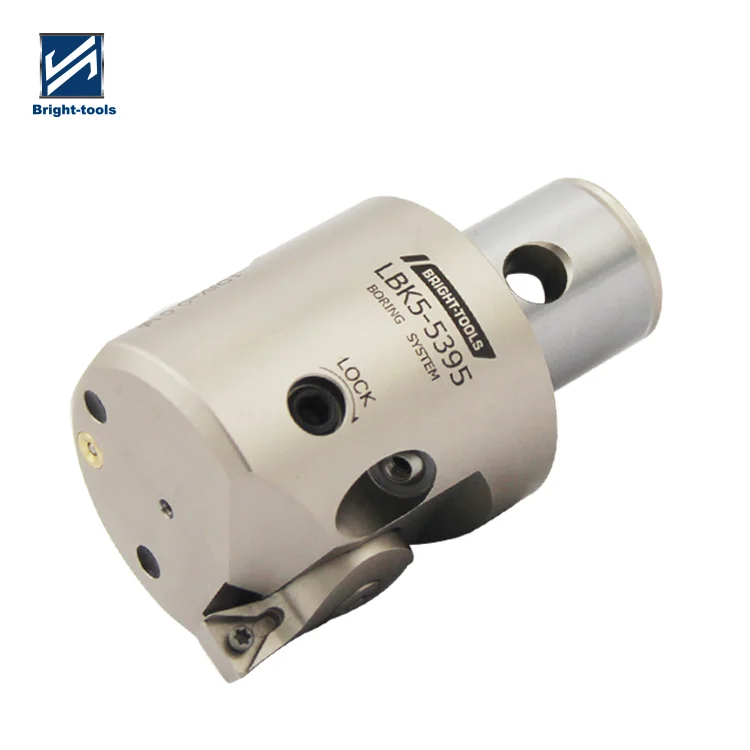

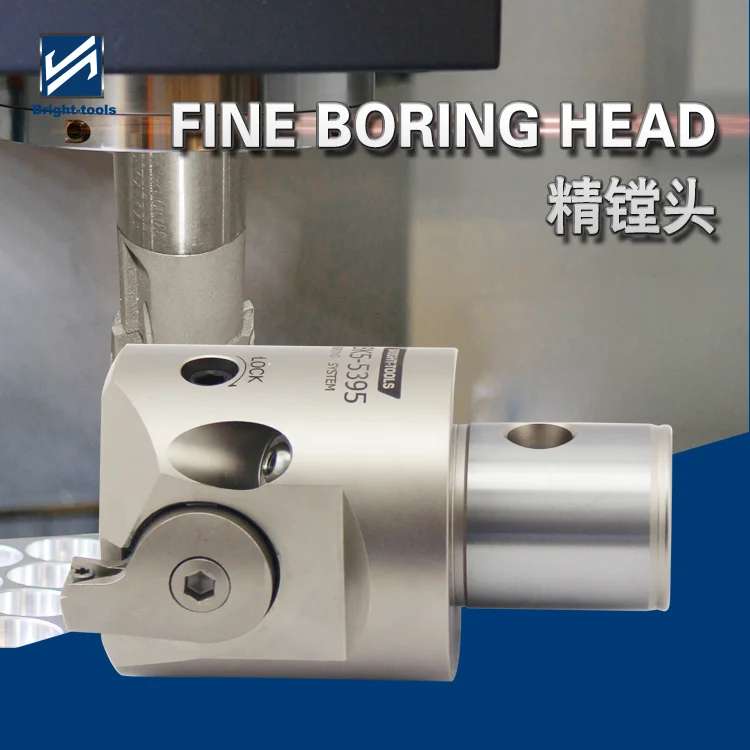

Factory Supply High Quality Fine Boring Head
Boring Head Size | LBK No. | Dc | D | d | L | Insert Seat Size | Insert | Wt (kg) |
LBK1-F2036 | LBK1 | 20-26 | 19 | 11 | 32.5 | F1-1 | TP08 | 0.07 |
25-31 | F1-2 | |||||||
30-36 | F1-3 | |||||||
LBK2-F2547 | LBK2 | 25-33 | 24 | 14 | 35.5 | F2-1 | TP08 | 0.12 |
32-40 | F2-2 | |||||||
39-47 | F2-3 | |||||||
LBK3-F3260 | LBK3 | 32-42 | 31 | 18 | 40 | F3-1 | TP08 | 0.22 |
41-51 | F3-2 | |||||||
50-60 | F3-3 | |||||||
LBKLBK4-F4166 | LBK4 | 41-54 | 40 | 22 | 47 | F4-1 | TC11 | 0.42 |
50-63 | F4-2 | |||||||
61-74 | F4-3 | |||||||
LBK5-F5395 | LBK5 | 53-70 | 50 | 28 | 57 | F5-1 | TC11 | 0.85 |
65-82 | F5-2 | |||||||
78-95 | F5-3 | |||||||
LBK6-F68150 | LBK6 | 68-100 | 64 | 36 | 71 | F6-1 | TC11 | 1.85 |
94-126 | F6-2 | |||||||
118-150 | F6-3 | |||||||
LBK6-F100203 | LBK6 | 100-153 | 64 | 36 | 71 | F6-1 | TC11 | 2.7 |
126-179 | F6-2 | |||||||
150-203 | F6-3 | |||||||
LBK7-F100203 | LBK7 | 100-153 | 90 | 46 | 87 | F6-1 | TC11 | 4.05 |
126-179 | F6-2 | |||||||
150-203 | F6-3 |
INTRODUCTION
Product name: Fine Boring Head
Hardness:HRC48-52

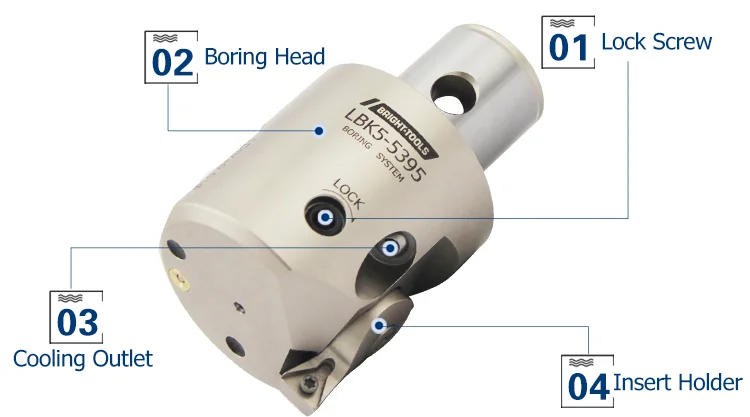

PRODUCT STRUCTURE
Accurate Cutting
Performance Stable
Adjustable
PRODUCT DETAILS
PRECISE CONTROL FREELY ADJUSTS
The dial scale is clear, divided into 100 equal parts of the circumference, and the movement of each scale is 0.005mm,The diameter is 0.01mm, the operation is simple, the cutting is accurate and the efficiency is higher.
Built-in Water Hole
Precision Dial
Change Insert
Adjusting scale screw

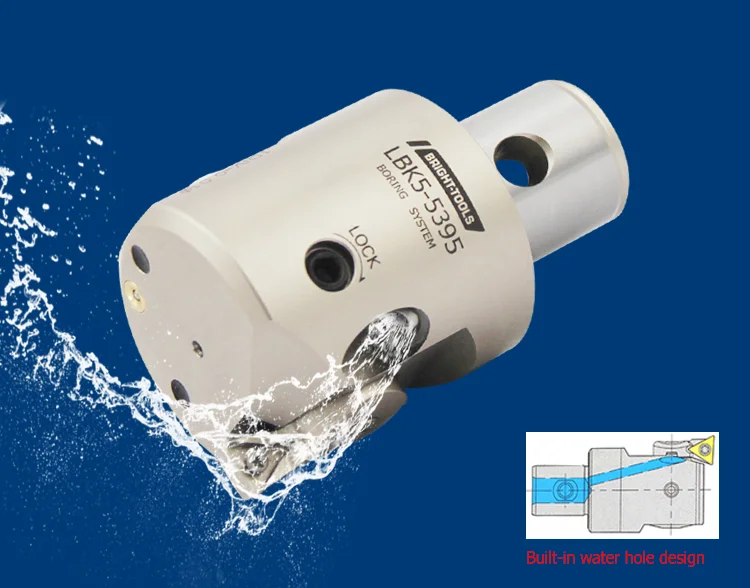

BUILT-IN WATER HOLE QUICK COOLING
The built-in water hole design makes the tip cool directly, keep the processing temperature basically unchanged for a long time, make the precision more stable and save the cost.

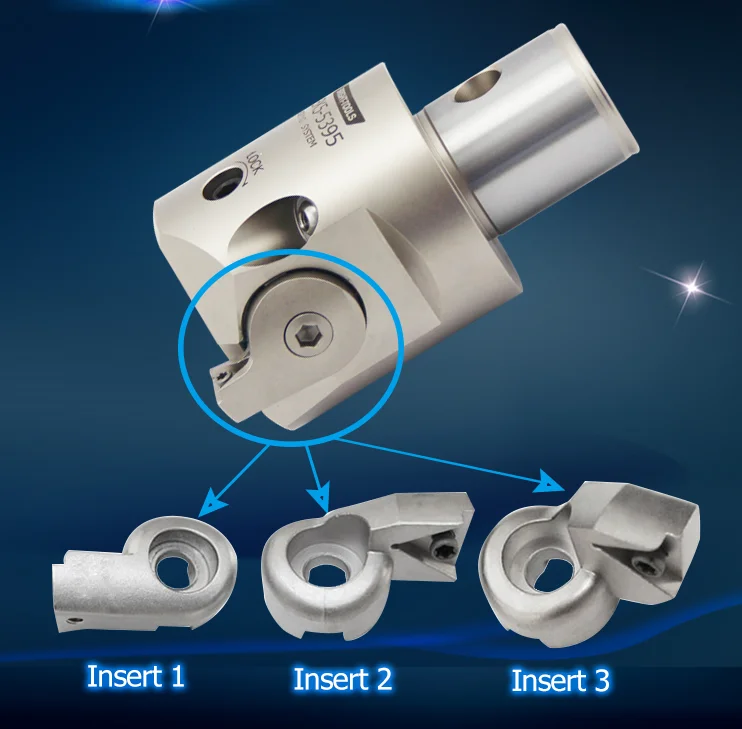

CONNECTION PARTS
CHANGE DIFFERENT INSERT FREELY
Note:Insert need to be purchased separately!

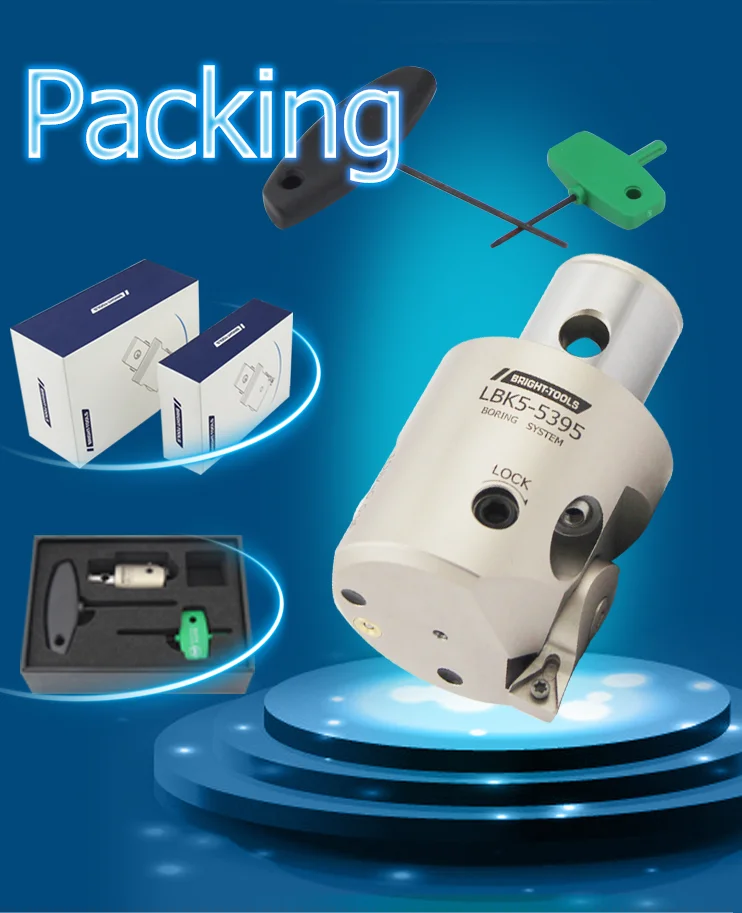

PACKING

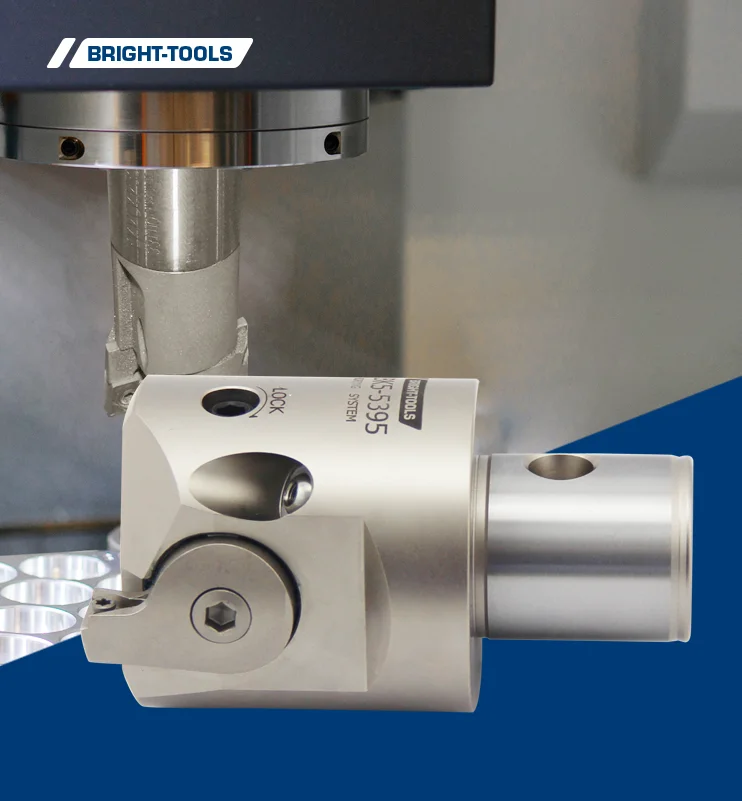

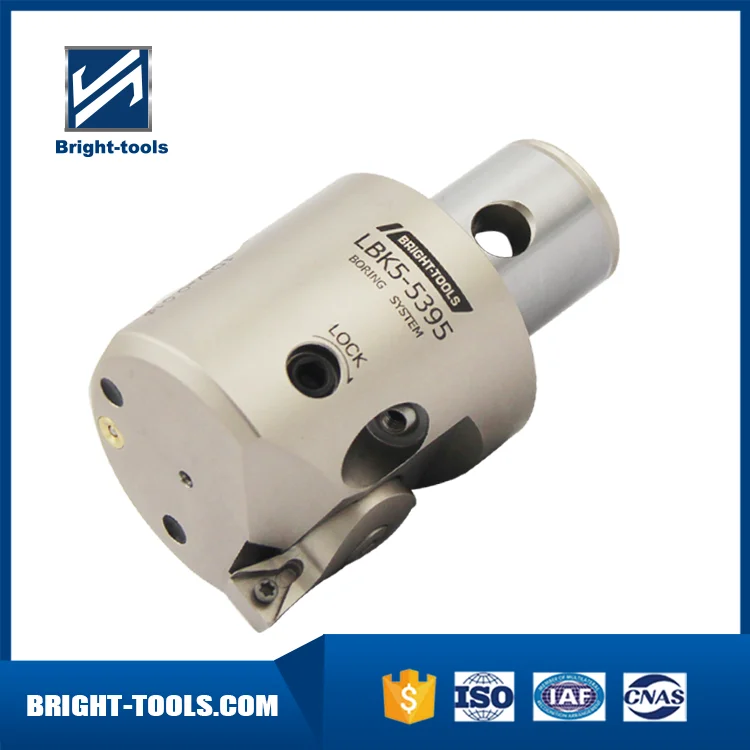

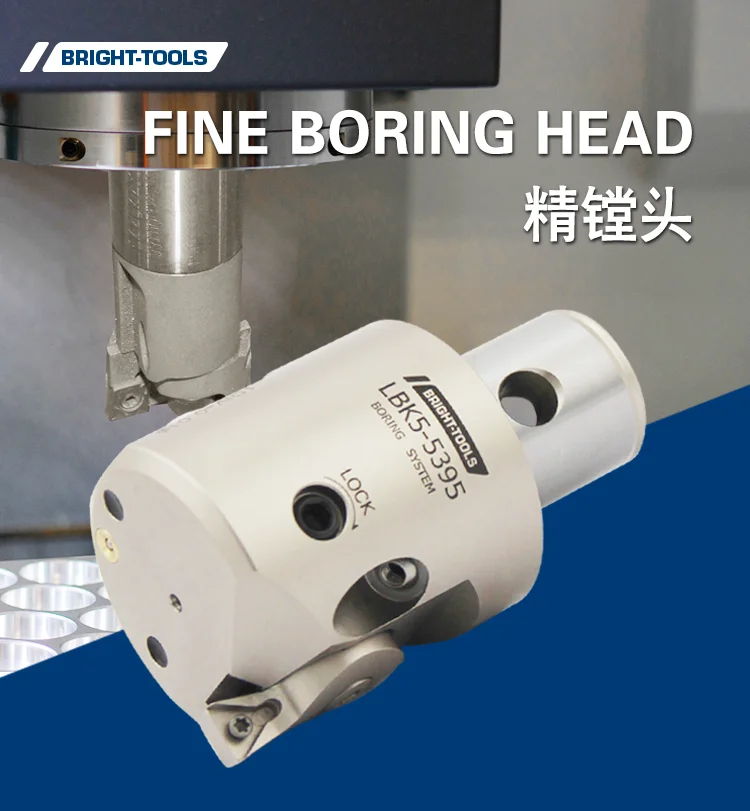

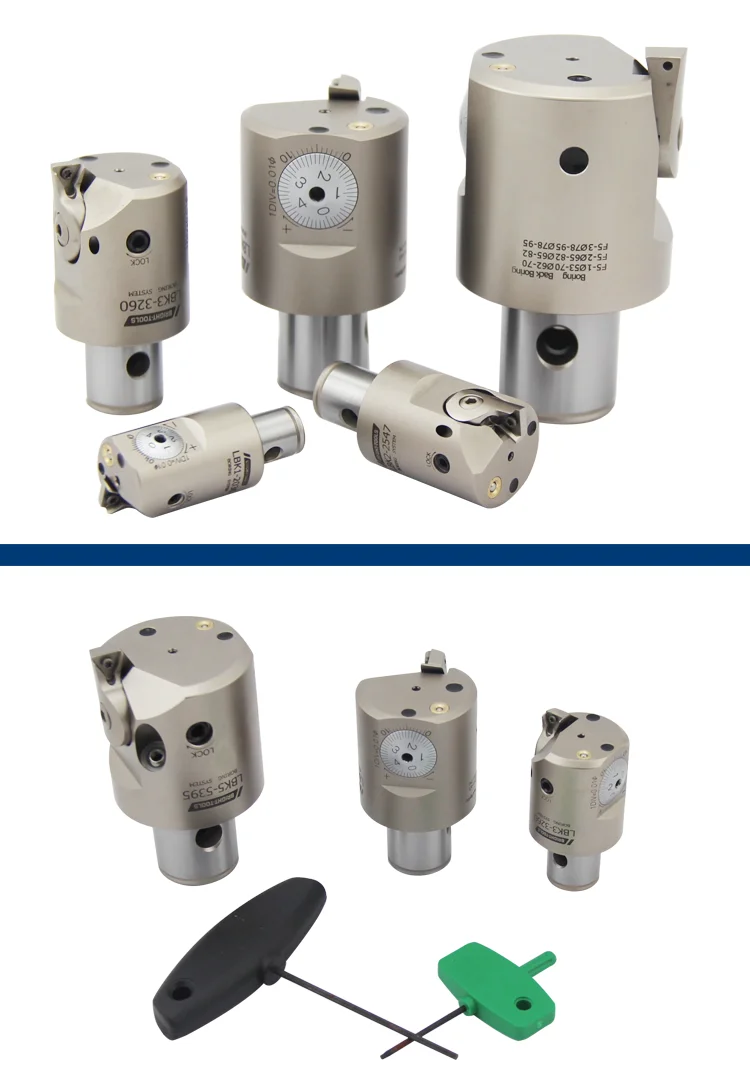

PRODUCT PHOTOS
Jinjie Machinery International Quality High Cost Performance
Also we can be drawings or samples processing. If you are interested, please click here contact us.
About BRIGHT-TOOLS
Shandong Jinjie Machinery Co., Ltd. was established in 2006, with advanced equipment and exquisite workmanship, it can produce BT,NT, HSK, SK, CAT, GOST,VDI, Boring and other standard CNC tool holder, collets, pull stud and other tool accessories.
The products have been sold to more than 50 countries and regions, and have been well received by domestic and foreign customers.
