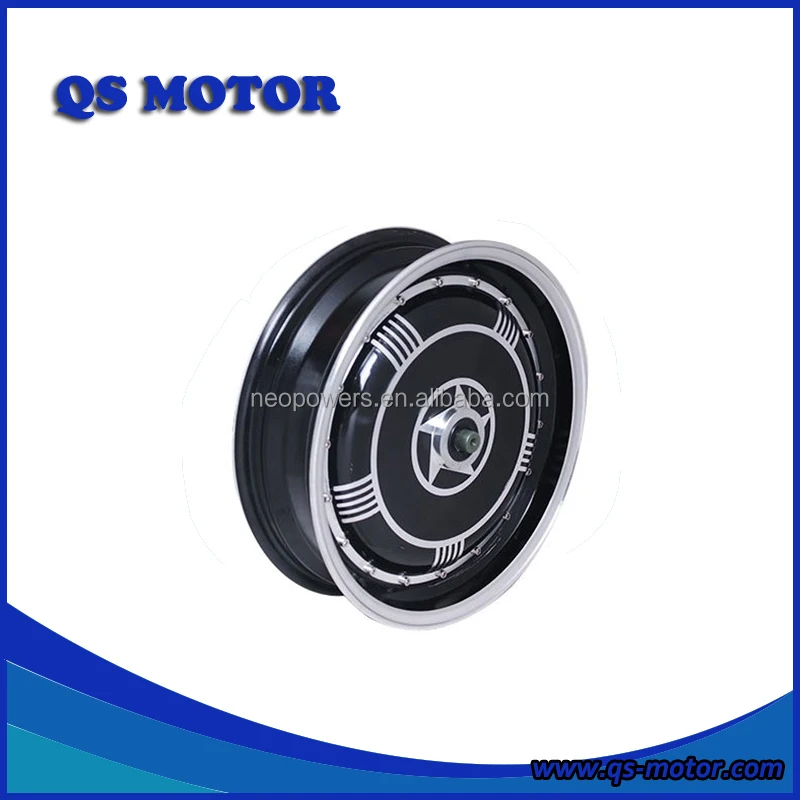

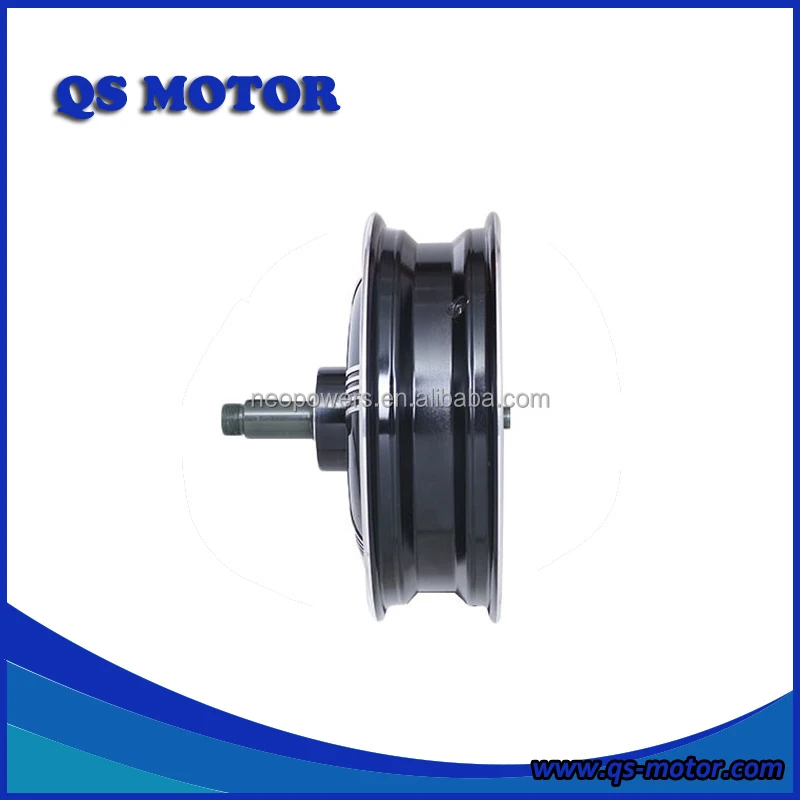

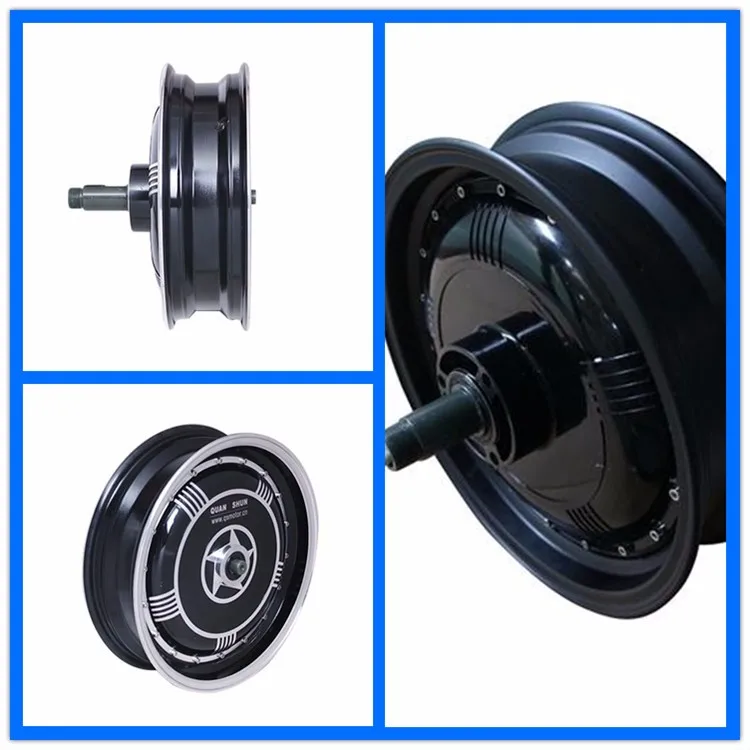

QS Motor 72V 144V 13 Inch Single Shaft 273 6000W V2 45H In Wheel Hub Motor For E Scooter

Product Overview

Description









13inch Single Shaft Hub Motor(45H) 6000W V2 Type





13inch Single Shaft Hub Motor specially designed for electric scooters and small Electric vehicles, the rated power can be made 3kw,4kw,5kw,6kw,7kw or 8kw. Max speed can be customized from 30-100KMPH.





1.      Motor Type: BLDC Hub Motor with Permanent Magnets

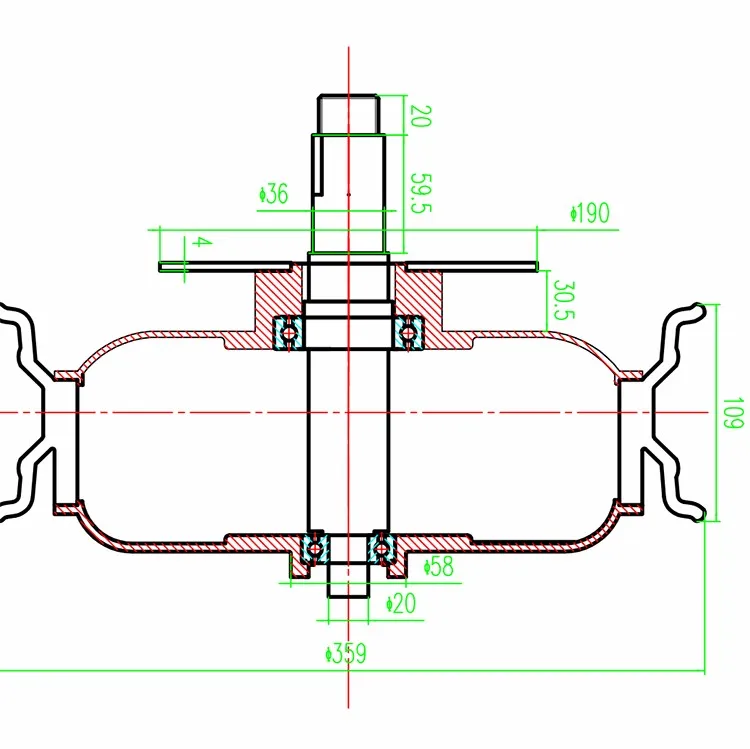

2.      Motor design: Single axle out with 13inch Aluminium rim

3.      Rim size:3.5x13

4.      Matching Tire: 130/60-13

5.      Magnet Height: 45MM

6.      No. of Pole Pairs: 28 pairs

7.      Rated Power: 6000W

8.      Max Power:7905W(Peak 12000W)

9.      Rated Voltage: 72V( 72-144V Can be optional)

10.  Speed: 90km/h (30-90km/h can be customized)

11.  Max No-load RPM:1339RPM

12.  Max Torque: 200N.M

13.  Max Efficiency: 88%

14.  Continious current:91A

15.  Max current:119A ,Peak 180A

16.  Brake type: Disc brake

17.  Winding Core material: Aluminium

18.  Cross Section of Phase wire: 16 mm2

19.  Hall sensor phasing angle: 120 degree

20.  Temperature Sensor: Optional

21.  Max. Working Temperature: 70 degree, Peak 120 degree

22.  Waterproof Grade: IP54

23.  N.W./ G..W. : 21kgs / 22kgs



24.  Package Size: 44*43*34CM
