HK 100K Vertical Type Swing type Magnetic Rail Welding Carriage
- Category: >>>
- Supplier: Nanning Chuanjun Welding Hardware Co. Ltd.
Share on (60619302776):
Product Overview
Description

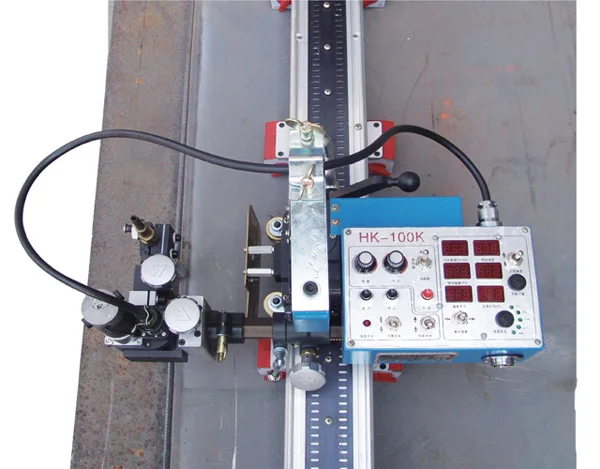

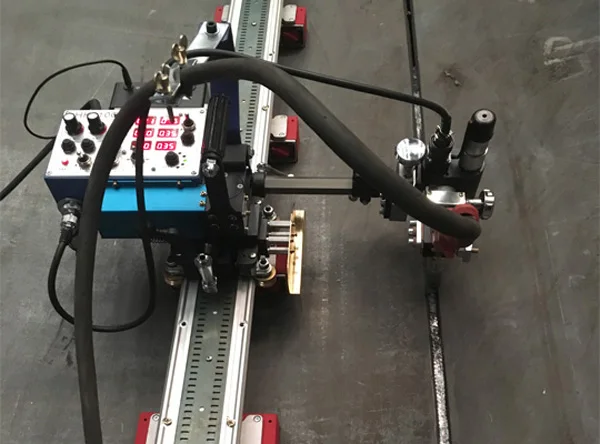

HK-100K Vertical Type Swing-type Magnetic Rail Welding Carriage
Product Feature
* Swing speed, swing angle, center offset position and left and right dwell time can be easily adjusted, the digital display of various adjustment data.
* Wide profile aluminum rail, so that the center of gravity of the whole machine is more stable, the track is equipped with a switch with permanent magnet, easy to install and move.
* Can be vertical fillet welding and horizontal fillet welding, for reinforcement and other parts of the welding.
* Welding stainless steel or aluminum, optional vacuum chuck guide.
Product Parameters
1.weight | 8.4Kg(including wig-wag) | ||
2.size | 430mm×280mm×290mm | ||
3.swinging motor | DC 24V | ||
4.Driving | Driving of chain gear | ||
5.walking speed | 50~1250mm/min | ||
6. range of blowtorch | Up and down | 40mm | |
Left and right | 120mm | ||
Job angle adjusting range | ±60° | ||
Running angle adjusting range | 10° | ||
7.functions | Walking direction | Fore and after | |
Swing speed | 0~100 | ||
Left-stop time and right-stop time | 0~2.5 s | ||
Swing angle | ±15° | ||
Off-set distance | 0~±8° | ||
Welding Parameter
welding wire diameter welding parameter | Φ1.2mm | Φ1.4mm | Φ1.6mm | |
current(A) | Down hand welding | 120-300 | 150-380 | 180-430 |
flush fillet welding | 120-280 | 150-320 | 180-380 | |
horizontal welding | 120-280 | 150-300 | 180-330 | |
voltage(U) |
| |||
distance between nozzle and workpiece(H) |
| |||
welding extension length(L) | The length is about 10 times welding wire diameter. It is L=10d | |||
Packaging & Shipping
HK-100K magnetic rail welding carriage packaging list
1. | Host machine | 1set |
2. | Straight track(2m/pc) | 1pc |
3. | Standard power cord 220V/16M | 1pc |
4. | fuse 220V/2A | 2sets |
5. | Inner hexagon spanner | 1set |
6. | specification sheets | 1pc |
7. | Certificate of qualification | 1pc |
