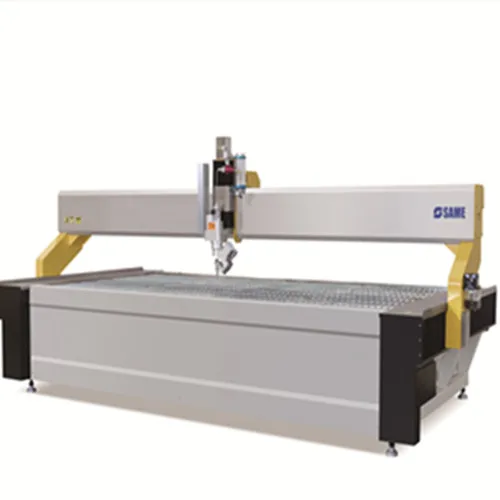

5 Axis Waterjet Cutting Machine With Flow Type DDP
- Category: >>>
- Supplier: Guangzhou Sino Acheive Mechanical Equipment Co. Ltd.
Share on (60619307289):
Product Overview
Description
Product Description
5 Axis Waterjet Cutting Machine With DDP Waterjet

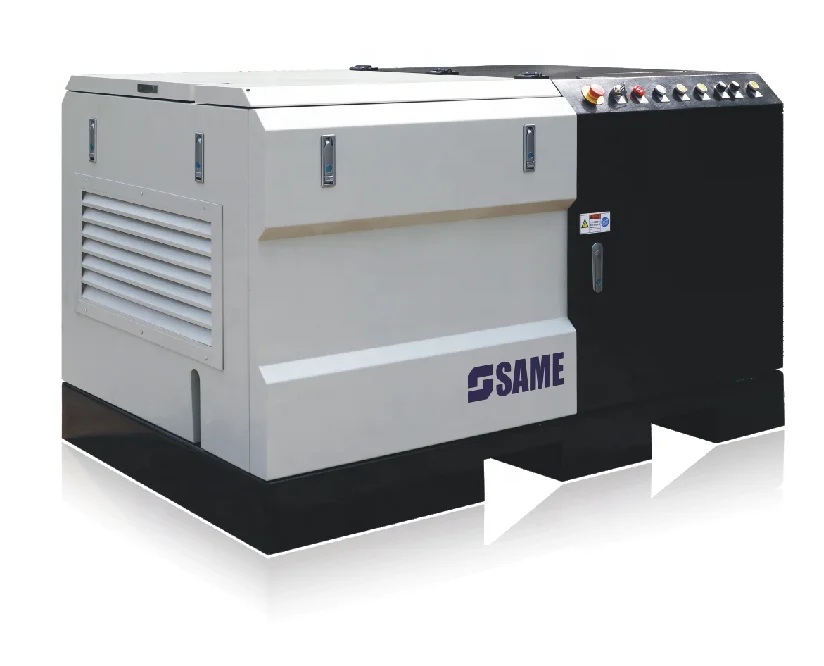

HJ400 DIRECT-DRIVE ULTRA -HIGH PRESSURE PUMP
● Patented energy saving technology,consume 5KW-10KW of electricity per hour
● Compare with the ultra-high pressure oil pump with intensifier ,cutting efficiency increase by 20% at same pressure.● NO Hydraulic transmission link ,easy for maintenance.
● Low energy consumption,large flow rate and high pressure.
Dimension(L*W*H) | 1600mm*980mm*950mm | ||||||
Power rate | 18.5kw/25hp | ||||||
Max.pressure | 400Mpa/4000bar | ||||||
working pressure | 200-300Mpa | ||||||

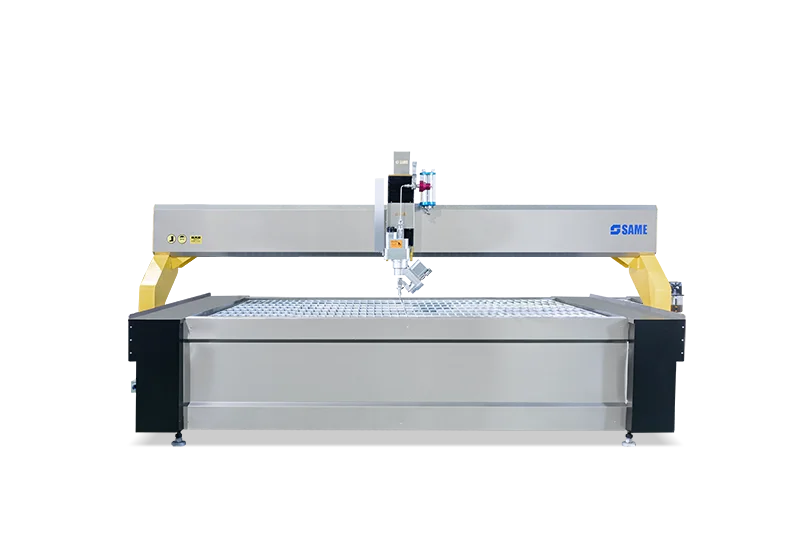

Gantry cutting Table
The cutting table consists of transmission part with X axis, Y axis and Z axis, water tank, cutting head, lubrication part and servo driving system. Gantry mechanical structure is fit to large size machines, long running distance of X and Y axis, suitable for processing a variety of complex big size parts.
Type | G2516 | G3020 | G4020 | ||
Dimension(mm） | 3400*2650 | 3900*3050 | 4900*3050 | ||
Max.Travel of X.Yaixs | 2500*1500 | 3000*2000 | 4000*2000 | ||
Travel of Zaixs | 150mm | ||||
Control accuracy | ±0.01mm | ||||
Cutting accuracy | ±0.1mm | ||||
Re-positioning accuracy | ±0.025mm/min | ||||
Max.Moving speed | 18000mm/min | ||||

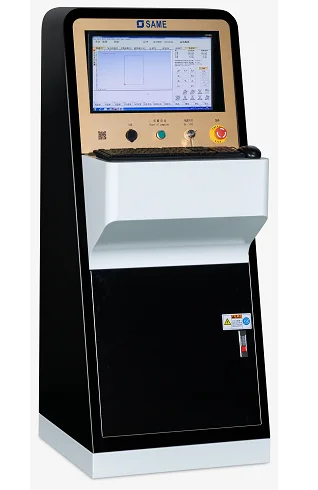

Control system | CNC Control System | |
Dimension (L*W*H) | 600mm*550mm*1200mm | |
Weight | 200Kg | |
Power supply | AC220V 50/60Hz | |
Professional Water jet software | NC studio | |
Servo Driver | WEIHONG ,CHINA | |

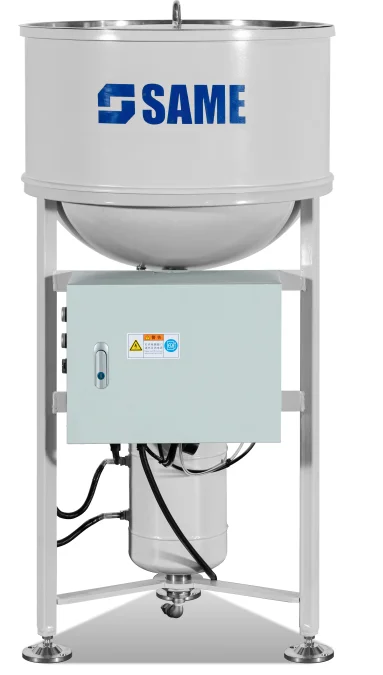

Auto Abrasive Feeding System | Auto Abrasive Feeding System | |
Dimension(L*W*H) | 600mm*600mm*1400mm | |
Weight | 43kg | |
Max.capacity | 200kg | |
Max. air pressure supply | 0.2Mpa | |
Voltage | 24V | |
Power rate | 30W | |

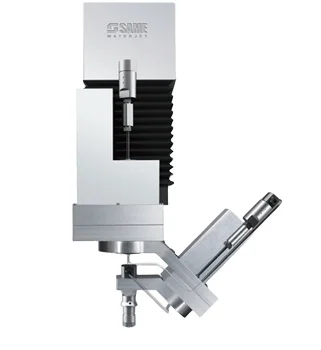

AC 5 axis cutting head | ||
Our Company
WHY US
(1)SAME Waterjet Co. focusing on waterjet cutting machines and waterjet parts developing and Manufacturing since 1997, with more than 22 years of experience to help customers on any kind of waterjet cutting projects.
2) SAME waterjet CO. is one of the 5 members who made the Chinese national standard of Ultra-high pressure waterjet cutting machines.
3) We have offered machines to more than 70 countries and area. You can get machines or service from our partners in Germany, the USA, Saudi Abrasive, Australia,Iran, Russia ,Mexico and Malaysia.
4) English Speaking technicians for after-sales support online or at-site.
5) SAME offering both completed set of direct -drive waterjet and intensifier waterjet cutting machines for different material cutting purpose. Our direct drive waterjet pumps with VFD to be highly recognized by its energy-saving feature (only 8KW/hour) and low-noise working condition.
Our Certifications
Packing & Delivery
Packing Details : water jet cutting machine in wooden packing ,water-proof , All way well protection
1. Special logistics packaging
2. Suitable carton size
3. All way well protection
After-sale service
1. Training personnel for operation and maintenance of equipment, make sure customers know and master the principle, skills of operate and maintenance SAME waterjet.
2. Providing the equipment installation and commissioning, 12 months (or 2000 hours) warranty period, except spare parts.
.
5. Upgrading new products and new technologies with discount price.
FAQ
How many degrees of bevel can be produced by water jet cutting
Bevel edge depends on the cutting speed. Generally between 1 and 3 degrees
What will happen if the nozzle is broken and not replaced?
The nozzle mainly plays the role of concentrating the water beam and the mixed water jet garnet . If the wear is serious, the effect will be lost. The dispersed water column is difficult to cut the object, and the garnet particles are not concentrated, which leads to a large cutting gap and not smooth.
