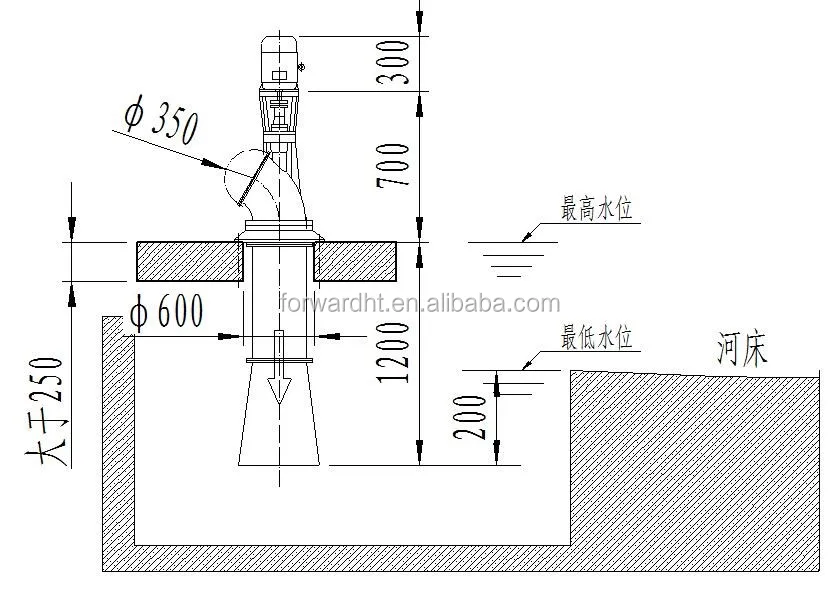

5kw pressure type kaplan turbine with extension pipe suit lower water level fluctuation

Product Overview

Description

                                        Low head pressure type kaplan turbine

This new type of turbine is a pressure type reaction turbine suit for low head and large flow.The rated power ranges from 3kw to 200kw.

The main features are:

1. Turbine and generator are separated, which is more easy to install and maintain;

2.Turbine has 3 bearings, generator has 2 bearings. The  turbine has a separate oil lubrication system ensuring a more reliable system.

 3. The axial thrust within turbine is well balanced by a special design of axial thrust balancing device. Therefore, the structure of radial flow turbine is more reliable.

4.auto voltage rectifier is installed within generator, the voltage is more stable.

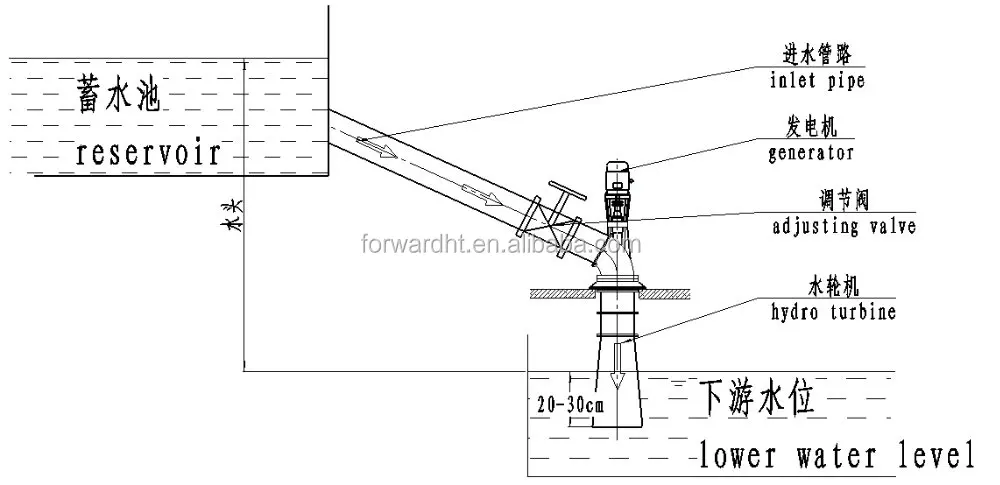

5.pressure type inlet, which is more easy to install and has higher efficiency.
