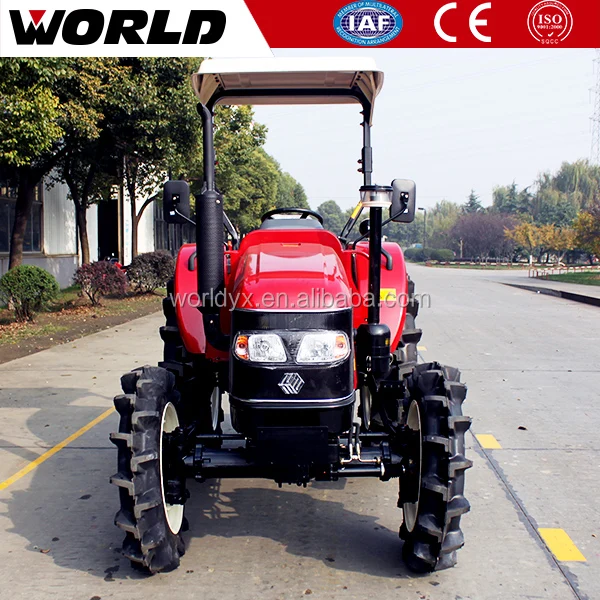

mini wheel tractor 4x4 compact with loader and backhoe
- Category: >>>
- Supplier: Shanghai Yingxin World Machinery Co. Ltd.
Share on (60619514633):
Product Overview
Description
Model | WD554 | ||
Engine | Engine Power/Speed (HP) | 55/2400 | |
Engine Type | 4 cylinder, inline, water-cooling, 4 strokes, injection | ||
Fuel Consumption (g/kw.h) | Less than 242 | ||
Total Displacement (cc) | 3760 | ||
Fuel Tank Capacity (L) | 60 | ||
Air Cleaner | Dry, Dual-element | ||
Transmission | No. of Speed | 8+8 | |
Shuttle | Range shift lever (L-R) | ||
Main Clutch | Double | ||
Brake | Mechanical disc. | ||
Differential Lock | Pin Type, Mechanical | ||
PTO Speeds (rpm) | 540/760 | ||
Hydraulics | 3 Point Hitch | Adjustable top link and left right rod | |
Category | II | ||
Control System | Position, Draft (option) | ||
Lift capacity at 24 in behind lift point (kg) | 930 | ||
Tires Standard | 4WD Front/Rear (mm) | 8.3-20/11-28 Paddy Tire | |
Travelling Speed (MAX.) (km/h) | 27.2 | ||
Other Features | 4WD Drive System | Bevel Gear Type | |
Steering | Hydraulic Power Steering | ||
Flat Board | Flat Board | ||
Dimension & Weight | Overall Length (mm) | 3780 | |
Overall Width (mm) | 1710 | ||
Overall Height (mm) | 2422 | ||
Wheel Base (mm) | 1992 | ||
Ground Clearance (mm) | 325 | ||
Turning Radius (w/o brake) (m) | 4.2+/-0.3 | ||
Tractor Weight (kg) | 1945 | ||

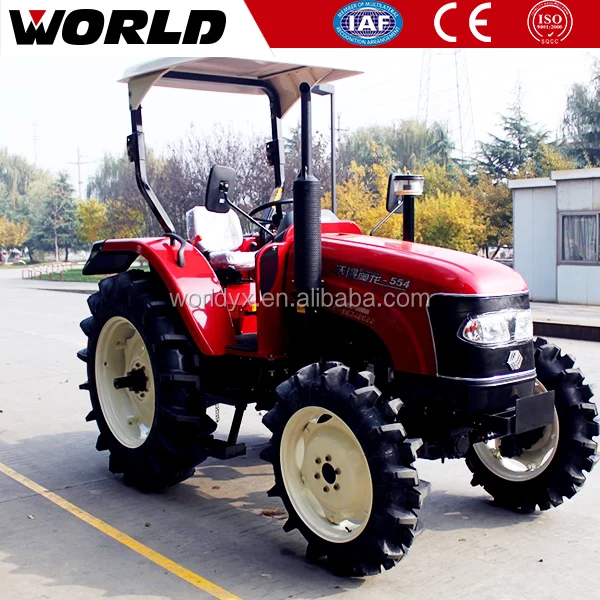

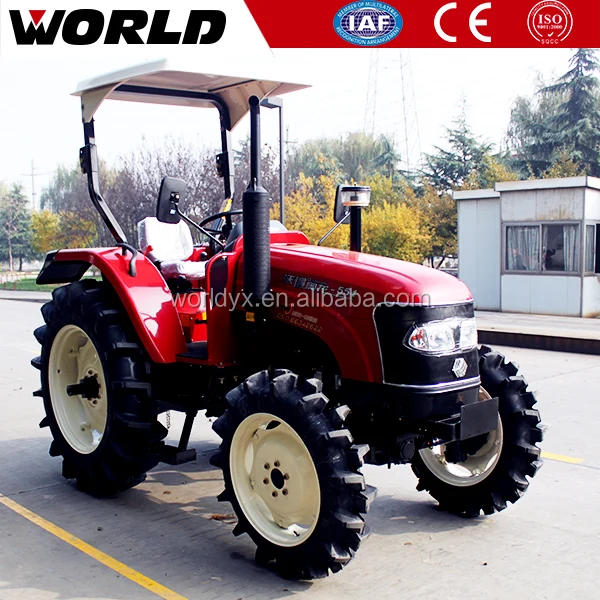

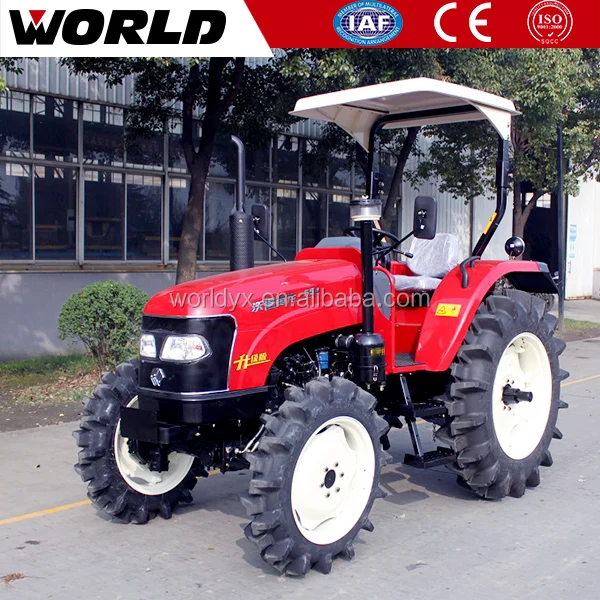

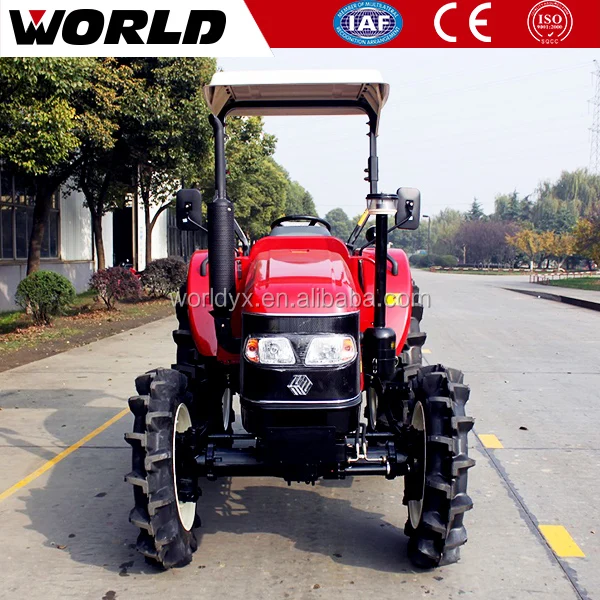

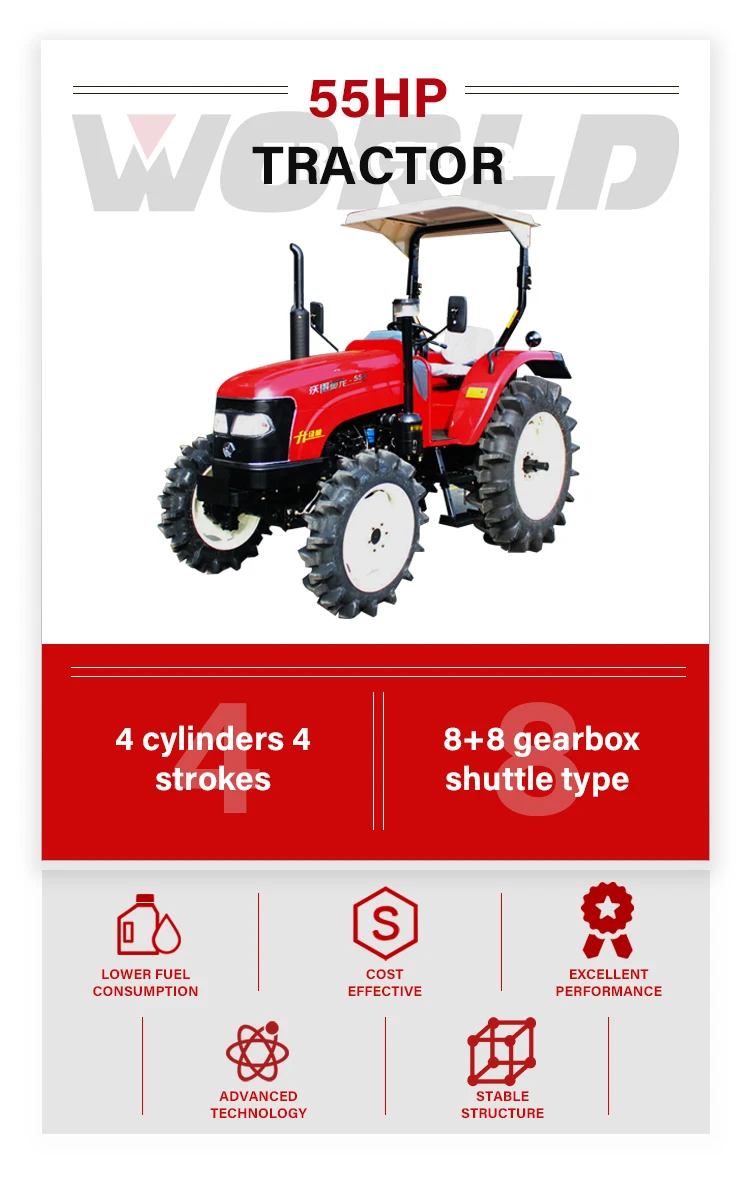

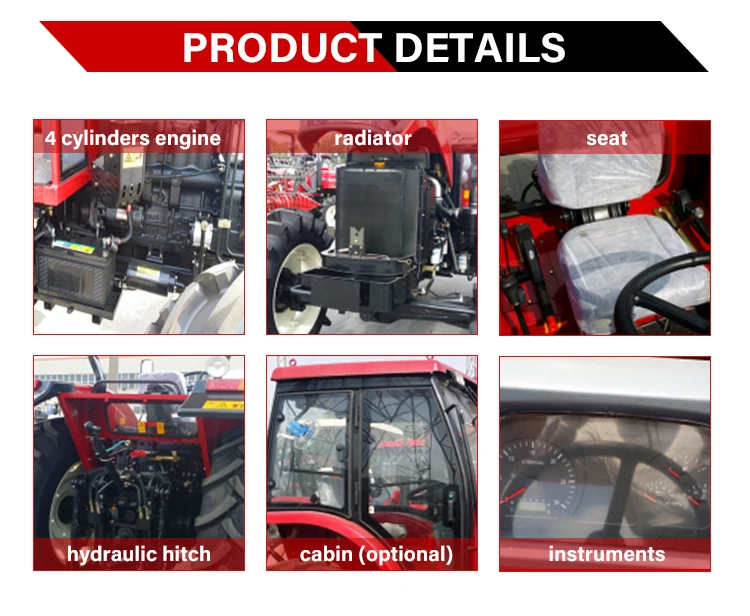

WD554, 55HP tractor, four wheel drive, Changchai engine, 4 cylinders 4 strokes, 8+8 gearbox shuttle type, tires size 8.3-20/11-28 paddy type, dual action clutch, unilateral pressure, hydraulic steering, PTO speed 540/760, one pair of output valves, with canopy.

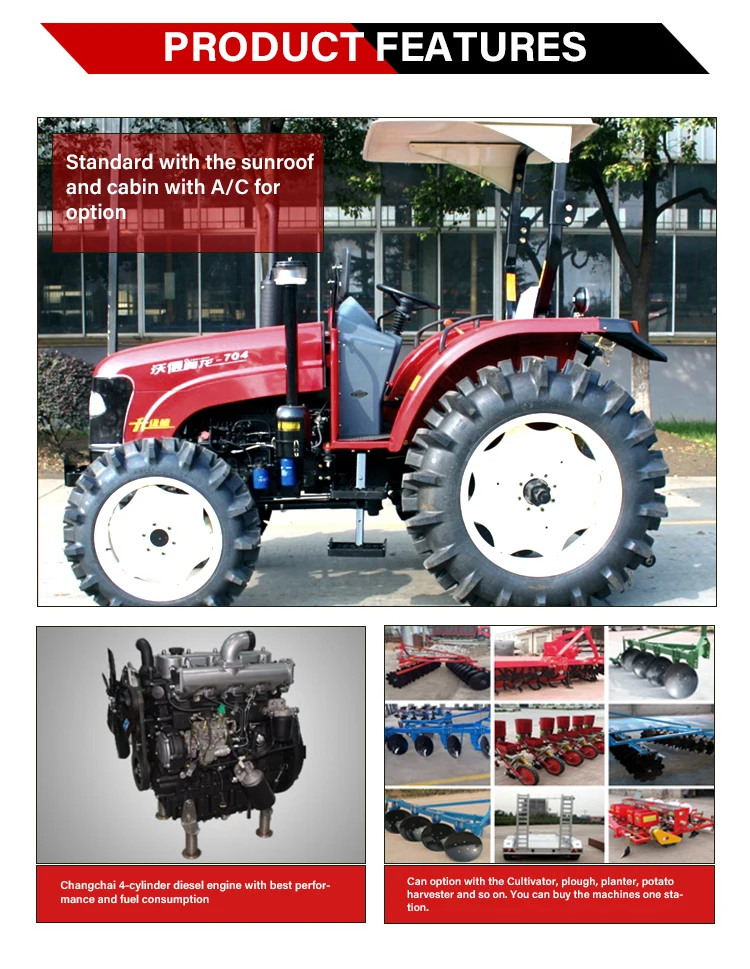

1. Standard with the sunroof and cabin with A/C for option.
2. Changchai 4-cylinder diesel engine with best performance and fuel consumption.

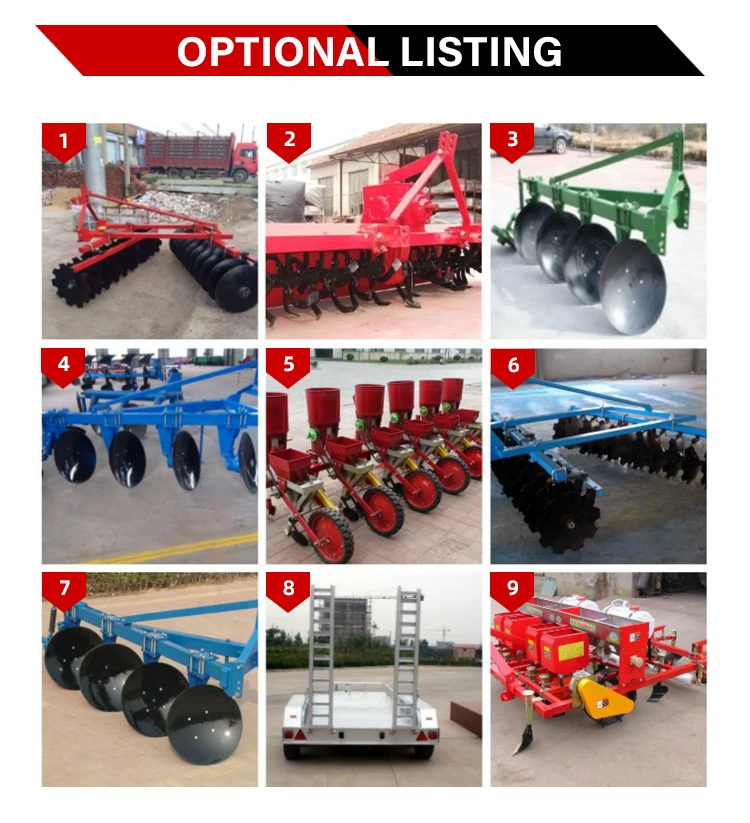

3. Can option with the Cultivator, plough, planter, potato harvester and so on. You can buy the machines one station.
