Product Overview

Description

60x60 degree 90x90 degree 4x12 48 led 3535 3030 40w 30w smd led pcb board





Model	SUN-LD4X12-3030
Power	48W for per unit
Beam angle	62X144/90X90/60X60 degree

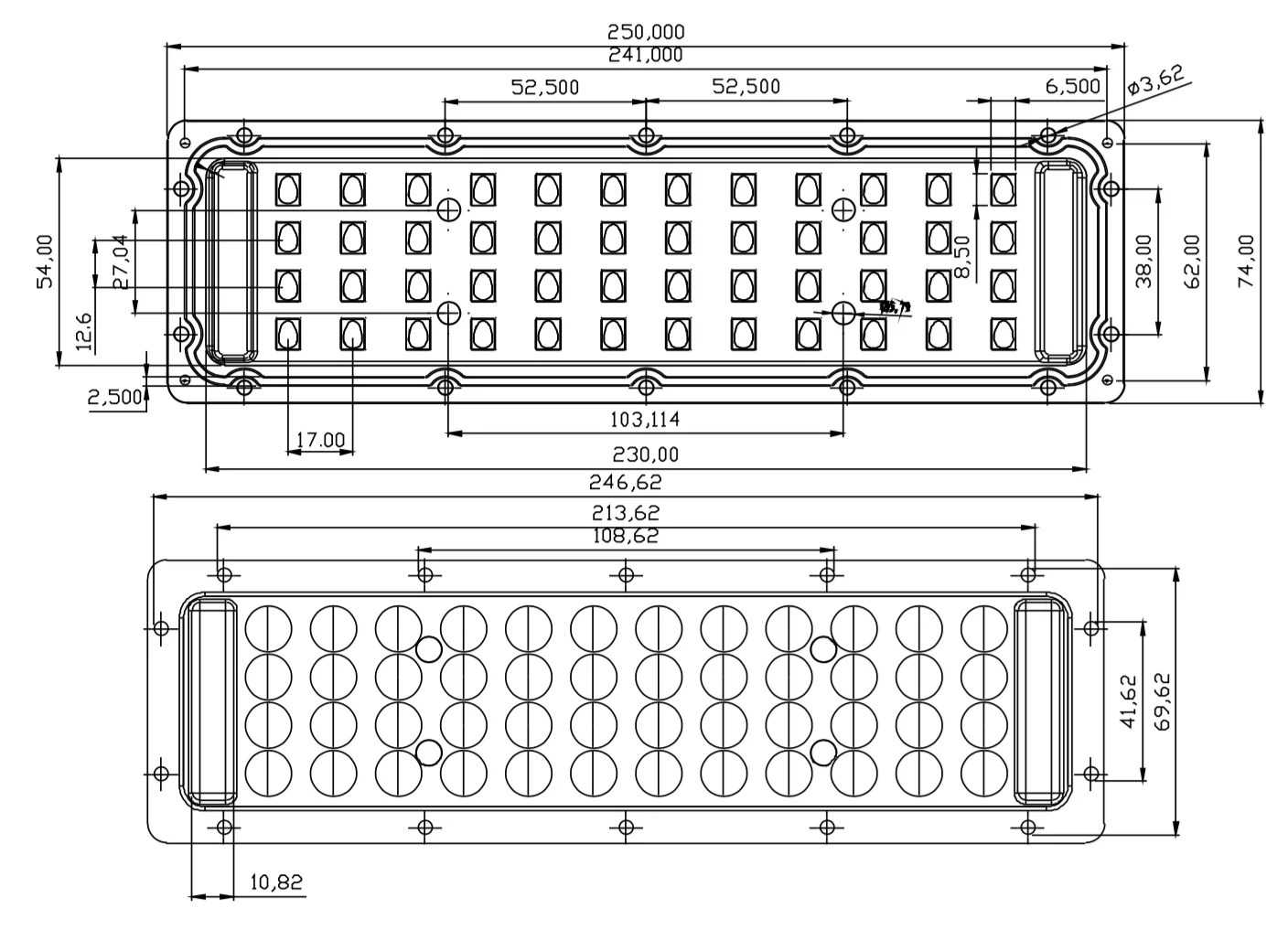

Lens size	250*74mm

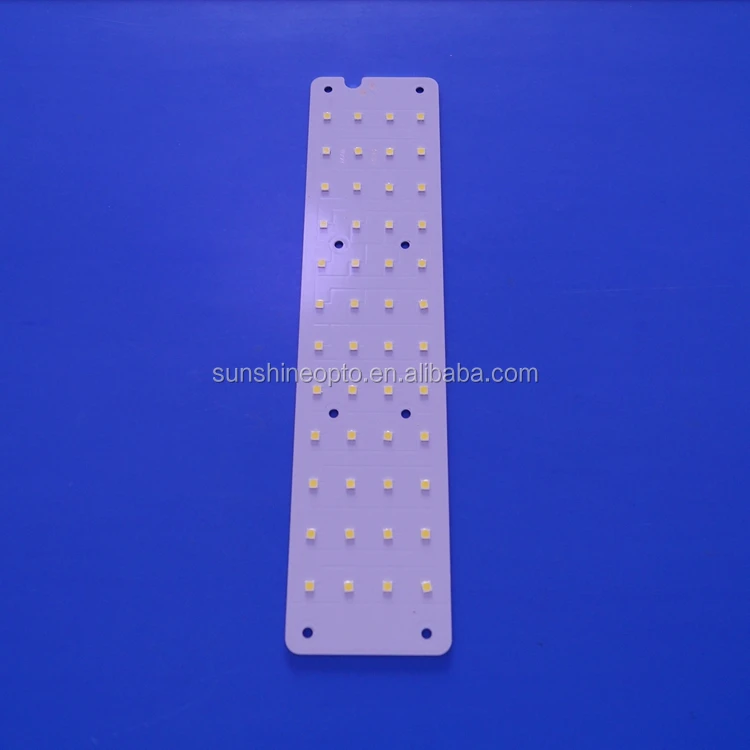

PCB size	228*54*1.6mm
LED Mounted	3030SMD
Lens transmittance	93%
Work temperature	-40-120 degree
Material	Optical grade PC
Delivery time	4-5 work days for 200 sets

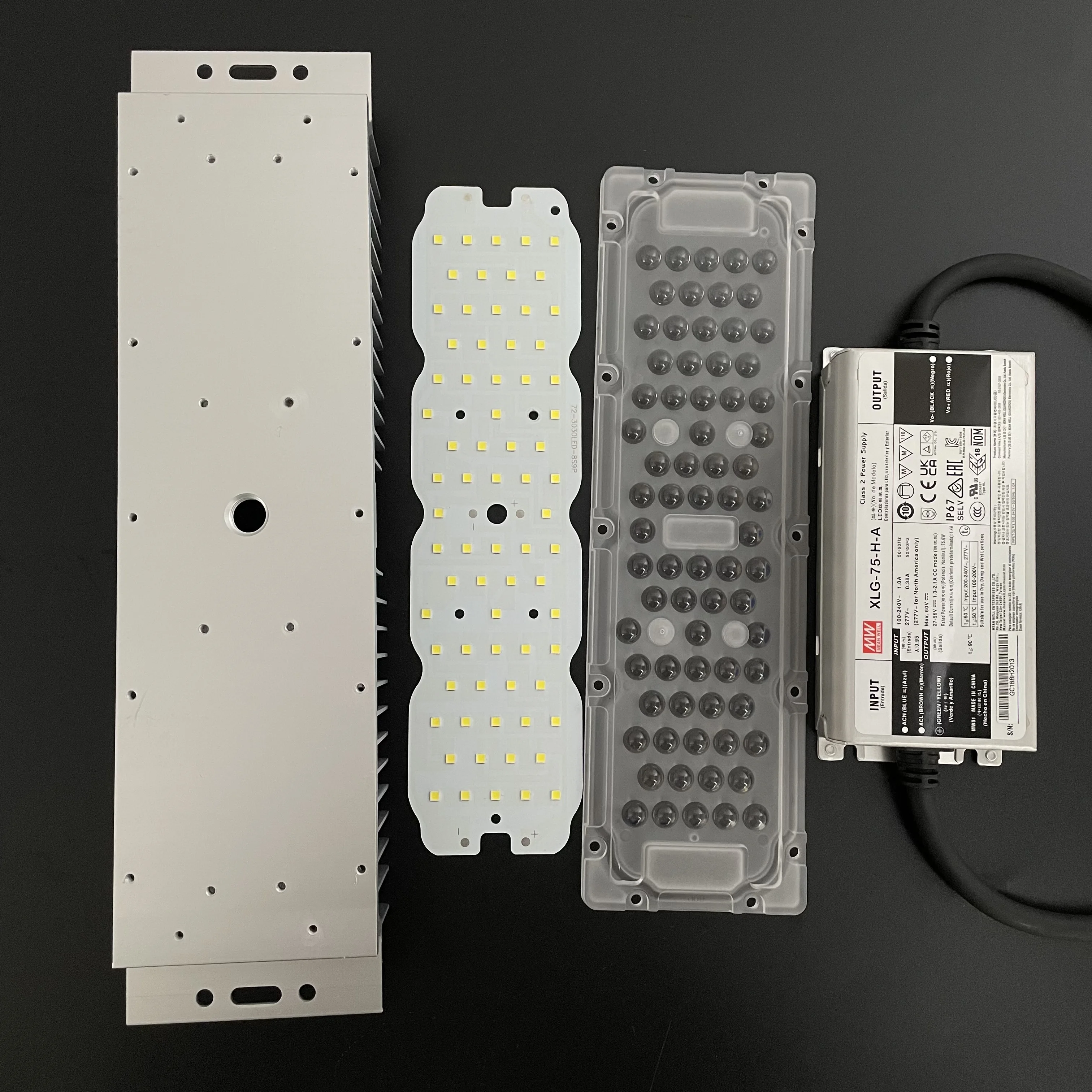

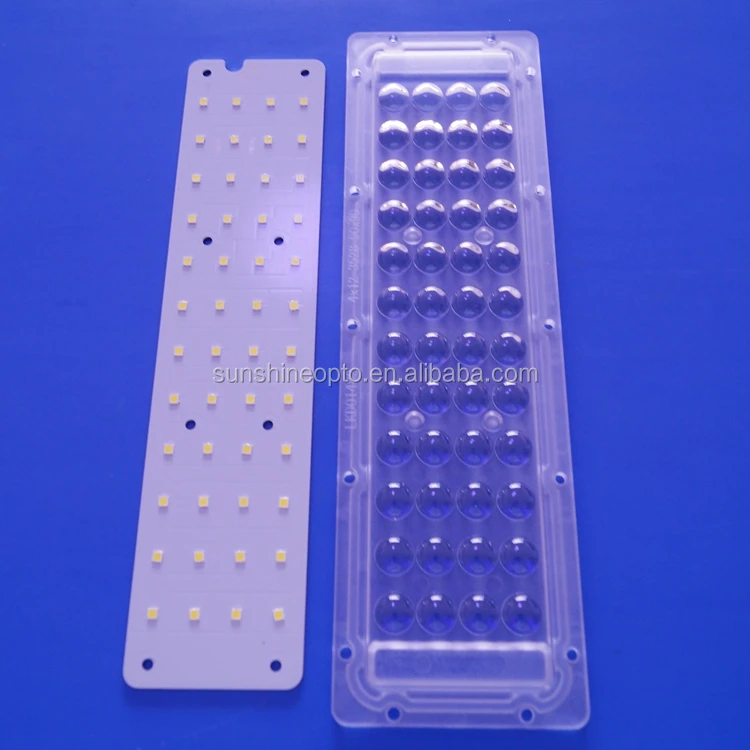

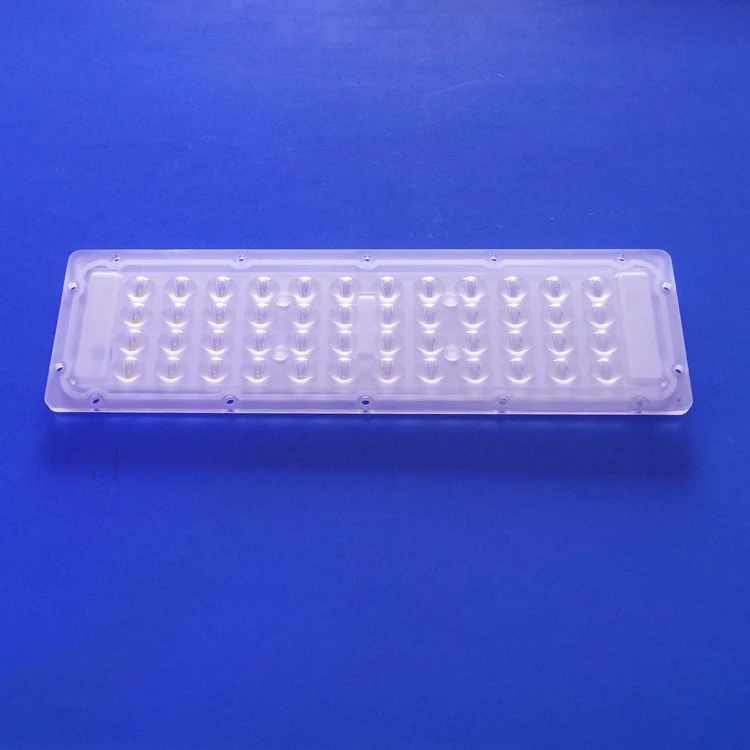

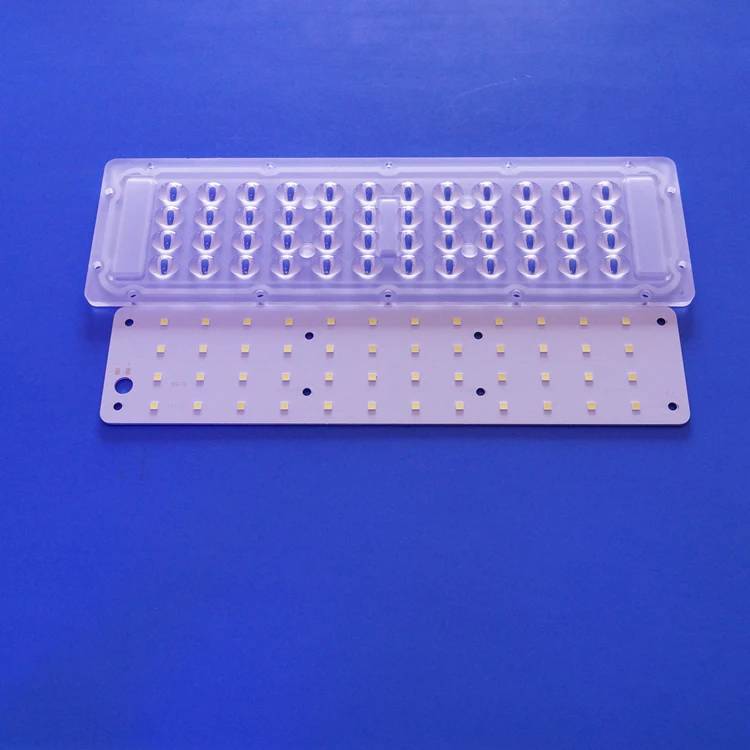

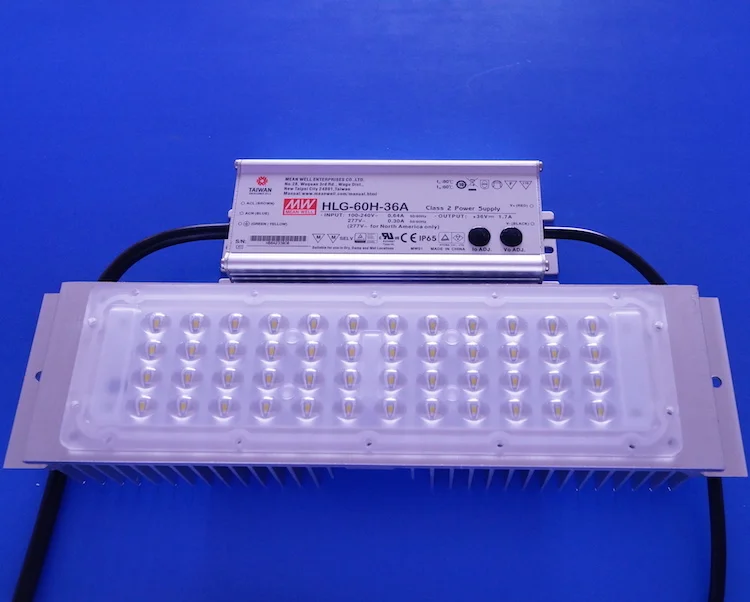

Picture for 4X12 LED lens :

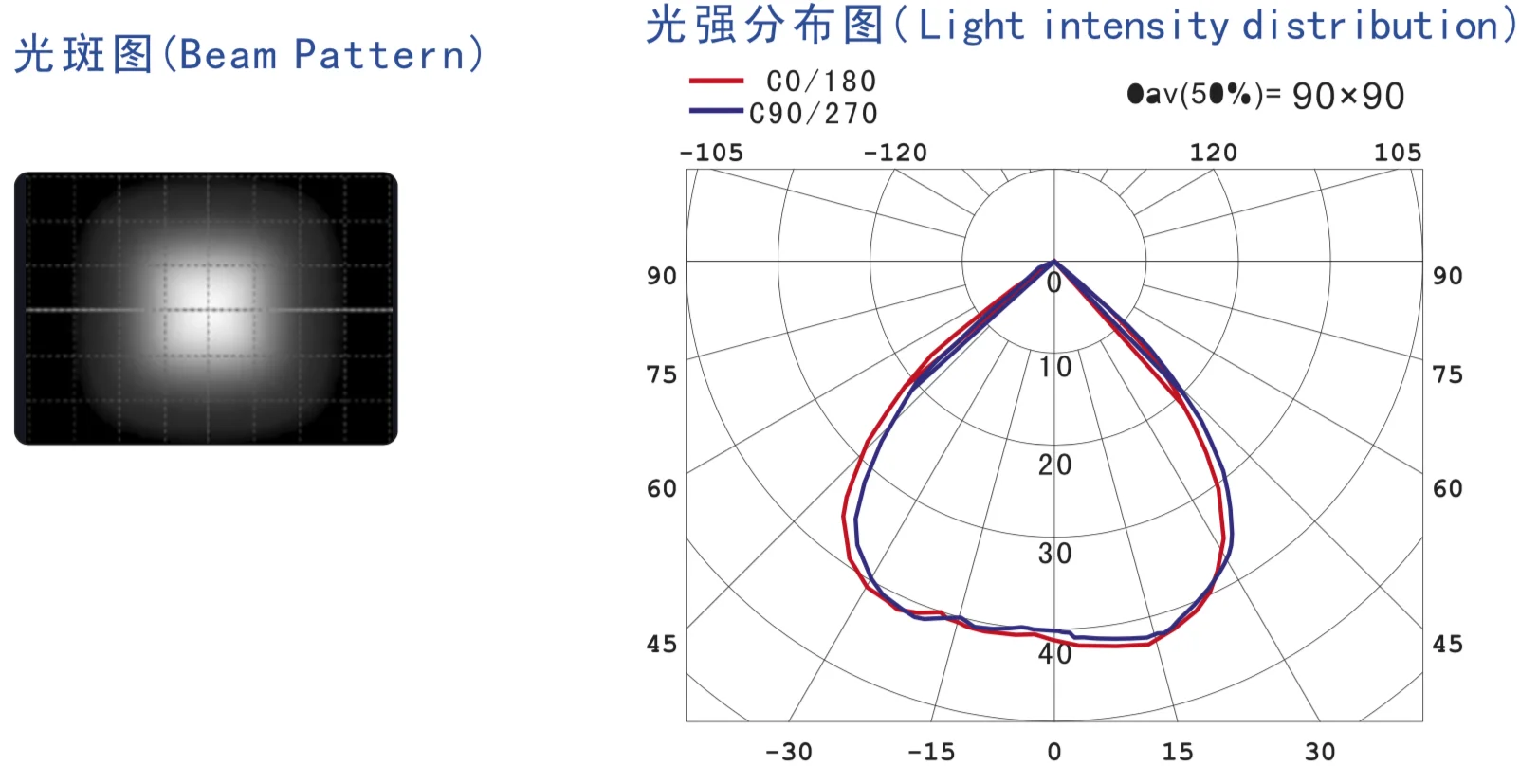

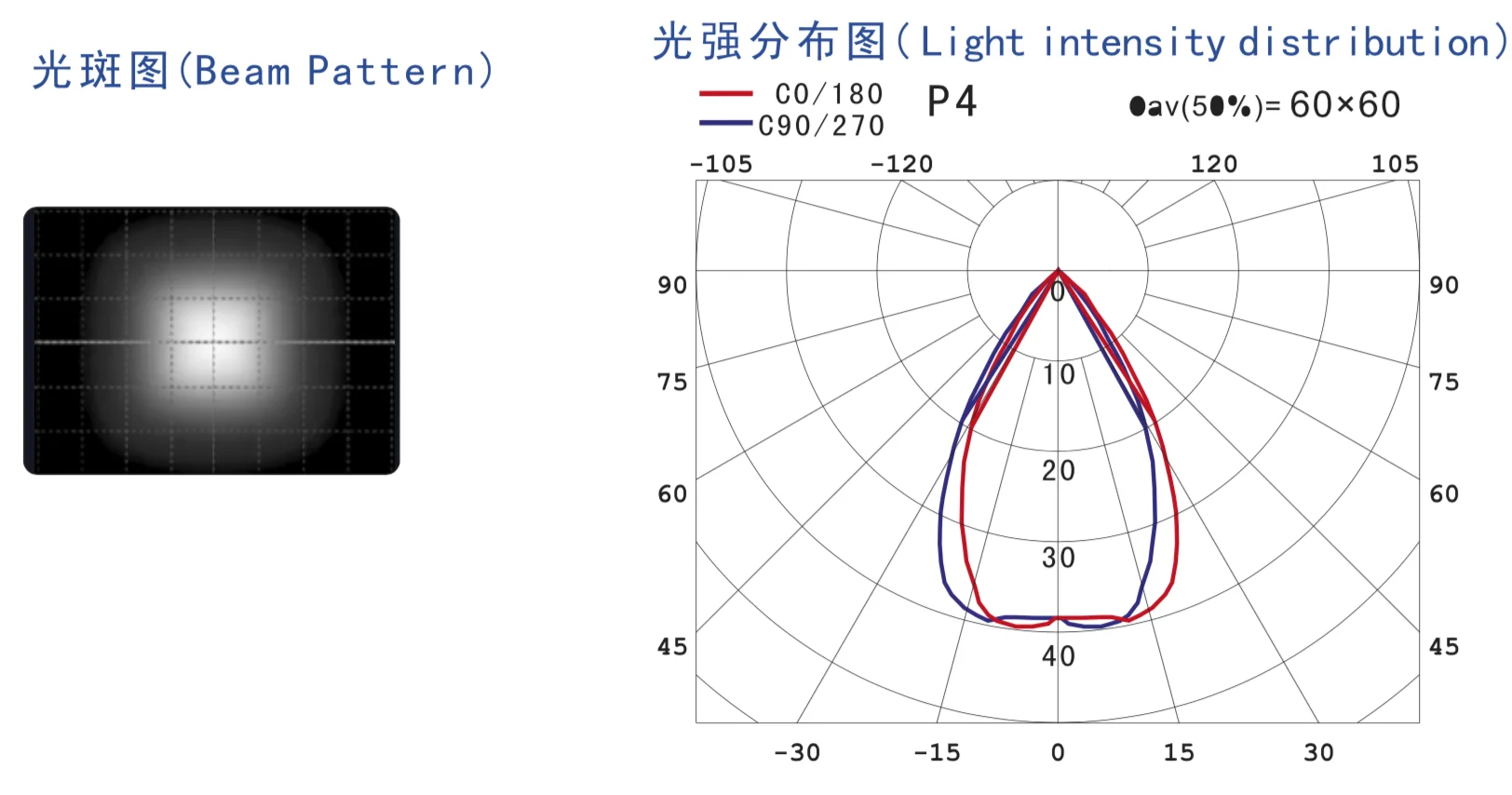

 Beam pattern for 4X12 LED lens :











Packing informaitons :



Features :



1. This SKD 4x12 LED Array lens with PCB Module is best choice to retrofit the old lamps or design power lamps like 48W,96W and so on .


2. It’s the lowest total cost solution ,they can replace existing Metal Halide or HPS bulbs, the old housings can be re-used. The total cost is significantly reduced compared with using new complete LED fixtures.


3. Industry-leading thermal management utilizing technology


4. Operating temperature range: from 35 Celsius degree to 70 Celsius degree.


5. The LED retrofit kits contain no any mercury or lead.


6. Does not produce UV rays that harm people’s eyes.


7. Directional light means no light pollution, dark sky compliance.


8. Optic lenses are available for projects that need smaller beam angles, like 60x60 degree, 90x90 degree, 90 degree,120 degree, 87x134 degree, 78x132 degree, 70x155 degree, 45x143 degree, 70x140 degree etc.



Payment Terms	T/T,Western Union, Paypal, MoneyGram
Minimum Order	1pc
Lead Time Delivery Time	5-7 days,it based on your quantity
Sample Available	Yes
Delivery ways	DHL/Fedex/UPS express, Sea or air shipping for your choice
Packing Info	carton package





Application: It is used in the street light ,high way led lamp,tunnel lamp ,square lamp,road lamp, city lighting, parking spot lamp, track lighting fixtures ,scenery area ,retail lighting and other applications where high luminous flux is desired.





Production line:







Export Markets : North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East

Eastern Asia, Western Europe



Why choosing us - SUNSHINEOPTO ?



1. About 12 years specializing in High Power LED



2. Complete supplying system with full range of Products,from high power leds ,led optical lens ,led constant drivers ,MCPCB modules and many led light components



3. Strict process and quality control



4. Good raw materials used in production



5. Strong design and production capability
