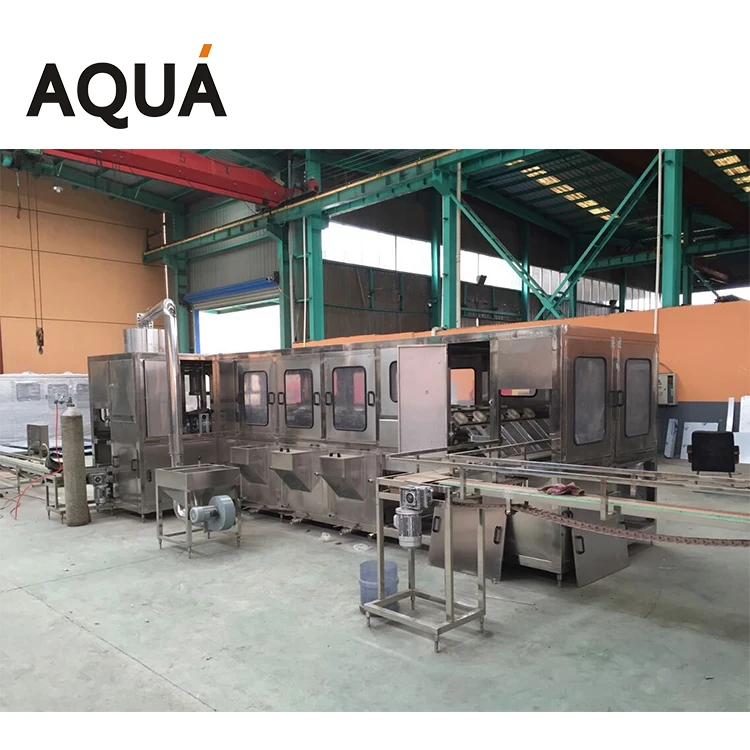

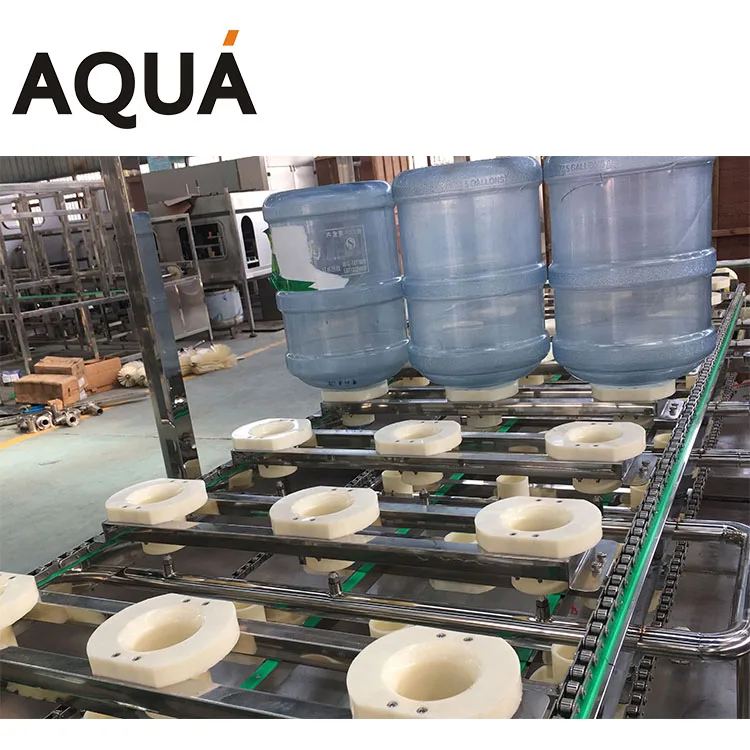

Aqua Machinery 100Bph 5 Gallon Manual Bottle Washing Filling Capping Machine

Aqua Machinery 100Bph 5 Gallon Manual Bottle Washing Filling Capping Machine

1. Porducing capacity: 100-2000BPH

2. PLC controlled+ English MMI;

3. Bottle volume:3 gallon- 5 gallon;

4. Certification: CE, ISO, BV,SGS;

1) Our barreled water producing line is specially designed for 3-5 gallon drinking water;

2)The machine have the function of rinsing barrel, filling water into barrel, capping for the barrel after filling water;

3) Barrel packing is different from small PET bottle packing, usually the barrel is recycle using, so the barrel cleaning is very important as the first step. In our rinsing machine, the barrel will be cleaned by multiple liquid, from alkali water to disinfecting water, and then to the pure water, to ensure every barrel can be cleaned absolutely. And then the filling machine and capping machine will start to work automatically

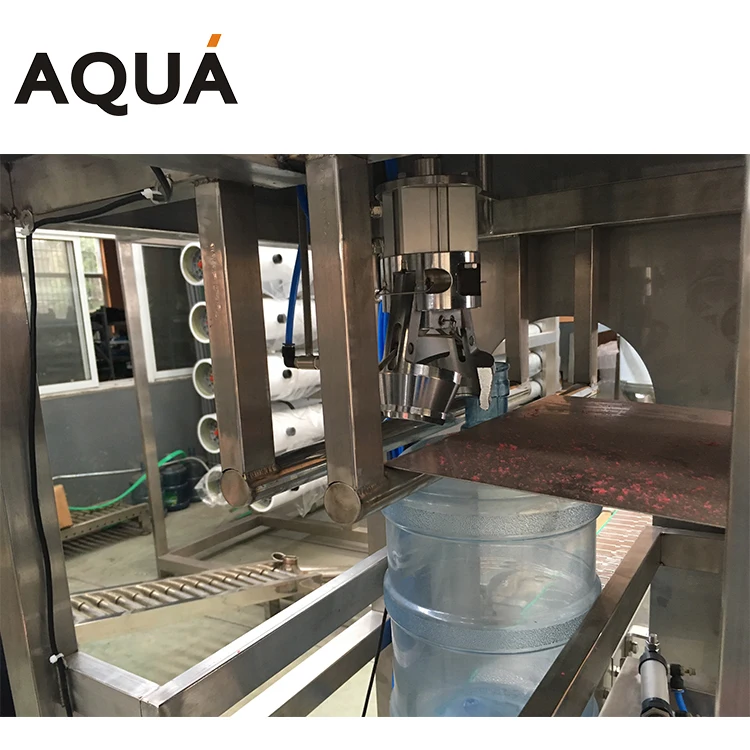

4) In our capping machine, there is pure water spraying device, to sterilize the caps, avoid any pollution to the beverage;

5) Our producing line can carry out the bottle washing, sterilizing, filling, capping, counting, heat shrink labeling, packing, discharging

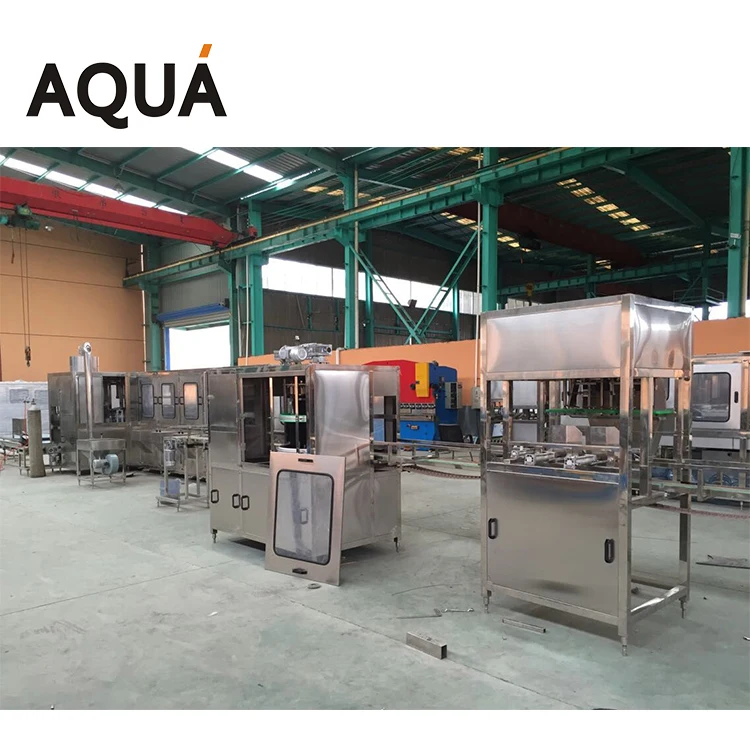

The following pictures are Complete Layout which for your reference :

Introducing - 100bph 5 gallon filling machine

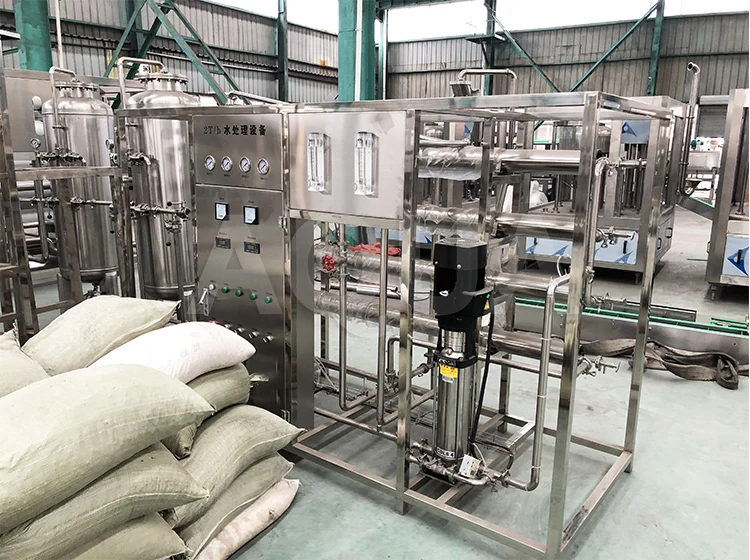

Automatic Water Treatment System

-- All adopt food grade SUS304 material to manufacture,need customer supply raw water quality report

-- Includes Raw water tank/raw water pump/silica sand filter/active carbon filter/inhibitor dosing unit/precision filter/RO or Hollow fiber filter/UV Sterilizer/Ozone sterilizer/Ozone tower/Storage water tank/Pipe and Valves.

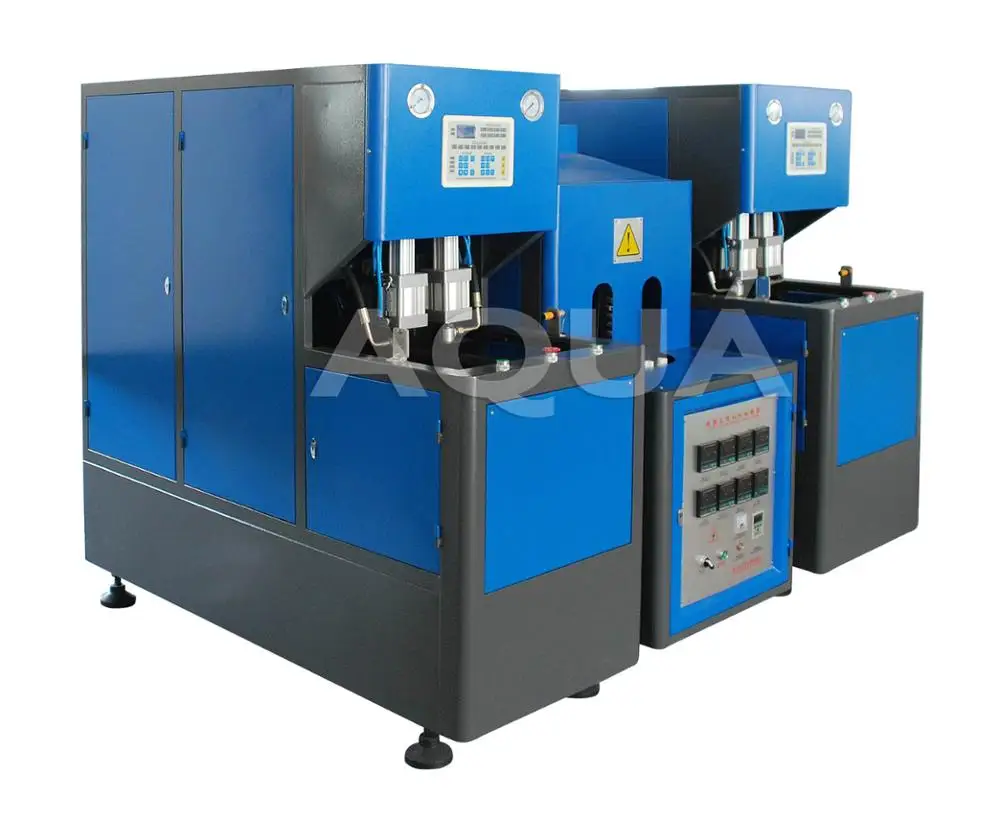

Semi-Automatic PET Bottle Blowing Machine

-- Used for blow pet prefroms to be empty PET bottle for filling.

-- We can make bottle mould as your bottle design(bottle layout)

-- Bottle blowing main machine/auto preform loader/high pressure and lower pressure air compressor/air tank/cooling dryer/air filter/bottle mould

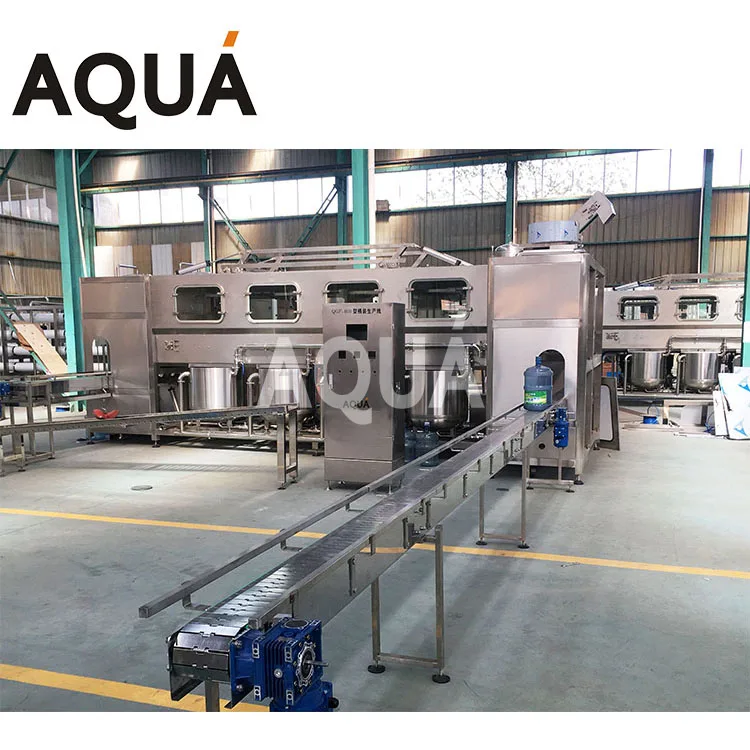

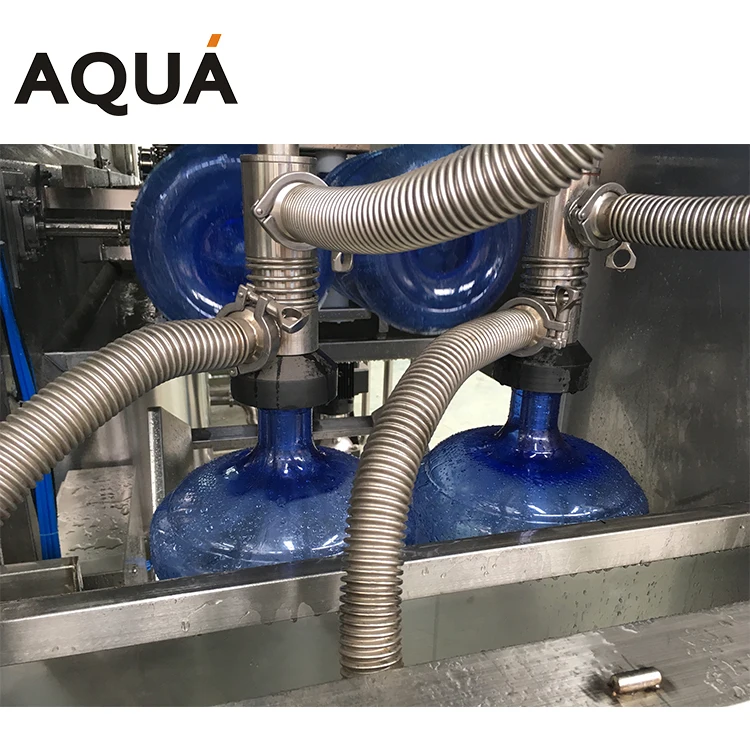

Automatic 3 in 1 5 Gallon Water Filling Machine

-- Rinser Filler Capper 3 functions in one unit (different capacity with different filler valves)

-- Includes empty bottle feeding conveyor/bottle loading system/rinser filler capper/auto cap loader/filled bottle out conveyor

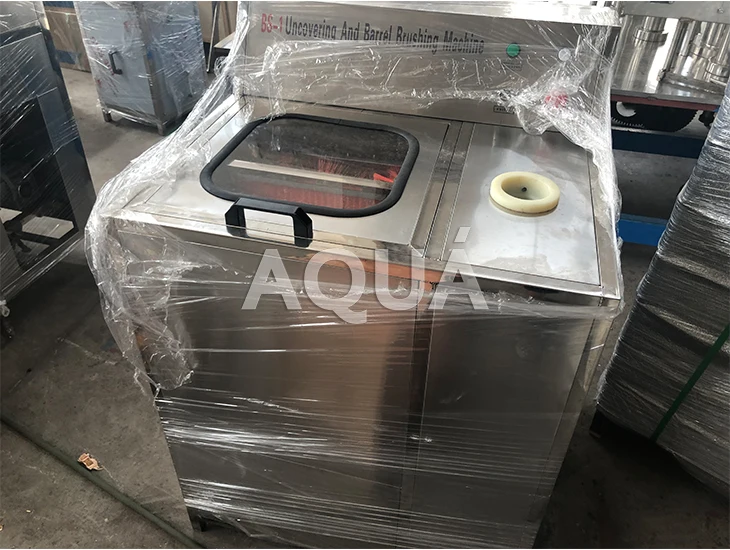

Automatic 5 Gallon Insider Brushing/Outside Brushing Machine

-- Main for brush 3-5 gallon bottles.

Buffer Conveyor

-- In casef bottles overturned due to high capacity,it needs buffer conveyor for connect whole line

-- The buffer conveyor is confirmed by customer's factory layout (L*W*H)

20GP/40GP/40HQ The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.

                                                                               Welcome Zhangjiagang Aqua Machinery Co.,Ltd

Aqua Machinery is specialized in bottled beverage producton filling and packing machines,we supply turnkey project from A to Z type. We're one of the companies engaged in manufacturing liquid filling and packing equipment i China. We can provide turnkey services for customers from plant layout,equipment manufacture and production line setup to operator traning.

Aqua Machinery main business includes: Bottled liquid filling machine ( water/juice/carbonated drinks/edible oil/milk/alcohol drinks). 1-5Gallon Water filling machine. Shrink Labeling machine/hot glue labeling machine/sticker labeling machine. PE Film Shrink wrapping Machine. Bottle Blow Molding Machine. Prefrom Cap Injection Machine. Water Treatment System

One of part for our customers from overseas come our factory for visiting and testing their lines.

The parts of our workshop,our factory with 3800M2 area ( includes spare parts zone/processing zone/raw materials zone/finished products zone ) All materials we adopt is SUS304/SUS316 as customer required. The workers all with over 3 years skills.

Q:If we wanna consult your machines,what information we should supply for you ?

A: Pls inform us the filling capacity(how many bottles per hour),bottle size you use (300ml-2000ml pet bottle),filling mineral water or pure water? Need a full line or just filling machine?

Q:How many machines included in full line ?

A: The complete line includes: Water Treatment System- Automatci PET Bottle blowing machine- Automatic 3 in 1 water filling machine - Lamp inspection - bottle dryer - Automatic PVC shrink labeling machine - Automatic ink jet printer - Automatic PE Film Shrink wrapping Machine or Carton Packing Machine - Storage Room.

Q:If we juat wanna open a small scale water bottling line for start,what capaity do you recommend?

A: If you're new for this business, we suggest you choose 2000BPH/3000-4000BPH for start.

Q:What else information we should supply for you

A: Raw water quality report -- We should check your raw water quality then can confirm which level waer treatment system you need?

     Factory layout -- We should make machine layout as your factory layout, how to put machine and save space. Whether need extra buffer conveyor for line.

     Bottle sample/caps -- After you placed an order,we will machine machines as your bottle sample and caps.

Q:What's the manufacture time commonly ?

A: Commonly the full line manufacture time below 8000bph is 35-40 working days after receive bottle sample

     If with blowing machine the manfacture time will be 45-50 working days over 8000bph.
