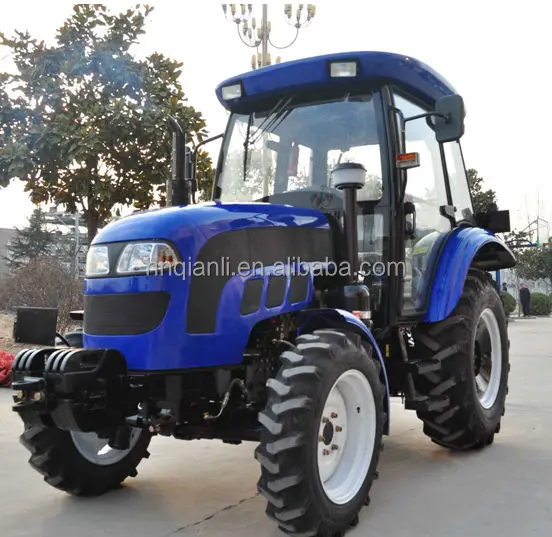

YUCHAI YTO engine mini garden tools farm tractor with AC cabin

Product Overview

Description

Product Description:

1   EEC/e-mark certificated for whole tractor.

2   Eu3 emission engine,excellent performance,low diesel consumption.

3   Powerful traction force 11.5KN,wide driving speed 2.46-32.73 KM/H.

4   F12+R12 gear shift,accomplish different kind of works in orchard,street cleaning,land transportation,and all kinds of farm activity.



Technical Parameters:

Model			QLN-504
Maximum power of PTO(kW)			27.6
PTO speed			540/760
Minimum operation weight (kg)			2220(without cab)/2400(with cab)
Maximum lifting force at 610mm behind suspending point (KN)			>10.2
Dimensions	L*W*H(mm)		3910*1635*2160
	Minimum turning radius (mm)		3800±300
	Wheelbase (mm)		2030
	Min Ground Clearance(mm)		325
Track	Front wheel (mm)		1280
	Rear wheel (mm)		1310(adjustable)
	Structure weight(kg)		2190(without cab)/2390(with cab)
Engine	Model		A498BT1
	Type		4 Cylinder,Vertical, water cooled, 4 stroke
	Rated power(kW)		36.8
	Rated rotary speed (r/min)		2400
Transmission	Shift		12F+12R
	Speed (Km/h)	Forward	2.46-32.73
		Rear	2.15—28.69
Tyre	front wheel /rear wheel		F8.3-20  / R12.4-28
Oil filling capacity	Fuel tank (L)		43
	Oil for transmission system (L)		20

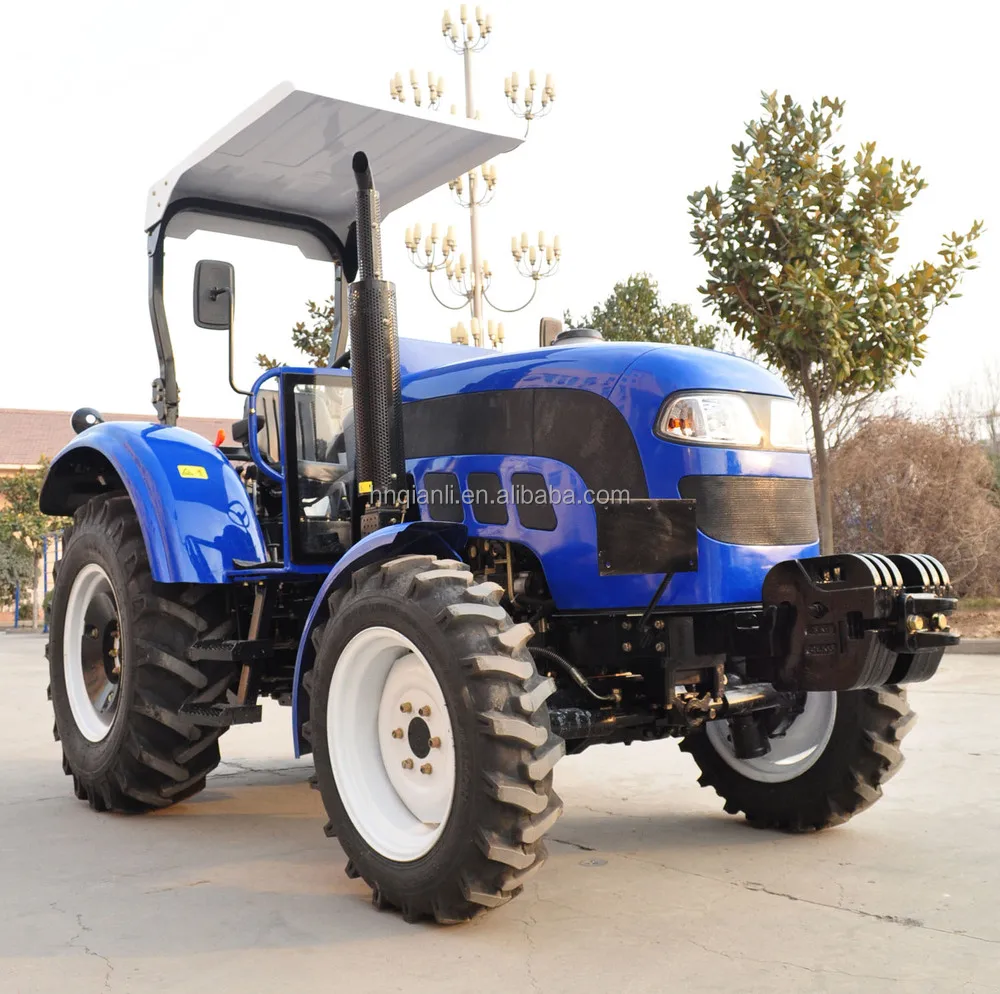

Tractor Details:



Packing and Shipping:

Warehouse:

Products lines:

Matched implements:

After sales service:

1. When loading tractor, we will delivery some normal spare part and tools for free together with

tractor, including tool box.

2. When the tractor have problem in warranty, pls take pictures as evidence. After make

sure (the problem must not be caused by manmade destructive factors), we will send the spare

 parts for free at once.



3. After the warranty, the spare parts cost is paid by customer.

Company:

About 1300 staff

13 modernized production lines

About 52 million dollars annual sales

About 120,000 square meters factory space

A broad channels with more than 63 regions

27years professional manufacturer quality insurance.





             Main products:               wheel tractors 20hp to 145hp ,

                                                 walking tractors 8hp to 20hp

                                                wide range of farm implements.







We are open to distributorship, and looking forward to establish mutual benefit cooperation

 with your esteemed company!



Honor:

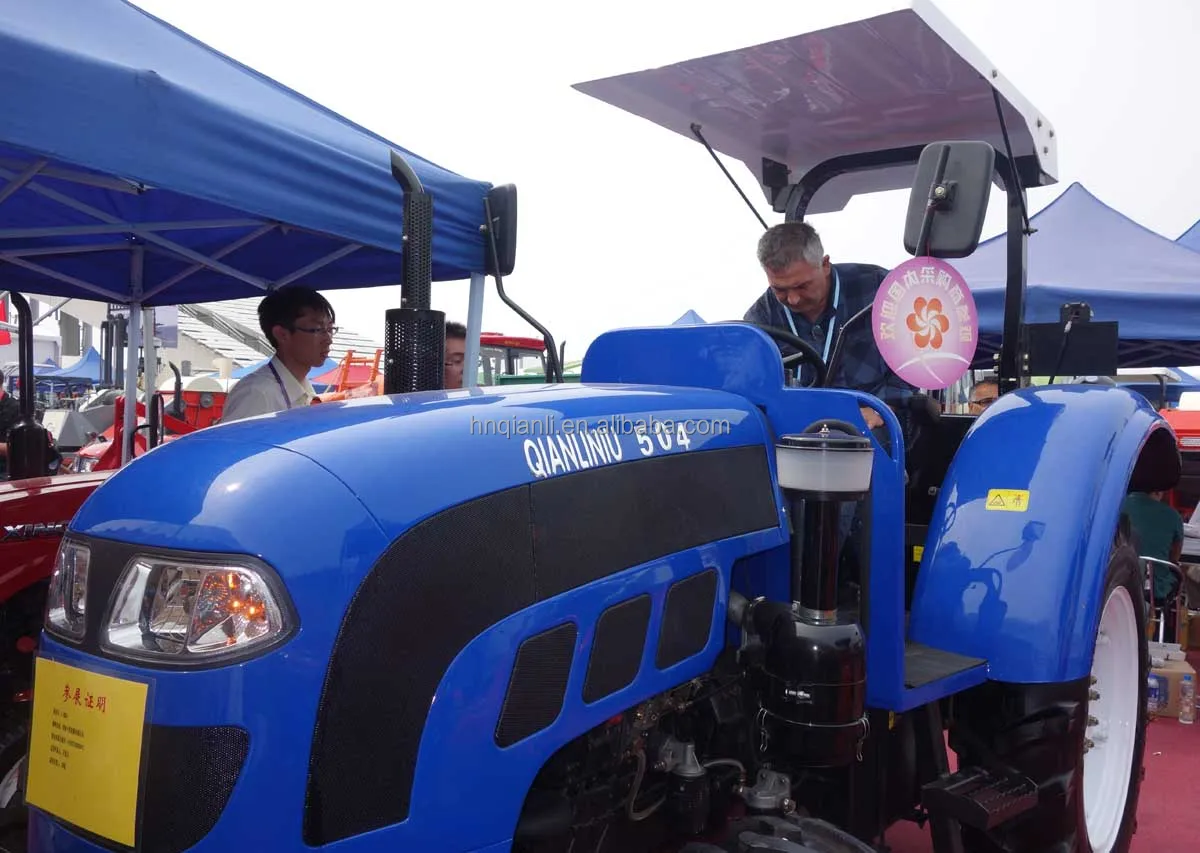

The exhibition:

RFQ:

1.Are you tractor supplier or manufacturer?

We are tractor manufacturer. We can provide the complete tractor and spare parts  with favorite price, because we are the source.

2.Can you send us price-list or tractor price?

At least tell us the below information,

1)The Power/HP of tractor you need,

2)The possible order quantity you need,

3)The country where you are from,

4) Trading or self-using?

Unless we know each other better and we can do our best to help you.

3.Can you supply tractor farm implements?

We can supply series farm implements, such as disc plough, harrow, loader, backhoe, trailer etc you want. But firstly, tell us your preferred horsepower tractor.



Any other questions, pls feel free to contact with us.



Customer satisfy is the eternal pursue of corporation. Looking forward to cooperate with you sincerely.
