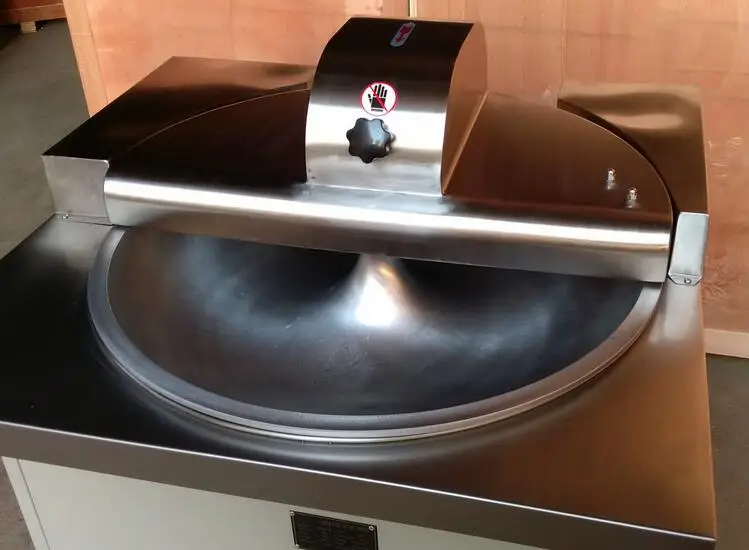

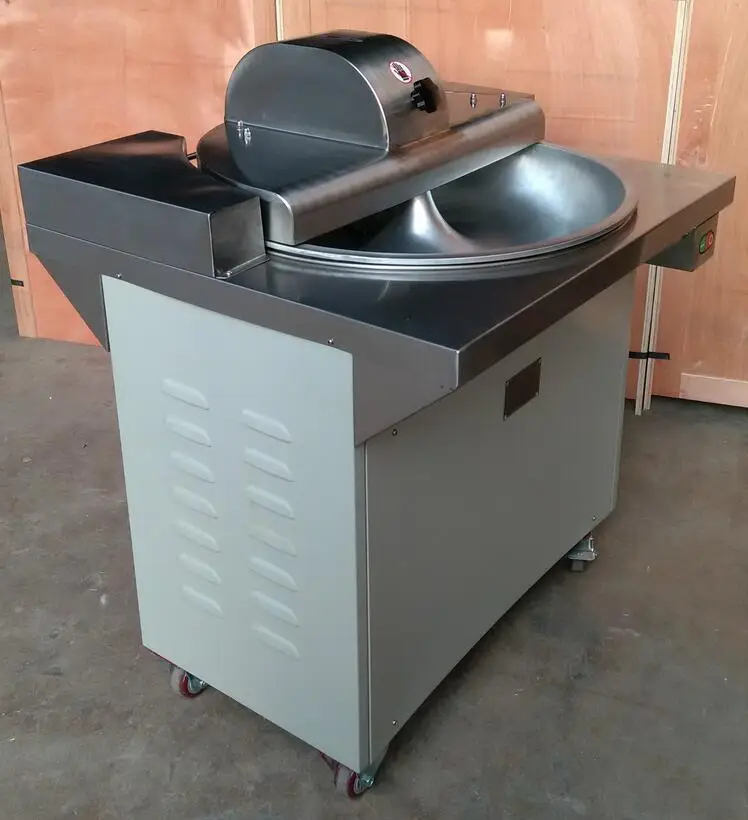

Automatic 304 Stainless Steel Frozen Meat Chopping Machine/Meat Chopper Mixer/low Vibration Meat Chopper

Product Overview

Description

Automatic 304 stainless steel frozen chopping machine/ meat chopper mixer/low vibration meat chopper







 The introduction of Automatic 304 stainless steel frozen chopping machine/meat chopper mixer/low vibration meat chopper

chopper machine can cut,stirring and emulsifying the row meat.Prevent myoglobin in row meat.Prevent  fat and other nutrients from oxidizing and destructing.Thus maxium retained the original color,aroma,taste and all kands of nutrients.

Through to cut,improve the density of product and water affinity,make the elasticity of the product was improved.Not only can cut, emulsification all kinds of meat, but also can cut, emulsifying the skin and tendon of crude fiber and composite collagen raw materials.

The knife  shaft of thie machine has high speed,big power ,the effect of cutting emuisification is good,wide range of row materials,ect.Chopping machine use high speed rotary cut ,cut knife chop meat and auxiliary materials into meat or glue ,

can also be complementary making,such as borneol,water and meat,or meat mix together.Our company produces the chopping machine which has the best combination between the cutter speed,pan speed and the clearance of the cutter and pan.also the cutting die material and the hardness of

cut knife blade,ect.

According to the needs of different users, the company chopping machine has series of models which are complete, easy to operate, safe and reliable.











 The features of automatic 304 stainless steel frozen chopping machine/meat chopper mixer/low vibration meat chopper:

1.stainless steel materials

2.Automatic smoking oven machine

3.Good performance and high efficiency

4.Safety switch for the blades,defending workers from injury.

5.Rotary cutter is positioned close to the bowl to ensure the finest cutting.

6.Equipped with an automatic unloading device.

7.Simple to operate and easy to clean.













 The working process of automatic 304 stainless steel frozen chopping machine/meat chopper/low vibration chopper:

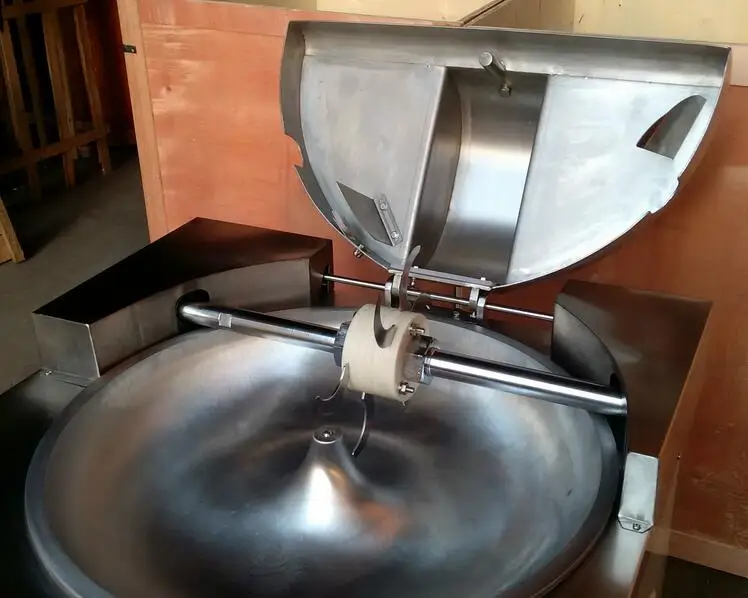

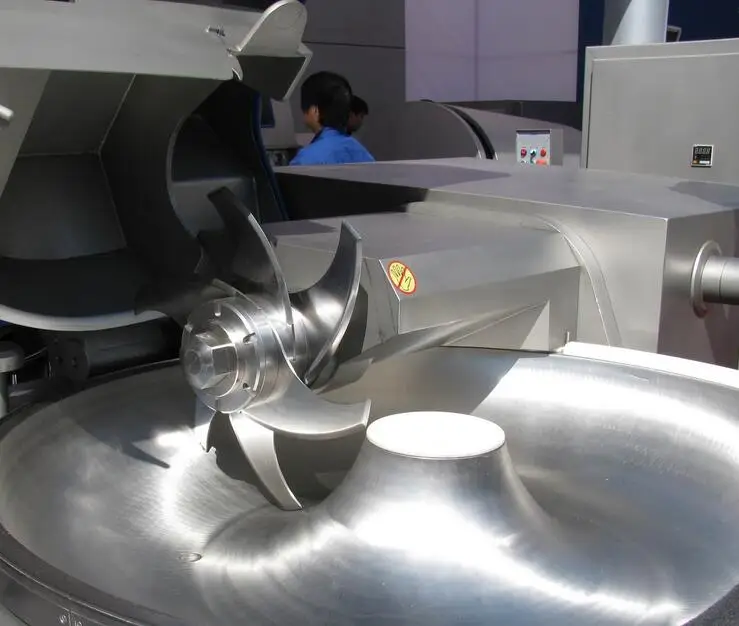

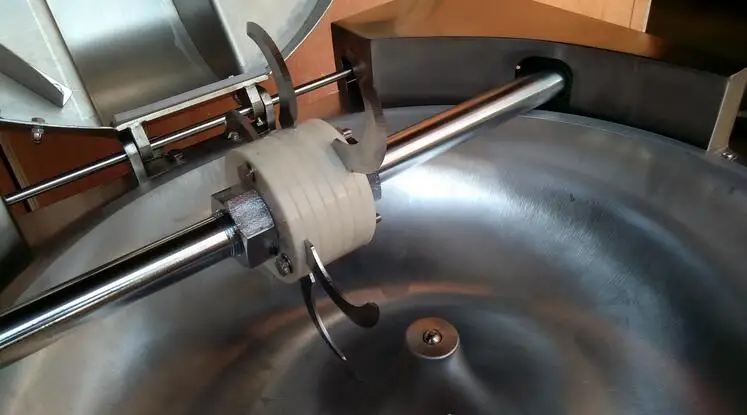

This machine comprises of  a rotating bowl  into which meat ,protein and other ingredients are deposited.Ingredients are added  into bowl by a muiti-bladed

revolving knife positioned at the rear of the bowl.

This machine has a selected range of knife speed.It is fitted with an uploading scraper which discharges the product into container via a hute.





The chopping machine business tips of automatic 304 stainless steel frozen chopping machine/meat chopper/low vibration chopper:

our chopper is an ideal machine to turn solid food into a paste.It's optimum desgn helps reduce labor cost,improve production,and expend service time.





The technical parameter of automatic 304 stainless steel frozen chopping machine/meat chopper/low vibration chopper



model	FR-80	FR-40	FR-20	80F
volum(L)	80	40	20	80
capcity(kg/time)	50-60	15-20	8-10	50-60
motor(kw)	11+2.2	1.5+3	0.75+2.2	15+2.2
rotate speed(r/min)	8/13	8/13	8/13	8/13
chopping blade speed(min)	1450/2960	1450/2960	1450/2960	1450/2960
chopping blade amount(pcs)	6	3	3	6
machine size(mm)	1820*1380*1260	1100*830*1080	820*600*930	1820*1380*1260
machine weight(kg)	700	400	300	800
voltage(v)	380	380	380	380



  we can offer the production accordance to  customers' requirements





Chopping machine should pay attention to the issues summarized below:

1.Forbidden to hard goods such as: metal tools fall into the pot damage during operation,which resulting in danger.



2.At work, the operator shall not hand in the pot

3.Should not put any objects on the device avoid dangerous situations that fall into the pot

4.When operation panel, pay attention to prevent water, prevent short circuit, leakage and electrical appliances, etc.









The packaging and delivery of automatic 304 stainless steel frozen chopping machine/

meat chopper/low vibration chopper:

Packaging Details:Packed in the wooden caseOr customer's requirement

Delivery Detail:5-7 days after receive the payment









our services of automatic 304 stainless steel frozen chopping machine/meat chopper/low vibration chopper:



1.The whole machine all free warranty for one year,door to door service for life time.(Electronic parts warranty for one year.Machinery, metal parts warranty for one year.Except easily damaged parts.Except force majeure cause loss or artificial damage)

2.Our company afford a one-stop tracking service,visit customers regularly.The later accessories will be afforded by original firm.Within one year,our company afford all cost.





3.If you are dealing on vacuum tumbler machine or stainless steel and have interest on us.If you want to become our wholesaler on your place.we are glad to share profits together with you ,and you will get

(1).factory price available

(2).New products update at first time

(3).Quickly delivery









The company information of automatic 304 stainless steel frozen chopping machine/meat chopper/low vibration chopper:



Business Type: Trading company and factory

Main Products:stainless machine

Total Annual Revenue:US$50 Million - US$100 Million

Product Certifications:CE,Quality Improvement Demonstration Unit

Location:Henan,China(Mainland)

Total Employees:30-60people

Year Established:2015

Certifications:ISO ISO Quality Management system Certification
