Free SDK 1M Middle Range Cattle RFID Card Reader With WIFI Output
- Category: >>>
- Supplier: Shenzhen Ruifan Electronics Co. Ltd.
Share on (60620230740):
Product Overview
Description
Products Description

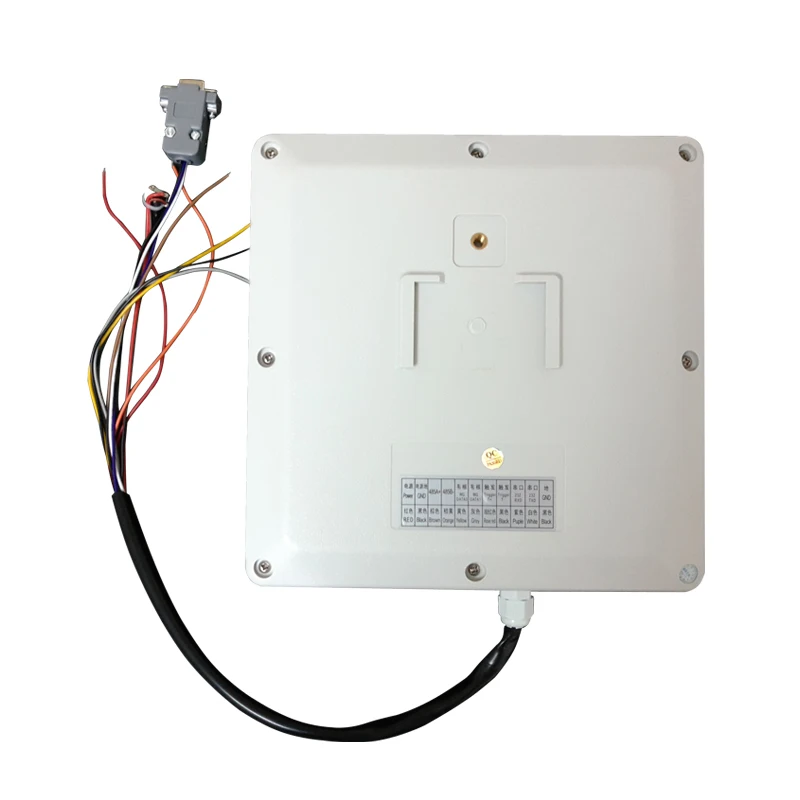

Free SDK 1M Middle Range Cattle RFID Card Reader With WIFI Output
Our UHF Reader Features
Long range--Up to 5m or longer depends on your tag
Free DEMO & SDK for testing and developing (C#, C++, VC, JAVA)
Free sample tag for testing
Easy operating
Long range--Up to 5m or longer depends on your tag
Free DEMO & SDK for testing and developing (C#, C++, VC, JAVA)
Free sample tag for testing
Easy operating
Introduction
Ruifan RF-8082 RFID Reader is a new and innovative antenna built-in integrated RFID Reader which is compatible with IS018000 and EPC Class 1 Gen2 of RFID tags. It solves many problems successfully associated with remote identification, identification of fast moving objects and multi-cards identification . This RFID Reader’s design includes Weigand ;RS485; RS232; WIFI(optional) and TCP/IP RJ45(optional) output interfaces. This product exceeds the basic capability recommended by the advanced technology indicators.
Product Paramenters
Protocol | ISO18000-6C (EPC CLASS1 GEN2) |
Working Frequency | 902~928 MHz(can custom European standard) |
Encryption | Can encrypt directly, anti-copy |
Transmit Power | 0dbm~30dbm(Adjustable by software) |
Software & SDK | DEMO and C#, VC, Java SDK |
Anti-thunder | 6000V |
Frequency modulation | Hopping or fixed frequency |
Antenna | 8dBi circular polarization |
Output | WG 26/34 ; RS232 ; RS485; Customized --TCP/IP RJ45; WIFI |
Storage Temperature | -40 ~ +100°C |
Working Temperature | -20 ~ +80°C |
Case material | ABS |
Dimension | 220mm×220mm×50mm |
Power supply | Adapter (into +12V DC) |
Read Distance | Up to 5M (according to tag),can adjust by software |
Read Prompt | LED, Buzzer |
Details Images

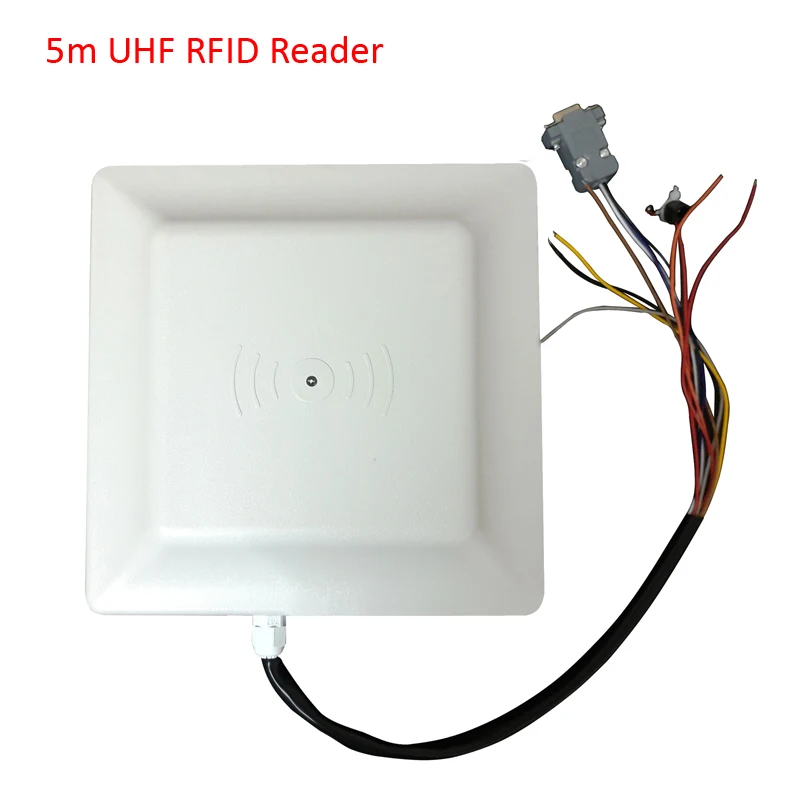

5 Meters Range UHF RFID Reader Model
15-20 Meters Range UHF RFID Reader Model

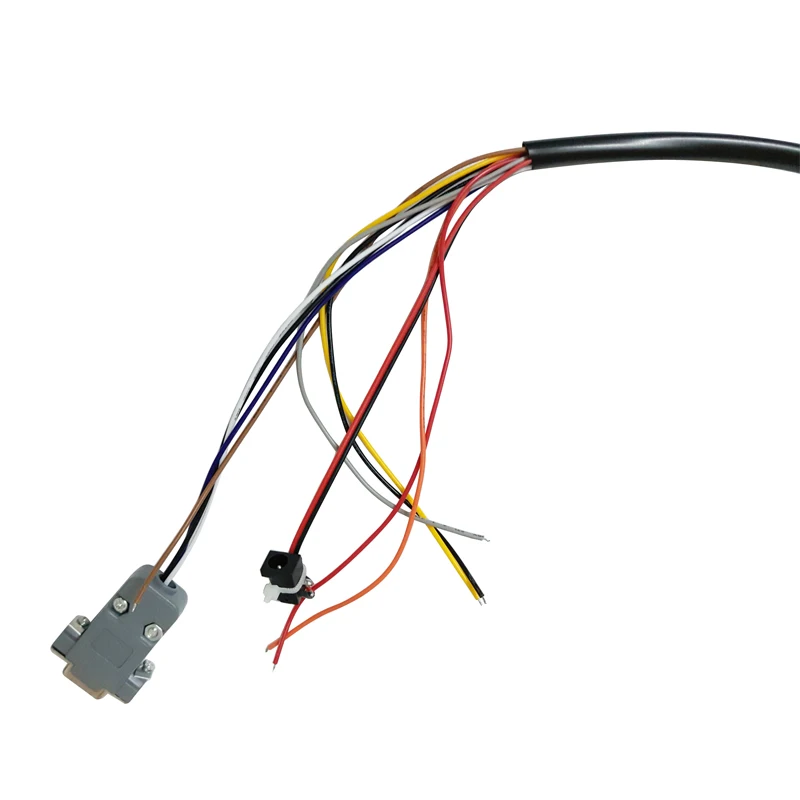

Output Options Available
Free DEMO and SDK for Testing and Developing
Product packaging
Ready To Ship --Fast Lead Time

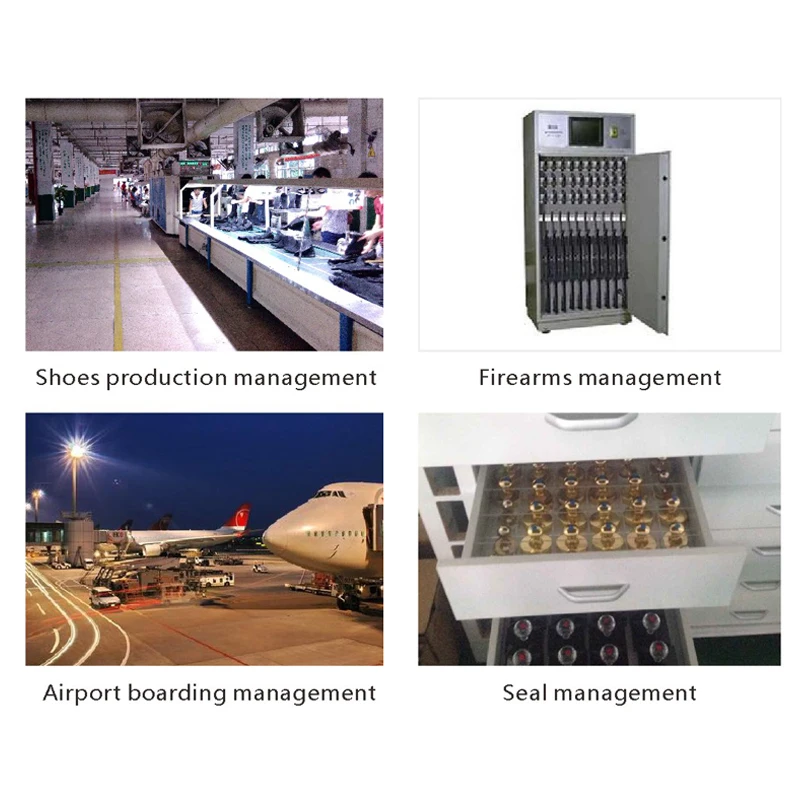

Application
Company Profile
