Product Overview

Description

Inventronics 75W-150Watts 150W LED Driver IP67 Waterproof 530mA-4200mA 18-283Vdc LED Power Supply 0-10 DIY Dimmer Controller

220Vac CC LED Driver         26-320W CC LED Driver     Potentiometer AOC CC        Dip-switch AOC CC              Waterproof CV

220V 0-10V PWM Timer        220V 110V Dimmable         7 Years Warranty IP67         300W+ High Power CC        DALI LED Driver

  10 Years Guarantee         380Vac+ High Voltage Input  UFO Round Shape CC       Internal Use CC Dimmable  Programmer SPD



Features:

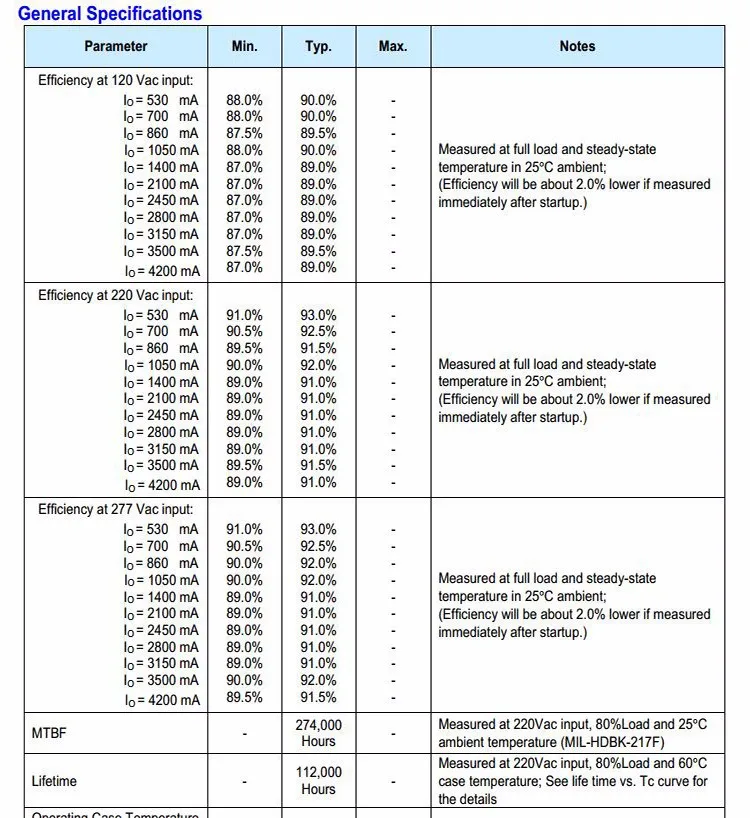

High Efficiency (Up to 93%)
Constant Current Output
0-10V Dimming Control
Input Surge Protection: 4kV line-line, 6kV line-earth
All-Around Protection: OVP, SCP, OTP
Waterproof (IP67) and U* Dry / Damp / Wet Location DTA models in Wet Locations must be Built-In
SELV Output
TYPE HL, for use in a Class I, Division 2 hazardous (Classified) location
U* Type TL (Temperature Limited)



Description:

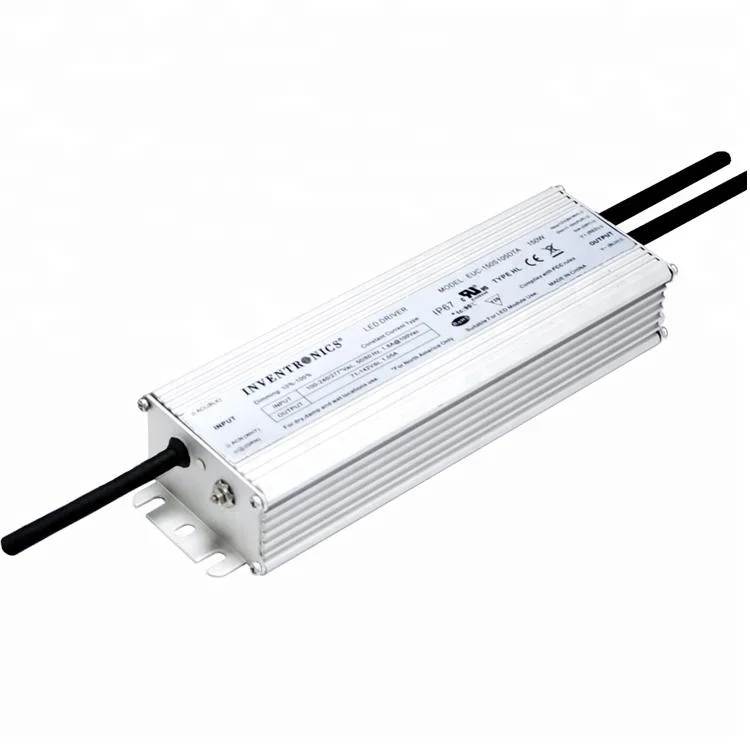

The EUC-150SxxxDTA(STA) series is a 150W, constant-current LED driver that operates from 90-305 Vac input with excellent power factor. It is created for high bay, tunnel and roadway lights. The high efficiency of these drivers and compact metal case enables them to run cooler, significantly improving reliability and extending product life. To ensure trouble-free operation, protection is provided against input surge, output over voltage, short circuit, and over temperature.

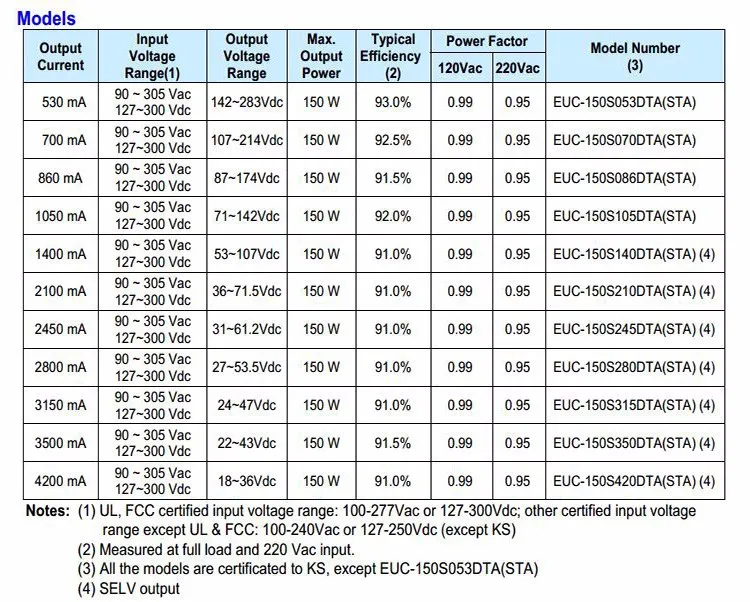

Models:

Output Current	Input Voltage Range(1)	Output Voltage Range	Max. Output Power	Typical Efficiency(2)	Power Factor		Model Number(3)
					120 Vac	220 Vac
530 mA	90 ~ 305 Vac 127 ~ 300 Vdc	142-283 Vdc	150 W	93%	0.99	0.95	EUC-150S053DTA(STA)
700 mA		107-214 VdC		92.5%			EUC-150S070DTA(STA)
860 mA		87-174 Vdc		91.5%			EUC-150S086DTA(STA)
1050 mA		71-142 Vdc		92%			EUC-150S105DTA(STA)
1400mA		53-107 Vdc		91%			EUC-150S140DTA(STA)
2100mA		36-71.5 Vdc					EUC-150S210DTA(STA)
2450mA		31-61.2 Vdc					EUC-150S245DTA(STA)
2800mA		27-53.5 Vdc					EUC-150S280DTA(STA)
3150mA		24-47 Vdc					EUC-150S315DTA(STA)
3500mA		22-43 Vdc		91.5%			EUC-150S350DTA(STA)
4200mA		18-36 Vdc		91%			EUC-150S420DTA(STA)



Notes: (1) U*, FCC certified input voltage range: 100-277Vac or 127-300Vdc; other certified input voltage range except U* & FCC: 100-240Vac or 127-250Vdc (except KS)
(2) Measured at full load and 220 Vac input.
(3) All the models are certificated to KS, except EUC-150S053DTA(STA)
(4) SELV output

(For more details, please contact Chela Chen for the datasheet.)
