Gas Turbine Pulse Jet Air Intake Filter Element for Dust Collector
- Category: >>>
- Supplier: Zhangjiagang Futai Purifying Equipment Co. Ltd.
Share on (60620286402):
Product Overview
Description

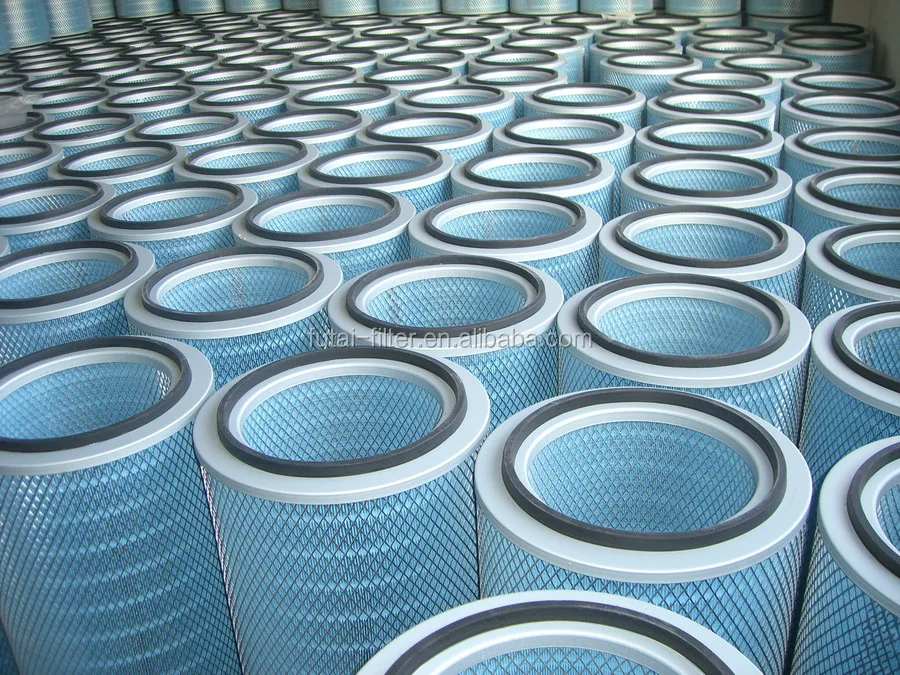

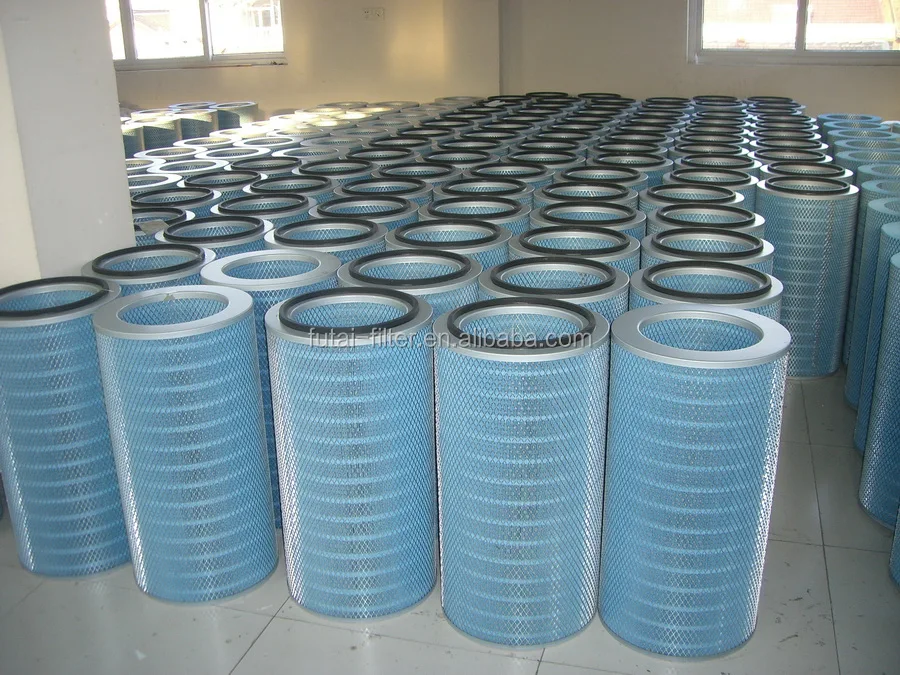

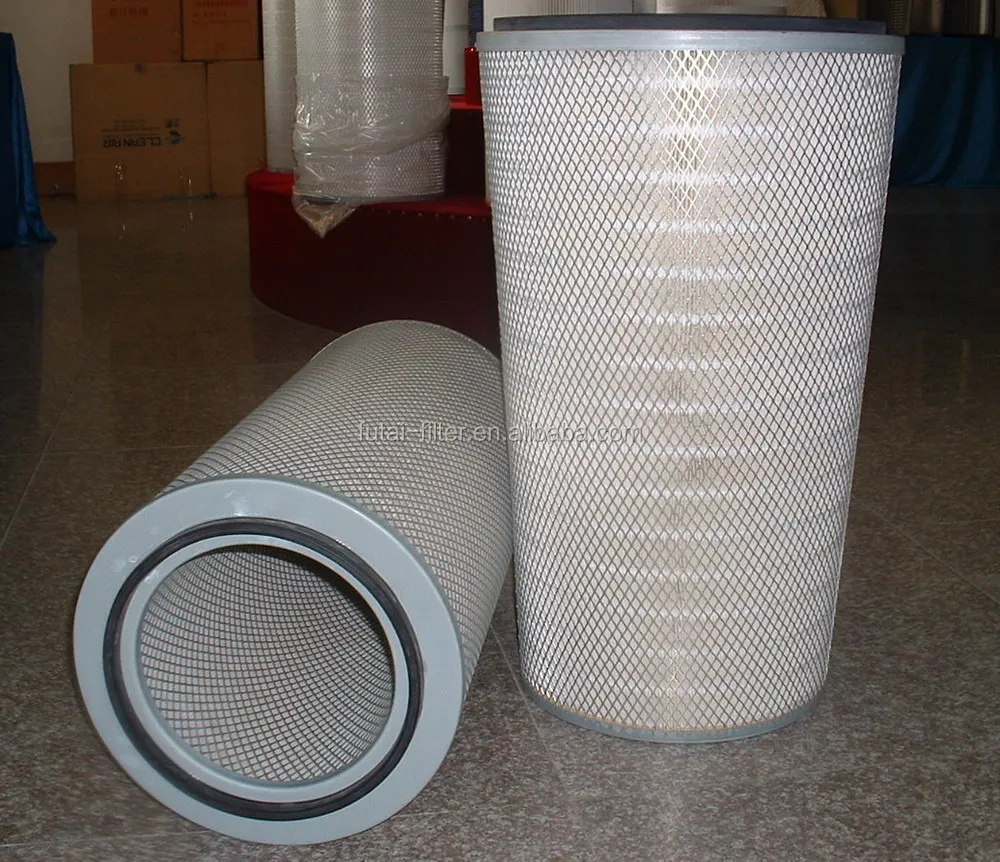

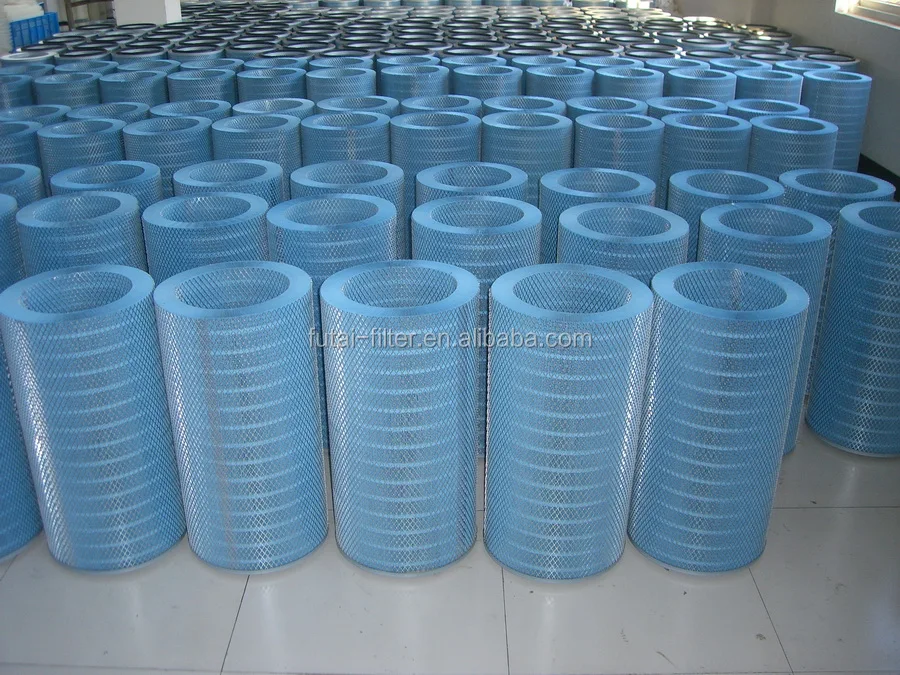

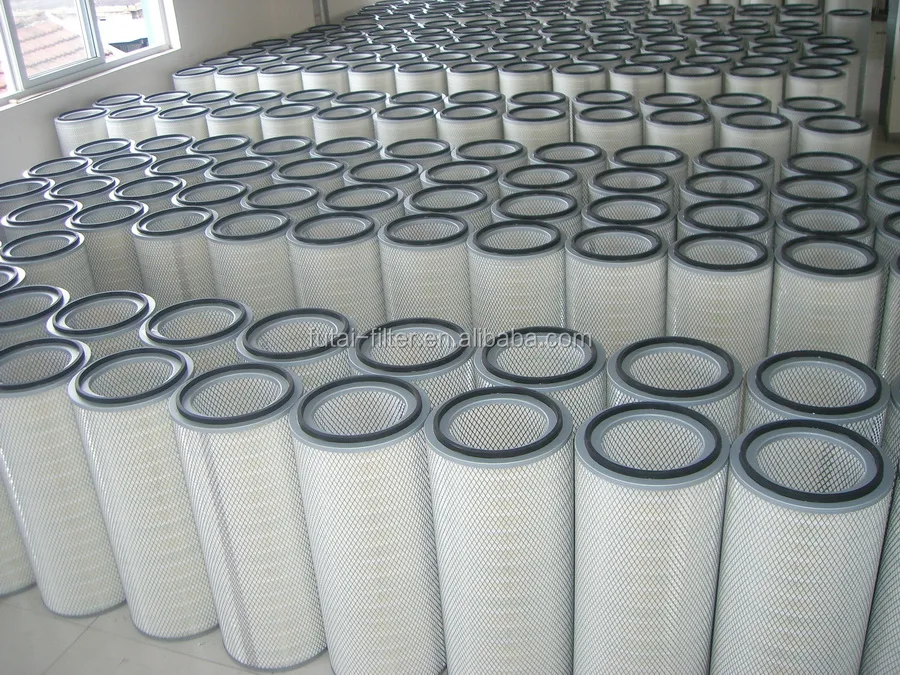

Gas Turbine Pulse Jet Air Intake Filter Element for Dust Collector
Product Description
Suitable for the filtration of fine dust type in gas turbines, compressors, shot blast, tobacco, pulverized coal ash and floating dust collection;Widest applications, dry and granular shaped particulate Metal working Shot Blasting Mining industry Chemical Gas turbine
For more information please contact me directly via: sales@ zjgfutai.com
Features:
(1) Imported cellulose fiber or synthetic fiber for base
media (80%cellulose and 20%polyester).
(2) Excellent filter efficiency.
(3) Wide pleat spacing, great filter surface.
(4) Electrochemical plate top and bottom, no rust.
(5) Perforated zinc galvanized metal inner core, allows good airflow.
(6) Specialty chlorine rubber gasket to ensure airtight sealing.
(7) Applicable temperature: 65°C.
Specification:
Cellulose filter cartridge
| Model | OD(mm) | ID(mm) | Length(mm) | Filter area(m2) |
| FKZ-3266 | 324 | 213 | 660 | 21 |
| FKZ-3566 | 352 | 241 | 660 | 23 |
| FKZ-3275 | 324 | 213 | 750 | 26 |
| FKZ-3288 | 324 | 213 | 880 | 27 |
| FKZ-32100 | 324 | 213 | 1000 | 28 |
Gas turbine inlet filters:P191177&P191178
Filter Material:
1. Base media: Polyester 20% Cellulose 80%
2. Operating efficiency: 99.9% on 1 micron
3. Washable: Several times
4. Maximum operating temperature: 200oF/93oC
5. Abrasion resistance: Excellent
6. Chemical tolerance: Excellent
7. Optional flame retardant media(FR): To order
Other composition:
1. Gasket: Neoprene rubber, good at absolute hermetic seal, improving the durability
and life.
2. Inside cage: Galvanized steel, to prevent corrosion.
3. Molded top: Available in a varitety of styles and sizes to fit a wide range of
Tubesheet Holes.
4. Molded bottom: Helps resist abrasive wear at the bottom of the elements.
Applications:
1. Description: Excellent performance on moist, hygroscopic, or agglomerative dust.
2 Marktets: Thermal spray, welding, mining, chemical processing, metal buffing, pharmaceutical,cement, woodworking and etc.
3. Dust types: Fumed silica, metallic fume, metallurgical powders, and etc.
4. Available for collectors: FT, Torit DFT
5. Substitute: Donaldson, Nodic, BHA
Notes:
1. Optional construction and dimensions are available on all cartridges.
2. Please contact us to make optimal filtration solutions of your applications.
Detailed Images
Our other products:
Company Information
Our company:
Our production:
Packaging & Shipping
FAQ
Question 1: Are you a manufacturer or trading company?
Answer 1: We are a manufacturer.
Question 2: Where is your manufacturer? How can I visit there?
Answer 2: Our manufacturer is located in Zhangjiagang City, Jiangsu Province, China, about 1.5~2 hours from Shanghai and 30~40 minutes from Wuxi by car. All our clients, from home and abroad, are Warmly welcome to visit us!
Question 3: Can I get the sample?
Answer 3: We are so pleased to offer your samples for free.
Question 4: How do you carry out quality control?
Answer 4: Quality is the root of enterprise survival. We have the corresponding quanlity control personnel and quality inspection machine to control the entire production quality. We have obtained ISO9001:2008 quality certification system some years ago
Question 5: Can I customize some other sizes' products?
Answer 5: Yes! We can make them as per clients requirement.
