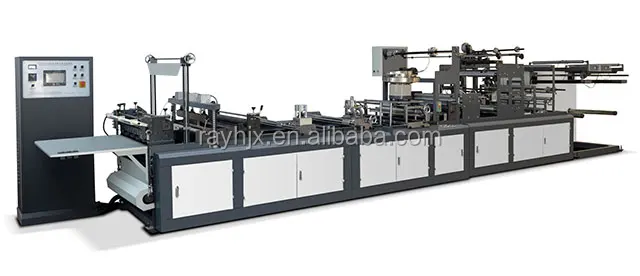

Zip Lock Bag Making Machine

Product Overview

Description

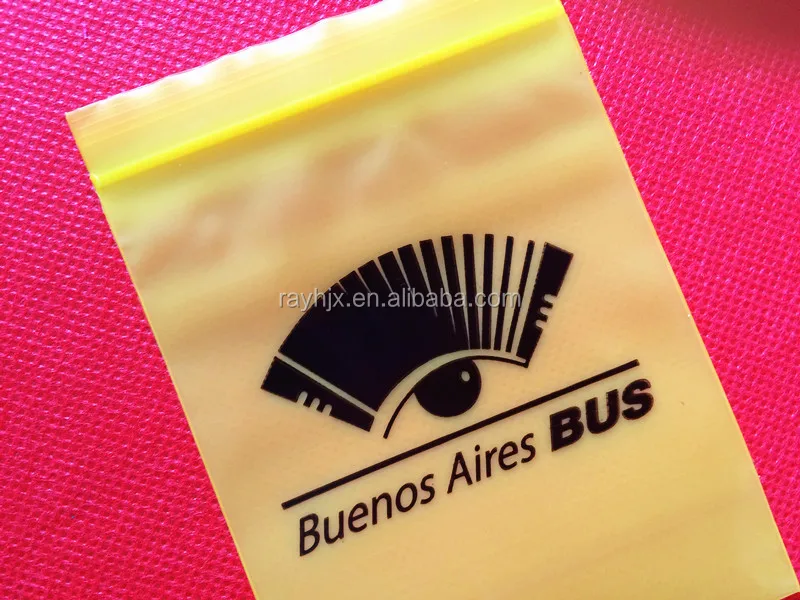

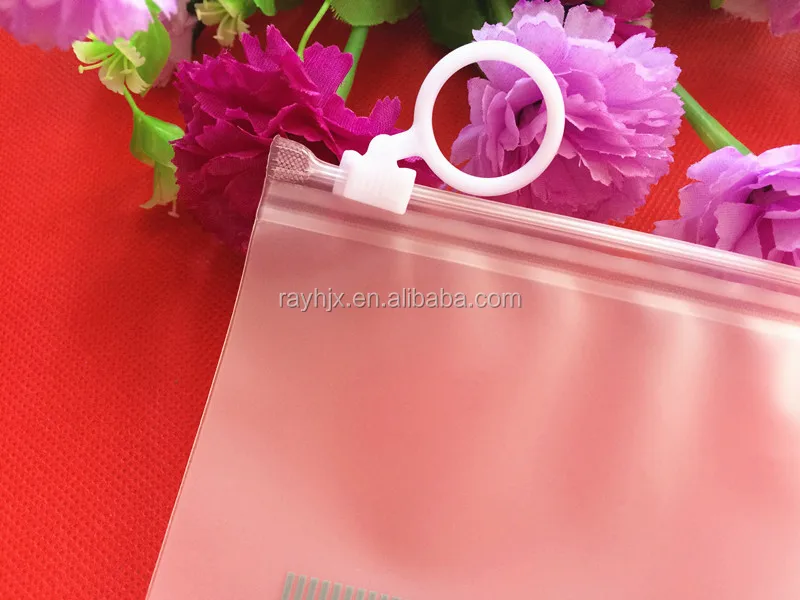

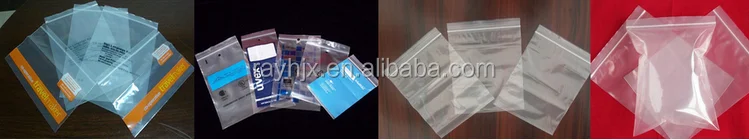

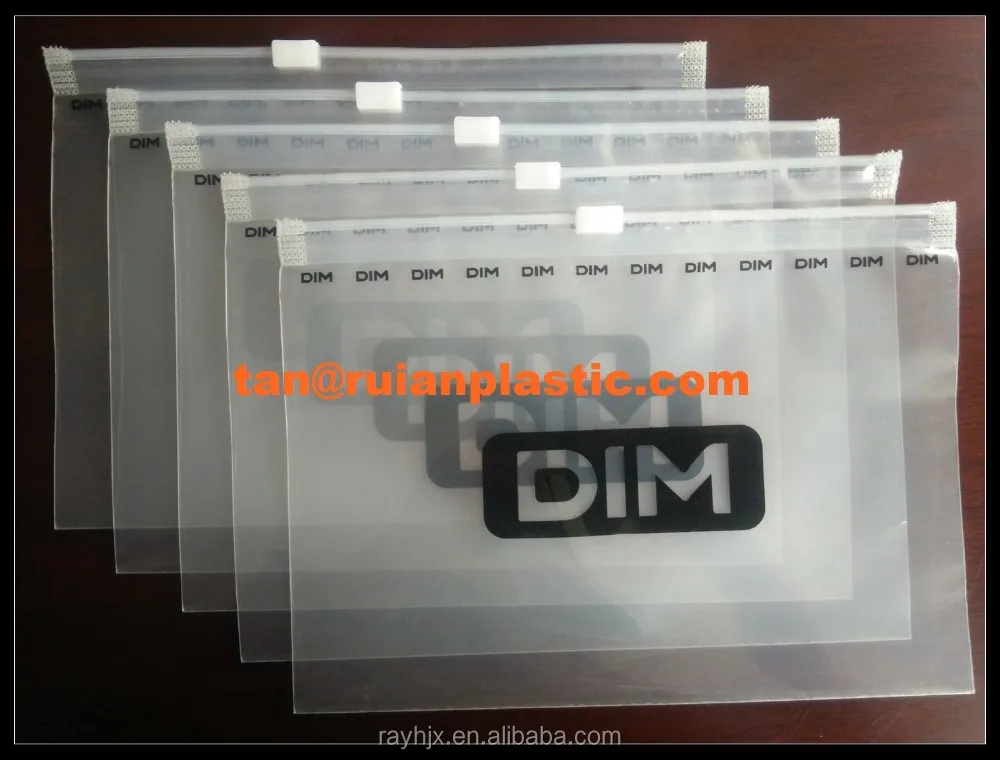

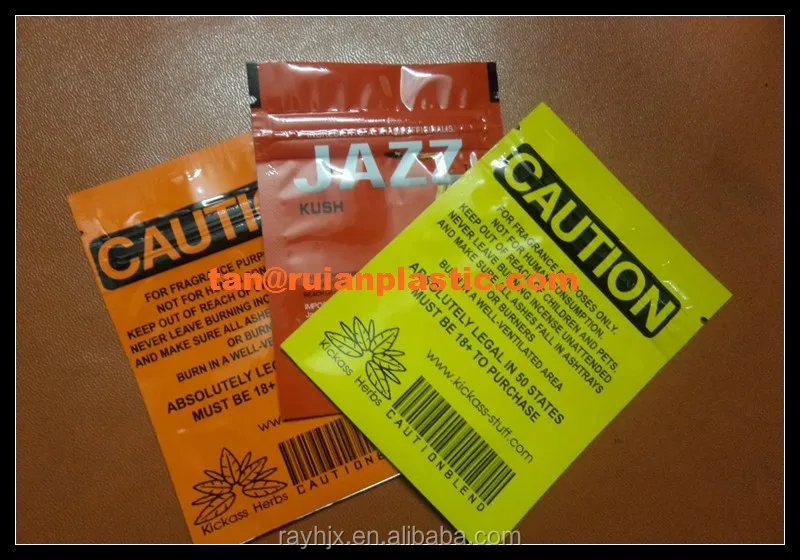

        WITHOUT LOCK                                                 WITH SPECIAL LOCK



Plastic Zip Lock Bag Making Machines

LDPE zip lock bag making machines

PE zip lock bag making machines



Function:

This LDPE plastic zip lock bag making machines was independently researched and manufactured by our company. It has a multifunctional worktable. It can produce zippered bag of different sizes bags, zipper bags, clothing bags. It has overcome the defects that the traditional one has, i. e. The multi-color printing in production and the bag size is limited by the moulds. It has no such defects.


Features:

1.  It adopts advanced computer system WENVIEW liquid crystal touch screen, TAIDA PLC and servo motor as its driver as well as frequency conversion speed governor.
2.  It has such functions as material-unwinding, folding, heaT-sealing, perforation, punching, welding and heat-cutting etc.
3.  It adopts PLC computer control system, automatic stopper at the event of material deficiency, photocell for tracking the invalidity and alarm, photocell auto web guider and magnetic powder tension controller.



Main Technical Parameters:



Model	ZB600	ZB700	ZB800
Bag-making Width	100-650mm	100-650mm	100-650mm
Bag-making Length	50-580mm	50-680mm	50-780mm
Bag-making Thickness	0.03-0.07mm	0.03-0.07mm	0.03-0.07mm
Bag-making Speed	40-80pcs/min	40-80pcs/min	40-80pcs/min
Total Power	8.5kw	9.5kw	10.5kw
Machine Weight	800kg	900kg	1000kg
Machine Dimension	5.5× 1.2× 2.0m	5.5× 1.3× 2.0m	5.5× 1.4× 2.0m
Working Voltage	220V 50/60Hz Single Phase

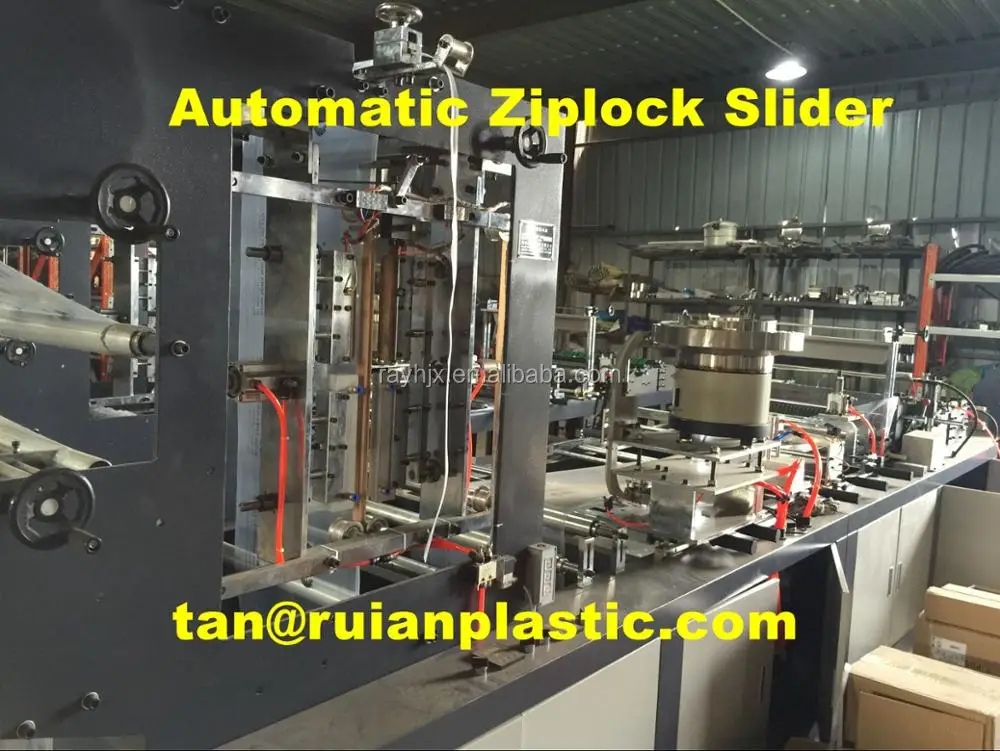

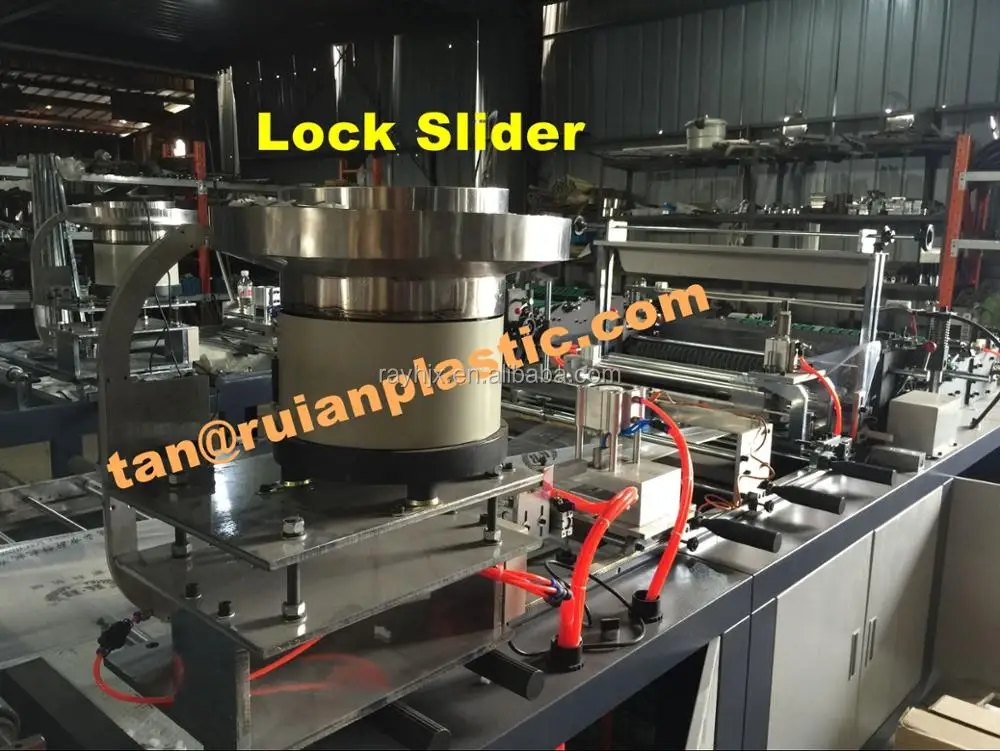

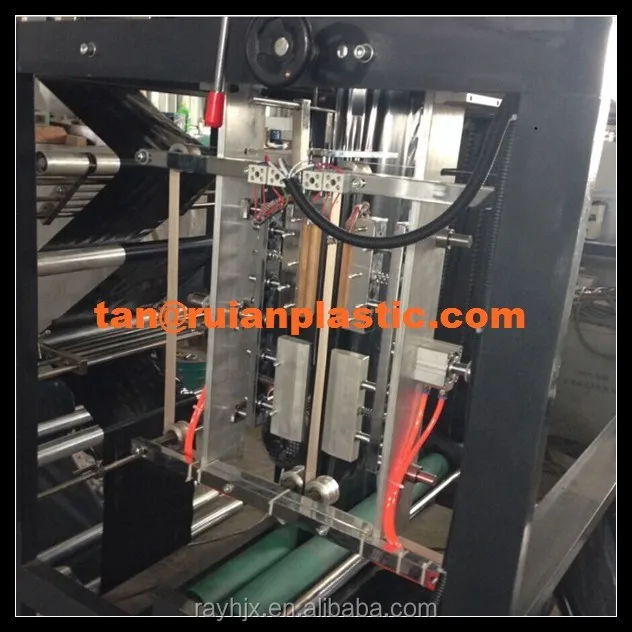

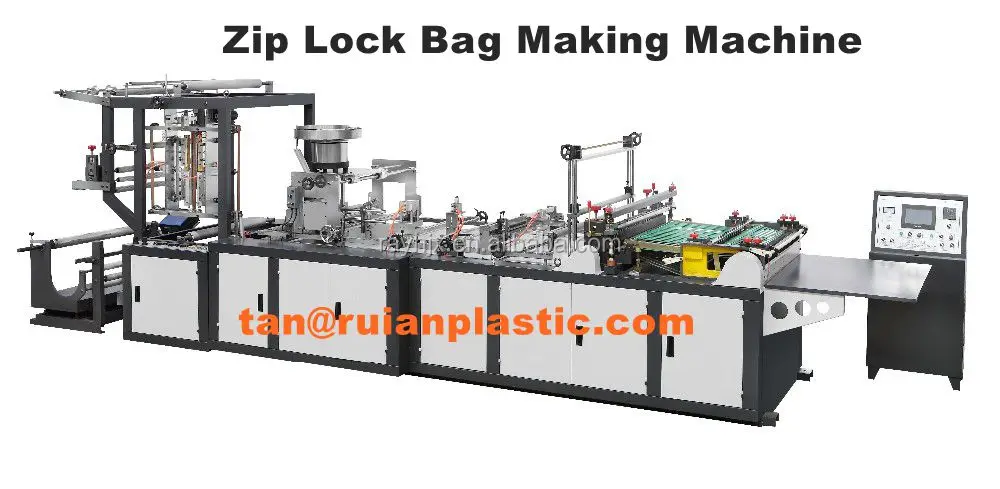

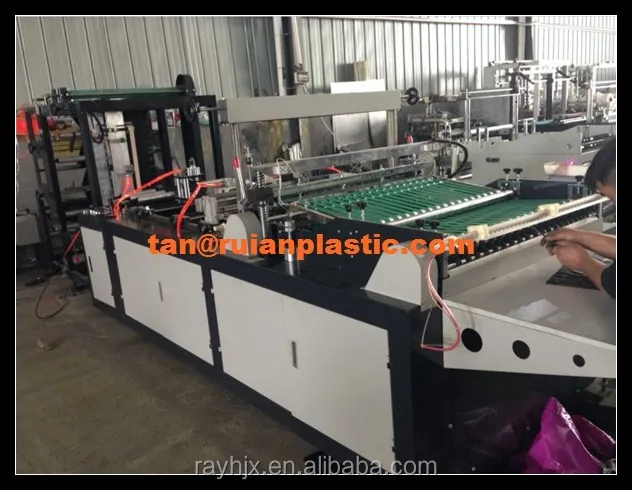

Machine Photo













Our Service :



1. Purchase Service



We have a specialized and efficiency working team. If you are new on the Plastic Machinery area, Some samples of your products could be show to us will be appreciated ,we will give you specialized suggestion of whole work .



2. Shipping Service



We have a specialized and independent department which just for shipping the buyer's goods .The workers are knowing T/T, L/C Items very well. All Exported documents could be made perfectly.



We cooperated with the most famous shipping company in China also. They could provide the best and economic shipping ways to the buyer's port.



3.Installation and Training Services



Installation Services are available with all machines. We will dispatch technician to The Buyer's factory to installation and preoperation of machines .But the buyer need to supply the round trip tickets ,food ,hotel and other cost.



 Training on our factory also be welcome.



4.After Sales Service



Our machines guarantee time is one year.



Many easy broken spare parts will be prepared in the tool box together with machines.



Any parts broken, Just a pictures or a videos.Then new free parts will reach within 3-7 Express working days .
