China CNC CRT Signals MDA To VGA Converter Adapter XVGA Box
Product Description

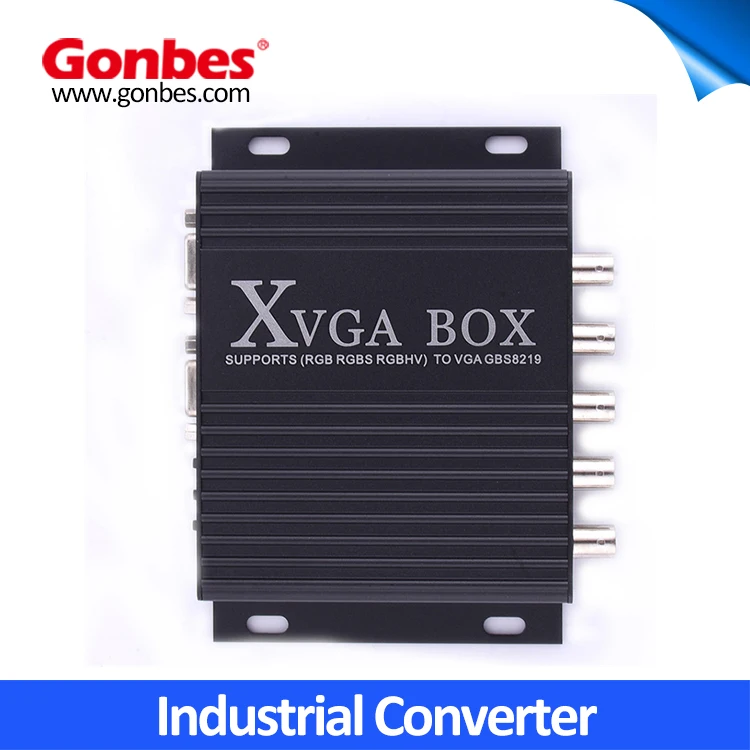

We designed this model 8219 XVGA box for industrial CRT rplacement to TFT LCD monitor.
Our model GBS8219 converts RGB CGA EGA MDA to VGA for old CRT CNC Machine LCD display monitors upgrade and repair.
This model could be RGB to VGA Converter for Siemens, Mazak, Fanuc, Heidenhain, Hitachi, Toshiba, Mitsubishi, Sharp, Tatung, Totoku, and Magnetek and most of other brands CNC CRT monitors.
Singnals Input Output
| Signals | MDA/CGA/EGA/RGB/RGB Sog/RGBS/RGBHV/YPbPr | |
| Input | Interface | 9pin/3pin/6pin/14pin/20pin/25pin |
| Horizontal Frequency Rate(H) | 12kHz to 40kHz, automatically recognized | |
| Supports | 15pin VGA,Resolution:800*600/60HZ or custom-resolution | |
| Output | Interface | D-Sub 15 PIN standard VGA port |
| Power | DC 12V 1.0A | |
Notes
1. YPbPr = YUV
2. Input Horizontal Frequency Rate 12kHz to 40kHz automatically recognized.
3. Support RGB and YPbPr
4. Support Interlaced Scanning and Line by Line Scanning.
5. Support Vertical Resolution from line200 to line 600 automatically recognized.
6. Support variable Horizontal Resolution automatically recognized.
7. Support RGBHV (separate sync), RGBS (composite sync), automatically recognized
8. Output resolution: 800*600/60Hz standard VGA or custom-resolution.

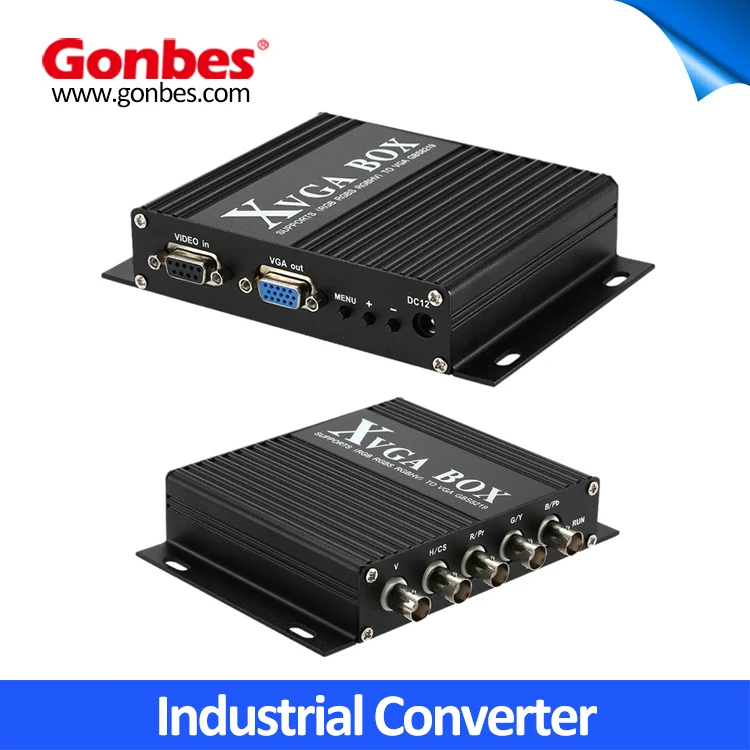

Interface
Item | Spec. | Remarks |

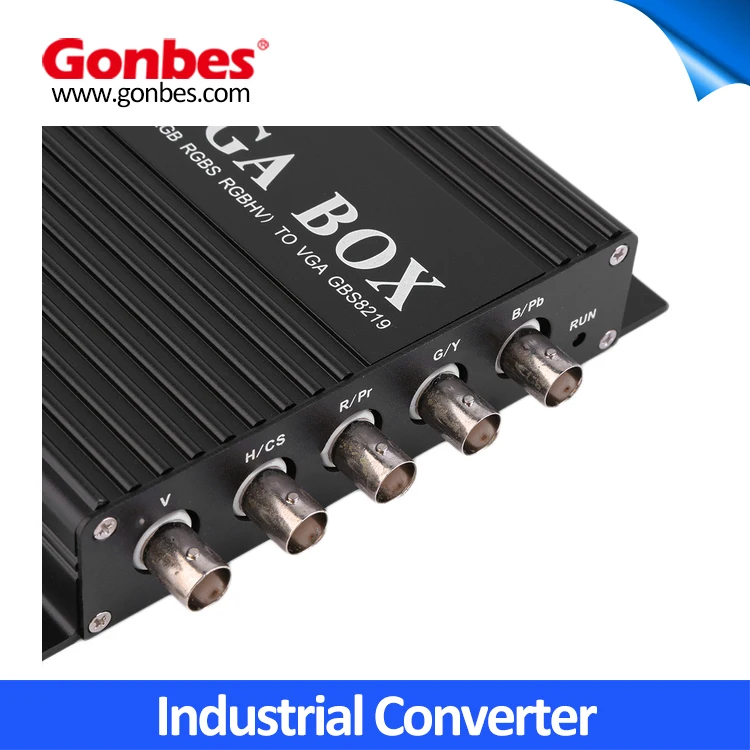

V | To connect V interface of the input device | Input Channel Ⅰ |
H/CS | To connect H(CS) interface of the input device | |
R/Pr | Red signal input/ Pr signal input | |
G/Y | Green signal input/ YPBPR -Y signal input | |
B/Pb | Blue Signal input/YPBPR -Pb signal input | |
RUN | Running Status Indicator |
|

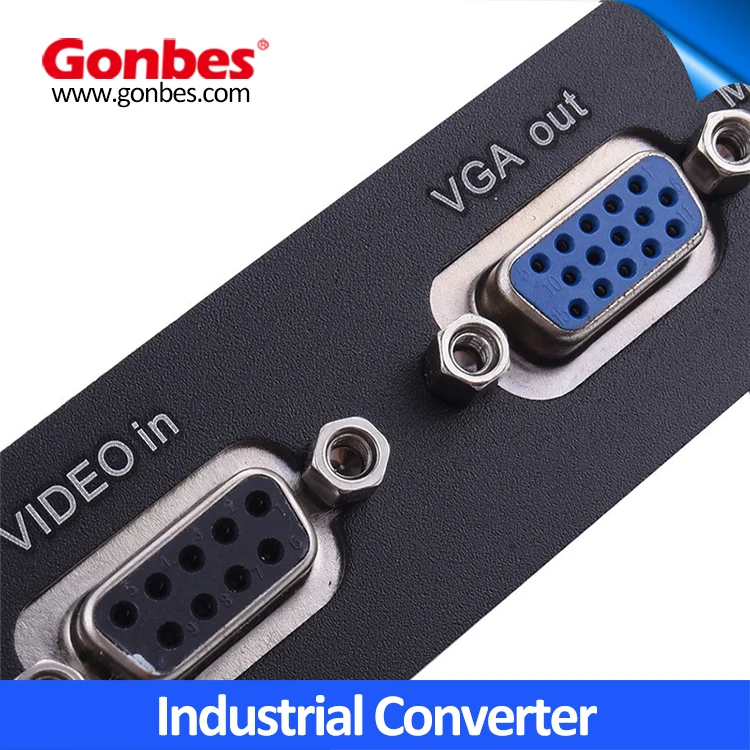

VIDEO in | To connect 9-pin interface of the input device | Input Channel Ⅱ |
VGA out | Standard sub-15p VGA female interface | VGA Output |
MENU | Use to adjust screen /programming |
|
DC12 | Power input DC12V, 1A |
|
Note: Input Channel Ⅰ, Input Channel Ⅱ, you can choose one of them
I/O Definition
| PIN | Input Signal |
| p1(GND) | Connect to the ground |
| p2(GND) | Connect to the ground |
| P3(R) | connect R(ed) interface of the input device |
| P4(G) | connect G(reen) interface of the input device |
| P5(B) | connect B(lue) interface of the input device |
| P6 | Undefined(null) |
| P7 | Undefined(null) |
| P8(H) | connect H(CS) interface of the input device |
| P9(V) | connect V interface of the input device |
Wire Definition - VGA Converter Box
Packaging & Shipping

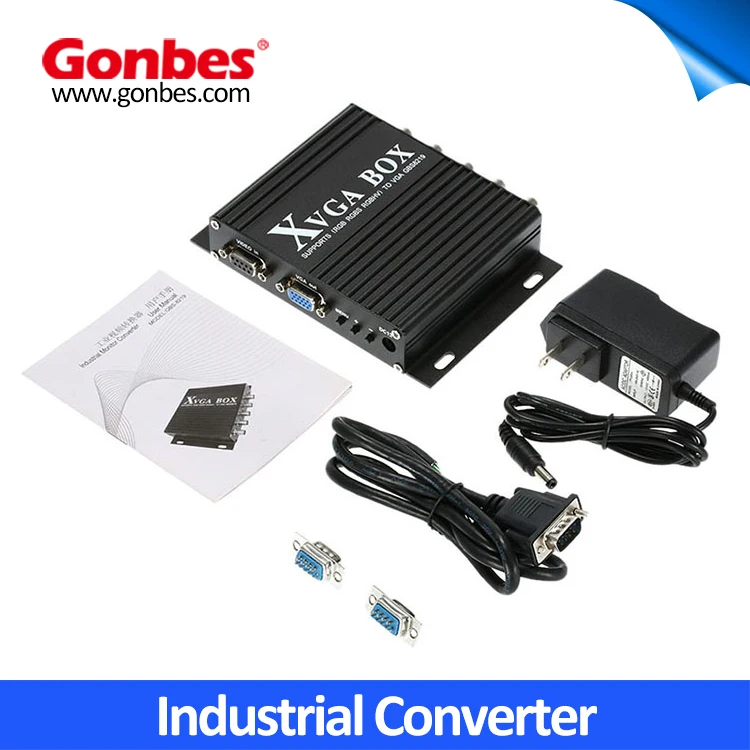

Box Content
| Item | Q'ty | Remarks |
| GBS 8219 | 1 | CNC Machine CRT RS232 MDA RGB To VGA Converter XVGA Box |
| User Manual | 1 | English |
| Power Supply | 1 | DC12V,1A |
| half 9pin cable | 1 | Wire definition attached below |
| 9pin M-F cable | 2 | 1 Male + 1 Female |
