Iuwon Automatic Metal Highway Guardrail Fence Roll Forming Machine

Product Overview

Description

Iuwon Automatic Metal Highway Guardrail Fence Roll Forming Machine

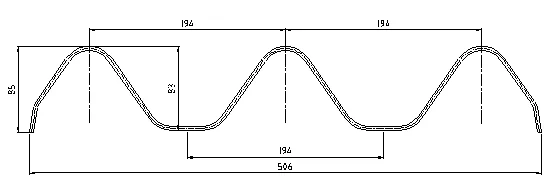

Profile drawing

Layout

l Working process

Manual Decoiling→ Feeding→Leveling→Punching→Roll forming→Cutting→Output

l Main Technical Parameters

1. Material:Galvanized steel;

2. Forming Speed: 15m/min(without punching and cutting);

3. Roll Forming Main Motor Power:37KW;

4. Leveling Motor Power:5.5KW;

5. Hydraulic Motor Power:15KW;

6. Total Power:57.5KW;

7. Power:AC380V,50Hz,3PH

We promise

1). EUROPEAN Quality Standard

2). the Best Material and Components

3). Over 30-Year-Experiences and Top International Sales

4).Custom Made as Required
