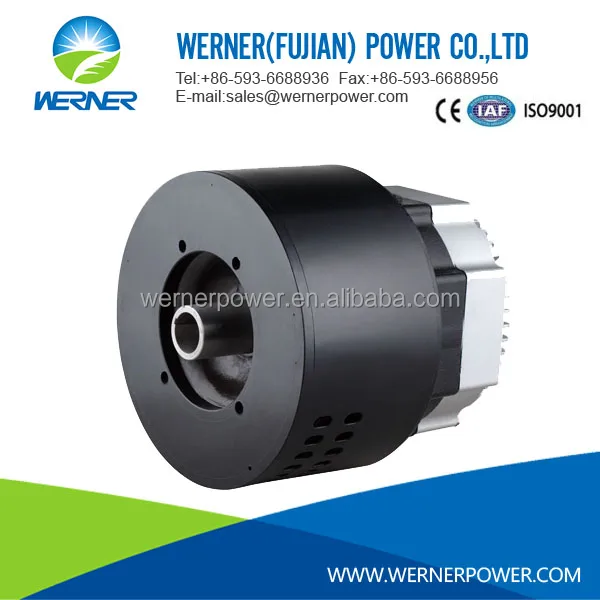

10KW PMG type inverter generator/converter generator

Product Overview

Description

1.  Rare earth permanent magnetic for rotor.

2.  100%COPPER wire winding for stator.

3.  Brushless and easy maintaince.

4.  Digital inverter to insure stable voltage and frequency.

5.  High efficiency and can save 20% fuel than normal generator.

6. Also this new design CT alternator is more compact and it can help you to save sea freight.

7. Reliable quality, 100% warranty, variable speed but stable frequency and voltage.



Model	CT-10KW
Rated voltage	230(V)
Rated current	45(A)
Rated power	10(KW) at 2100rpm
Speed	1800-2100(R/M)
Freqyency	50/60(Hz)
Output wave	pure sine wave,Waveform distortion rate≤1.5%
Stator	100% copper winding
Rotor	Rare earth permanent magnetic
GW	40.3(Kg)
NW	39.8(Kg)
Foot	232×108(MM)
Height of center	146(MM)
screw	M12
Axis dimeter	38(MM)
Packing	323×391×368(MM)
Marks	PMA+INVERTER=2 in 1 complete set

100% copper winding

Digital inverter to insure stable voltage and Hertz
