Product Overview
Description
waterproof electrical cable ip68 gland size for cables pg size cable glands
Product Description

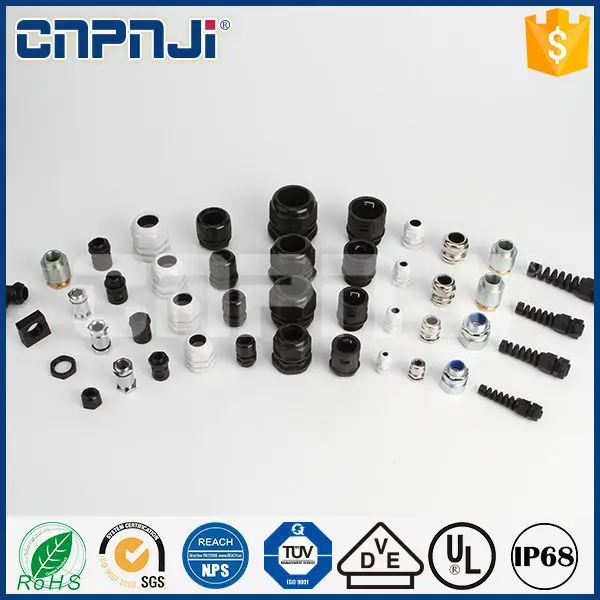

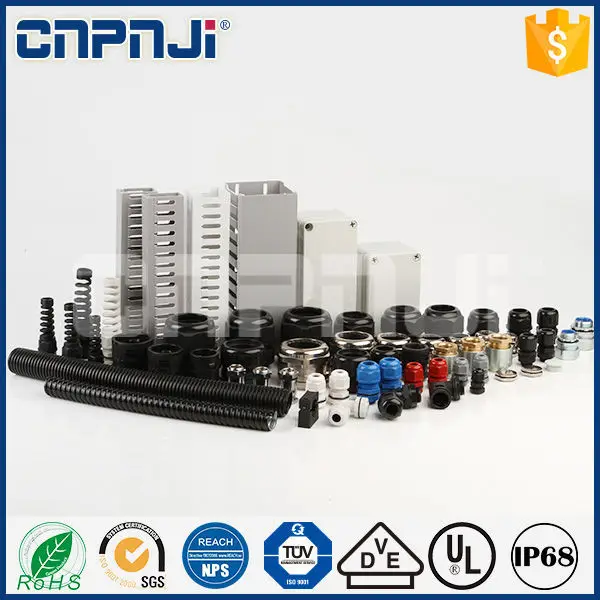

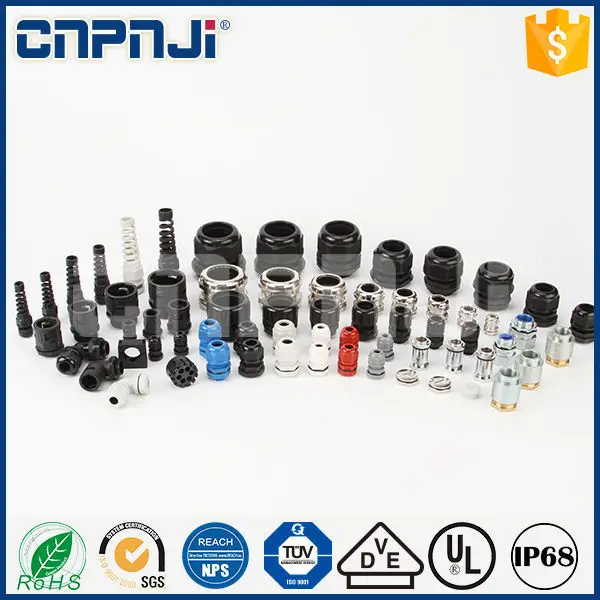

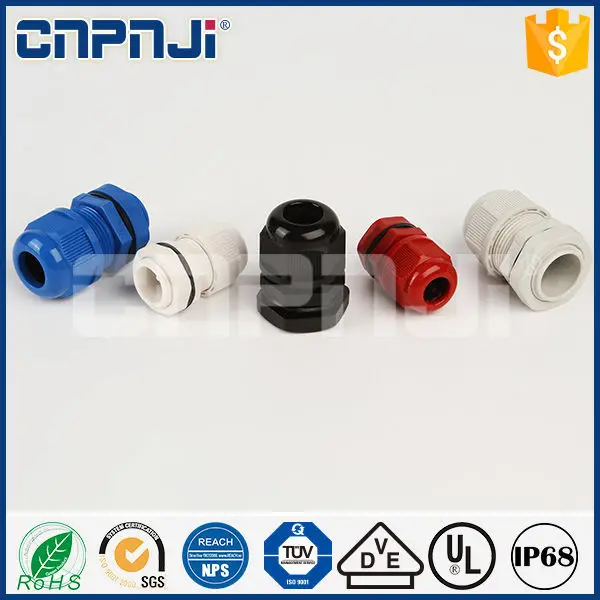

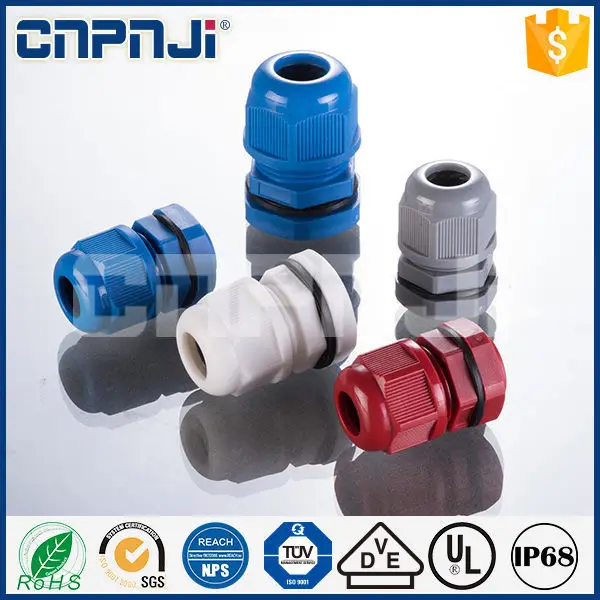

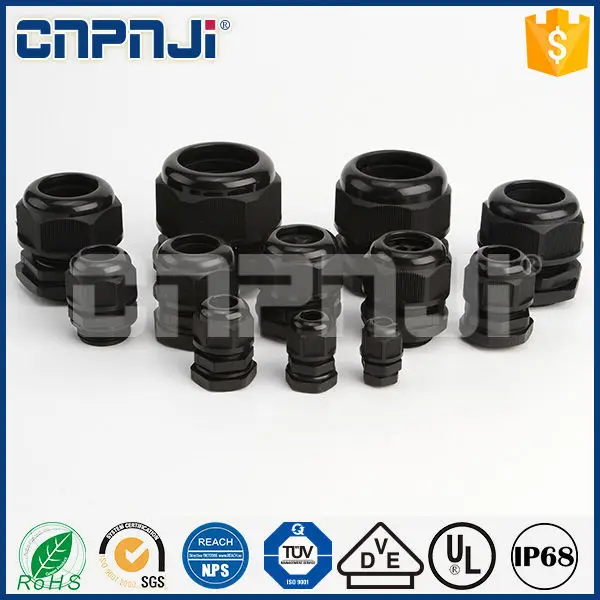

1. Pictures Of IP68 M Cable Glands
2. Specification Of IP68 M Cable Gland
| Standard Thread | PG, Metric, NPT, G(PF) |
| Meterials | UL approved nylon PA66(Flammability UL 94V-2) for A,C,E,F parts; EPDM rubber for B,D parts |
| Protection Level | IP68 |
| Working Temperature | EPDM Rubber: -40 to +100 °C Silicon Rubber: -50 to +200 °C |
| Feature | Different cable range for different cable diameter Different thread length for different junction box |
| Color | Black, Gray, White, Blue, Red (Special colorscustomizable) |
| EPDM Rubber | More waterproof; more durable; more weather resistant |
| Certificates | UL,CE,ROHS,SGS,IP68,Halogen-free,UV Resistant |
3. Exploded View And Applications Of M Cable Gland
| Thread | Item No. | Cable Range | Outer Diameter C1 | Thread Length C2 | Spanner Size A & F |
mm | mm | mm | mm | ||
| M8×1.25 | M8-4.8 | 2-5 | 8 | 7.5 | 13/12 |
| M10×1.5 | M10-6 | 3-6 | 10 | 8 | 15/12 |
| M12×1.5 | M12-5 | 3-5.5 | 12 | 8.5 | 18/19 |
| M12×1.5 | M12-7 | 4-8 | 12 | 8.5 | 18/19 |
| M12×1.5 | M12L-5 | 3-5.5 | 12 | 15 | 18/19 |
| M12×1.5 | M12L-7 | 4-8 | 12 | 15 | 18/19 |
| M16×1.5 | M16-7 | 3-7 | 16 | 10 | 22/22 |
| M16×1.5 | M16-10 | 5-10 | 16 | 10 | 22/22 |
| M16×1.5 | M16L-7 | 3-7 | 16 | 15 | 22/22 |
| M16×1.5 | M16L-10 | 5-10 | 16 | 15 | 22/22 |
| M18×1.5 | M18-7 | 3-7 | 18 | 10 | 24/22 |
| M18×1.5 | M18-10 | 5-10 | 18 | 10 | 24/22 |
| M18×1.5 | M18L-7 | 3-7 | 18 | 15 | 24/22 |
| M18×1.5 | M18L-10 | 5-10 | 18 | 15 | 24/22 |
| M20×1.5 | M20-11 | 5-11 | 20 | 11 | 27/27 |
| M20×1.5 | M20-13.5 | 9-14 | 20 | 11 | 27/27 |
| M20×1.5 | M20L-11 | 5-11 | 20 | 15 | 27/27 |
| M20×1.5 | M20L-13.5 | 9-14 | 20 | 15 | 27/27 |
| M25×1.5 | M25-13 | 7-13 | 25 | 11.6 | 33/33 |
| M25×1.5 | M25-18 | 13-18 | 25 | 11.6 | 33/33 |
| M25×1.5 | M25L-13 | 7-13 | 25 | 15 | 33/33 |
| M25×1.5 | M25L-18 | 13-18 | 25 | 15 | 33/33 |
| M32×1.5 | M32-22 | 14-22 | 32 | 15 | 41/42 |
| M32×1.5 | M32-25 | 17-25 | 32 | 15 | 41/42 |
| M36×1.5 | M36-22 | 14-22 | 36 | 12 | 45/42 |
| M36×1.5 | M36-25 | 17-25 | 36 | 12 | 45/42 |
| M40×1.5 | M40-25 | 18-25 | 40 | 15 | 50/52 |
| M40×1.5 | M40-31 | 23-32 | 40 | 15 | 50/52 |
| M50×1.5 | M50-32 | 25-32 | 50 | 15 | 62/62 |
| M50×1.5 | M50-41 | 30-41 | 50 | 15 | 62/62 |
| M63×1.5 | M63-41 | 29-38 | 63 | 18 | 75/65 |
| M63×1.5 | M63-46 | 35-46 | 63 | 18 | 75/65 |
| M75×1.5 | M75A-56 | 50-56 | 75 | 25 | 92/92 |
| M75×1.5 | M75A-66 | 56-66 | 75 | 25 | 92/92 |
| M90×1.5 | M90A-68 | 58-68 | 90 | 25 | 110/110 |
| M90×1.5 | M90A-77 | 66-77 | 90 | 25 | 110/110 |
