Copper Fuel Quick Connector/Brass Quick Connect Hydraulic Coupler/Spring Coupling
- Category: >>>
- Supplier: Shanghai Century Industry Co. Ltd.
Share on (60620613237):
Product Overview
Description
Product Description
Product Name |
|
Material | stainless steel/ carbon Steel |
Color | silver white&yellow |
Standard | DIN /EATON/PARKER |
Grade | 35#,45#,20#, SUS304, SUS316 |
Thread | Metric, BSPP, BSPT, NPT, JIC ect.. |
Used | Construction Machinery,petroleum industry,aerospace industry,farm machinery |
Product Catalogue
1.Swaged Metric Fittings Mertic Flat Seal Fittings
1.1 Metric Multiseal Fittings
1.2 Metric 60°Cone Seal Fittings
1.3 Metric 74°Cone Seal Fittings
1.4 Metric 24°Cone O-RING Seal L..T Fittings
1.5 Metric 24°Cone O-RING Seal H.T.Fittings
1.6 Metric Standpipe Straight Fittings
1.7 JIS Metric 60°Cone Seal Fitting
2. Swaged British Fittings BSP O-RING Seal Fittings
2.1 BSP Flat Seal Fittings
2.2 BSP Multiseal Fittings
2.3 BSP 60°Cone Seal Fittings
2.4 BSPT Fittings
2.5 JIS BSP 60°Cone Seal Fittings
3. Swaged American Fittings SAE O-RING Seal Fittings
3.1 RFS Flat Seal Fittings
3.2 NPSM 60°Cone Seal Fittings
3.3 JIC 74°Cone Seal Fittings
3.4 NPT Fittings SAE Flange L.T. Fittiings
3.5 SAE Flange H.T.Fittings
4. Staplelok Fittings
4.1Banjo Double connection
4.2interlock Hose Fittings
5.Ferrule
5.1 FERRULE for SAE100R1AT/ EN 853 1SN HOSE
5.2 FERRULE for SAE100R1A EN 853 1ST HOSE
5.2 FERRULE for SAE100R2AT/DIN20022 2SN HOSE
5.3 FERRULE for SAE100R2A/EN 853 2SN HOSE
5.4 FERRULE forAE100R1AT-R2AT,EN853 1SN-2SN and EN 857 2SC
5.5 FERRULE for 4SP,4SH/10-16,R12-06-16 HOSE
5.6 FERRULE for 4SH,R12/32 HOSE
6.Metric Adapters
6.1 Metric Thread O-RING Face Seal Adapters
6.2 Metric Thread Bite Type Tube Adapters
6.3 JIS Metric Thread 60°Cone Adapters
6.4 Metric Thread 74°Cone Flared Tube Adapters
7.British Adapters
7.1 BSP Thread 60°Cone Adapters
7.2 JIS BSP Thread 60°Cone Adapters
7.3 BSPT Thread Adapters
8. American Adapters
8.1 ORFS Adapters JIC 74°Cone Flared Tube Adapters
8.2 NPT Thread Adapters
9.Hydraulic Quick Disconnect Coupling
9.1 ISO7241-A & B Quick Disconnect Coupling, Stainless Steel 316 or 304, Carbon Steel #45
9.2 ISO5675 Quick Disconnect Coupling
9.3 ISO5676 Quick Disconnect Coupling
9.4 ISO16028 Quick Disconnect Coupling
9.5 Thread Connect Quick Disconnect Coupling
9.6 Washing Machine Use Quick Disconnect Coupling Dixon and Nitto interchangeable
9.7 China Common use KZE, QZB275-77 Quick Disconnect Coupling
10.Pneumatic Quick Disconnect Coupling
10.1 CEJN series Air Quick Disconnect Coupling
10.2 Nitto Series Air Quick Disconnect Coupling
10.3 Rectus Type Air Quick Disconnect Coupling
10.4 US Millton Type Quick Disconnect Coupling
11.Hydraulic Rotary Union
11.1 Parker DG type

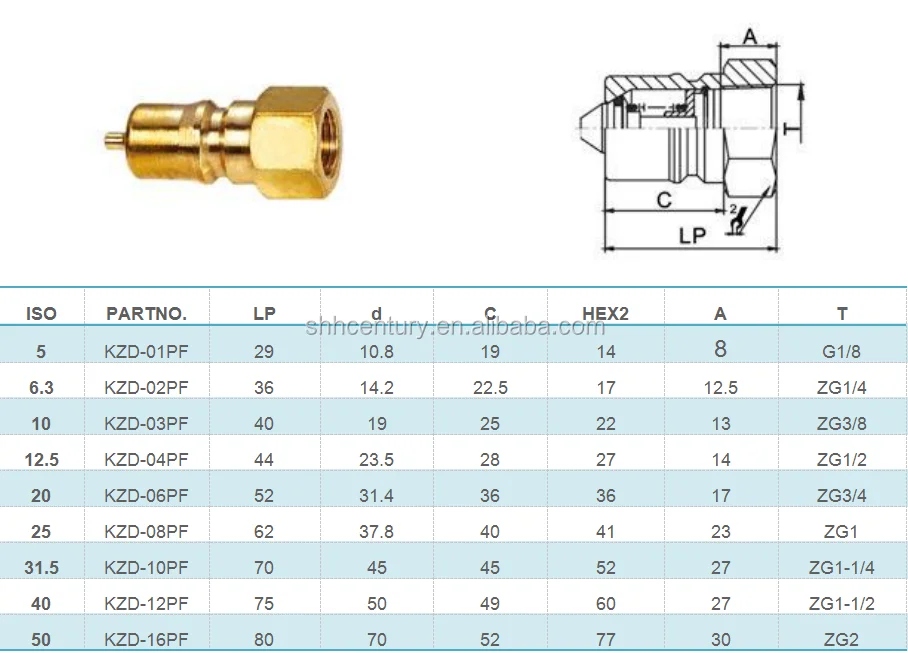

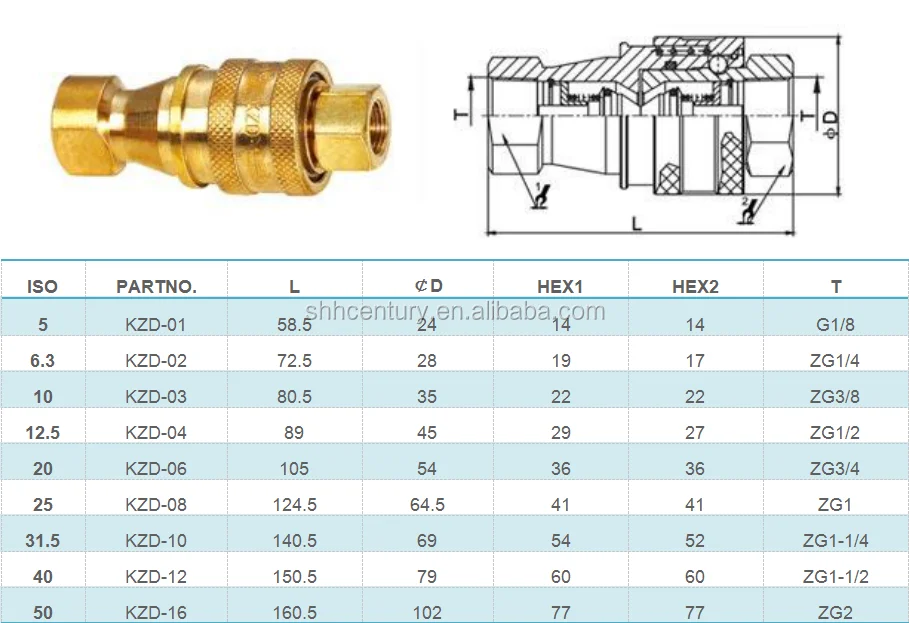

KZD Medium-pressure High Performance Pneumatic And Hydraulic Quick Coupling(Brass)
Applications: KZD couplings, are used across the spectrum of hydraulic applications. These Double Shut-Off couplings can be found anywhere that fluid transfer lines need to be connected and disconnected for operation or maintenance of equipment, and a loss of fluid is undesirable. Primarily used with hydraulic fluid. KZD couplings are also used with chemicals, water, steam, and some gases.

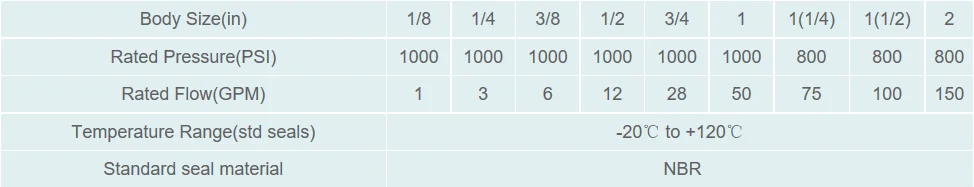

Specifications:
KZD Series couplings feature:
1.Poppet valves available to prevent uncoupled leakage.
2.Poppet valves open automatially when coupled within rated working pressure, to keep the flow expeditely.
3.Dependable ball-locking mechanism holds the mating halves together.
4.Socket and plug are precision machined from solid bar stock.
5.KZD series conforms to the standard ISO7241-B.
6.Compatible with PARKER 60 Series, FASTER HNV Series, AEROQUIP FD45 Series and HANSEN HK Series.
Packaging & Shipping
Packaging:Carton or wooden Pallet
Shipping:Vessel or Courier
Production progress
Production Progress
Customer Visting
Application
Application
