18W 35W 65W self regulating heating cable 220v heating cable for heat tracing
- Category: >>>
- Supplier: Yiteng Cable Technology Hebei Co. Ltd.
Share on (60620725949):
Product Overview
Description
Product Description

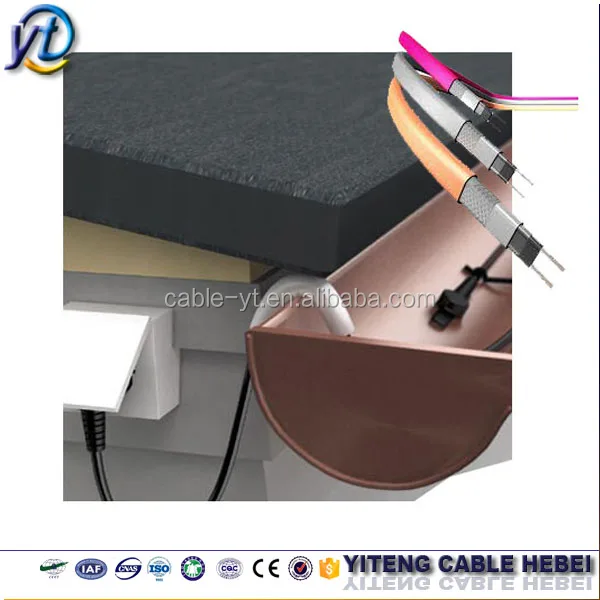

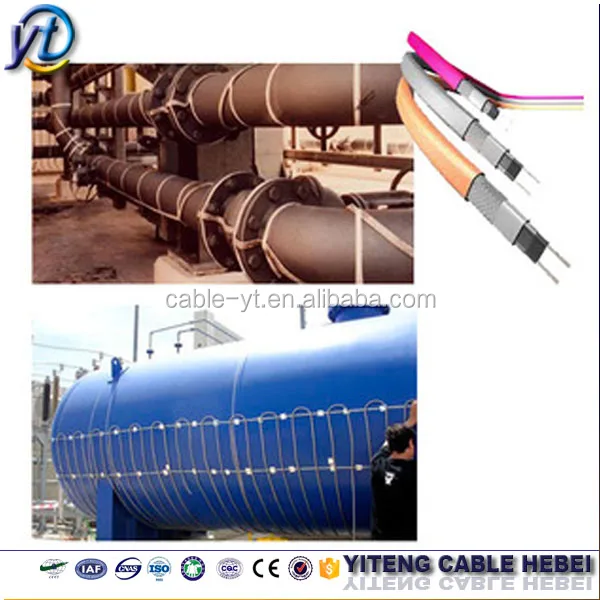

self regulating heating cable 220v heating cable application
Self regulating heating cable DXW series
is mainly used for frozen-prevention of pipelines for civil solar heater tape,
geothermal heating petroleum, chemical, steel and electric power in industrial enterprises as wellas warming , anti condensation, and anti freezing of storage tanks the cable is suitable for general area, hazardous area, and corrosive area.

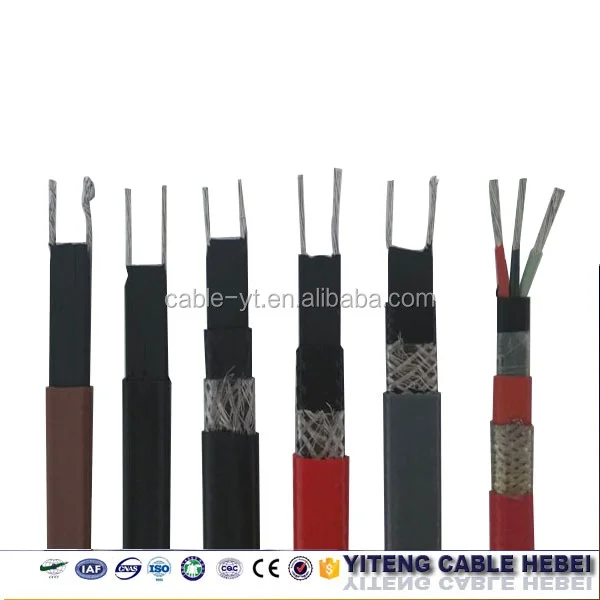

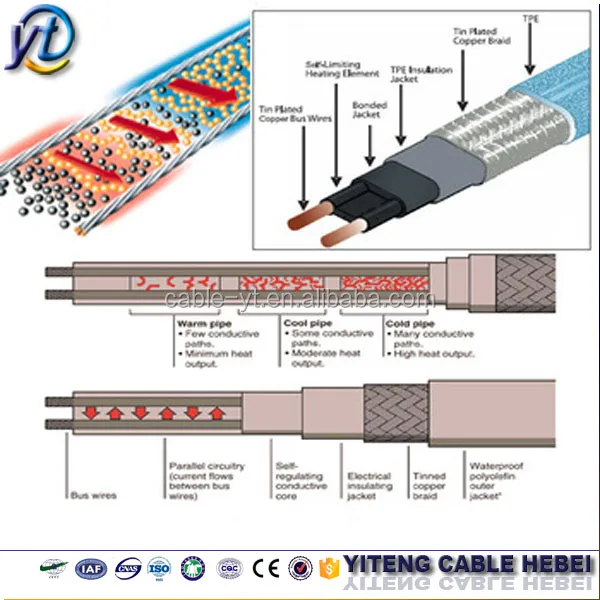

self regulating heating cable 220v heating cable structure
| 1. copper bus wire | 7x0.23,7x0.3,7x0.37,7,0.43,7x0.5,19x0.23,19x0.3 |
| 2. heating element | coductive plastic |
| 3. insulation | polyolefin |
| 4. shield | Tinned copper wire or magal |
| 5. outer jacket and sheath | modified polyolefin, flame ratardant polyolefin, fluoride polyolefin,perfluorinated material |
3 types of automatic temperature control heat tracing Tape cable
type1) Low temperature series 70℃
DXW-J-25-220
DXW-P-25-220
DXW-P/F-25-220
DXW : 70 deg c low temperature ,
J: basic type,
P: shielded ex-proof type P
P/F: protection and anti corrosive type PF
25 wattage , Rated Voltage 220V
Voltage Optional: 24V, 36V, 110V,220V, 380V,
Power optoin : 10W/M, 15W/M,20W/M,25W/M,30W/M,35W/M,40W/M,
Anti EX: EXe II T4
Color: black
type2) Middle temperature series 105℃
ZXW-J-45-220
ZXW-PZ-45-220
ZXW-J-P/F-45-220
ZXW : 105 deg c low temperature ,
J: basic type,
P: shielded ex-proof type P
P/F: protection and anti corrosive type PF
Voltage Optional: 36V, 110V, 220V, 380V,600V,
Power optoin : 35W/M, 45W/M,55W/M,65W/M,25W/M,40W/M,
Anti EX: EXe II T4
Color: Brown
type3) High temperature series 135℃
GXW-J-45-220
GXW-P-45-220
GXW-P/F-45-220
ZXW : 105 deg c low temperature ,
J: basic type,
P: shielded ex-proof type P
P/F: protection and anti corrosive type PF
Voltage Optional: 36V, 110V, 220V, 380V,600V,
Power optoin : 45W/M, 55W/M,65W/M,75W/M,25W/M,35W/M,
Anti EX: EXe II T3
Color: Red
self regulating heating cable 220v heating cable advantages
1. temperature evenness, not overheat, safety and reliable
This self regulating characteristics occurs at every point along the length of cable, even in the overlapped point, does not create hot spots or burnout.
2. Energy Savings
3. Temperature rises up quickly during discountinuous operation
4. Low cost in installation and running
5.Easy installation and maintenance
6. Convenient for automated management
7. No environmental pollution
8. Suitable for complex pipeline heat tracing
9, Suitable for antifreezing of instrument box
10. Suitable for pipeline heat tracing of remote device
It is ideal for heating tracing in complicated heating environment.
The maintenance temperature for fluid can reach 120C.
It can be used in division 1, 2 hazardous (mixed gas) class locations.
self regulating heating cable 220v heating cable pictures
Characteristics:
low temperature 75℃
| temperature range | Max mantain temp 65±5℃, Max surface temp: 70±5℃, Max bearable Temp:105℃ |
| Construction Ambient Temp | Max -40℃ |
| Thermal Steady | 10℃-99℃ recycle 300 times, power output 90% of rated power |
| Beding Radius | @20℃ 25.4mm @ -30℃ 35mm |
| Insulation Resistance | 100 meters long, ambient 75℃ Min 1200Ω |
Middle temperature 105℃
| temperature range | Max mantain temp 105±5℃, Max surface temp: 120±5℃, Max bearable Temp:130℃ |
| Construction Ambient Temp | Max -30℃ |
| Thermal Steady | 10℃-149℃ , recycle 300 times, power output 90% of rated power |
| Beding Radius | @20℃ 25.4mm @ -30℃ 35mm |
| Insulation Resistance | 100 meters long, ambient 75℃ Min 3000Ω |
High temperature 135℃
| temperature range | Max mantain temp 135±5℃, Max surface temp: 140±5℃, |
| Construction Ambient Temp | Max -60℃ |
| Thermal Steady | 10℃-149℃ , recycle 300 times, power output 90% of rated power |
| Beding Radius | @20℃ 25.4mm @ -30℃ 35mm |
| Insulation Resistance | 100 meters long, ambient 75℃ Min 3000Ω |
self regulating heating cable 220v heating cable data sheet
| Catalog Number | 20 C output power Wattage | Fuse/circuit breaking sizing ( m ) | ||||
| Normal | Reinforced | 15A | 20A | 30A | 40A | |
| DXW | DWX(Q)-10 | 10 | 110 | 130 | 170 | 200 |
| DXW | DXW(Q)-20 | 20 | 85 | 105 | 135 | 160 |
| DXW | DXW(Q)-30 | 30 | 65 | 85 | 105 | 125 |
| DXW | DXW(Q)-40 | 40 | 45 | 60 | 75 | 90 |
| DXW | DXW(Q)-50 | 50 | 40 | 55 | 70 | 85 |
| DXW | DXW(Q)-60 | 60 | 40 | 50 | 65 | 80 |
for fire alarm, firefighting and fire resistance zero halogen self regulating heating cable see more or our products ZRD-XW2-F ZRD-XW2-PF
Packaging & Shipping
cable packing
1. packed in standard export drums or other ways per customer's requirement;
2. handled and shipped carefully to ensure perfect package unpon customer's receiving.
3. packed in circle, length 100m long.
4. packed in bundle length no less than 100m.
5. in wooden case plastic reel then on pallet
as per the agreement
Certifications
Certificates
the certification we have available
ISO9001 ISO14001 CCC CE ROHS SGS etc
